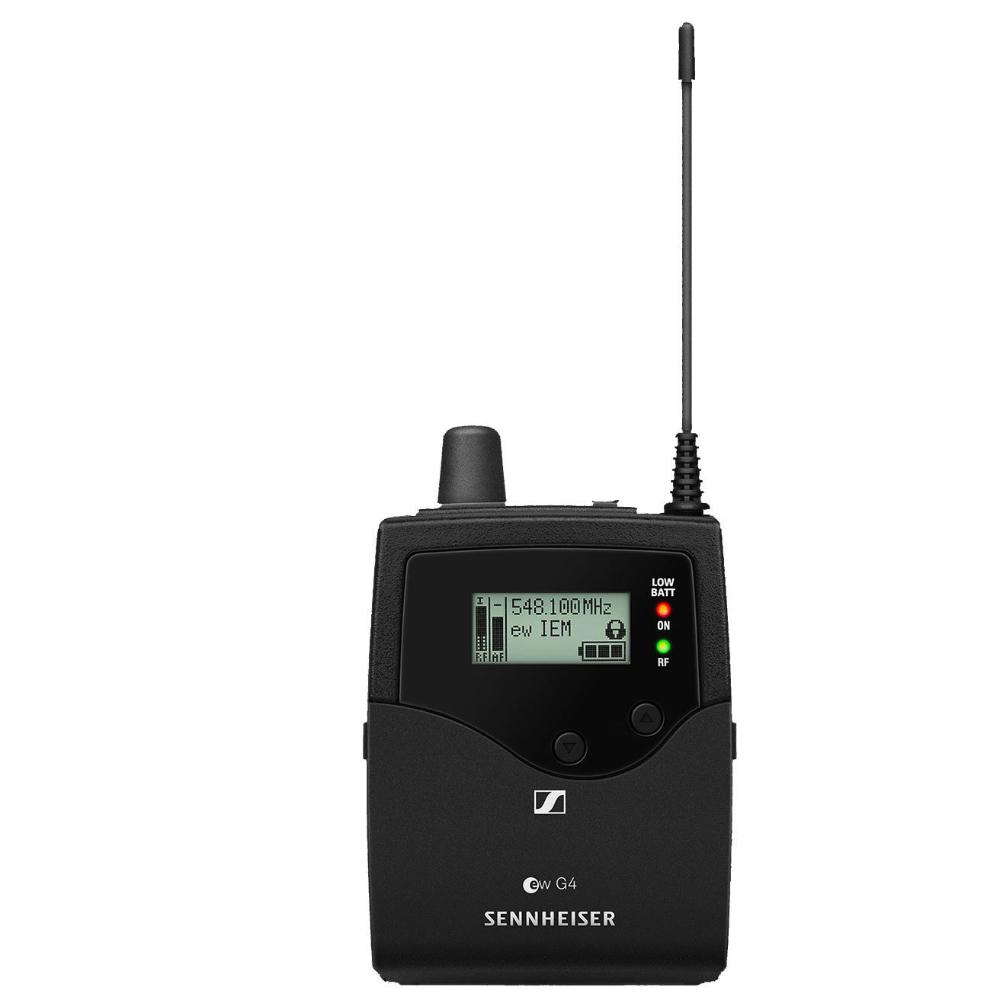

Sennheiser EKIEMG4-B Stereo Bodypack Receiver 626 - 668 MHz

SKU: 509624
$739.00
In stock: 2
NOTIFY ME WHEN BACK IN STOCK
Description

*Backwards compatible with G3 Series in same freqency band

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.



Key Features

  • Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Compatible with Sennheiser WSM control software for flexible frequency allocation

  • Up to 16 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 100 meters / 300 feet

  • High RF output power (up to 50 mW) depending on country regulations

  • Dimensions
    Approx. 82 x 64 x 24 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
  • Weight
    (incl. batteries) approx. 125 g
  • Signal-to-noise ratio
    approx. 90 dBA
  • Switching bandwidth
    up to 42 MHz
  • Peak deviation
    ±48 kHz
  • Nominal deviation
    ±24 kHz
  • Operating time
    approx. 4 to 6 hours (depending on volume level)
  • Modulation
    Wideband FM
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
    at nominal voltage: approx. 140 mA
    with transmitter switched off: ≤ 25 µA
  • Adjacent channel rejection
    Typically ≥ 65 dB
  • Audio-Output-Power
    2 x 100 mW at 32 Ω
  • Intermodulation attenuation
    Typically ≥ 70 dB
  • Limiter
    –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
  • Powering
    3 V battery / 2.4 V rechargeable battery
  • Receiving frequency
    Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
  • RF sensitivity
    < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
  • Squelch
    5 to 25 dBµV, adjustable in steps of 2 dB
  • Bass Boost
    +8 dB at 80 kHz
  • Temperature Range
    -10 °C to +55 °C
  • Receiver Principle
    Adaptive diversity
  • Blocking
    ≥ 80 dB


     What's in the Box

    • EK IEM G4 stereo receiver
    • 2 AA batteries
    • IE 4 earphones
    • quick guide
    • safety guide
    • manufacturer declaration sheet
