Presonus PRE-QUANTUM2 2TB Interface (last one!)
Description
Your expandable, ultra-high definition recording system.
Taking full advantage of the high-speed Thunderbolt 2 bus and ADAT Optical I/O, the PreSonus® Quantum 2 audio/MIDI interface delivers up to 22 inputs and 24 outputs, with extremely low latency. Boasting superb audio quality; 24-bit, 192 kHz recording and playback; recallable XMAX microphone preamps; and the ability to expand your system as your needs grow, it’s a great choice for a wide variety of professional and semi-pro producers and electronic musicians.
We cut the wait.
Every design decision during Quantum 2’s engineering was made with one goal in mind: speed. Quantum 2 sports high-speed Thunderbolt 2 connectivity and a no-frills, direct-to-DAW architecture, with no DSP. The result is our leanest, fastest, lowest-latency interface to date.
Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range and a surprising amount of expandability and software control options round out the package.
Expandable when you need more I/O—up to 80 in and out.
The Quantum 2 offers two combo mic/instrument inputs and two combo mic/line inputs, each with a digitally-controlled XMAX preamp and individual +48V phantom power. You also get four balanced ¼” TRS outputs and a headphone out with dedicated volume control. But that’s just the start. With ADAT Optical I/O and S/PDIF stereo digital I/O, you can have up to 18 digital inputs and outputs. And if you need even more I/O channels, you can stack up to four Quantum 2 interfaces via Thunderbolt to create a monster system with up to 80 in and out. BNC word clock I/O ensures your Quantum and other digital audio devices operate in tight sync. And of course you get MIDI I/O, too.
Features
General Features
- 22x24 Thunderbolt™ 2 ultra-low-latency audio interface
- PreSonus’ fastest interface; record direct to DAW (no DSP)
- Stack up to four Quantum interfaces via Thunderbolt for a monster system
- Assignable output level control
- 6 8-segment LED meters (4 input, 2 output)
Integrated Software
- Tight integration with included Studio One® Artist DAW software (Mac/Windows) for multitrack music production and studio command features
- Wireless control over preamp levels from free UC Surface touch-control software (Mac®/Windows®/iPad®/Android™) and from free Studio One Remote for iPad
- Compatible with most recording software for Mac and Windows
- Studio Magic Plug-in Suite included
Flexible Connectivity
- Simultaneous I/O up to 22 inputs/24 outputs (at 44.1 or 48 kHz)

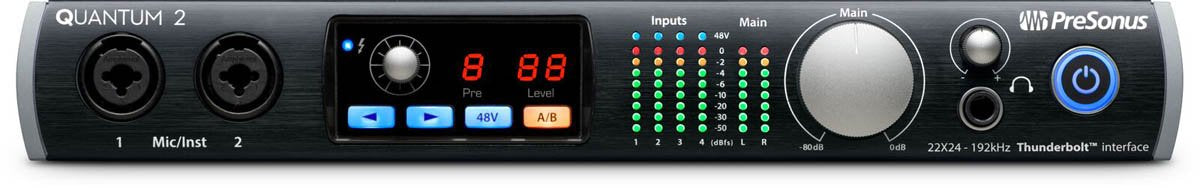

- 2 front-panel combo microphone/instrument inputs

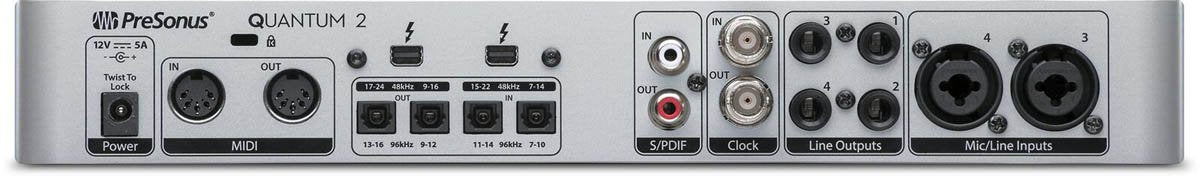

- 2 rear-panel combo microphone/line-level inputs
- 4 XMAX remote-controllable, Class A mic preamps with individually switched 48V phantom power
- 4 balanced ¼” TRS line-level outputs
- Line outputs are DC coupled for sending control voltages for analog gear
- ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
- Stereo S/PDIF coaxial input and output
- 1 high-volume headphone output with dedicated volume controls
Digitalia
- Thunderbolt 2 high-speed bus
- 24-bit resolution and up to 192 kHz sampling rate
- Top-quality 120 dB A/D/A converters
- BNC word clock input and output with low-jitter clocking
- MIDI I/O on 5-pin DIN connectors
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- 12 VDC external power supply (included)
