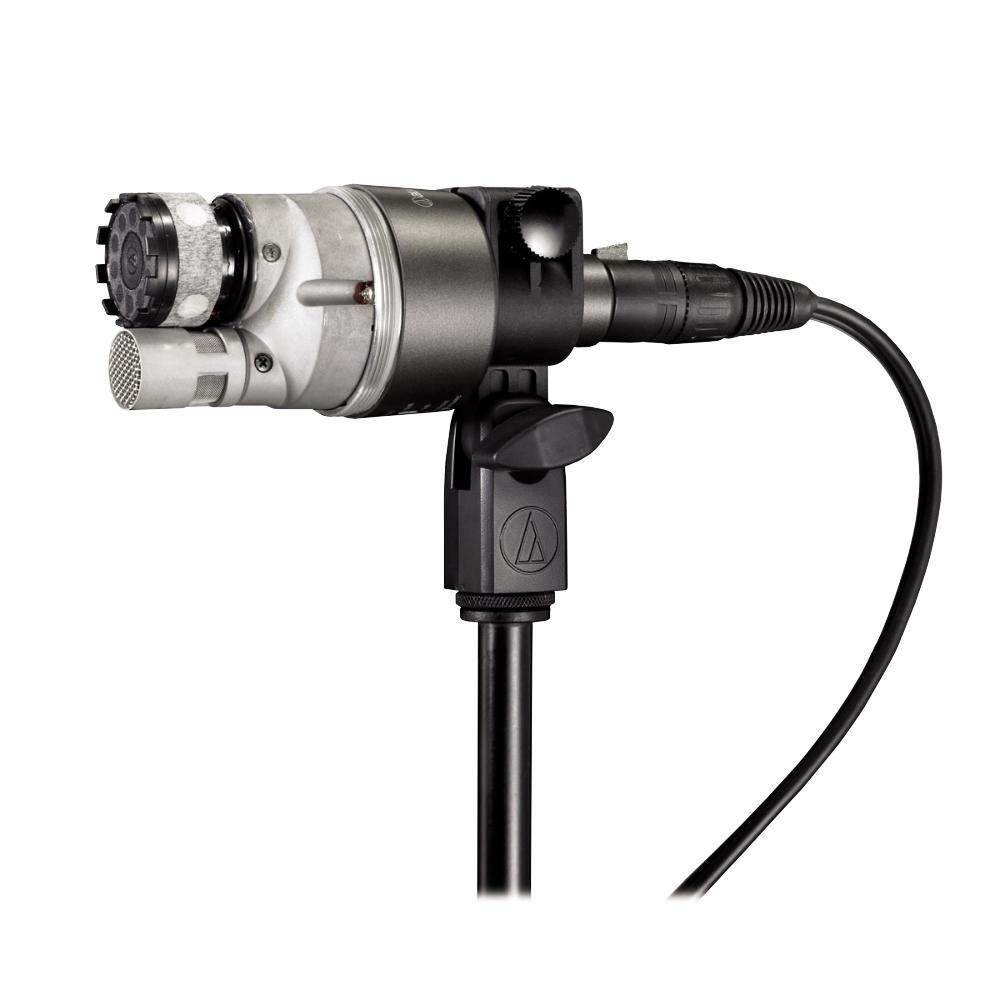

Audio Technica ATM250DE Dual Diaphragm Condenser/Dynamic Instrument Microphone
SKU: ATM250DE
Out of Stock, contact for ETA
Description
The ATM250DE dual-element instrument microphone features cardioid condenser and hypercardioid dynamic capsules combined in a single housing. Audio-Technica’s innovative use of two polar patterns is ideal for kick drum: the hypercardioid dynamic element focuses tightly on the aggressive attack of the beater, while the condenser captures the round tonalities of the shell. The elements are positioned in a perfect phase relationship, something practically impossible to achieve with two separate microphones. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
- Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
- Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
- Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
- Perfect for kick drum, guitar amps, percussion and other instruments
- Integral 80 Hz HPF switch and 10 dB pad (condenser element)
- Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
- Corrosion-resistant contacts from gold-plated XLRM-type connector
- Rugged, all-metal design and construction for years of trouble-free use
| ELEMENTS | Condenser, dynamic |
| POLAR PATTERNS | Cardioid (condenser) Hypercardioid (dynamic) |
| FREQUENCY RESPONSE | 40-20,000 Hz (condenser) 40-15,000 Hz (dynamic) |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave (condenser) |
| OPEN CIRCUIT SENSITIVITY | –49 dB (3.5 mV) re 1V at 1 Pa (condenser) –53 dB (2.2 mV) re 1V at 1 Pa (dynamic) |
| IMPEDANCE | 50 ohms (condenser) 600 ohms (dynamic) |
| MAXIMUM INPUT SOUND LEVEL | 148 dB SPL, 1 kHz at 1% T.H.D. (condenser) |
| DYNAMIC RANGE (typical) | 122 dB, 1 kHz at Max SPL (condenser) |
| SIGNAL-TO-NOISE RATIO | 68 dB, 1 kHz at 1 Pa (condenser) |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 3.5 mA typical (condenser) |
| SWITCHES | Flat, roll-off; 10 dB pad (condenser only) |
| WEIGHT | 320 g (11.3 oz) |
| DIMENSIONS | 143.6 mm (5.65") long, 55.0 mm (2.17") diameter |
| OUTPUT CONNECTOR | Integral 5-pin XLRM-type |
| CABLE | 5.0 m (16.5') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors |
| ACCESSORIES FURNISHED | AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch |
| AUDIO-TECHNICA CASE STYLE | R9 |
