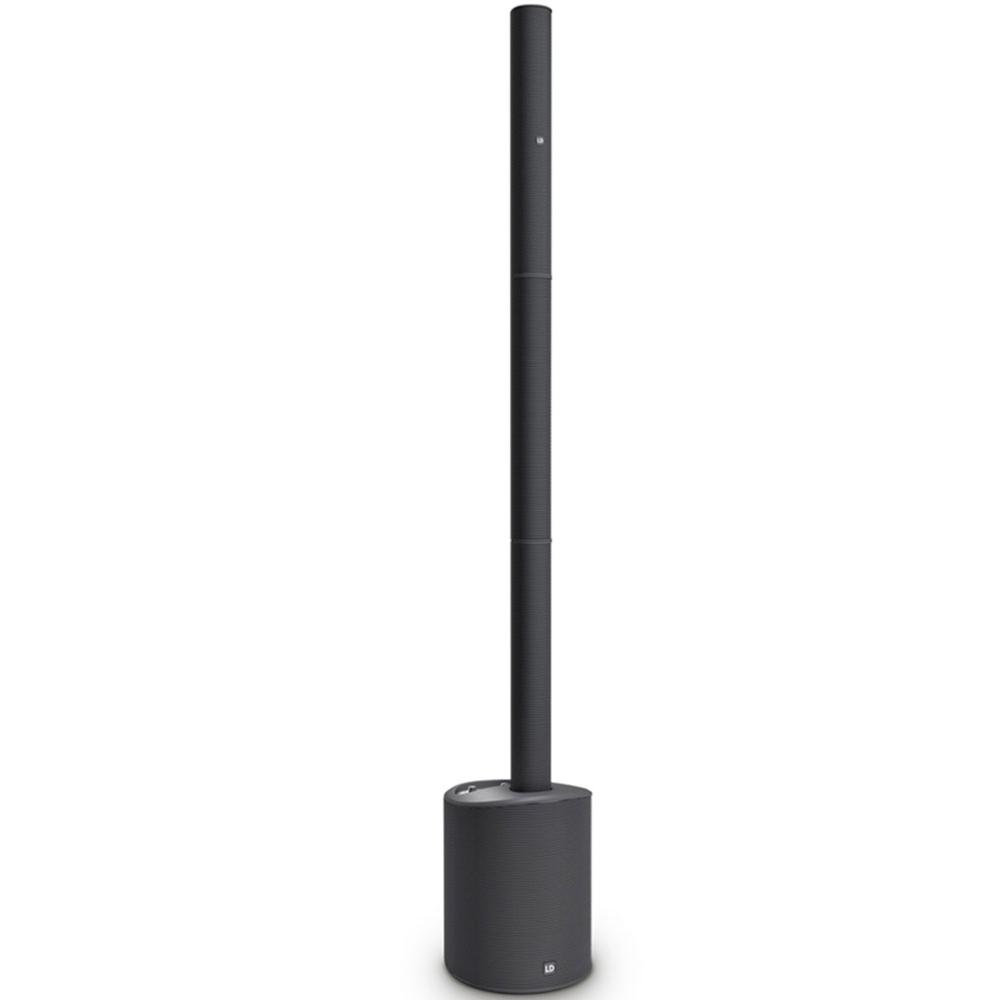

Perfectly equipped throughout, the MAUI® 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power to 12 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

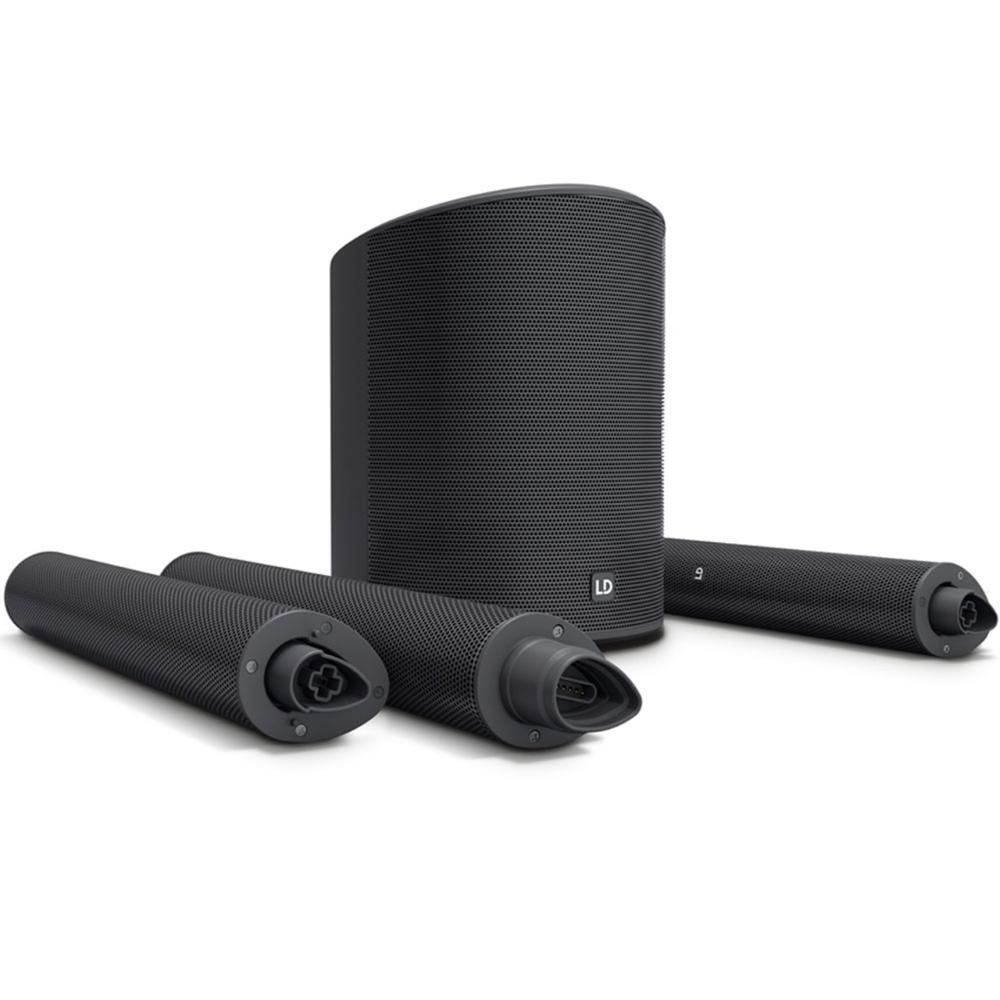

Its superlight weight of just 12.4 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.
For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. In addition, LD Systems' Quick-Swap-Technology® enables the immediate, problem-free replacement of the battery element and thus offers the possibility of extending the operating time of the MAUI® 5 GO 100 as desired.

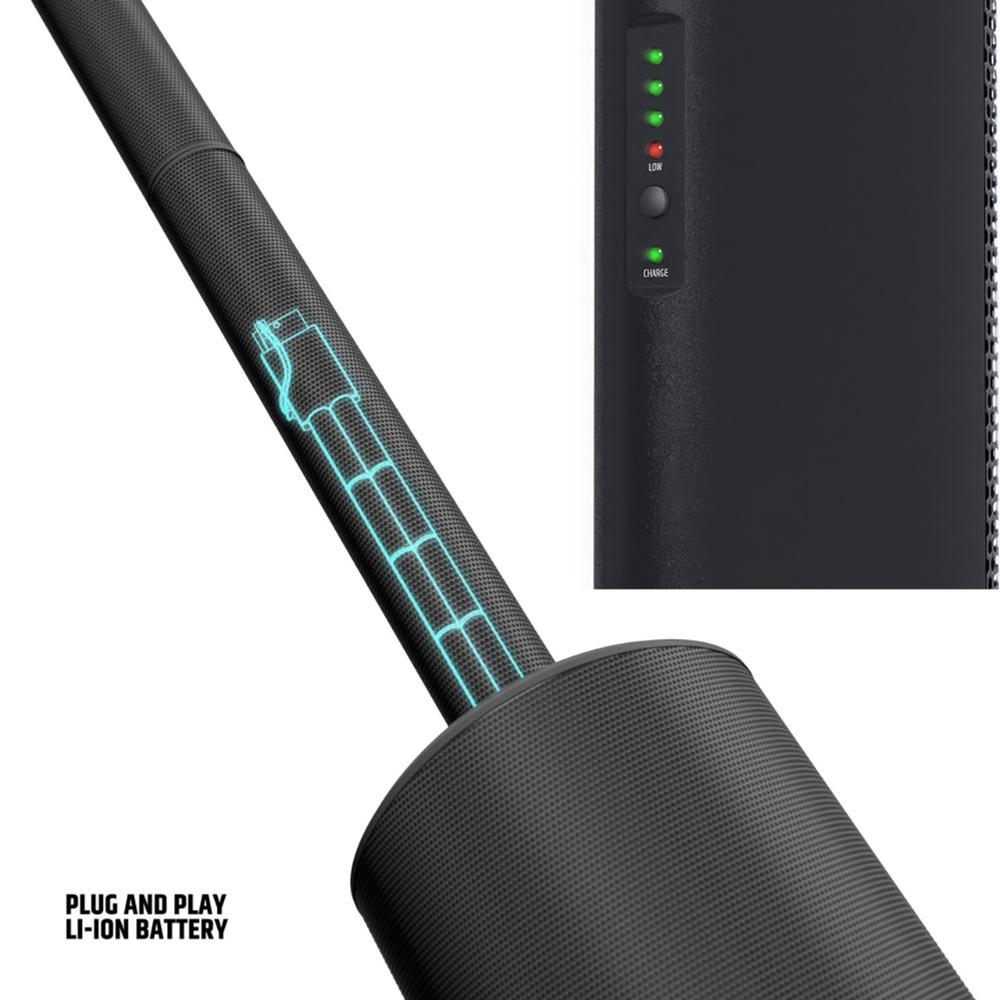

- Plug-and-play lithium ion battery for up to 12 hours continuous operation
- Practically unlimited power supply thanks to Quick-Swap Technology®
- Provides sound to over 100 people
- Ultra-light, portable 4-piece design that weighs only 12.4 kg

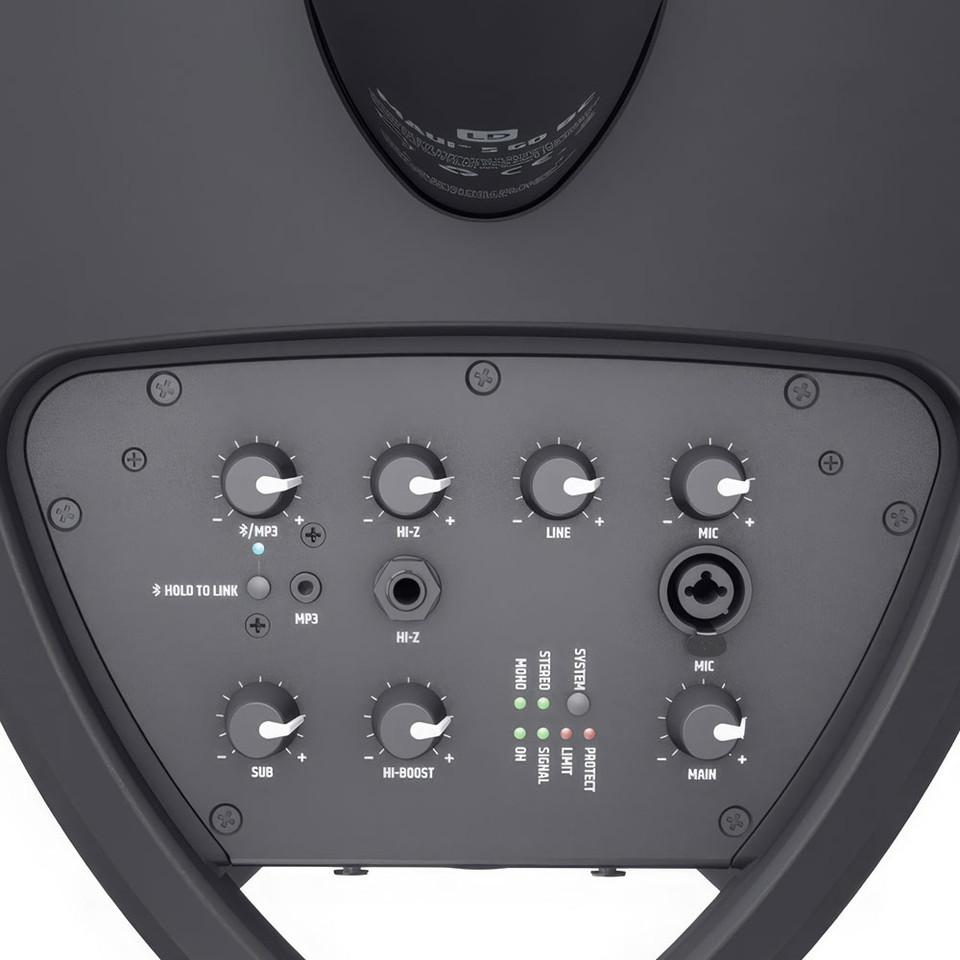

- Integrated 4-channel mixer
- Bluetooth® stereo audio streaming
- All-in-one column speaker for PA and monitor applications
- Increased range and broader coverage thanks to line-array design
| Product type |
PA Complete Systems |
| Type |
active |
| Number of subwoofers |
1 |
| colour |
Black |
| Max. SPL (Peak) |
120 dB |
| Frequency response |
50 - 20000 |
| Dispersion (H x V) |
120° x 20 ° |
| Overall height |
1985 mm |
| Weight |
12.4 kg |
Battery
| Rechargeable batteries |
28,8V / 3200mAh |
| Battery manufacturer |
LG Chem |
| Battery technology |
Lithium-ion |
| Battery operation time at maximum load |
12 hours @ 98 dB (Lounge) |
| Battery operation time at maximum load |
4 hours at 120 dB (DJ mode) |
| Battery operation time at maximum load |
6 h @ 104 dB (Live music) |
| Charging time |
1.5 hours up to 80% |
| Charging time |
2 hours up to 100% |
Woofer characteristics
| Low/mid Woofer dimensions |
8 " |
| Woofer dimensions (mm) |
203.2 mm |
| Woofer magnet |
Ferrite |
| Woofer brand |
Custom-made |
| Woofer voice coil |
2 " |
| Woofer voice coil (mm) |
50.8 mm |
| Cabinet construction |
Bass Reflex |
| Cabinet material |
ABS plastic |
| Subwoofer width |
305 mm |
| Subwoofer height |
405 mm |
| Subwoofer depth |
395 mm |
| Subwoofer weight |
8.9 kg |
Mid/Hi System
| Midrange dimensions |
4 x 3 " |
| Midrange dimensions (mm) |
4 x 76.2 mm |
| Midrange magnet |
Neodymium |
| Midrange brand |
Custom-made |
| Midrange voice coil |
1 " |
| Midrange voice coil |
25.4 mm |
| Mid/Hi system impedance |
4 Ohm(s) |
| Loudspeaker inputs |
1 |
| Speaker input connections |
Custom-made multipin |
| Cabinet construction mid/high |
Closed |
| Mid/Hi system cabinet material |
ABS plastic |
| Mid/Hi system width |
82 mm |
| Mid/Hi system height |
535 mm |
| Mid/Hi system depth |
105 mm |
| Mid/Hi system weight |
3.5 (3ps) kg |
Amplifier module (integrated in subwoofer)
| Amplifier |
Class D |
| Amplifier output system (RMS) |
200 W |
| Amplifier output system (peak) |
800 W |
| Protection circuits |
DSP-based multiband limiter |
| Protection circuits |
over-current |
| Protection circuits |
short circuit |
| Protection circuits |
thermal overload |
| Cooling |
Convection |
| Operating Temperature |
0 - 50 °C |
| Controls |
BT level |
| Controls |
BT pairing |
| Controls |
MP3 / Hi-Z level |
| Controls |
Line level |
| Controls |
Mic level |
| Controls |
Main level |
| Controls |
Mono/stereo mode |
| Controls |
On / Off |
| Controls |
Sub level |
| Indicators |
Protect (protection circuit engaged) |
| Indicators |
Signal |
| Indicators |
Limit |
| Indicators |
On |
| Power supply |
Switching power supply |
| Operating voltage |
100 V AC - 240 V AC, 50 - 60 Hz |
| Operating voltage |
200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) |
| Power consumption |
300 W |
| Line inputs |
2 x stereo |
| Line input connectors |
XLR |
| Line input connectors |
6.3 mm jack |
| Mic inputs |
1 |
| Mic inputs |
6.3 mm jack |
| Mic inputs |
XLR |
| MP3 inputs |
1 |
| MP3 input connectors |
3.5 mm jack |
| Hi-Z inputs |
1 |
| Hi-Z input connectors |
6.3 mm jack |
| Loudspeaker outputs |
1 |
| Speaker output connections |
Custom-made multipin |
DSP characteristics
| Bit depth AD/DA converter |
24 / 24 bit |
| Internal sampling frequency |
48 kHz |
