Chauvet DJ Data Stream 4 DMX Optical Splitter

SKU: DATASTREAM
$229.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Chauvet DJ
Description

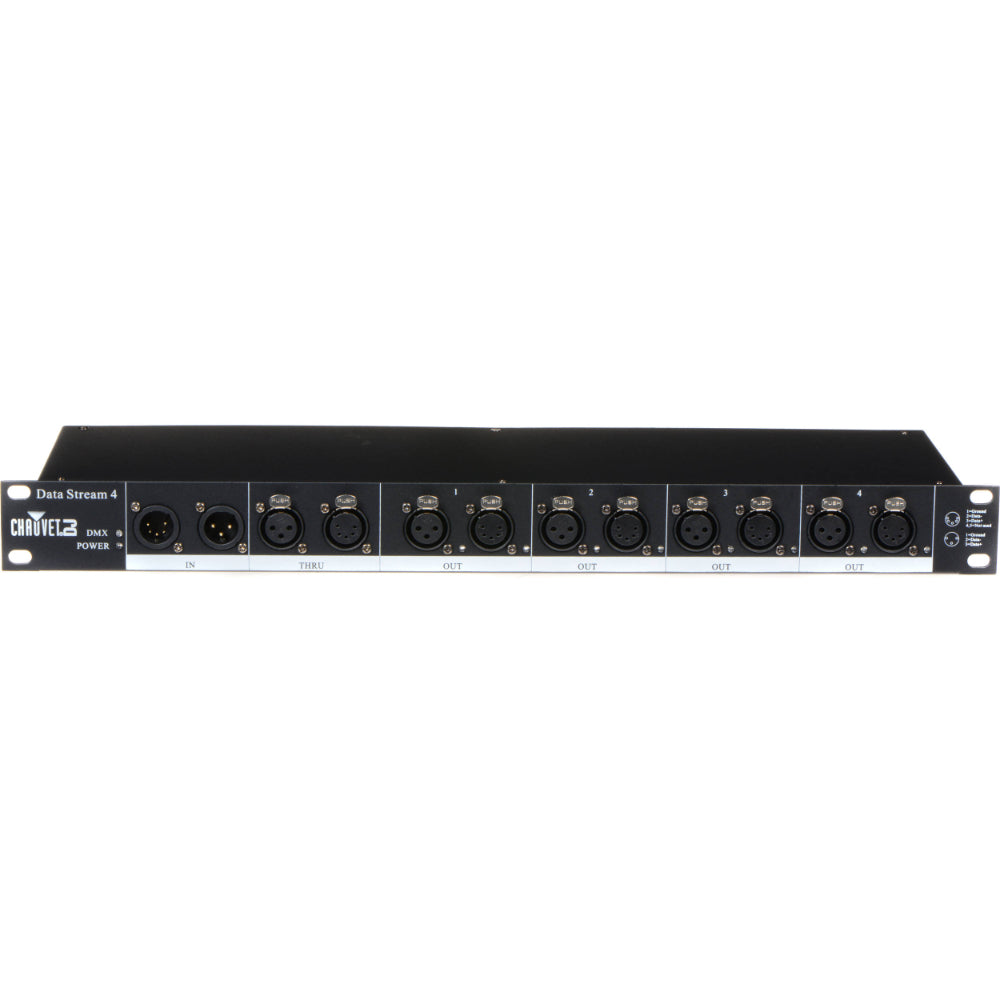

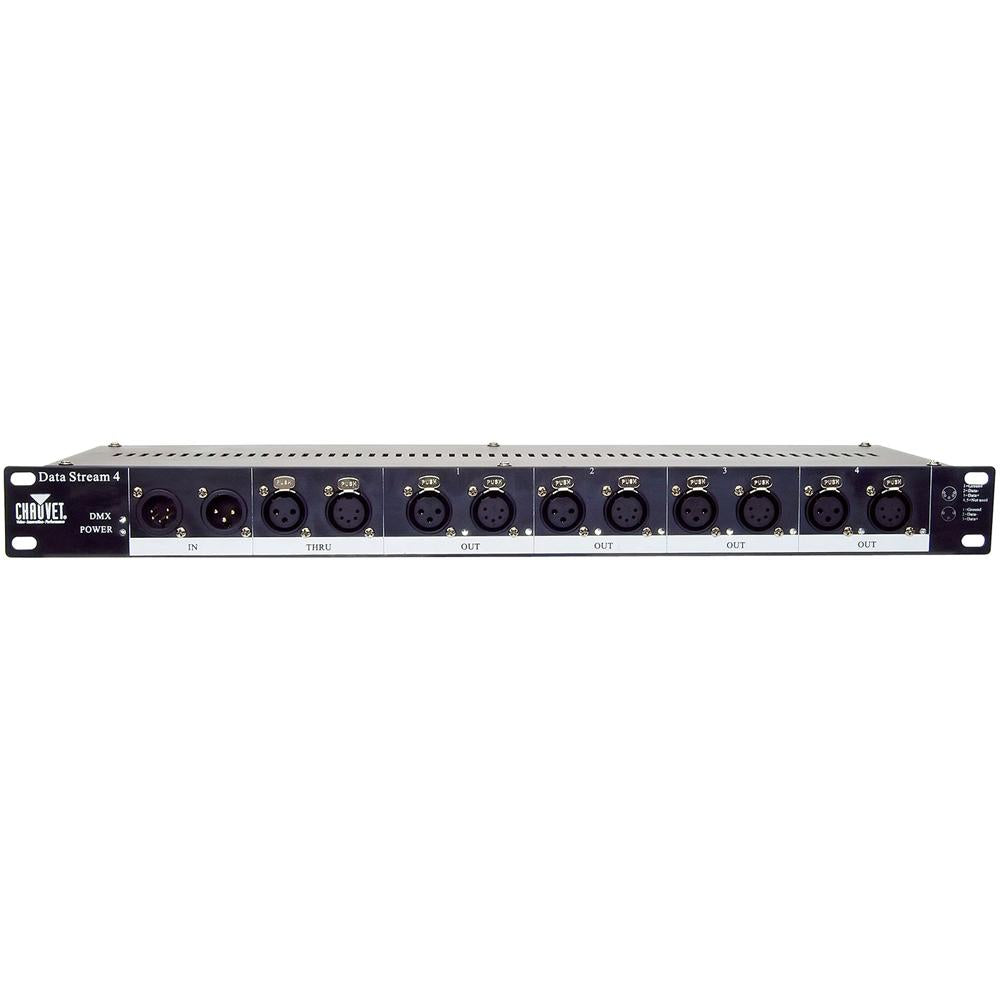

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional “thru” port.

  • Universal, optical DMX splitter provides 4 outputs from a single input
  • Increase flexibility with 3- and 5-pin XLR connections for each input/output
  • Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
  • Electrical isolation between input and output
  • Conveniently mount with a shorter cable run using the single space (1U) mounting rack

Specifications

  • DMX Channels: 3- and 5-pin
  • Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
  • Power and Current: 3W, 0.1A @ 120V 60Hz
    5W, 0.1A @ 230V 50Hz
  • Weight: 5.8 lb (2.6 kg)
  • Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
  • Approvals: CE

WHAT'S INCLUDED

  • Power cord
  • Warranty card
