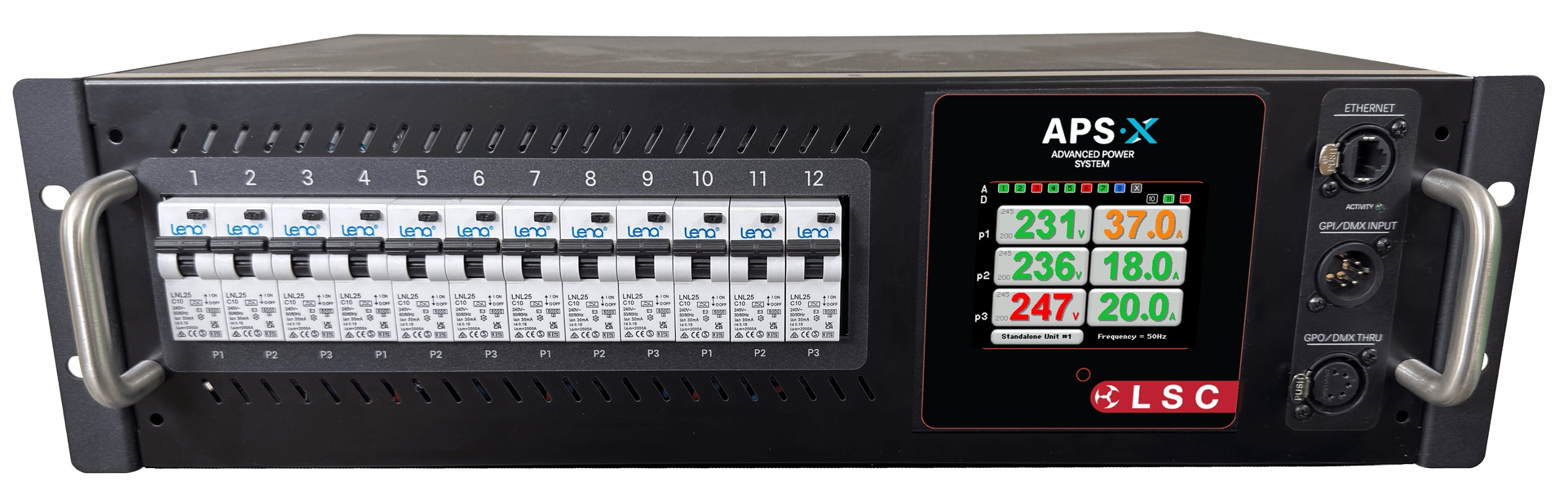

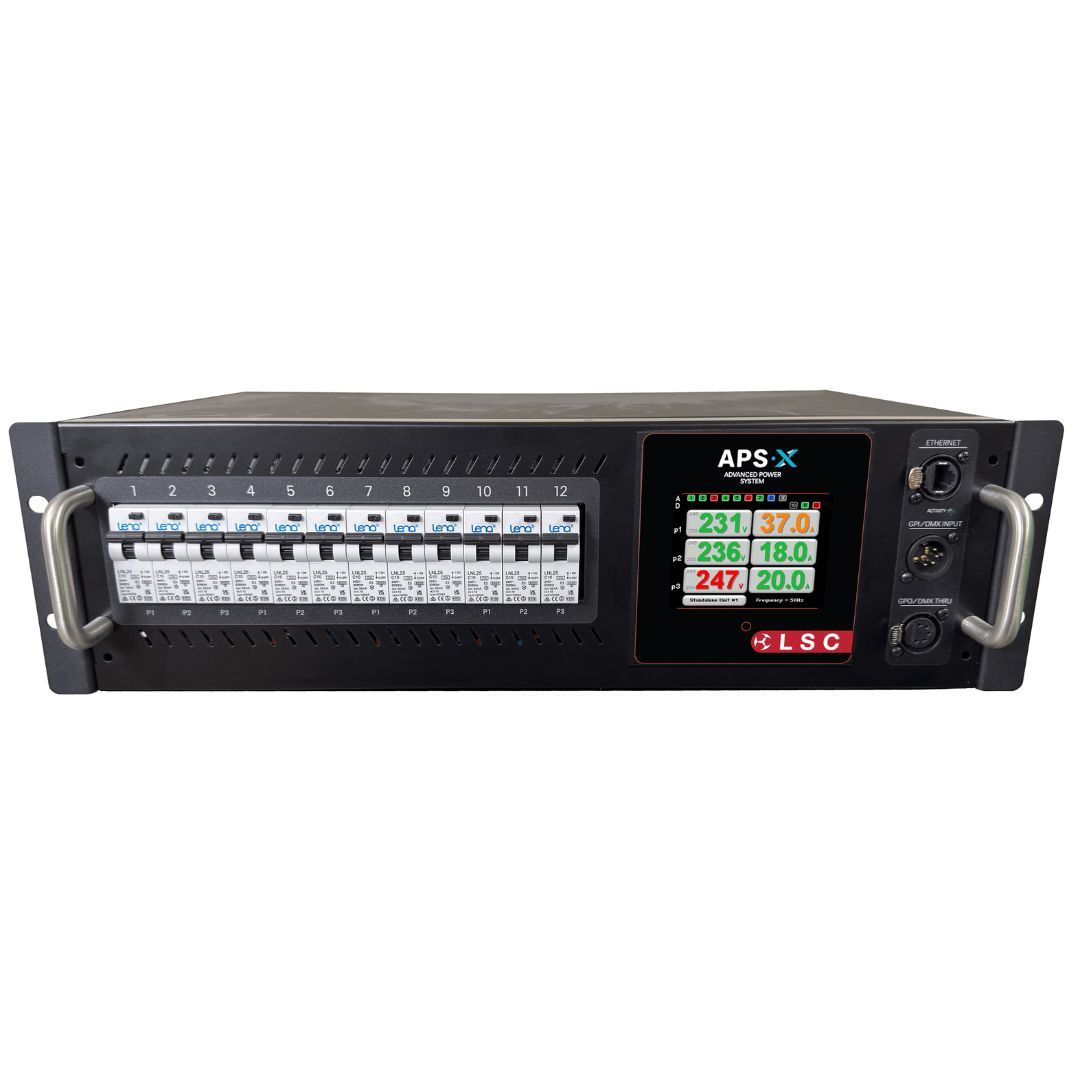

LSC APXR12/16A - APSX Rackmount Artnet/sACN Power Distribution Rack 3RU Fitted With 12 X 16A GPO
SKU: APXR12/16A
Out of Stock, contact for ETA
By LSC
Description
Powering numerous LED screen panels, audio amplifiers, or moving lights can pose significant challenges. The new APSX with Ethernet connectivity, provides a smart, scalable solution for the most demanding applications.
Fitted with 12x 16A circuits for the most demanding power situations.
Features:
- 3.2" colour LCD with touchscreen
- Programmable stand-alone mode via easy-to-use menus
- sACN, Art-Net, ArtRDM & OSC via Ethercon RJ45 connector
- DMX512 (1990) or DMX512-A (E1-11) input with RDM (E1-20) functionality on 5-pin XLR connectors
- GPI voltage free contact closure on 5-pin XLR connectors (using pins 1+4)
- 12 channel x 16A RCBO breakers with 30mA trip per channel
- Supplied with 1.2m long H07 rubber 5 core x 10mm² cable, Australian models supplied with 63A CeeForm 5-pin 3-phase plug fitted
