LSC GEN12/10A GenVI 12 Channel X 10A Dimmer/Trupower Rack 3RU 19" Rack Mount

Alternative configurations are available on request, please contact us for more information.

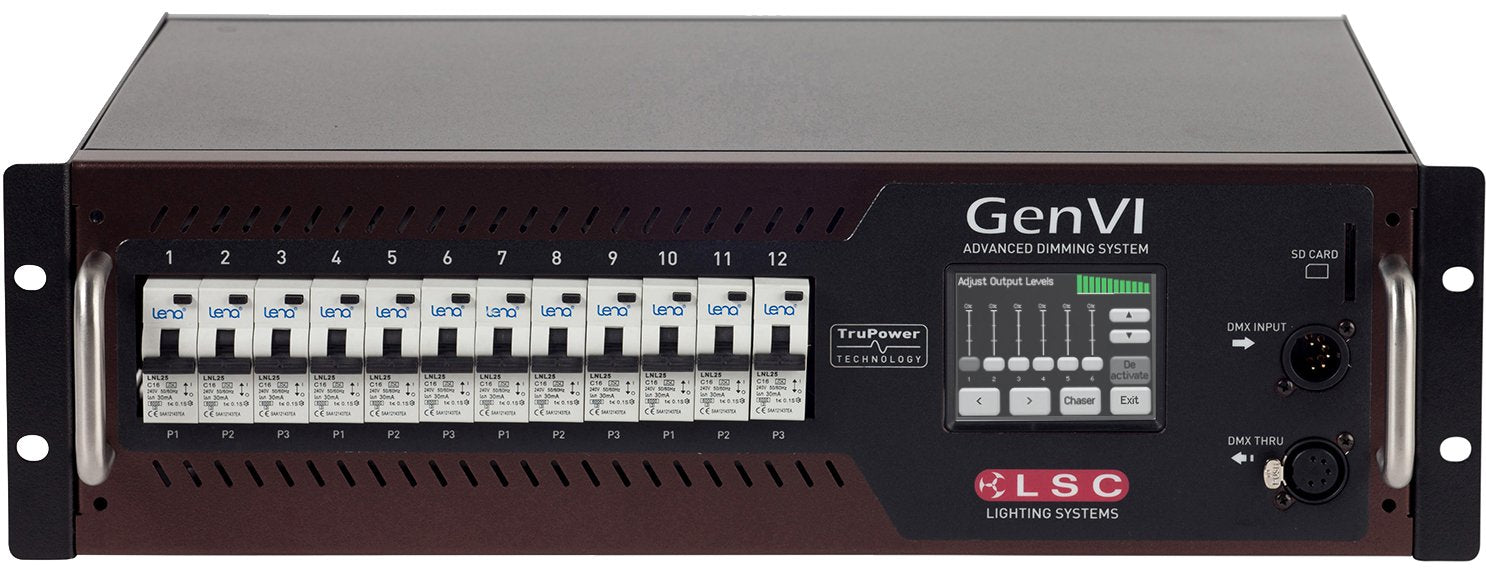

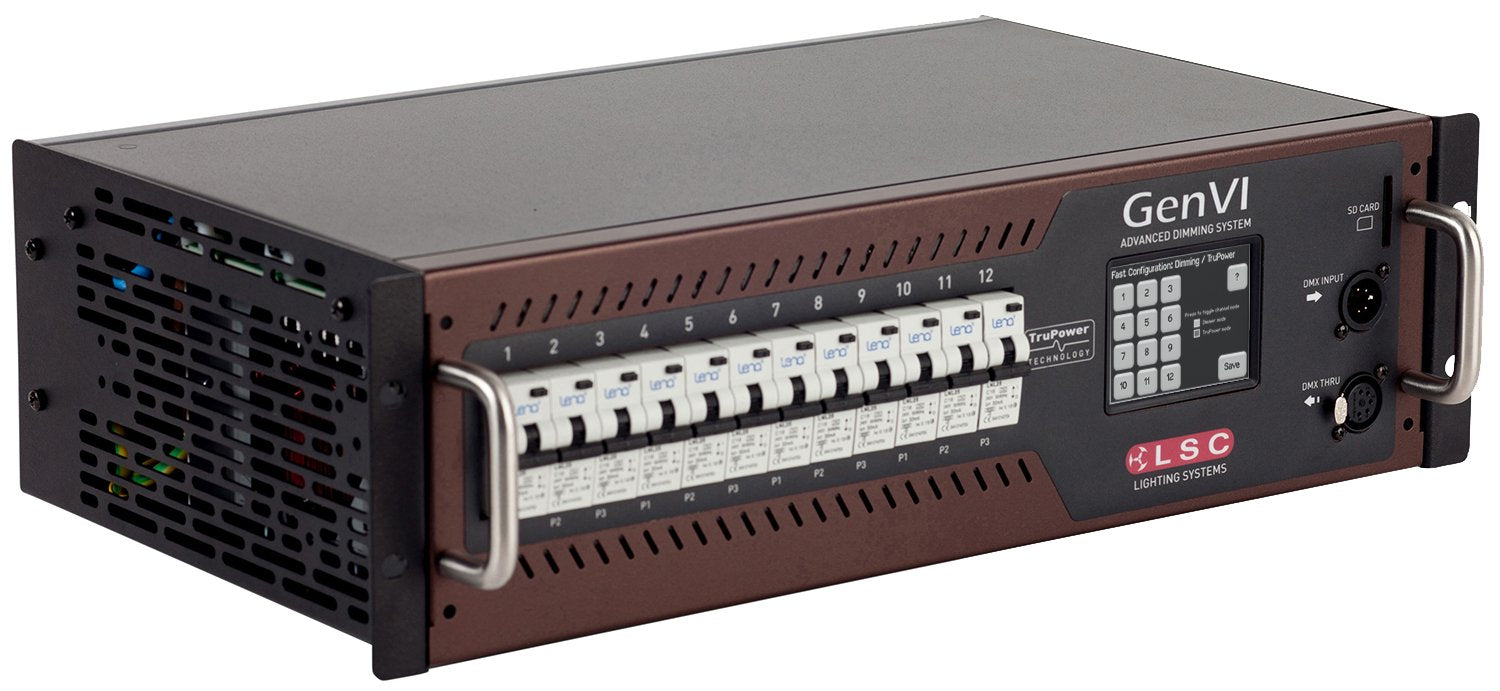

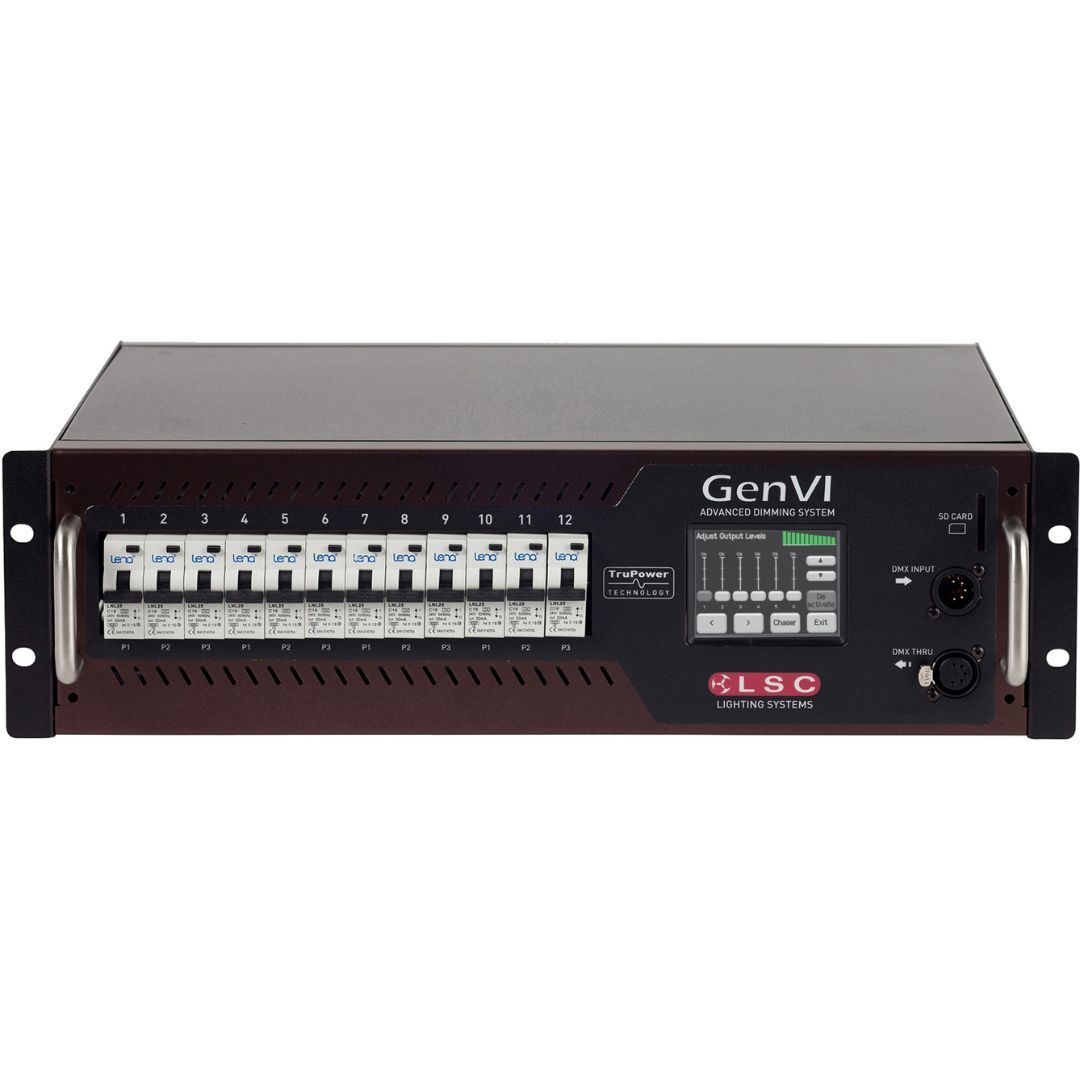

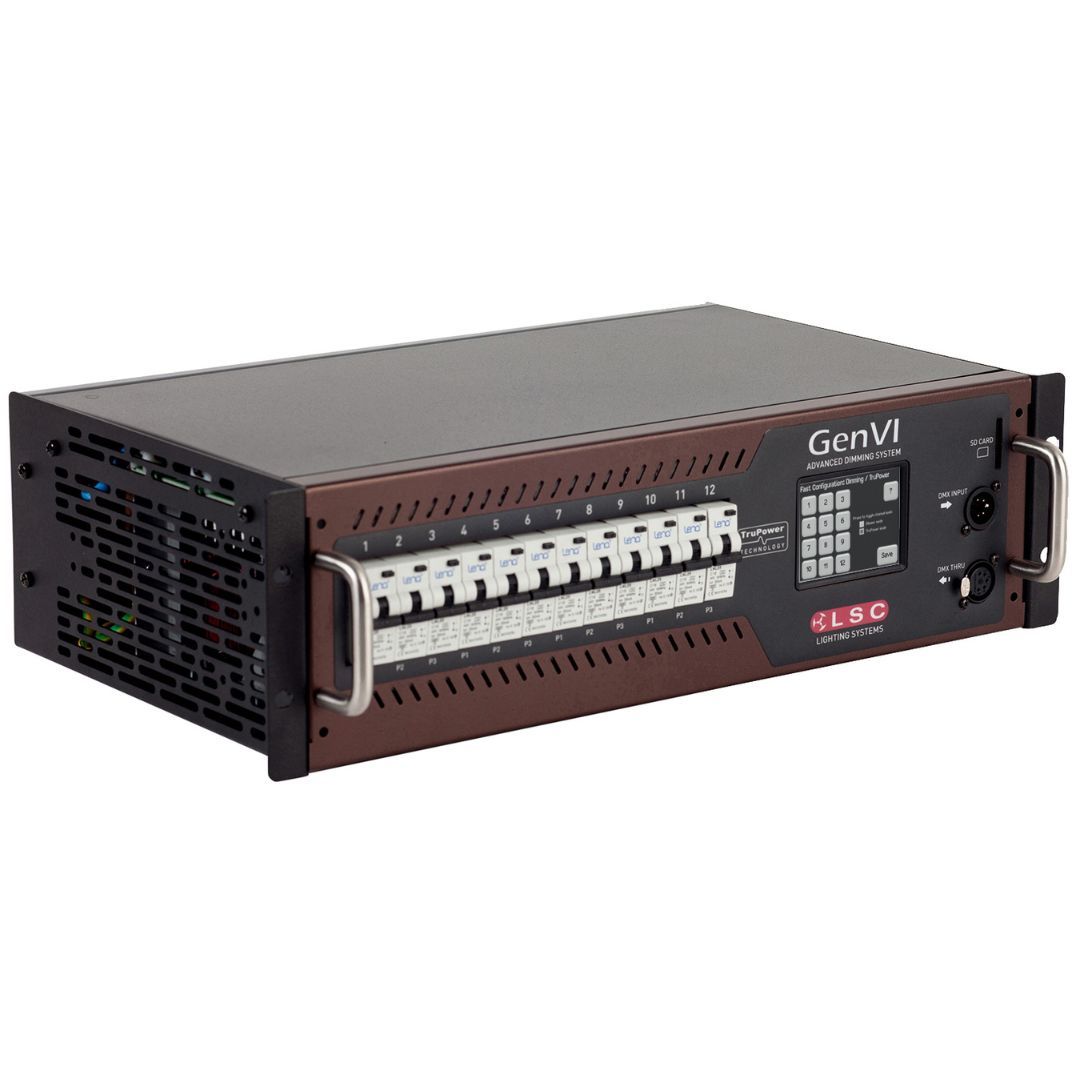

The GEN·VI dimmers can be controlled by any DMX512 lighting controller. Dimmer configuration, patching and local control is achieved via a backlit colour touch screen on the front panel. A lock code can be used to prevent unauthorised tampering. Most control functions, configuration options and front panel operations can also be remotely controlled using the RDM (Remote Device Management) protocol. System configuration, monitoring and logging is also possible via LSC’s HOUSTON X software.

Features

• DMX512 (1990), DMX512-A (E1-11) and RDM (E1-20) compliant control.
• If DMX is lost, the GEN·VI can either hold the last values or fade to a “DMX Loss memory” after a programmable delay.
• RCBO (Residual Current Breaker with Overcurrent) per channel. This is a combined overload circuit breaker with earth leakage (RCD/GFI) protection and Neutral Disconnect function for each circuit.
• Individual dimmer channel settings for:
• DMX address patching.
• Minimum and maximum output levels.
• Choice of three fade curves (linear, s, or custom) or LSC TruPower (switched) power output.
• LSC TruPower (switched power) provides direct power output by utilising relays guaranteeing there are absolutely no electronics in the circuit to interfere with connected loads. Ideal for discharge lamps and LEDs.
• LSC’s proprietary Current Control Technology © (CCT) protects all RCBO’s from nuisance tripping due to cold lamp inrush currents.
• Settable constant fan speed or fully automatic.
• 6 bit internal architecture which gives smooth fades. Essential when dimming LEDs.
• 16 bit DMX control selectable for super smooth fades.
• Pulse transformers fired dimmers will dim most types of loads. See section 10.
• 100% duty cycle operation across all channels simultaneously.
• CE and C tick approved.
