Luminex LumiNode 12 - 12 DMX, 2 Ethernet, PoE, 1 RU

The LumiNode 12 is an easy to deploy and maintain ethernet/DMX processing device for converting, routing, and merging DMX/RDM data on a network.

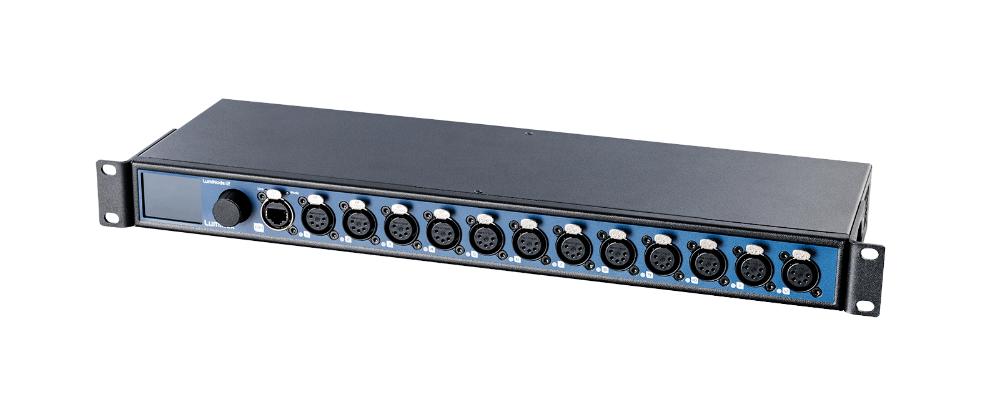

The unit is specifically designed with an all metal, robust enclosure for rack mounting, making it an ideal solution for theatre- and studio AV installs or for use at live performances. Equipped with 2x 1Gb Ethercon ports and 12x 5-pin DMX ports LumiNode 12 offers flexibility in a rugged 19” package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in no less than 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

LumiNode 12 also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back
mode lets you conveniently store lighting scenes and play these back when triggered to do so. An external contact closure is included as standard to allow for example to playback lighting scenes in case of emergency.

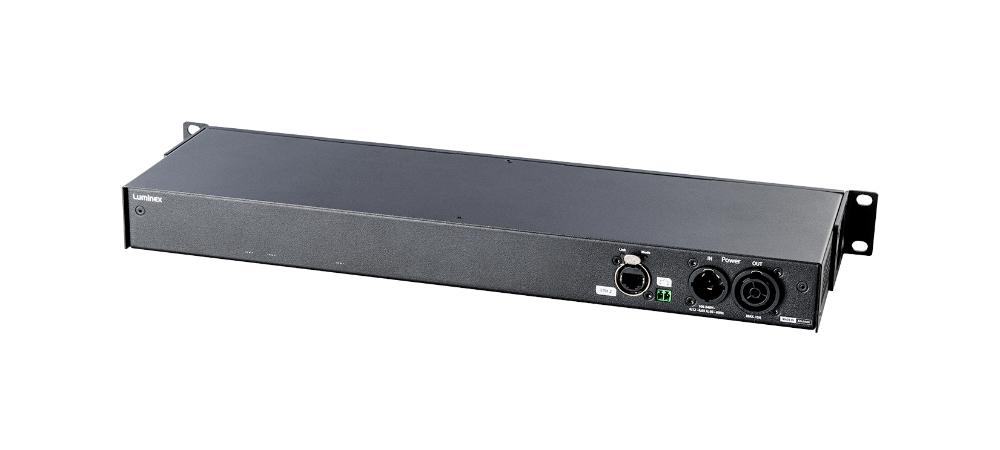

LumiNode 12 is efficient and has a low power consumption and can be powered via PoE or via mains with a robust Neutrik powercon connector. An additional power out connector allows for daisy chaining.

LumiNode 12 is easy and intuitively to operate with a built-in color display and control jog for quick access to universe numbers for example. Configuration can also be done through a built in web-based user interface. The
fully documented open API facilitates full integration with any 3rd party control or management system.

Luminode 12 features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group
(for example video control, Dante audio, …).
