Obsidian - EL-NRE001 - NETRON EN12; 12 Port Ethernet to DMX gateway

SKU: EL-NRE001
$2,499.00 $2,975.50
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Obsidian Control Systems
Description

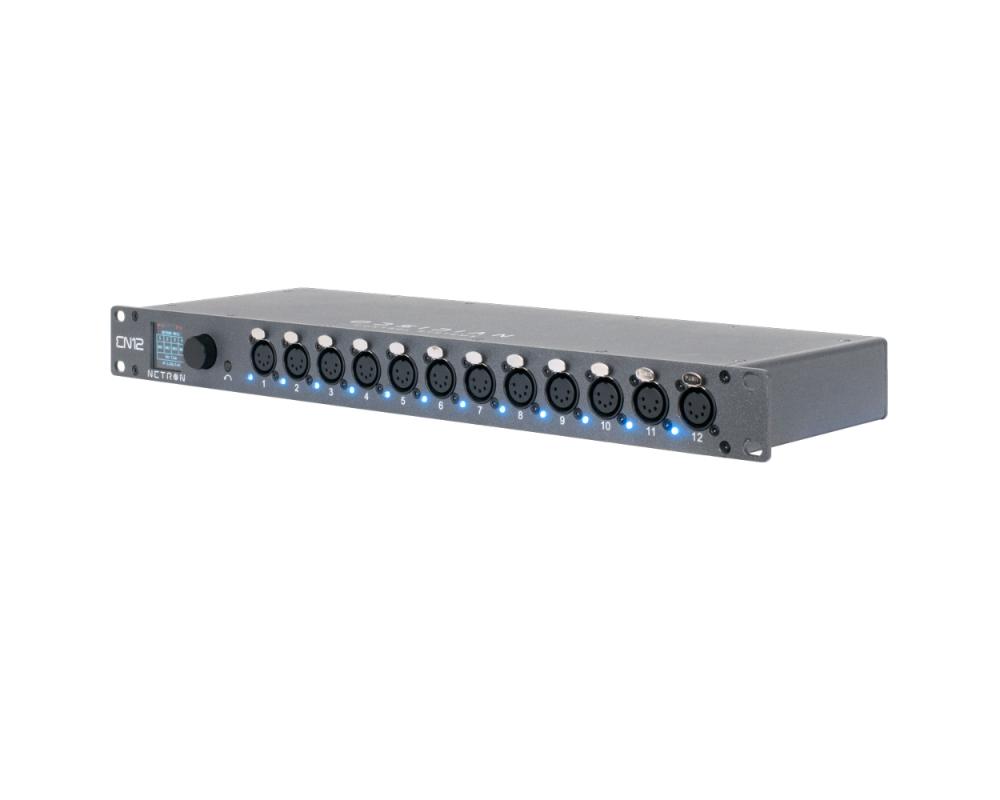

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

Features

  • RDM, Art-Net and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or PoE powered
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Customizable routing and merging options
  • Remote configuration via internal webpage
  • Contact closures for cue or preset recall
  • Powder-coated aluminum rackmount housing
  • Unlocks ONYX NOVA 4 Universe License
  • NETRON CLU for remote configuration and firmware updates

Specifications

Mounting

  • Rackmount

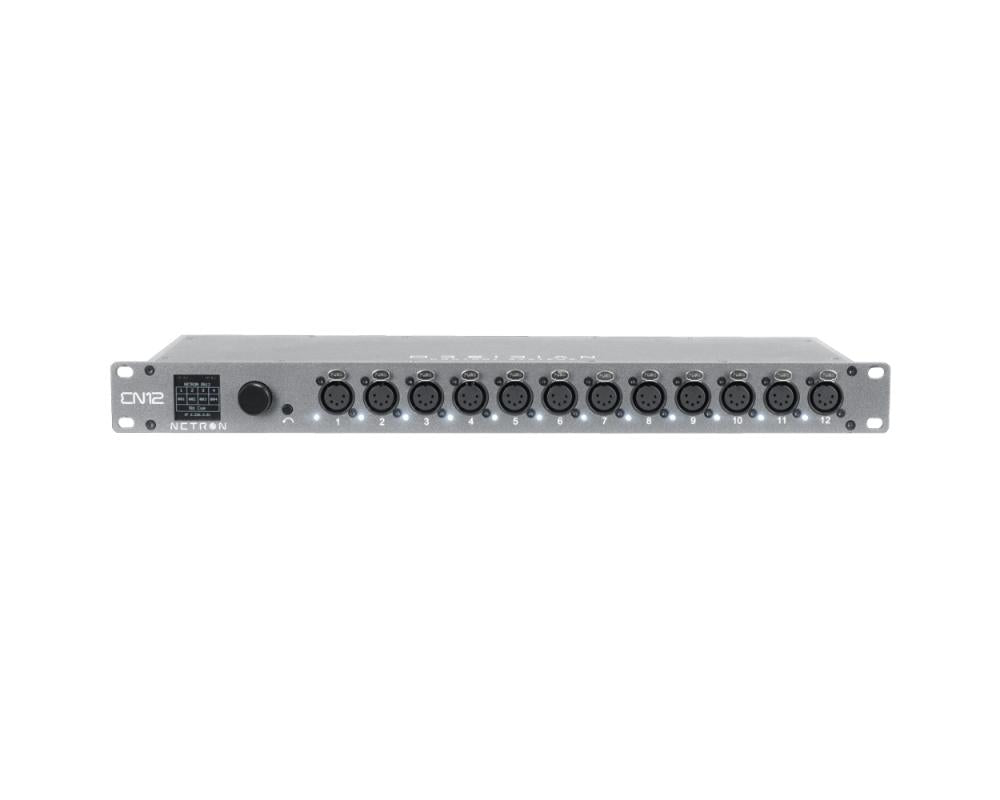

Front Connections

  • (12) 5pin DMX/RDM ports
  • Optical and galvanic isolation
  • Bidirectional for DMX In and Output
  • Full color OLED display
  • Encoder w. Push to Select / Exit Button

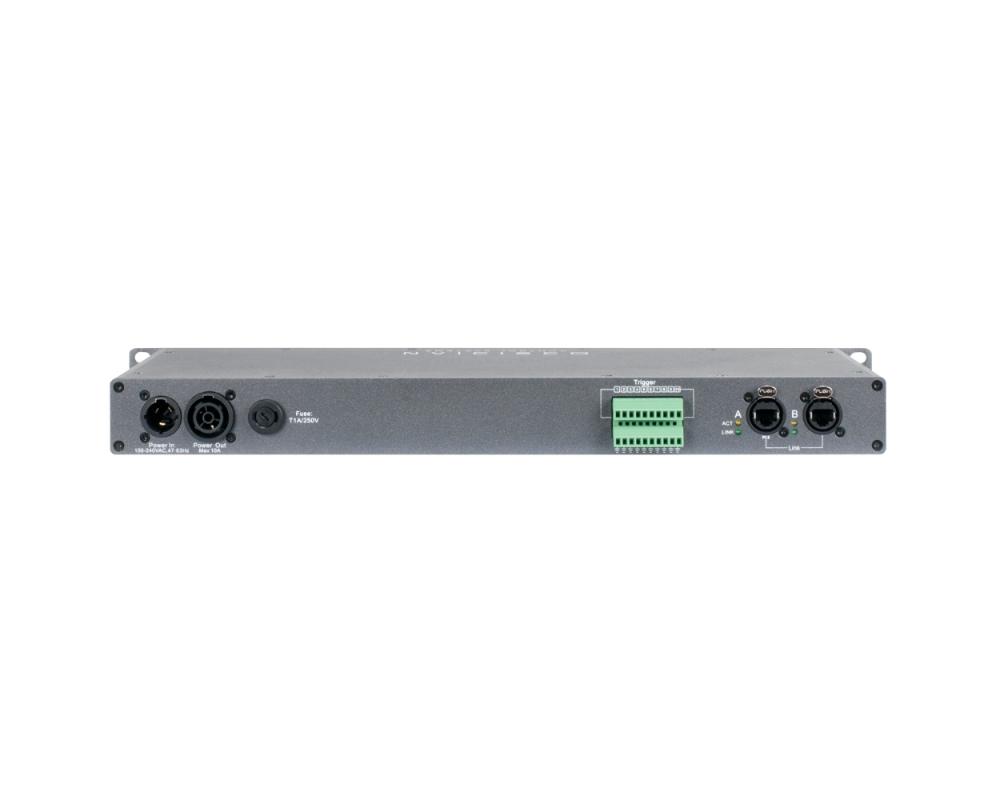

Rear Connections

  • (2) Locking RJ45 Ethernet network (Low Latency Switch)
  • (10) Contact Closures (2x 10pin Terminal Block)
  • IP65 Locking Power In/Thru

Protocols

  • sACN E1.31
  • Art-Net
  • DMX512-A E1.11 (In / Out)
  • RDM E1.20

Physical

  • Length: 482.5 mm (19 in.)
  • Width: 146 mm (5.7 in.)
  • Height: 44 mm (1.7 in.)
  • Weight: 1.82 kg (4 lbs)

Included Items

  • 1.5m IP65 Locking power cable (EU or US version)
