The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.
As a four Universe Node the EP4 is ideally suited for the powerful ONYX NOVA Edition.
Features
- RDM, Art-Net and sACN support
- Factory and user presets for plug and play setups
- PoE or USB-C powered
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated compact aluminum housing
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting
- Standalone

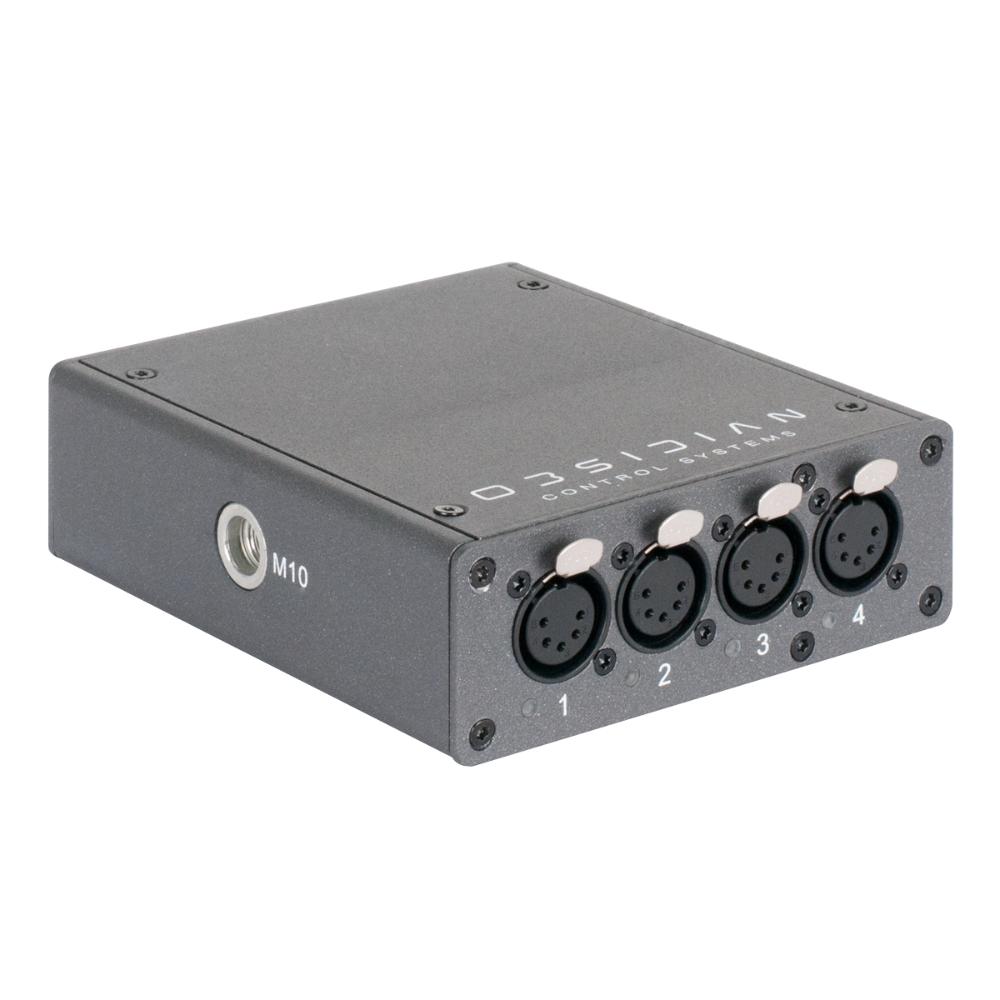

- Truss-mount (M10 or M12 mounting hole)
- Wall-mount horizontal or vertical (included)
- DIN Rail horizontal or vertical (included)
Connections

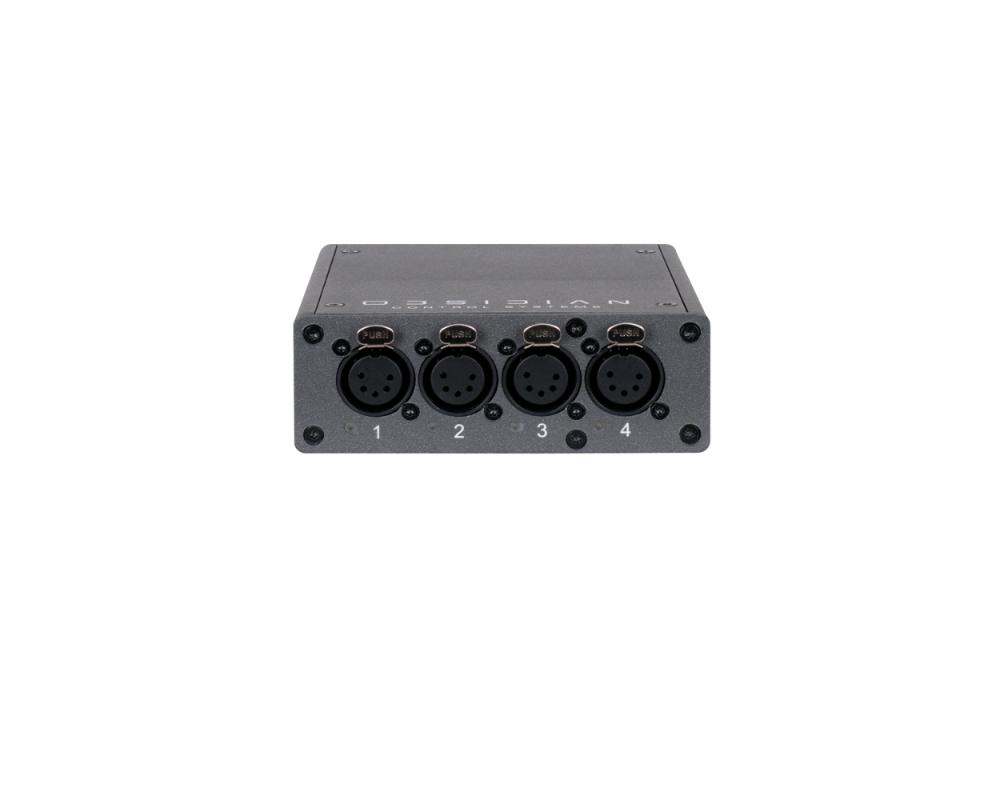

- (4) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (2) Locking RJ45 Ethernet network connections (1x POE)
- USB-C power option (5V, 2A)
Physical
- Length: 133.5 mm (5.3 in.)
- Width: 118 mm (4.6 in.)
- Height: 42 mm (1.65 in.)
- Weight: 0.5 kg (1.1 lbs)
