Palmer PBRIDGE4A 19" 4 CH Active DI Rack w/ AoC (Audio Over CAT)

Looking to obtain a clean, uninterrupted signal from a guitar, bass, or keyboard over long cable distances? For optimal sound preservation, a DI box is essential - and a top-notch one at that.

The Palmer PBRIDGE4A is a 19" rack-mounted active DI box designed for efficiently feeding unbalanced and high-impedance signals from electric instruments, such as guitar, bass, keyboard, or synthesizer, into the microphone inputs of a mixing console. With its transformer-balanced outputs, this DI box eliminates mains hum and interference caused by ground loops, providing a clean and clear sound without any unwanted noise or distortion.

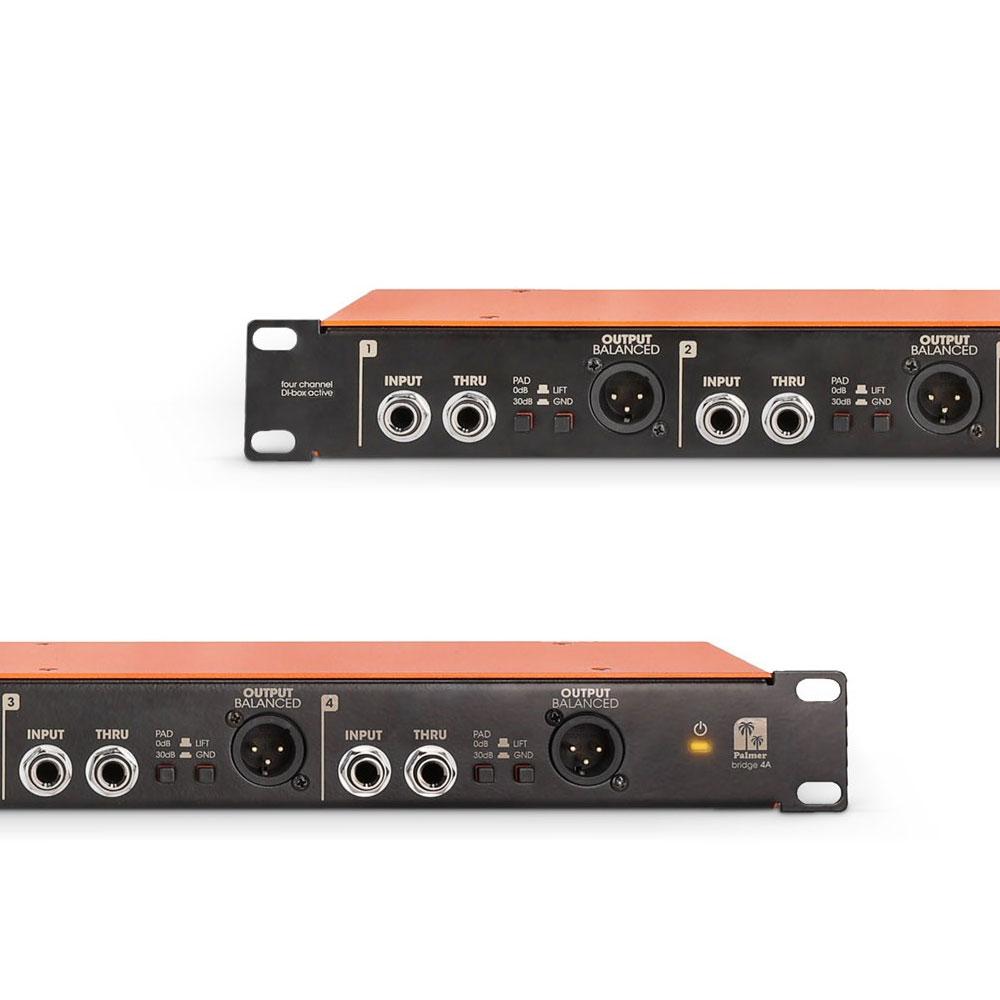

Equipped with a 6.3 mm jack input, THRU-Out, and two transformer-balanced XLR outputs, each channel of this device allows for input signal forwarding to an amplifier from the front or rear.

Utilizing a switchable 30dB pre-attenuation, the BRIDGE 4A has the capacity to receive line signals and extremely high input levels. This feature allows for it to even be connected between the amplifier output and speakers, saving both material and space. In addition, the Audio-Over-Cat output permits the routing of signals from all 4 channels through a single Cat cable (Cat5e or higher), resulting in time efficiency. The active circuit maintains the frequency response, achieves a large dynamic range, and produces a higher output level compared to a passive DI box.

The BRIDGE 4A is recommended for audio technicians, semi-professional and professional musicians, and recording studios that prioritize dependable and long-lasting products.

Features

• Balancing and impedance matching for guitar, bass, keyboards & synthesizers
• Eliminates ground loop hum thanks to galvanic transformer isolation

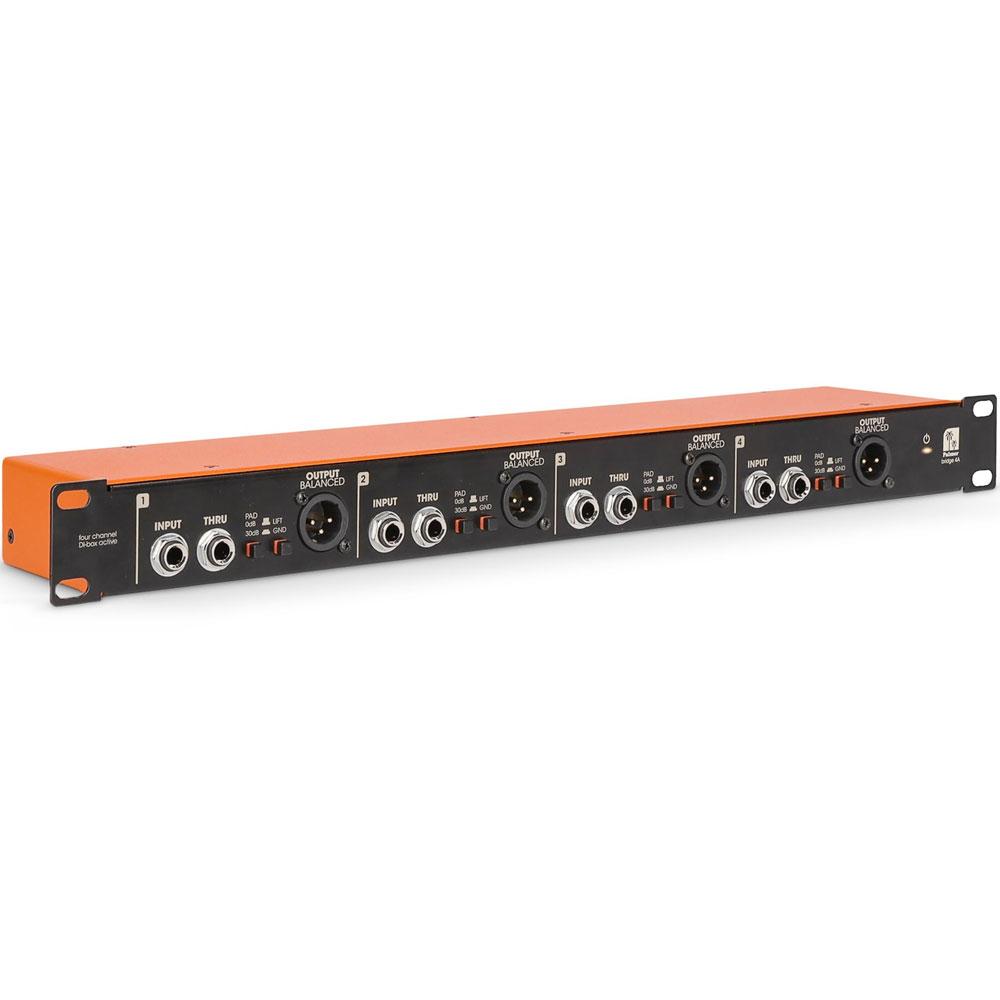

• 4 independent DI boxes in a solid 19" housing (1U)
• Higher output level than a passive DI box
• THRU-output for passing the input signal

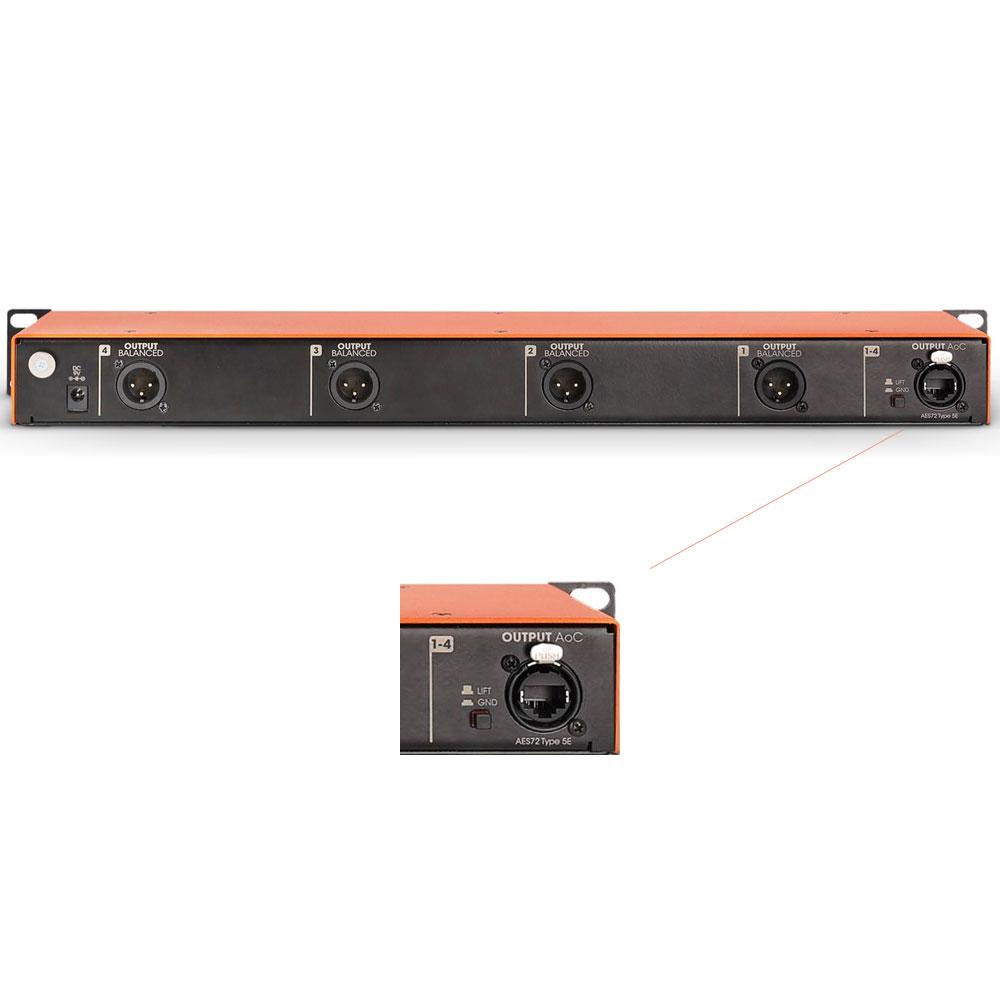

• Audio over Cat output (AES72 Type 5e) for forwarding all signals via a single Cat cable
• Pure and unaltered low-noise audio
• Handles even high-level inputs without distortion thanks to switchable -30dB pad
• Ground-lift switch for each output
• Power supply: 9V DC, center negative
• Engineered in Germany


For more information, check out the manufacturer's website.
