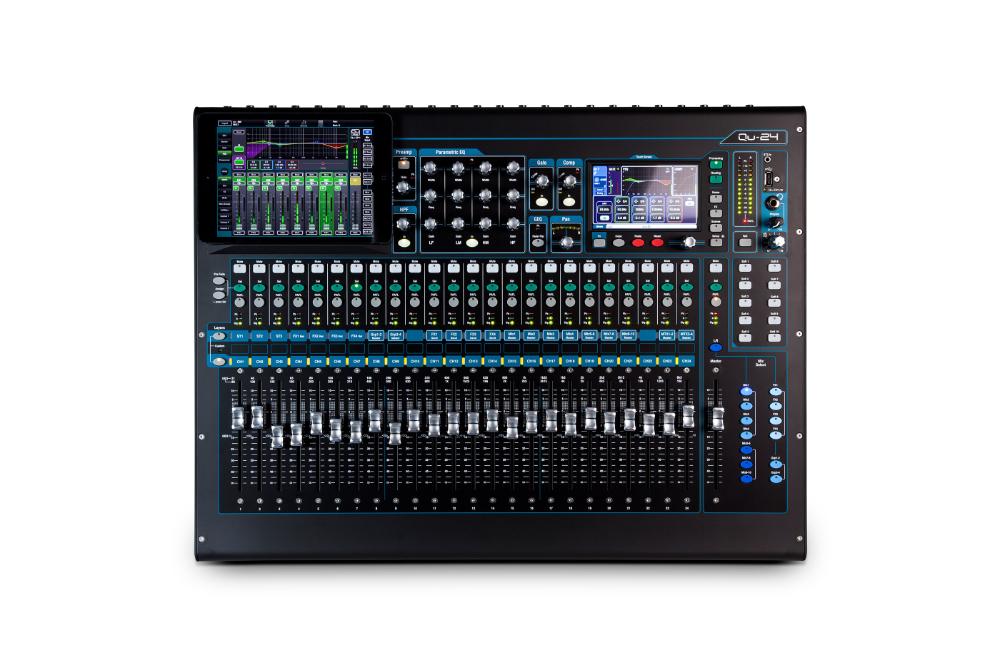

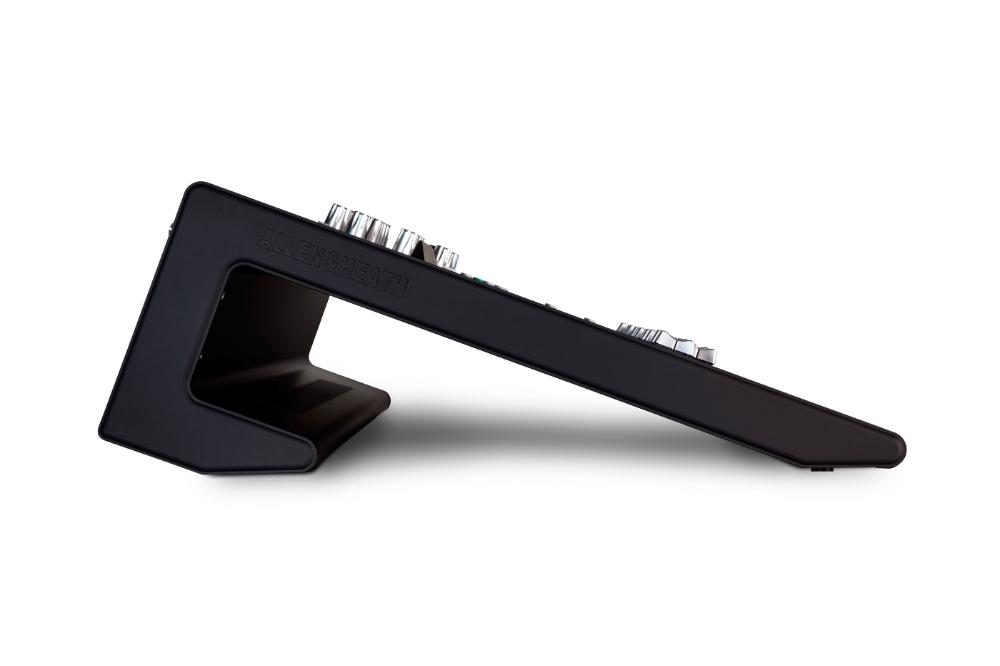

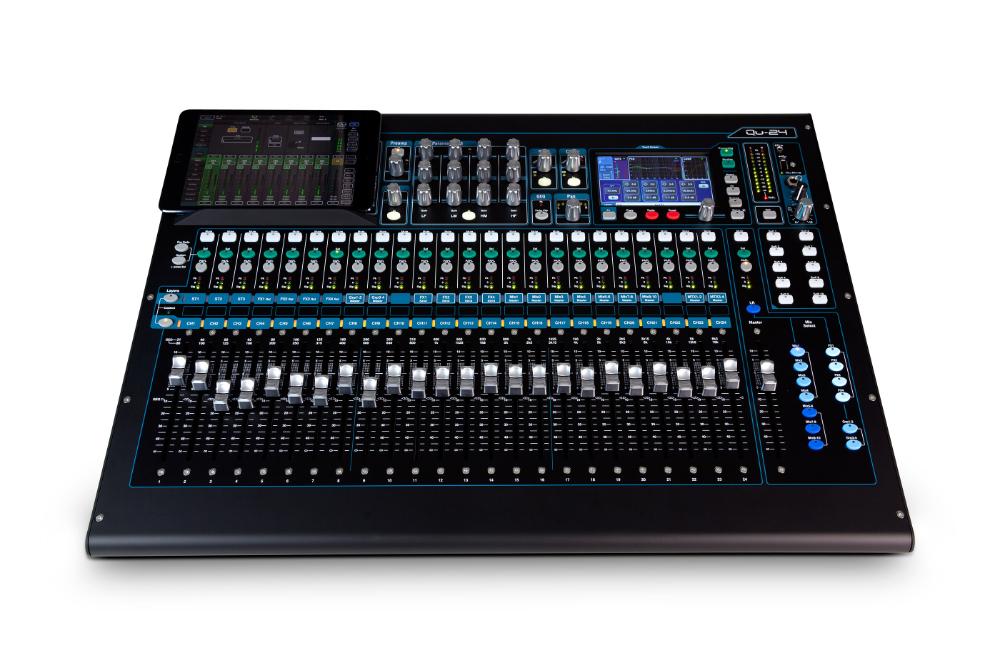

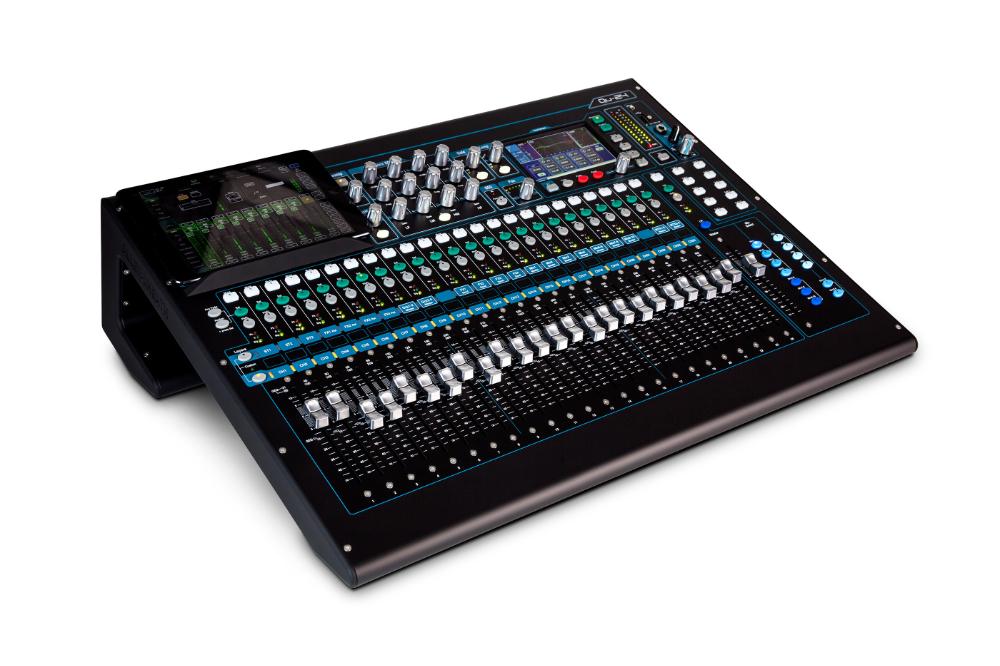

Allen & Heath QU24C Desktop Digital Mixer

SKU: QU-24C
$4,499.00 $5,999.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
Description

DIGITAL MIXING RESHAPED

With its responsive touchscreen, 25 motor faders and acclaimed AnalogiQ recallable preamps, Qu-24 combines exceptional ease of use with class-leading audio performance. Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems, Qu makes Allen & Heath digital mixing more accessible and more compact than ever.

THE SUPERSTRIP

All your key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control. The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures. Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay. The main LR and the Mono mixes have controls for Insert, 1/3 octave GEQ, compressor and delay. The Stereo mixes provide Insert, 4-band PEQ, compressor, delay and balance control.

DSNAKETM

Qu-24 is a self-contained mixer, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu-24’s dSNAKETM port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox. dSNAKETM is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’. So if you’re mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu-24 in the mix position.

ME PERSONAL MIXING SYSTEM

Qu-24 is fully compatible with our ME Personal Mixing System. Any number of ME-1 personal mixers can be chained from the dSNAKETM port (or from an AR2412 Stagebox if you’ve got one connected to the dSNAKETM port). Each performer can be given tailored control over their own mix, leaving the engineer free to focus on the audience experience. Find out more at www.allen-heath.com/ME

FEATURE SUMMARY

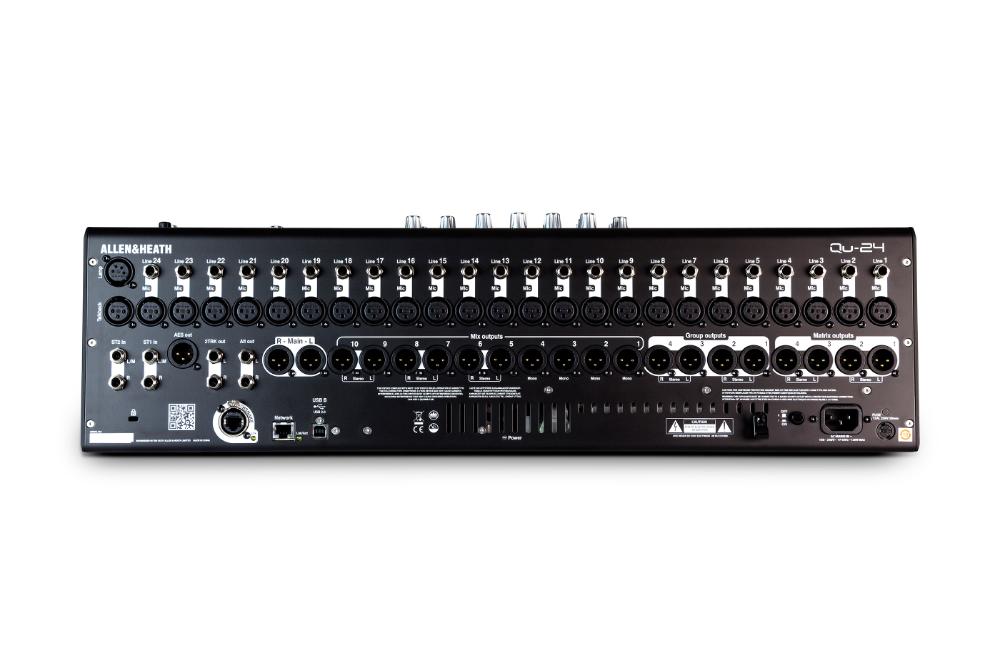

  • 24 Mic / Line Inputs (TRS + XLR)
  • 25 Motor Faders
  • 3 Stereo Inputs (TRS)
  • 4 Stereo FX Returns
  • 20 Mix Outputs (XLR)
  • 2 Stereo Groups (switchable to Mix mode)
  • Up to 9 Monitor Mixes (4 mono + 5 stereo)
  • 2 Stereo Matrix Outs
  • 4 Mute Groups
  • 4 FX Engines
  • 4 FX Sends / Returns
  • 10 Soft Keys
  • USB Audio Streaming
  • DAW MIDI Control
  • AES Digital Out
  • Recallable AnaLOGIQTM Preamps
  • Qu-Drive direct Multitrack Recording / Playback on USB drives
  • 800×480 Touchscreen
  • iLive FX Library
  • dSNAKETM Remote Audio Port
  • Automatic Mic Mixer*
  • Compatible with ME Personal Mixing System
  • Qu-Pad iPad App
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid with feedback elimination and taming room acoustics
  • High contrast metallic finish controls, matching premium GLD Chrome series
