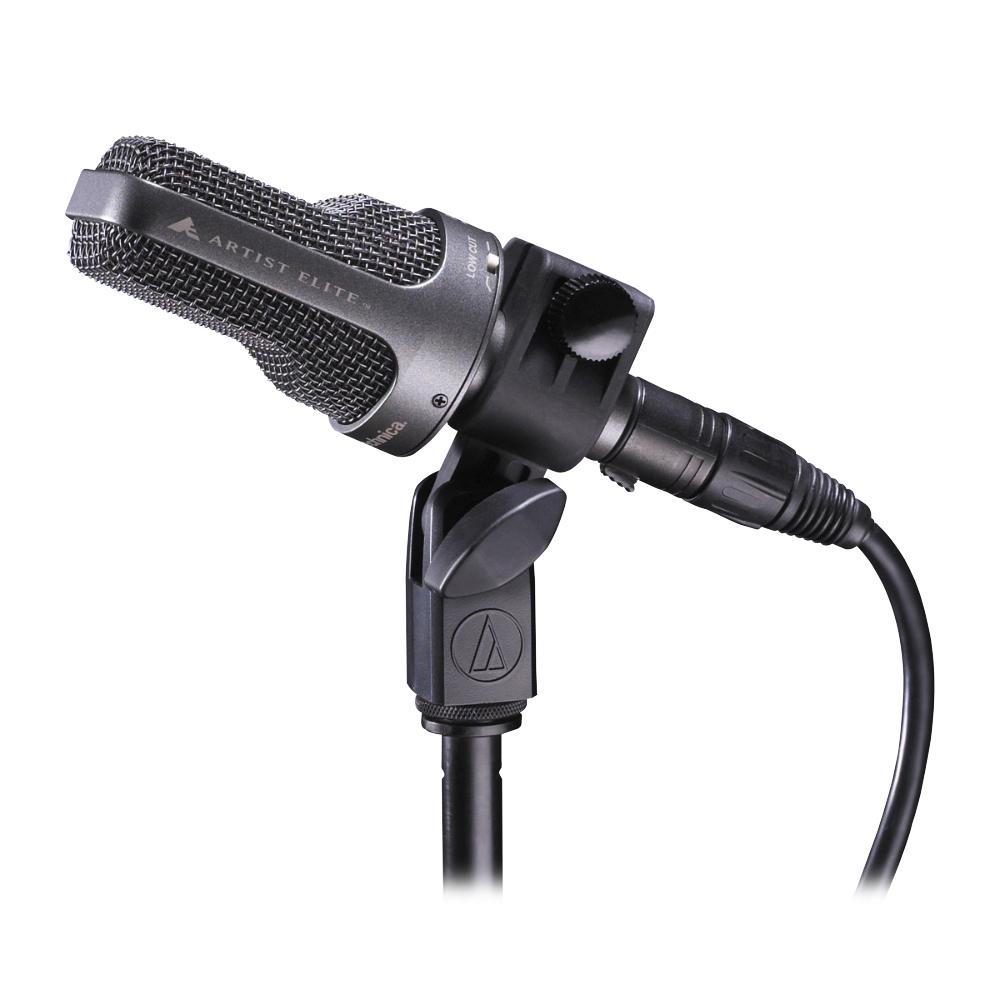

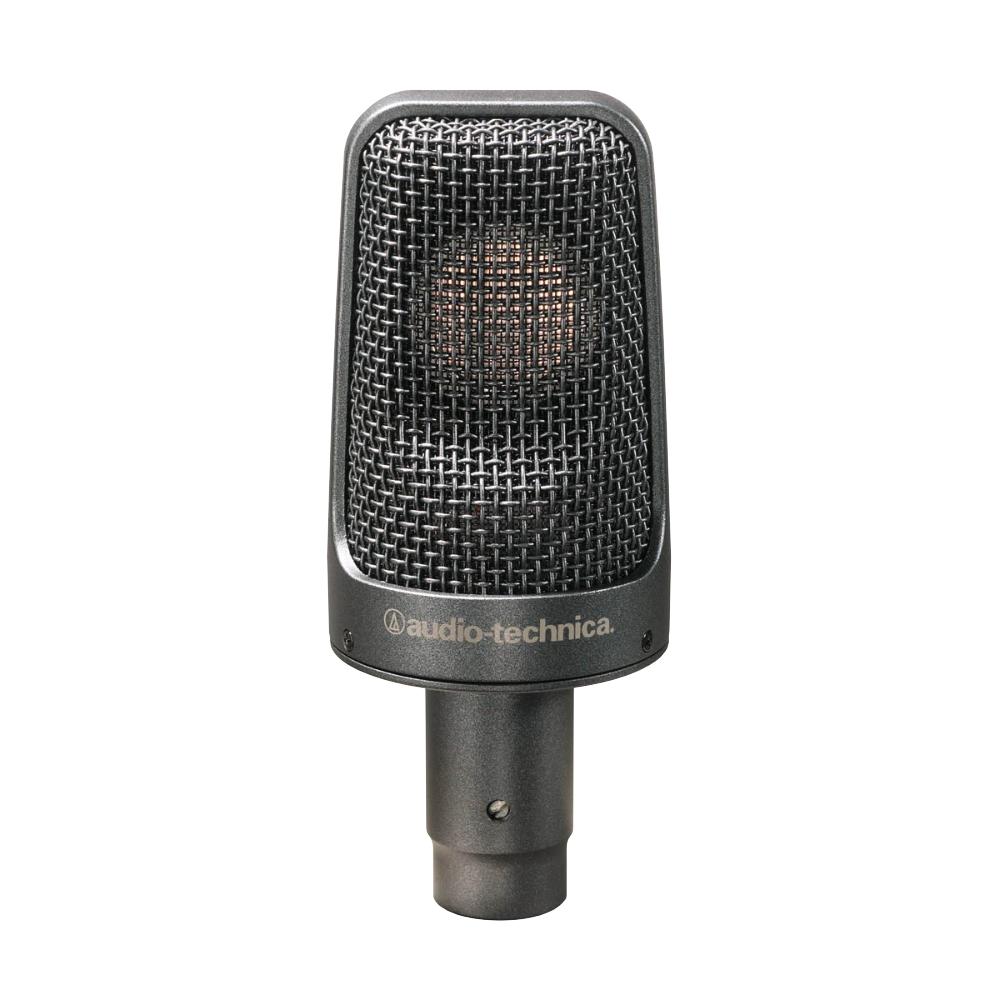

Audio Technica AE3000 Cardioid Condenser Large Diaphragm Instrument Microphone
SKU: AE3000
In stock: 2
Description
The Artist Elite® AE3000 delivers supreme performance at extreme SPLs. This high-SPL large diaphragm cardioid condenser instrument mic excels in applications such as guitar cabinets, toms, snare, timpani, horns and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
- Excels in high-SPL applications
- Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound
- Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10 dB pad
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -43 dB (7.0 mV) re 1V at 1 Pa |
| IMPEDANCE | 100 ohms |
| MAXIMUM INPUT SOUND LEVEL | 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal) |
| NOISE | 11 dB SPL |
| DYNAMIC RANGE (typical) | 137 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 83 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 3 mA typical |
| SWITCHES | High-pass filter; 10 dB pad (nominal) |
| WEIGHT | 6.0 oz (170 g) |
| DIMENSIONS | 4.55" (115.5 mm) long, 1.89" (48.0 mm) maximum diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| ACCESSORIES FURNISHED | AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch |
| AUDIO-TECHNICA CASE STYLE | R6 |
