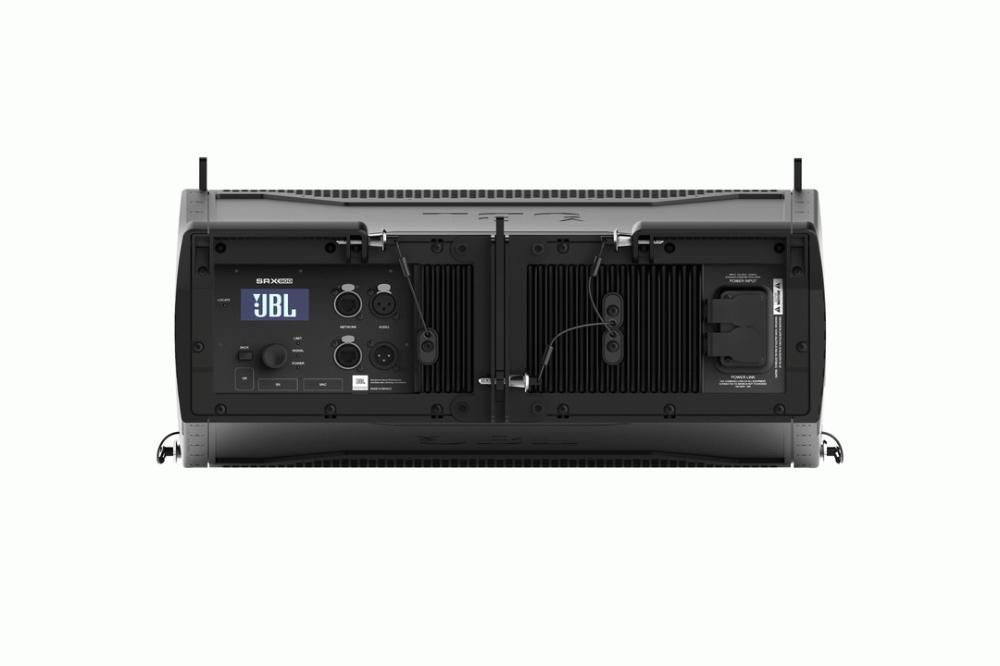

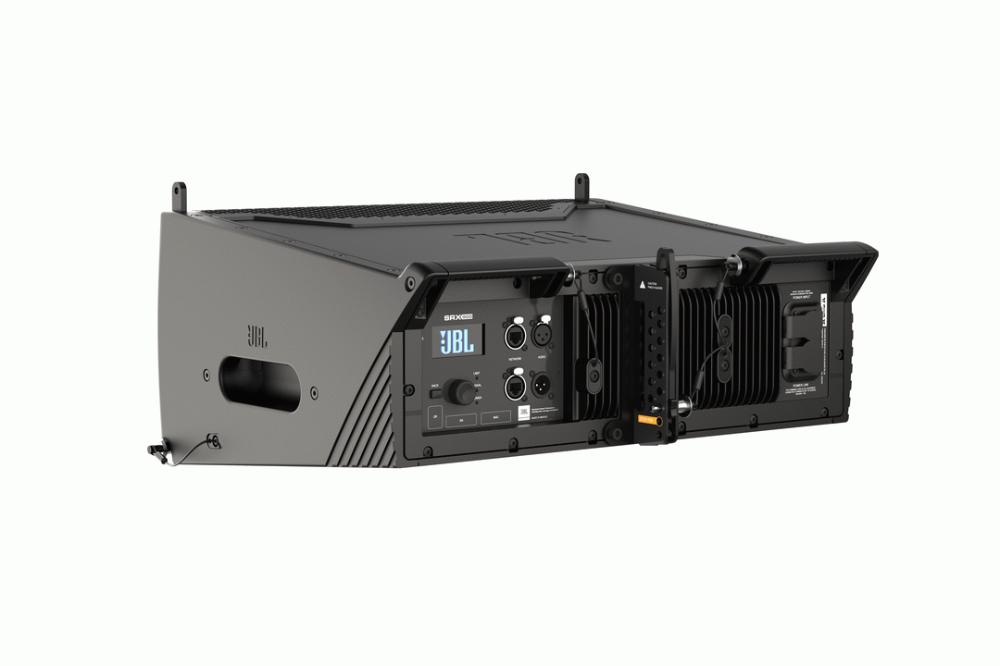

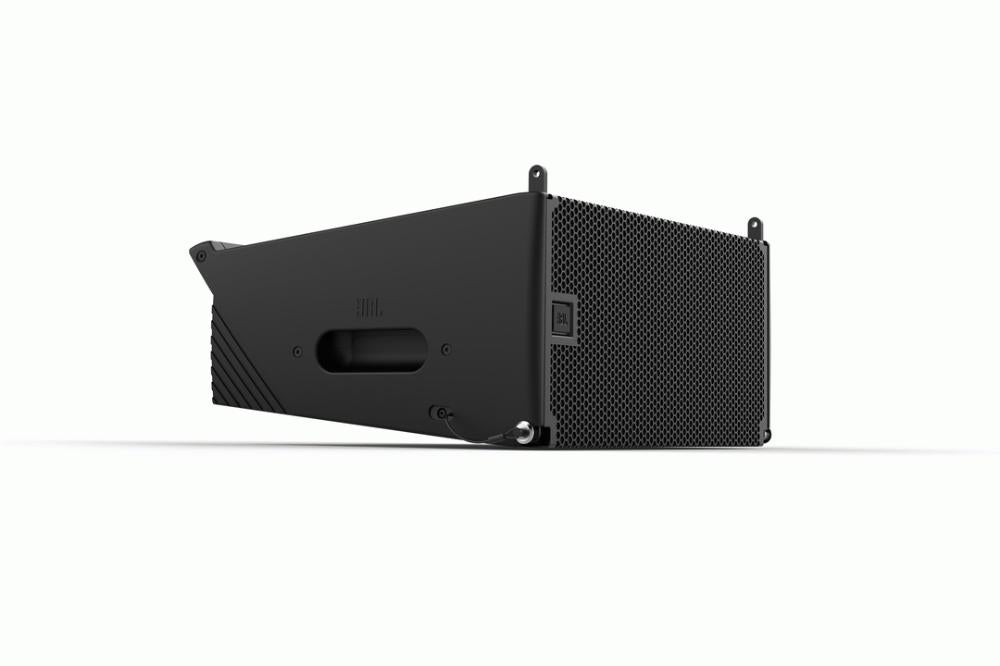

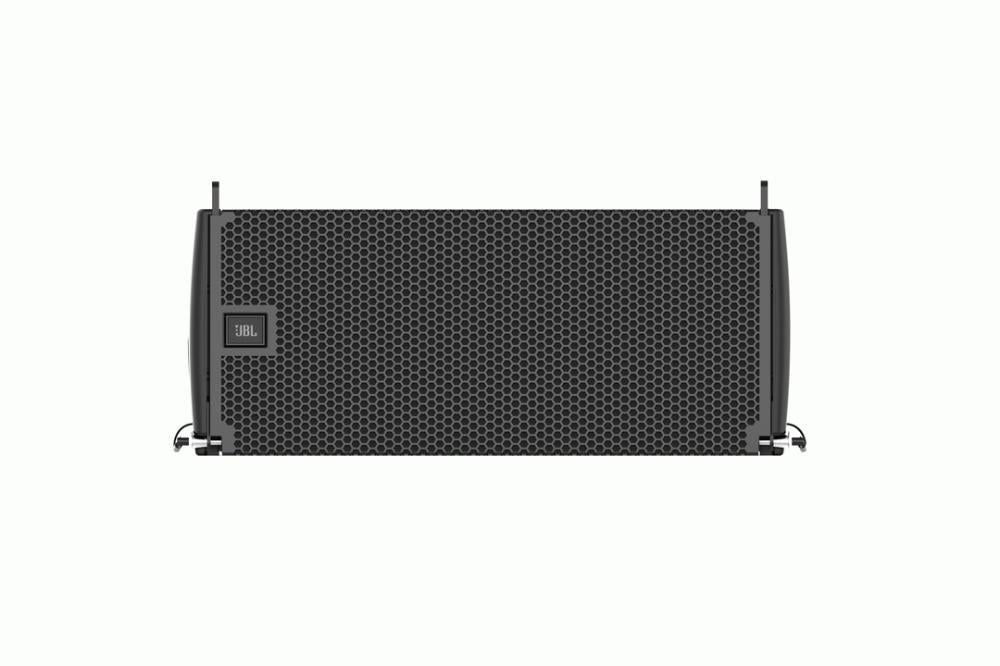

JBL SRX906LA 6.5 Powered Line Array Speaker

SKU: JBL-SRX906LA
$6,999.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By JBL
Description

The SRX906LA is a compact, two-way, active line array element that can cover a variety of small- to mid-sized applications, including rental houses, touring artists, DJs, and installations.

Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

 The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

Features

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced composite loudspeaker enclosures
  • Innovative three-point rigging system



Specifications


Frequency Range (-10dB) 63 Hz-17 kHz (array preset)
Coverage Pattern 120 degrees nominal (500 Hz-16 kHz)
Maximum SPL 134 dB
System Type Line Array, two-way active
Amplifier Design Class-D
Continuous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver (2) JBL 2186G, 6.5 in diameter, dual 2.0 in voice coil, neodymium Differential Drive®
HF Driver (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
Enclosure Polypropylene, four integral recessed handholds
Inter-Enclosure Angles 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Dimensions (H x W x D) 243 mm x 507 mm x 420 mm
(9.5 in x 19.9 in x 16.5 in)
Net Weight (each) 16.8 kg (37 lbs)
