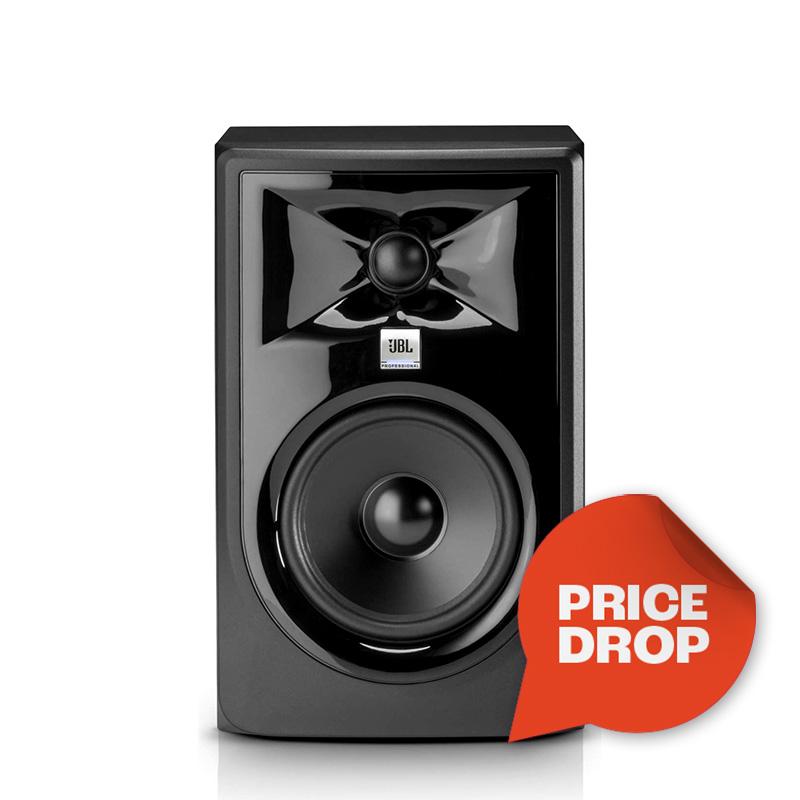

JBL LSR305MKII 5-Inch Two-Way Powered Studio Monitor (each)
SKU: JBL-LSR305MKII
Out of Stock, contact for ETA
By JBL
Description
Get legendary JBL performance in your studio with the next-generation JBL 3 Series, compact powered studio monitors. Integrating the revolutionary JBL Image Control Waveguide, 3 Series MkII monitors offer stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that’s unheard of in their class. Whether you’re working in stereo, 2.1, or beyond—the 3 Series family will enhance the critical listening capabilities of any production space—and deliver an enjoyable mix experience at an accessible price.
FEATURES
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- Next-generation JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
SPECIFICATIONS
| LF DRIVER SIZE | 203mm (5") | |
| HF DRIVER SIZE | 25mm (1") | |
| HF DRIVER TYPE | Soft dome | |
| CROSSOVER | 1725Hz 4th order acoustic Linkwitz-Riley | |
| INPUT SENSITIVITY (-10dBV INPUT) | 92dB / 1m | |
| POWER CONFIGURATION | Bi-amplified | |
| HF DRIVER POWER AMP | 41W, Class-D | |
| LF DRIVER POWER AMP | 41W, Class-D | |
| FREQUENCY RESPONSE (±3dB) | 49Hz – 20kHz | |
| FREQUENCY RANGE (-10dB) | 43Hz – 24kHz | |
| LOW FREQUENCY EXTENSION (-10dB) | 43Hz | |
| MAXIMUM CONTINUOUS SPL | 94dB | |
| MAXIMUM PEAK SPL | 108dB |
