New Product

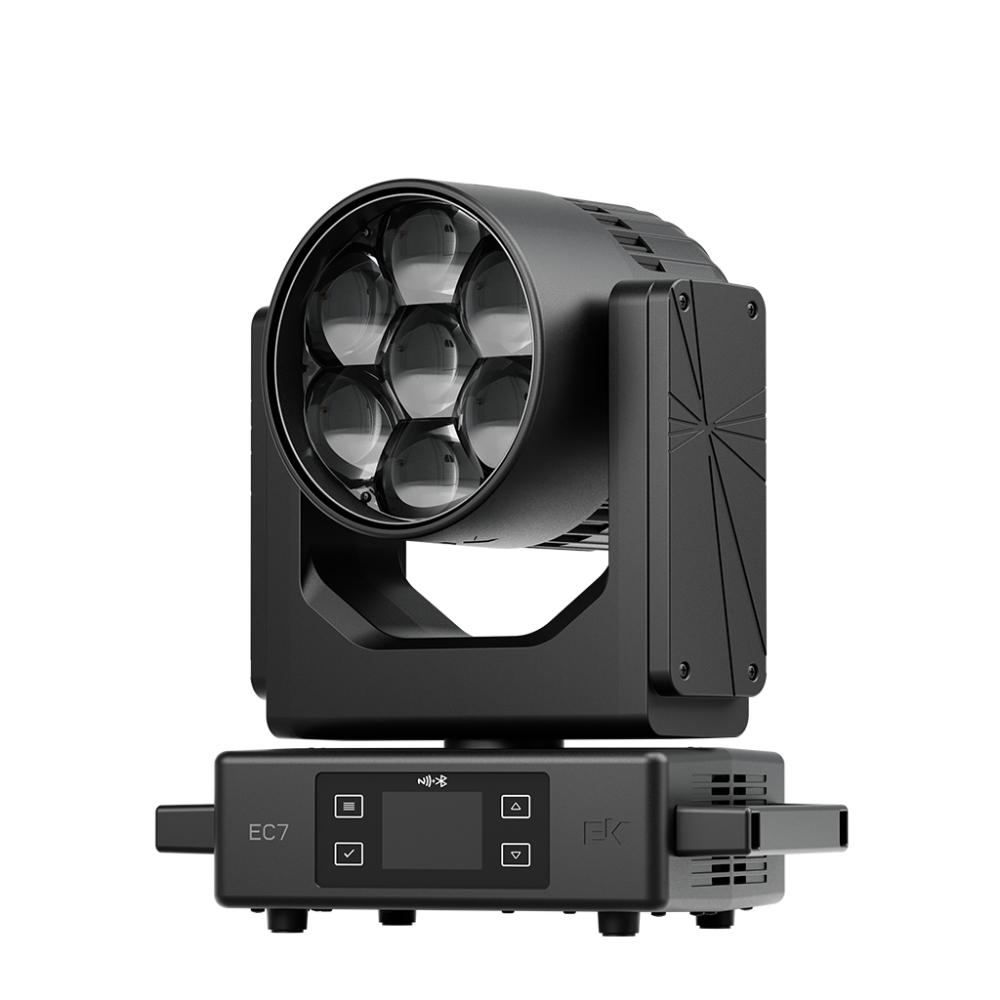

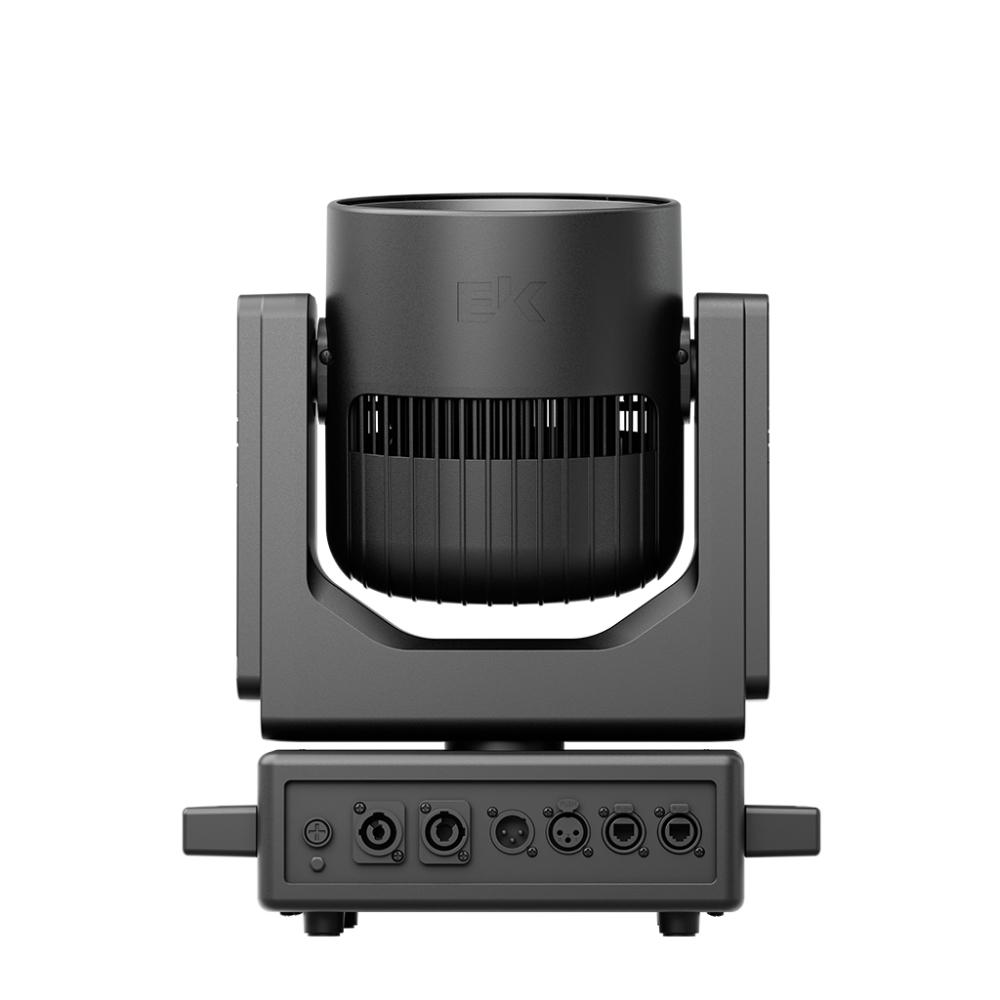

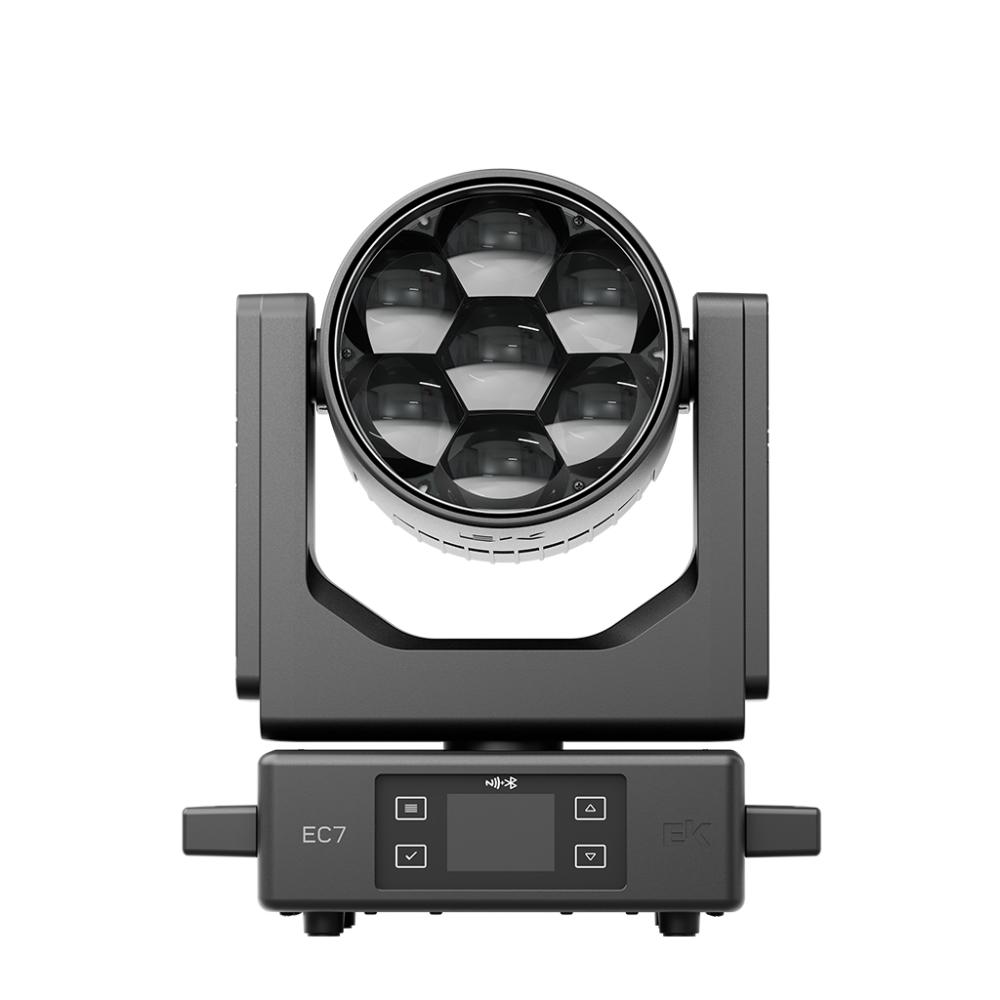

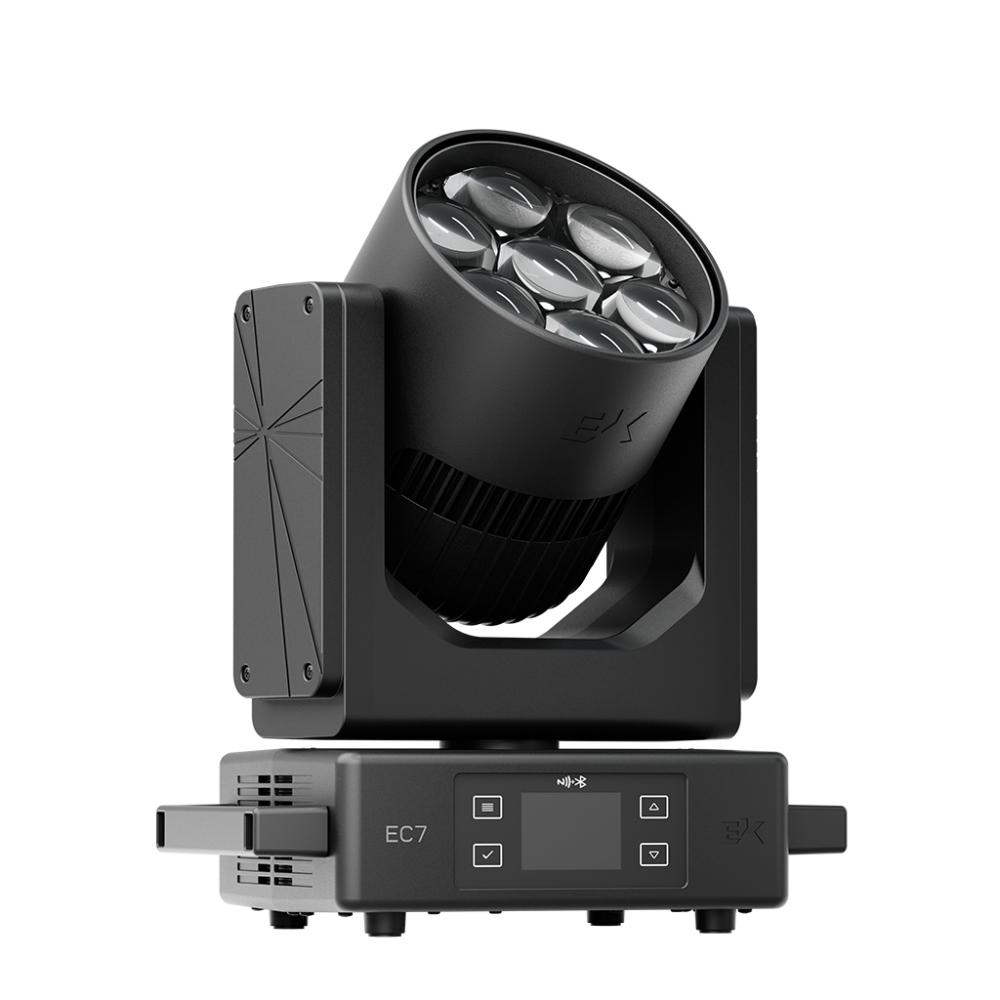

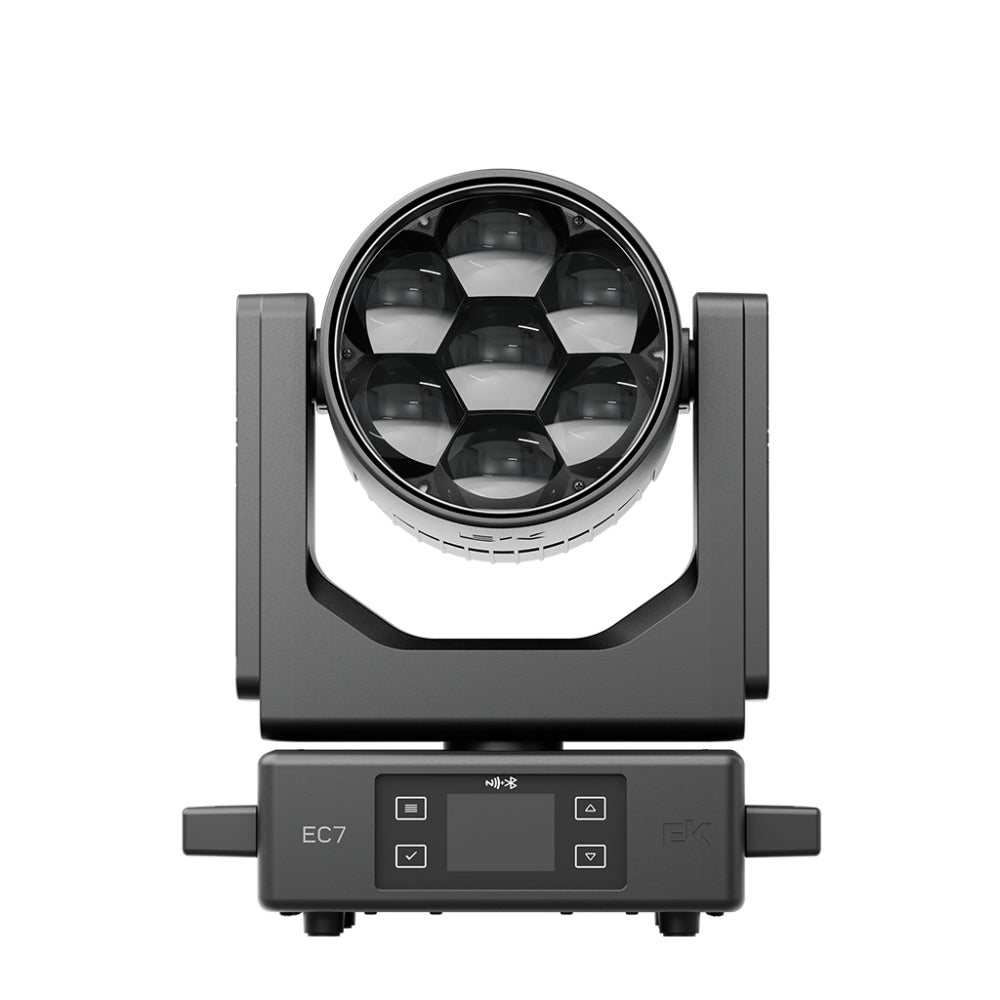

EK Lights EC7 Complete Spectrum Wash

SKU: EKLECS007
$3,190.00
Out of Stock, contact for ETA
By EK Lights
NOTIFY ME WHEN BACK IN STOCK
Description
"

Redefining efficiency, the EC7 delivers twice the output of its predecessor while maintaining the same power draw. Its advanced RGB+WW system ensures both vibrant colours and superior CRI, all packed into a compact, lightweight design that outperforms larger fixtures in its class.

Discover true colour freedom

  • 7*50W RGBWW
  • Up to 7800 lumens output
  • Complete spectrum: Saturated primary colours offer a wider range of colour choices

Twice the output at the same size

  • Ultra compact at 9.7kg; superior weight-to-output ratio satisfies any critical considerations on size and power
  • Wide zoom ranging from 3.8° – 51.2°, ideal for both tight beams for long throws and wide coverage for short throws

Specifications

Photometrics

  • Light Source: 7x50W RGBWW LED
  • Output: Up to 7,800 lm
  • CRI: >93
  • Colour Temperature: 2800K to 10,000K

Key Features

  • Pan/Tilt: 540°/247° 16-bit
  • Colour System: RGBWW
  • Zoom:  3.8° to 51.2°
  • Strobe: 1 – 30Hz
  • Dimming: 0 – 100% 22-bit

Control

  • Protocol: DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC
  • Data Connections: 5pin DMX In/Out, 2x RJ45 Ethercon
  • DMX Channel: 16/34/31CH + 28CH Pixels
  • Display: 2.8 inch TFT display
  • Frequency: 600Hz/1.2KHz/2KHz/4KHz/6KHz/25KHz
  • Pixel Control

Power

  • Mains: 100 – 240V, 50/60Hz
  • Power Connections: True1 In/Out
  • Consumption: 400W @ 230V
  • Ambient Temperature: 0°C to 45°C

Physical

  • Dimension: 323 x 207 x 381mm
  • Weight: 9.7kg
  • IP Rating: IP20
  • Cooling: Heat sink with noiseless fan
  • Housing: Flame-retardant nylon + fibre
"
