Obsidian - EL-NRE012 - NETRON EN4; 4 Port EtherDMX Gateway

SKU: EL-NRE012
$1,200.00 $1,254.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Obsidian Control Systems
Description

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

As a four Universe Node the EN4 is ideally suited for the powerful ONYX NOVA Edition.

Features

  • RDM, Art-Net and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or PoE powered
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum ½ rack housing
  • Unlocks ONYX NOVA 4-Universe License
  • NETRON CLU for remote configuration and firmware updates

Specifications

Mounting

  • Standalone

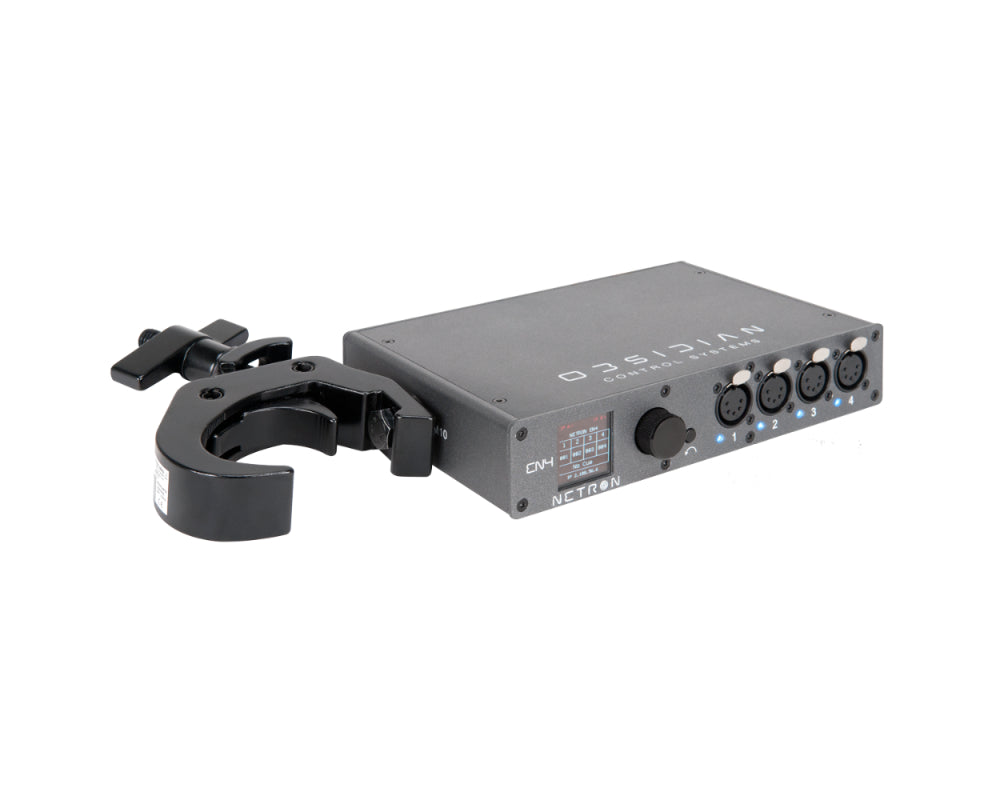

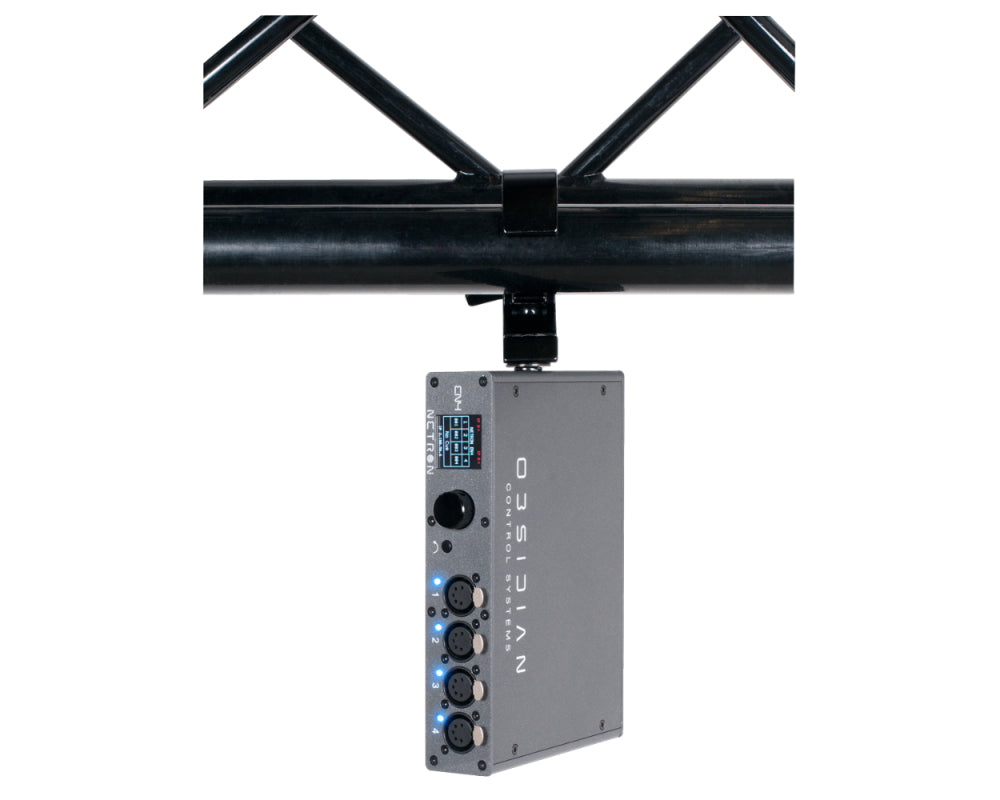

  • Truss-mount (M10 or M12 mounting hole)

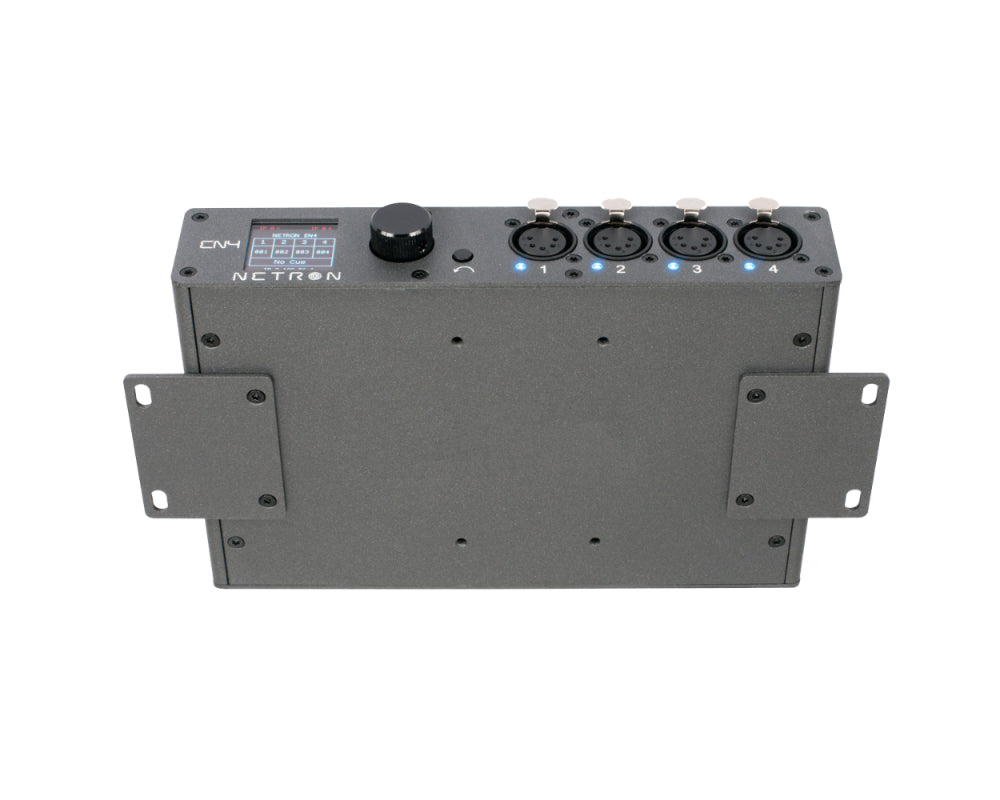

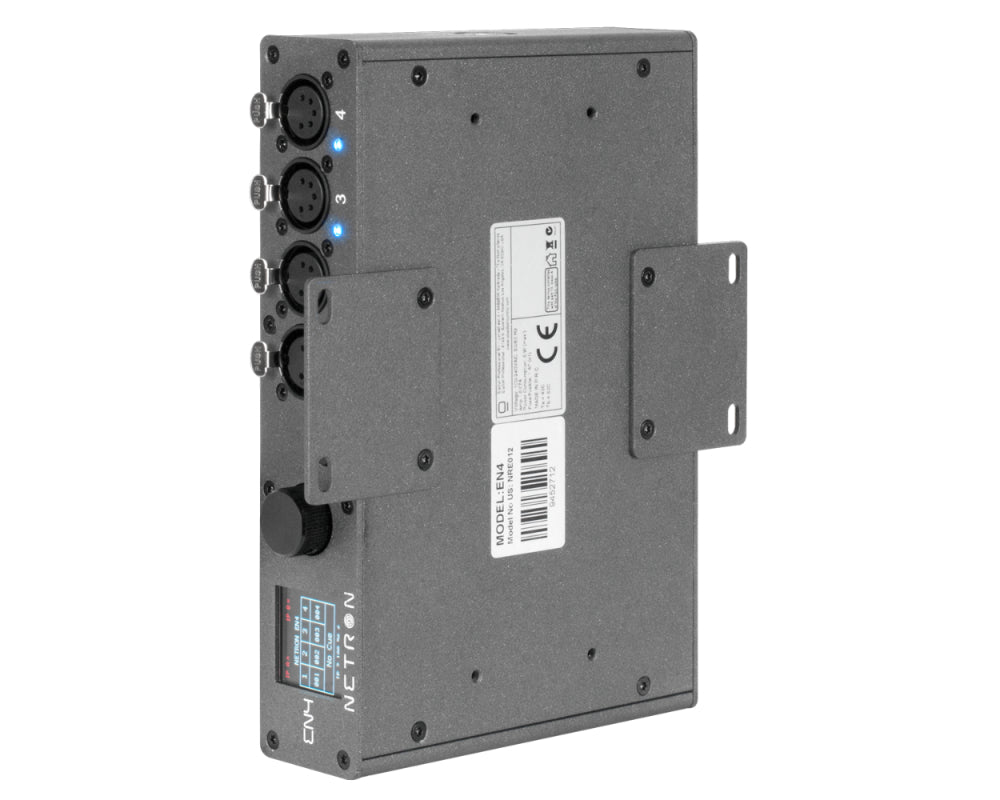

  • Wall mount horizontal or vertical (included)
  • DIN Rail horizontal or vertical (included)
  • Rack mount option (requires NET Shelf)

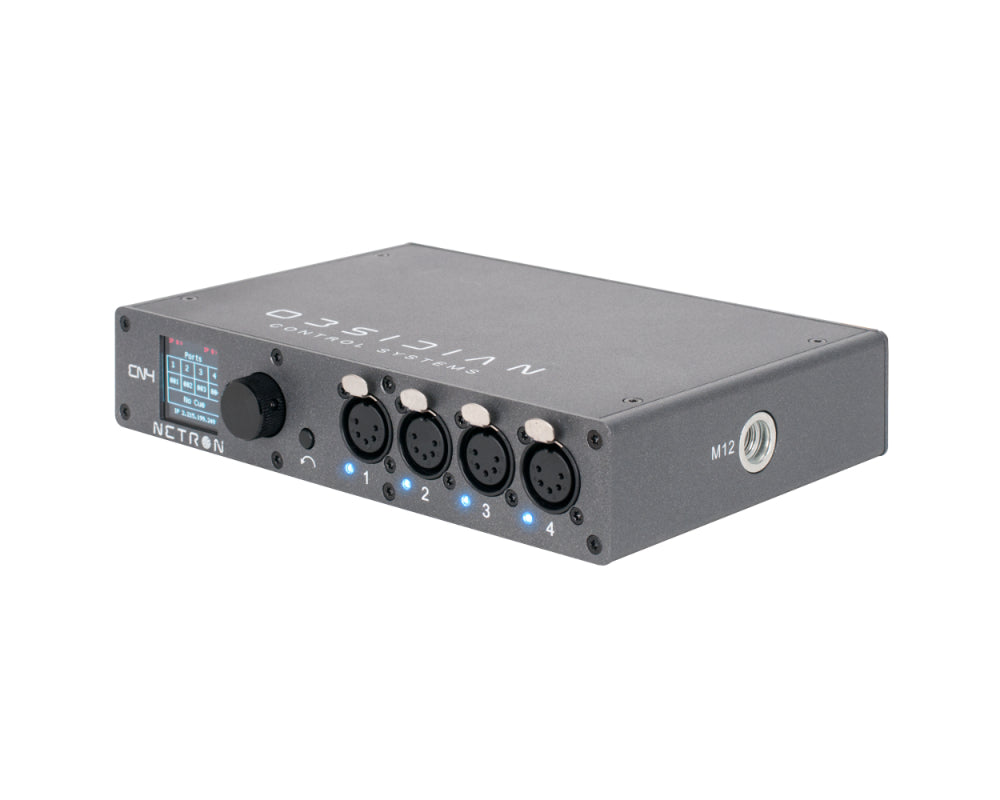

Front Connections

  • (4) 5pin XLR DMX/RDM ports
  • Optical and galvanic isolation
  • Bidirectional for DMX In and Output
  • Full color OLED display
  • Encoder w. Push to Select / Exit Button

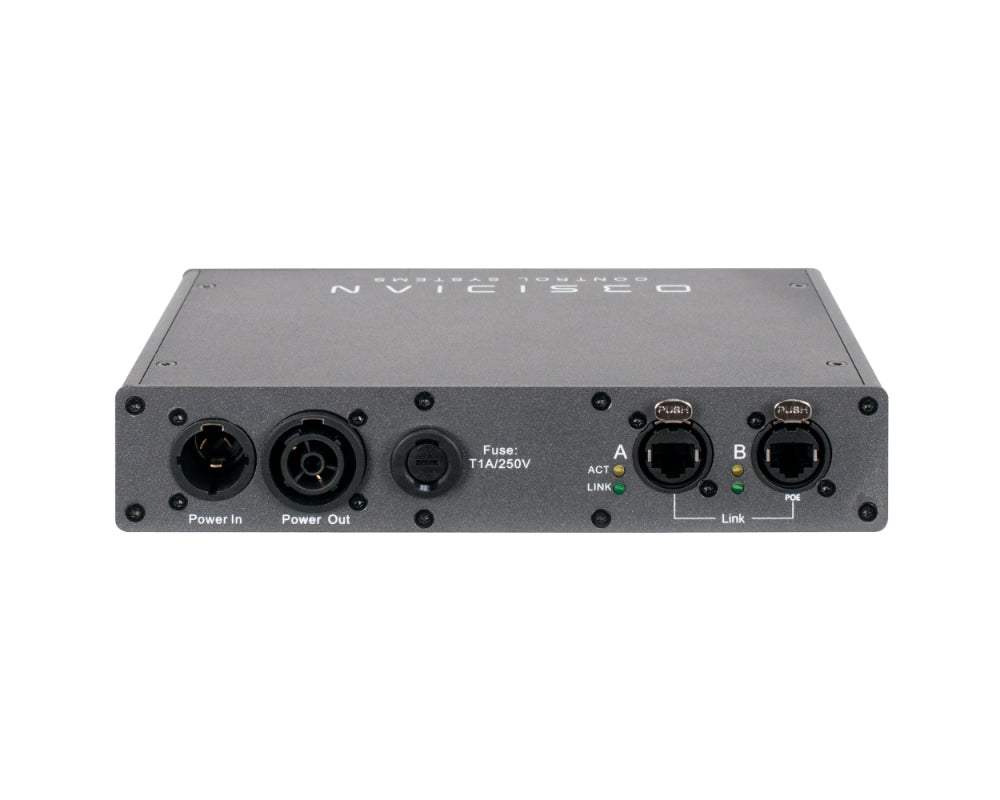

Rear Connections

  • IP65 Locking Power In/Thru
  • (2) Locking RJ45 Ethernet network (Low Latency Switch)

Protocols

  • sACN E1.31
  • Art-Net
  • DMX512-A E1.11 (In / Out)
  • RDM E1.20

Physical

  • Length: 139 mm (5.5 in.)
  • Width: 215 mm (8.5 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 1 kg (2.2 lbs)

Included Items

  • 1.5m LIp65 ocking power cable (EU or US version)
  • (2) Wall mount plates
  • (2) DIN-Rail clamps
