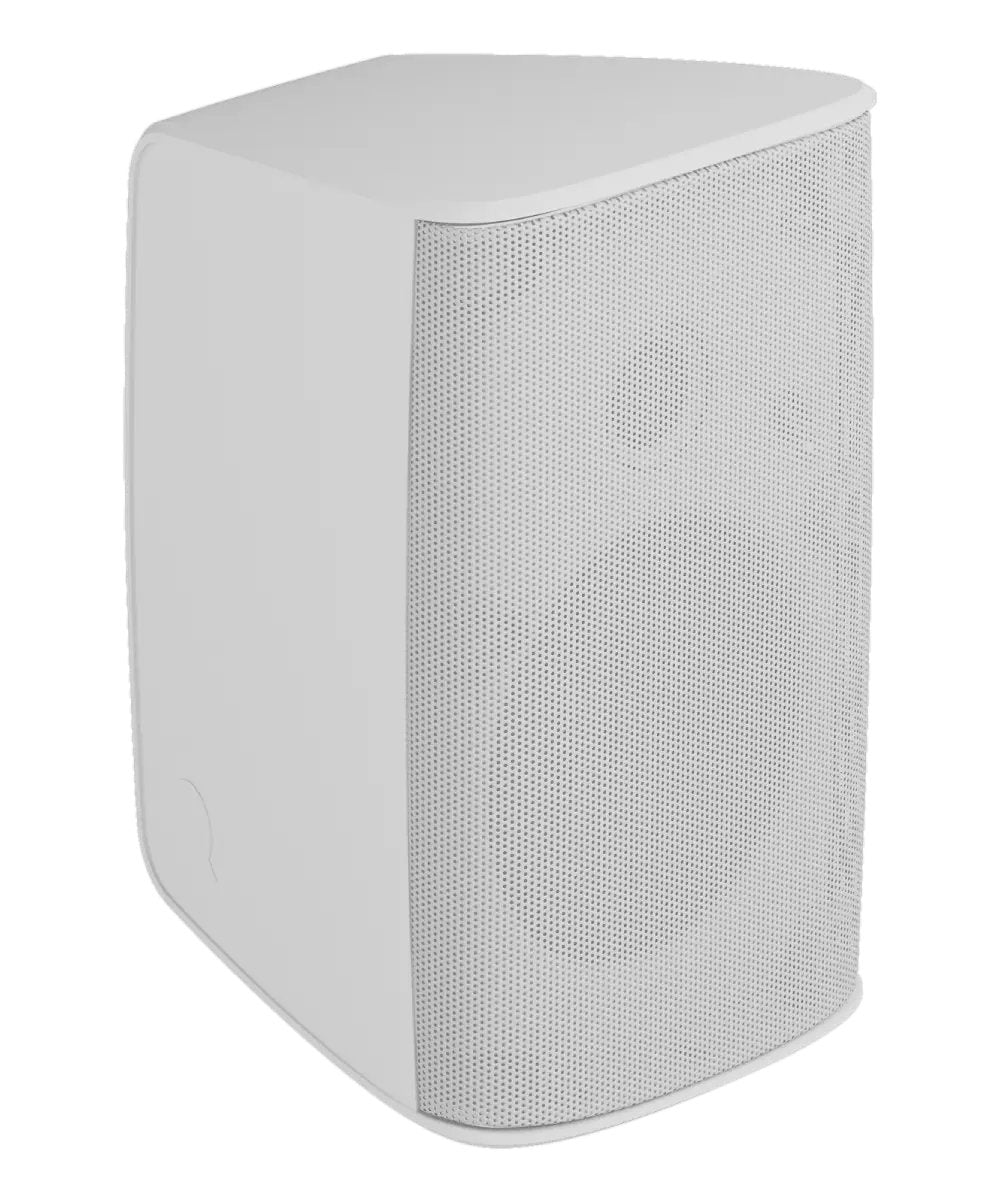

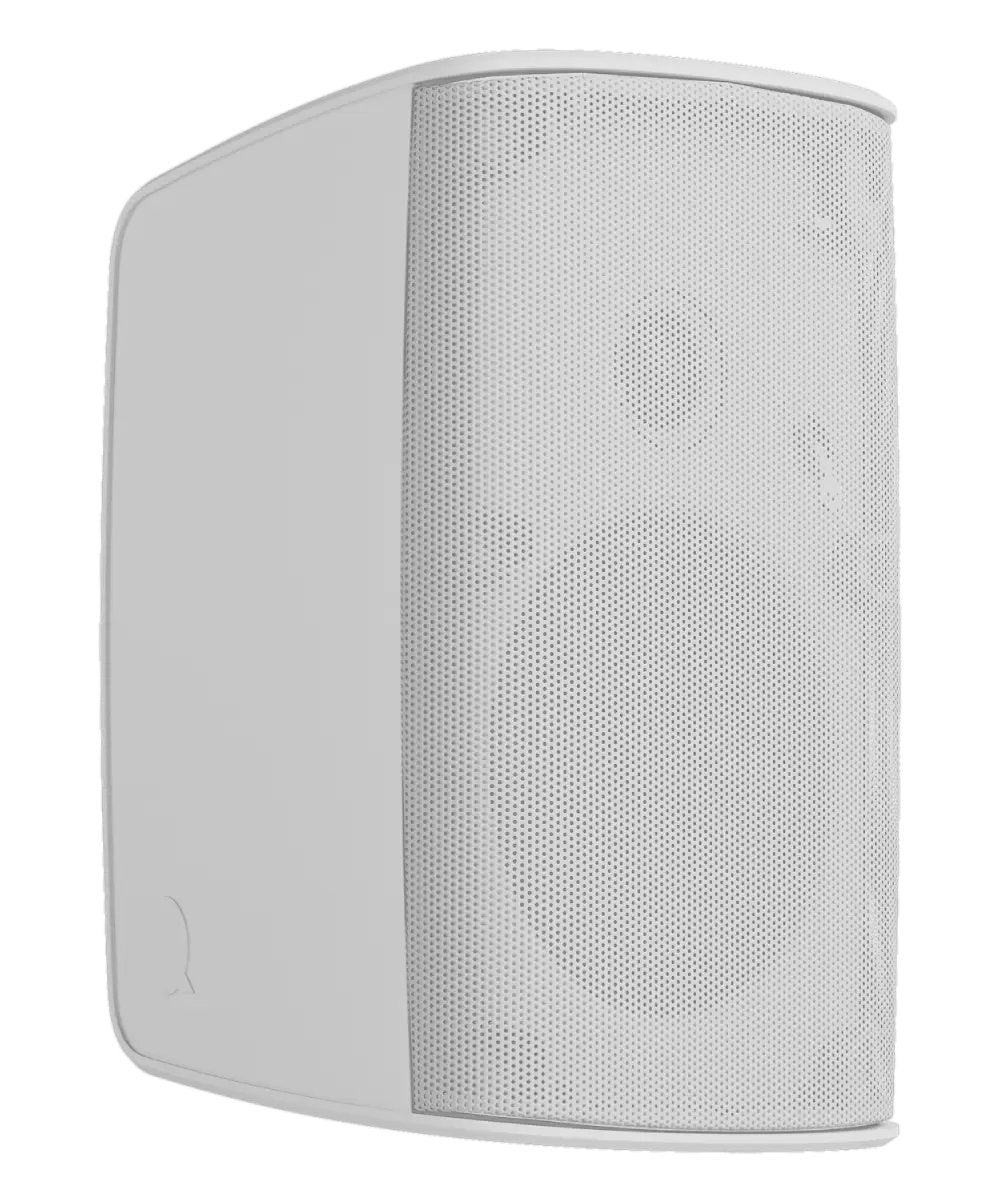

Quest Engineering MX6W 6" 100V / 16 Ohm Speaker White Finish (IP67)
SKU: MX6W
Out of Stock, contact for ETA
Description
The Quest MX6 (white) is a high‑fidelity, weatherproof surface‑mount loudspeaker designed for demanding permanent installations. Its ultra‑compact, low‑profile enclosure enables discreet wall or ceiling mounting, while delivering clear, detailed, and balanced sound reproduction. Constructed from UV‑stabilised materials and equipped with a corrosion‑resistant grille, the MX6 offers reliable operation in both indoor and outdoor environments.
The included UB1X bracket system allows for rapid, repeatable deployment, streamlining installation and ensuring precise alignment every time.
Key Specifications:
- Impedance: 16 Ω & 70/100 V
- Transducers: 1″ HF & 6″ LF
- Dispersion: 150° × 125°
- Power: 60W RMS
- Weather Rating: IP55, or IP65 with included connector cover.
- Mounting: Wall mount (UB1X) included; ceiling mount (UB2X) optional.
| FREQUENCY RESPONSE (-6 dB) |
90Hz to 20kHz
|
||
| SENSITIVITY - 1 W @ 1 m |
86 dB
|
||
| MAXIMUM SPL @ 1 m |
108dB
|
||
| POWER HANDLING (RMS/PEAK) |
60W / 120W
|
||
| NOMINAL IMPEDANCE |
16Ω
|
||
| TRANSDUCERS |
HF: 25mm (1") Dome Tweeter / LF: 152mm (6") Woofer
|
||
| DISPERSION (H° x V°) |
150° x 125°
|
||
| TRANSFORMER SETTINGS |
|
||
| CONNECTIONS |
Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru)
|
||
| DIMENSIONS (H x W x D) |
308 x 183 x 211mm (12.1" x 7.2" x 8.3")
|
||
| WEIGHT |
4.0kg (8.8lb)
|
||
| RIGGING POINTS |
50mm x 50mm Back Bracket Mount
|
||
| IP RATING |
Speaker Cabinet IP55 or IP65 when used with included Weatherproof Connector Cover
|
||
| CABINET MATERIAL & FINISH |
Injection Moulded ASA (Acrylonitrile Styrene Acrylate)
|
||
| GRILLE MATERIAL & FINISH |
Removable Powder Coated Aluminium Grille
|
||
| SHIPPING DIMENSIONS (H x W x D) |
385 x 270 x 365mm (15.2" x 10.6" x 14.4")
|
||
| SHIPPING WEIGHT |
5.7kg (12.6lb)
|
||
| RECOMMENDED POWER AMPLIFIER |
Quest QX or QXD Amplifiers
|
||
| ACCESSORIES (INCLUDED) |
Wall Mount Bracket (UB1XB/UB1XW), Weatherproof Connector Cover, Standard Connector Cover & Euroblock/Phoenix Connector
|
||
| ACCESSORIES (AVAILABLE SEPARATELY) |
Ceiling Mount Bracket (UB2XB/UB2XBW)
|
