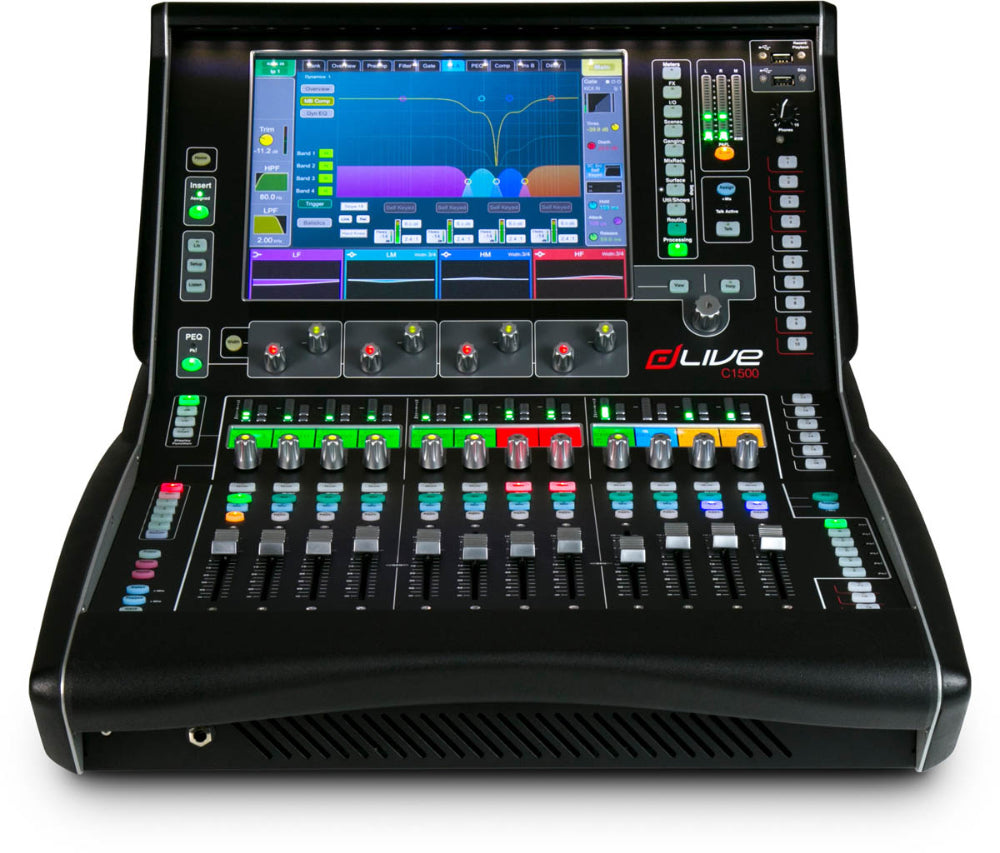

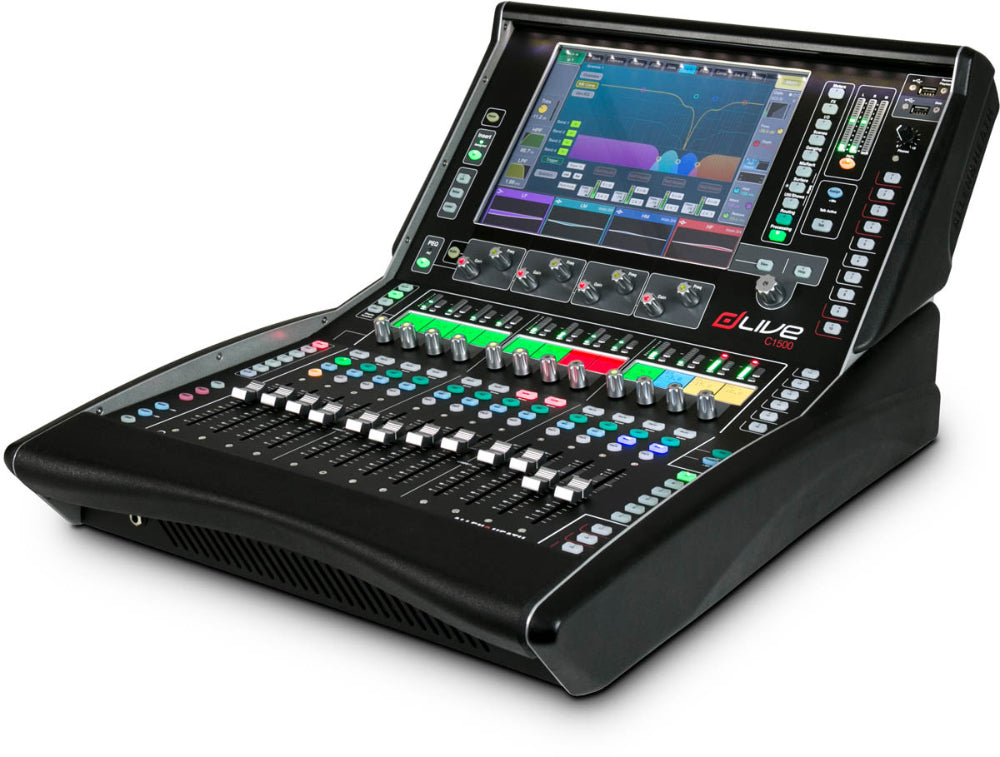

Allen & Heath DLIVE-C1500 C Class Rackmount Surface With 12 Faders, Single 12” Screen, 6 XLR In/6 XLR Out, I/O Port
Description
** Contact us for a personalised quote & specification on a dLive system **
Firmly established at the leading edge of the new wave of digital consoles, dLive has rapidly earned its reputation for superior audio quality, next generation workflows, stunning FX and faithful processing emulations. dLive C Class presents dLive’s phenomenally powerful XCVI Core, DEEP processing suite and Harmony UI in a compact, portable format, making it the smart choice for corporate AV, multi-purpose venues, houses of worship, theatres and regional rental companies.
dLive C Class remains true to the core dLive design mission to create a digital mixing system that makes the most sophisticated mixing challenges feel elegantly simple. From seasoned audio professional to new recruits, dLive has been crafted to allow the operator to keep their focus on the live mixing experience, not on the mixer.
The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
FEATURES
- 12 faders
- Fully assignable layout – 72 fader strips
- Harmony UI integrates screen and wrap-around controls
- 12” capacitive touchscreen
- Gesture control – pinch, swipe, drag ‘n drop
- Dedicated multi-mode EQ view
- Configurable widget areas for Scenes, meters, FX and more
- 19 assignable SoftKeys
- Engineer’s Wedge and IEM fader strips
- Comprehensive multipoint metering
- Daylight visibility
- USB stereo recording and playback

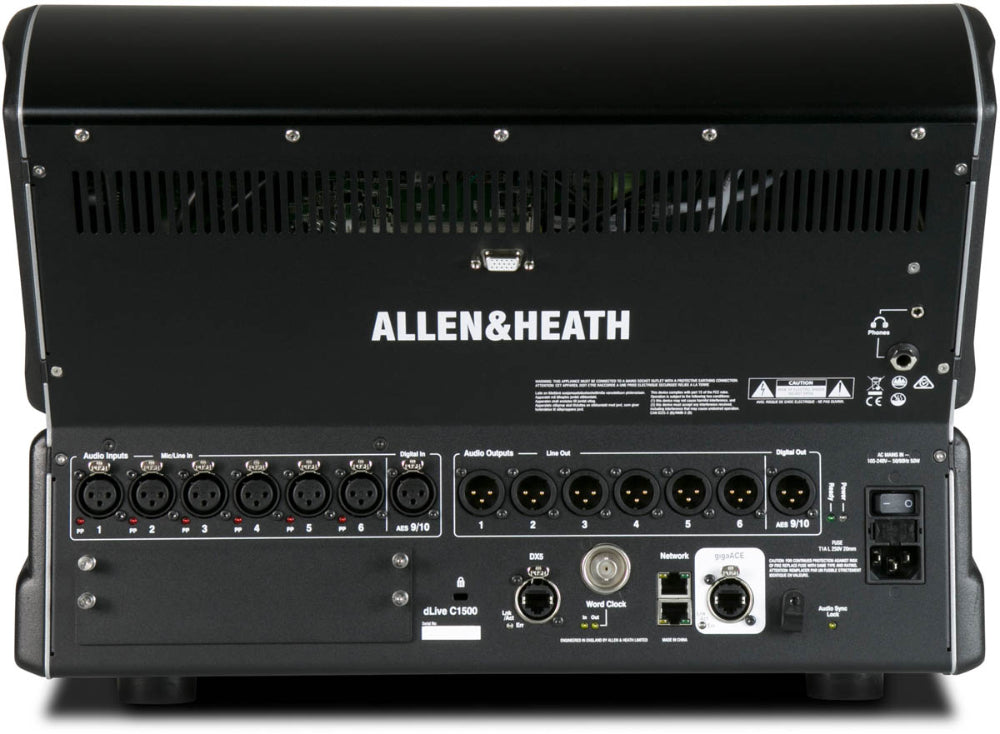

- 6 XLR mic/line in, 6 XLR line out
- 1 digital st AES3 in, 1 digital st AES3 out
- Connection hub
- GigaACE gigabit link to MixRack
- DX link for I/O expansion
- I/O Port – 128 ch 96 kHz
- 2x Network ports
- Wordclock BNC I/O
- Video output
