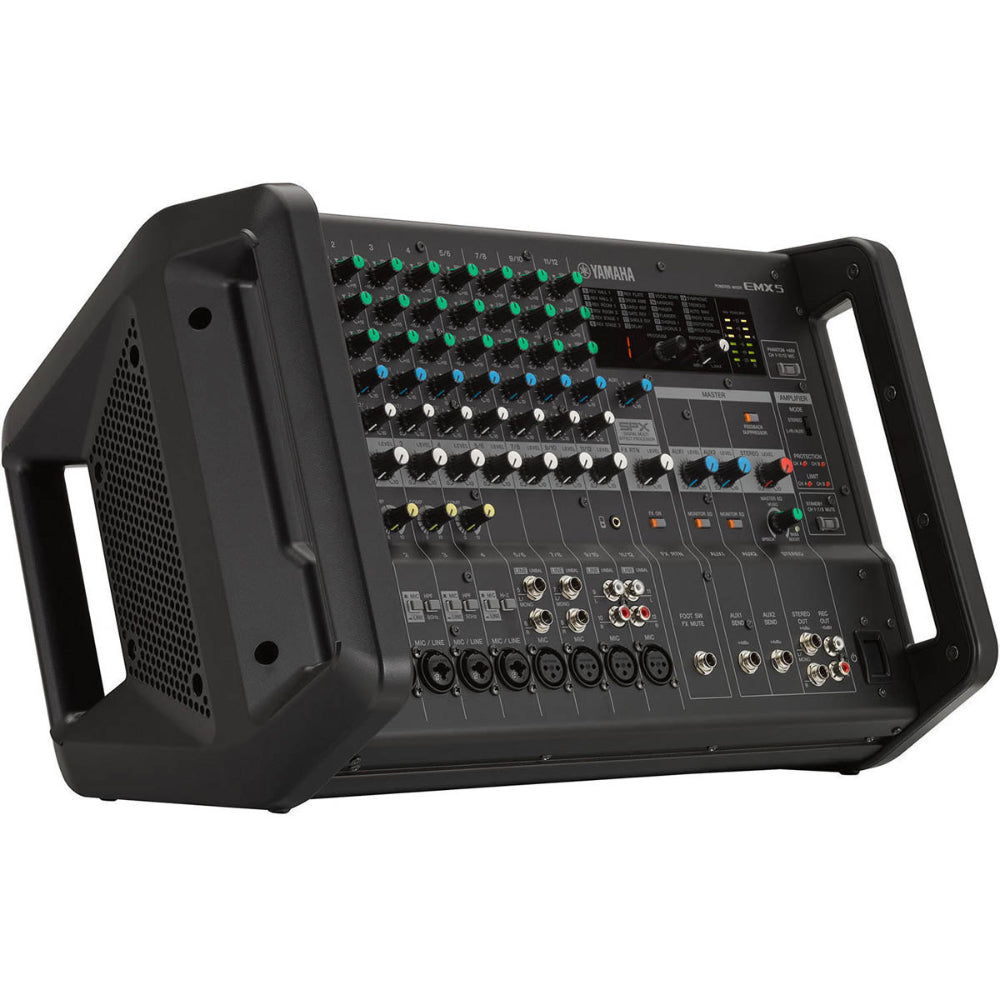

Yamaha EMX5 12 Input 2x630W Powered Mixer
SKU: ZM37440
Low Stock: 1 - Contact us to confirm!
By Yamaha
Description
The new EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.
Features
- Powerful & High Efficiency Class-D Amplifier
- Robust But Extremely Portable Design
- Easy Setup, Easy Operation
- Complete Range of Input & Output Channels
- Onboard Feedback Suppressor
- 3-band Equalizer Control
- 1-Knob Master EQ™
- 1-knob COMP
- Rack-Mounting
- Comprehensive, Professional Effects and Signal Processing
- Flexible Speaker Connectivity
- Internal Universal Power Supply
| Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
|---|---|
| Phantom power | +48 V |
| Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] |
| Control and others | FOOT SWITCH : Effect Mute on/off |
| PAD | 30 dB (CH1-4) |
|---|---|
| Hi-Z | Supported (CH4) |
| HPF | 80 Hz, -12 dB/oct. (CH1–3) |
| COMP | 1-knob COMP (CH1–4) |
| EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) |
| EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) |
| EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) |
| DSP | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ |
| output power @4ohms | 500 W + 500 W |
| output power @8ohms | 370 W + 370 W |
