Yamaha Rivage PM10 Premium - 128/32 IO, 16x16AES, SRC Dante VSC Bundle

Contact our sales team today to discuss your Yamaha Rivage needs!

The RIVAGE PM10 is a new generation of Yamaha PM digital mixing system. In terms of sound quality, operation, functionality, reliability, expandability, and more, the RIVAGE PM10 is a thoroughly refined flagship that defines the direction for future generations.

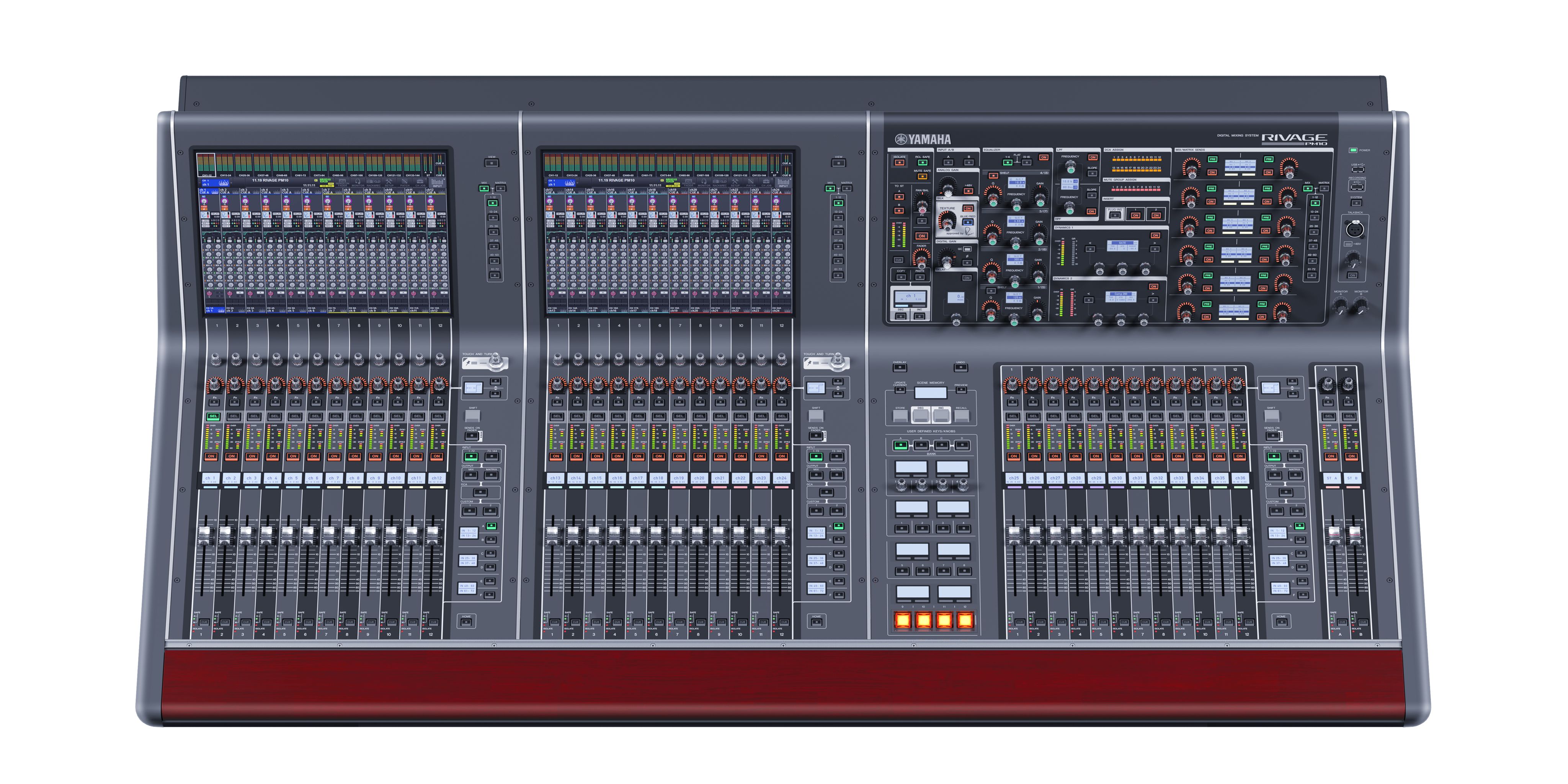

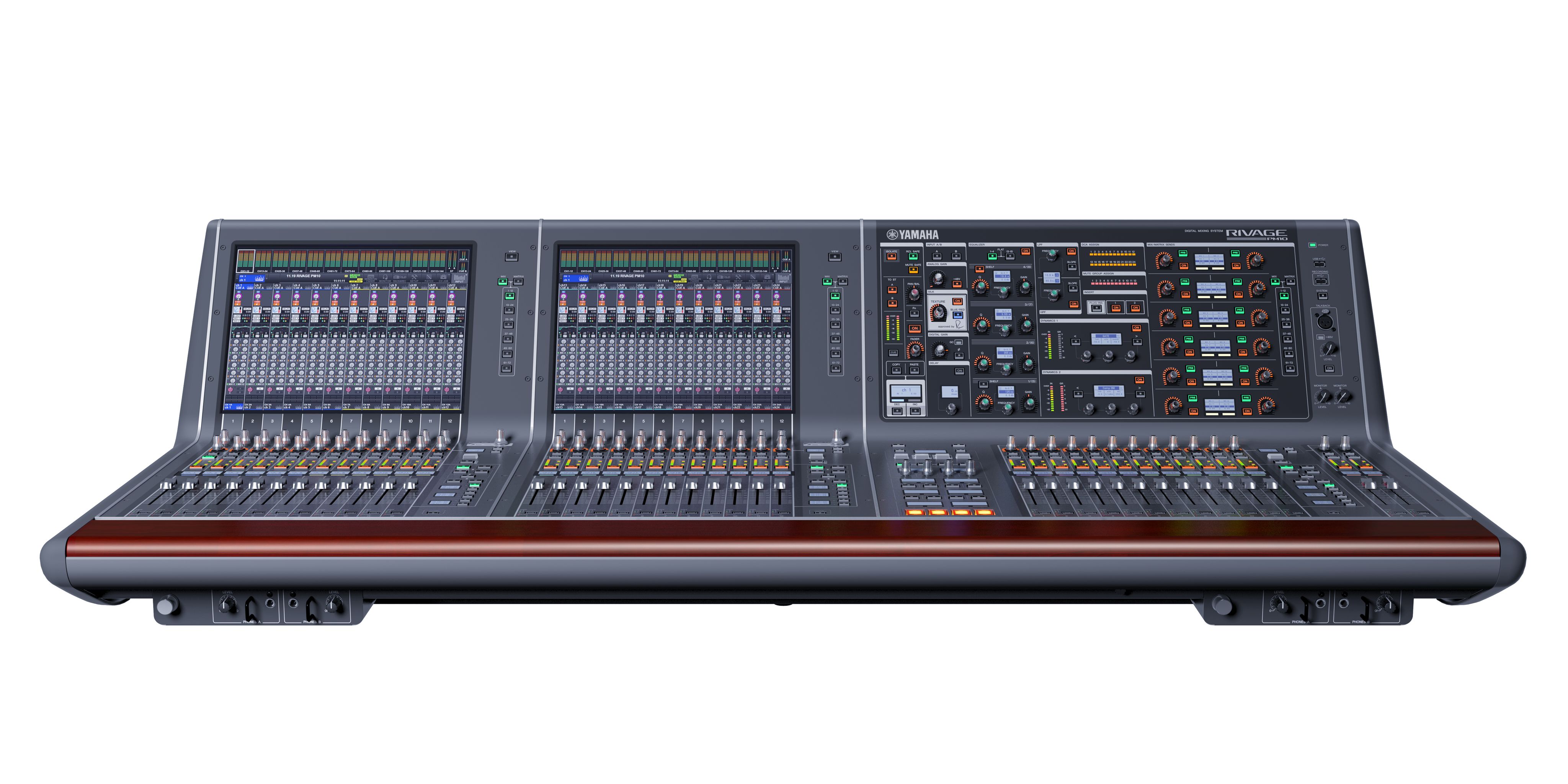

The control surface with two large touch panel displays and 38 faders enables you to perform general operations on the RIVAGE PM10 system.

• Display: 15"" touch panel x 2
• Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)

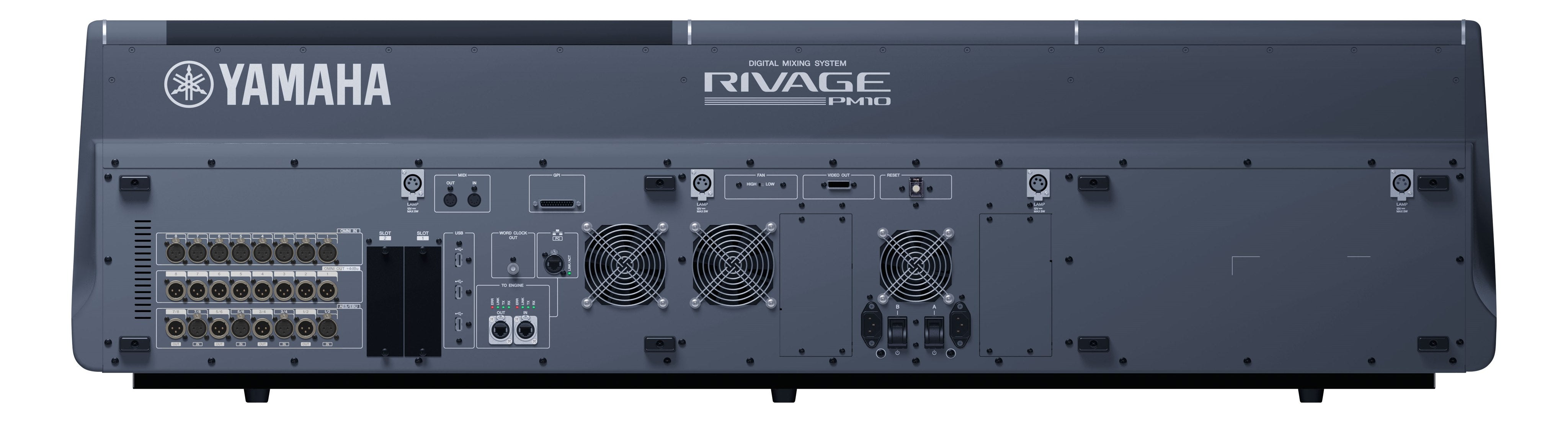

• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Power supply: Dual redundant power supply built-in
• Power consumption: 380W
• Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0"" x 16.4"" x 33.4"")
• Net Weight: 85 kg (187 lbs)

The DSP-RX-EX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system.

• Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
• Superior capability of processing digital audio signals of up to 288 input, 72 MIX, 36 MATRIX, and two STEREO channels.
• Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• Two Mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9"" x 8.7"" x 19.3"") (5U rack size)
• Net Weight: 20 kg (44.1 lbs)

The RPio622 I/O rack features six RY card slots that provide flexible analog and digital I/O configuration and expansion capability for RIVAGE PM series systems employing low-latency TWINLANe networking. Dual power supply units are built in.

• Six RY card slots that enable you to expand analog inputs and outputs, and/or digital inputs and outputs.
• Two HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• HY card slot 1 features 256 ins/outs, and HY card slot 2 features 128 ins/outs.
• Two mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 300W
• Dimensions (WxHxD): 480 x 455 x 489.7mm (18.9"" x 17.9"" x 19.3"") (10U rack size)
• Net Weight: 30 kg (66 lbs)
