SPL SMC51 5.1 Monitor Controller
SKU: SPL-SMC51
Out of Stock, contact for ETA
By SPL
Description

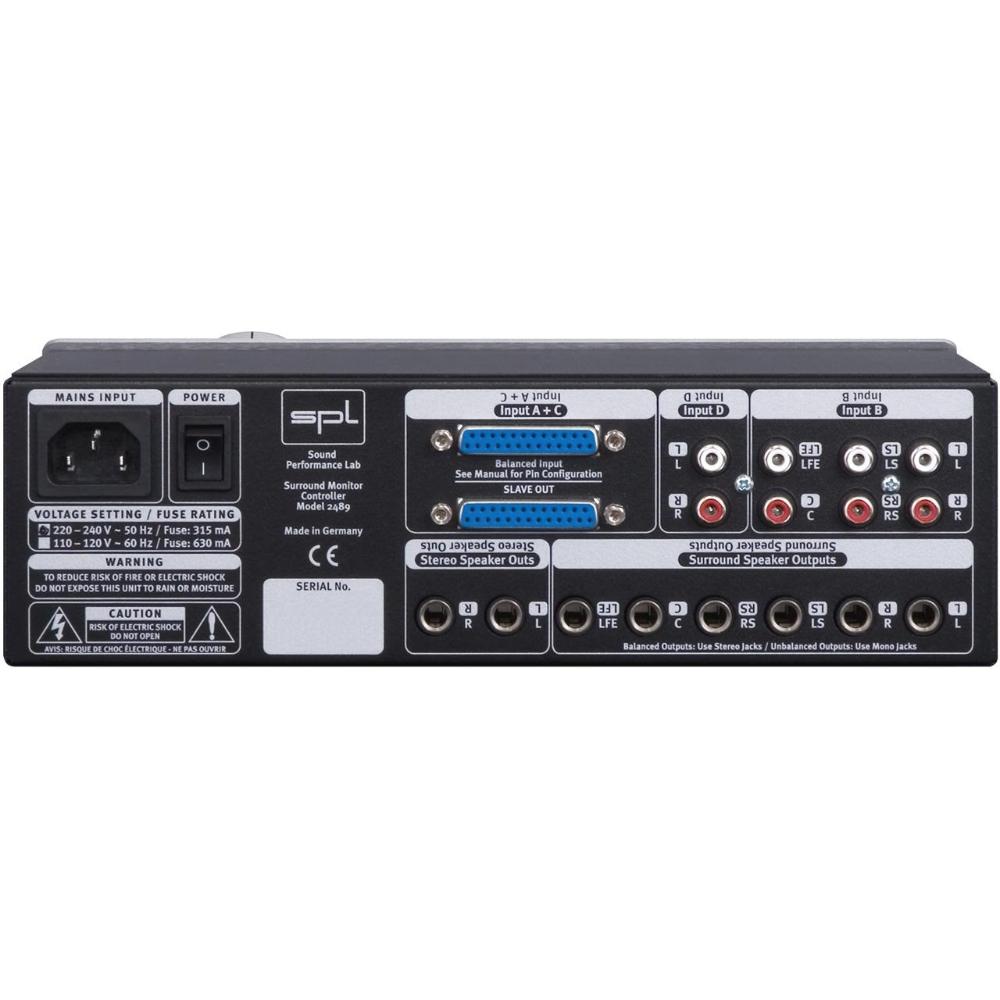

The SPL SMC is a stereo and 5.1-surround monitor controller. It features both balanced and unbalanced I/O - DB25 input and TRS speaker outputs, and RCA I/O. This gives you the option of monitoring multiple input sources that could be professional & consumer audio products. The SMC is especially useful when partnered with your DAW, as monitor output levels can be done independently with negligible difference in signal quality. You can also have a stereo set of speakers that run independently of the 5.1 set. All controllable by the SMC. The SPL SMC is a stereo and 5.1-surround monitor controller is ideal for post-production facilities, film/video/game production and sound designers.
Inputs & Outputs
- Input A: DB25 balanced (Tascam-Standard)
- Input impedance: 50 kOhm
- Input B: RCA unbalanced
- Input impedance: ›10 kOhm
- Output DB25 (passive pass thru)
- Output TRS stereo jacks balanced (speaker outputs)
- Output impedance: ‹600 Ohm
Measurements
- Frequency range: 10 Hz – 100 kHz (-3 dB)
- THD + N:
- Input level -10 dB: 0.04%
- Input level 0 dB: 0.01 %
- Input level +10 dB: 0.006%
- Input level +18 dB: 0.002%
- Input level +22 dB: 0.1%
- Noise: -98 dBu (A-weighted)
- Max input level: +22 dBu
- Dynamic range: 120 dB
- CMRR:
- 100 Hz: ›70 dBu
- 1 kHz: ›70 dBu
- 10 kHz: ›60 dBu
- 100 kHz: ›50 dBu
Dimensions & Weight
- H x W x D: 91 x 272 x 220 mm (3.58" x 10.7" x 8.66")
- 2,3 kg; 5lbs
