New Product

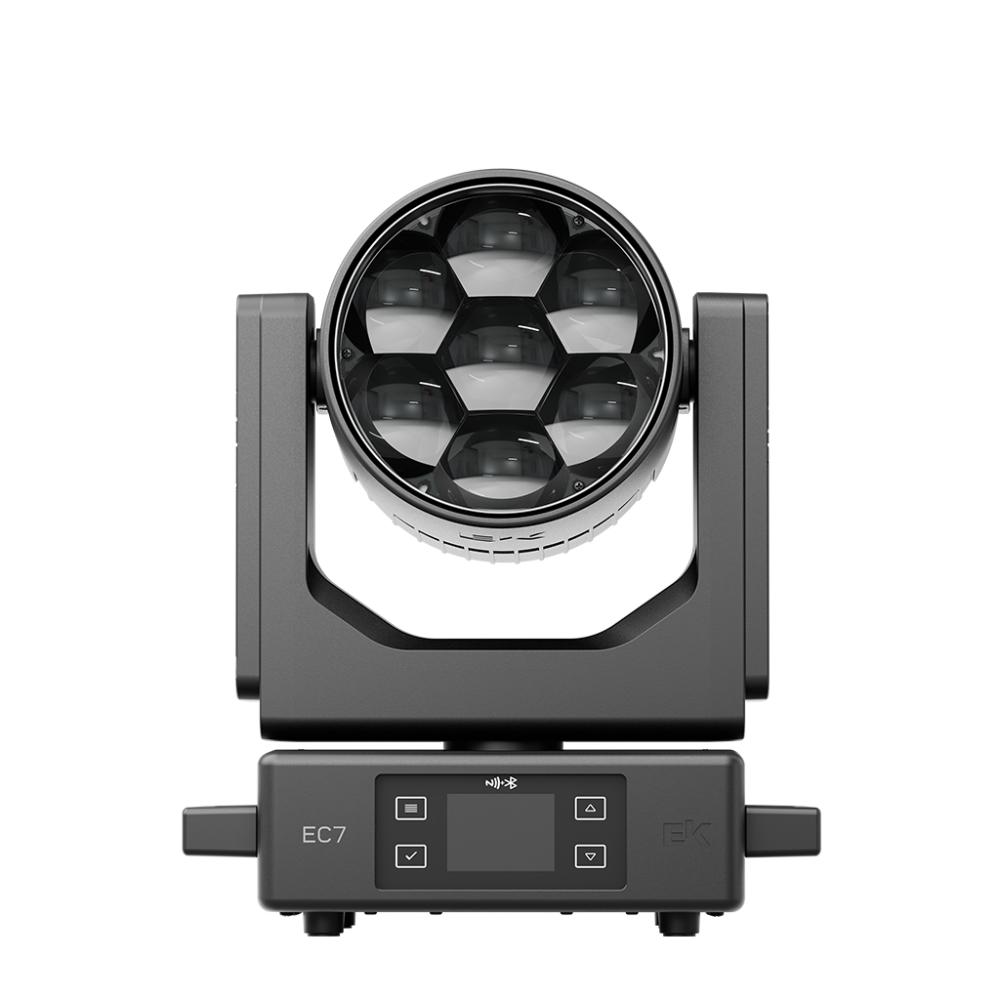

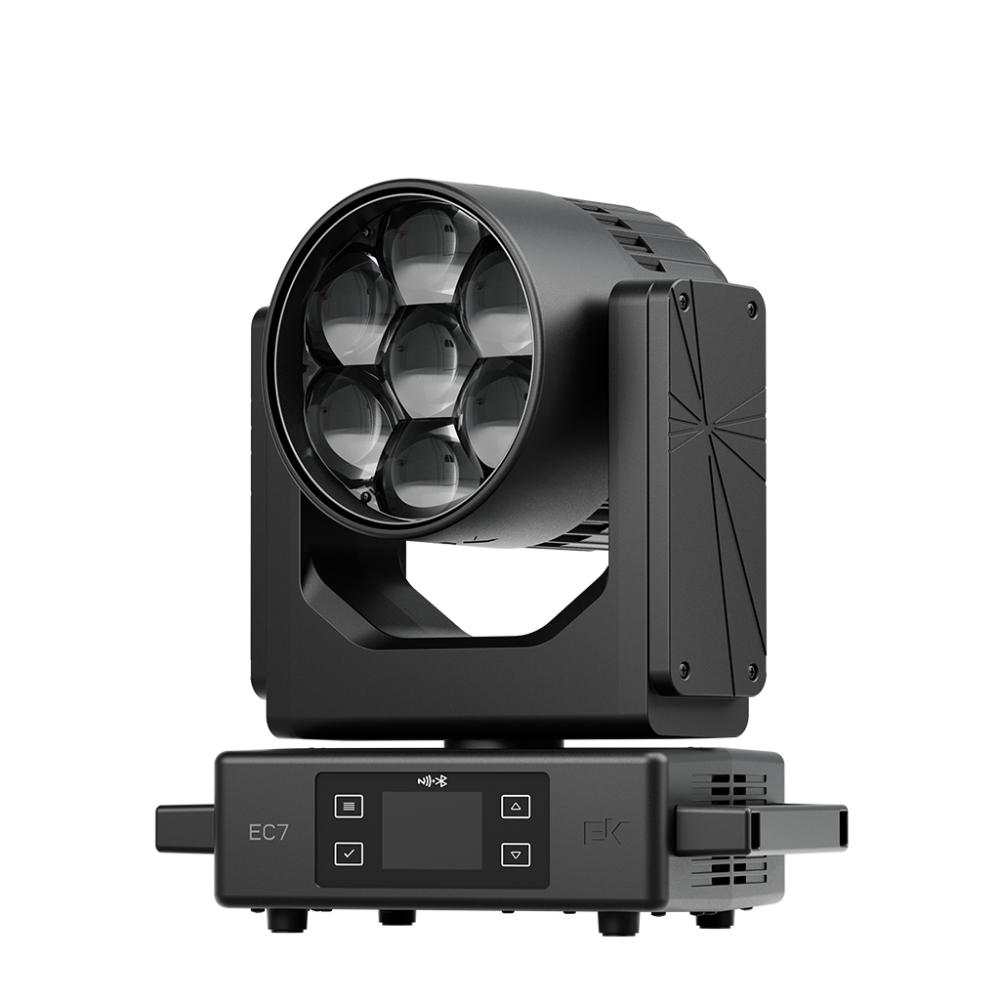

EK Lights - EKLECS007 - EC7 Wash

SKU: EKLECS007
$3,190.00
Out of Stock, contact for ETA
By EK Lights
NOTIFY ME WHEN BACK IN STOCK
Description

Redefining efficiency, the EC7 delivers twice the output of its predecessor while maintaining the same power draw. Its advanced RGB+WW system ensures both vibrant colours and superior CRI, all packed into a compact, lightweight design that outperforms larger fixtures in its class.

Discover true colour freedom

  • 7*50W RGBWW
  • Up to 7800 lumens output
  • Complete spectrum: Saturated primary colours offer a wider range of colour choices

Twice the output at the same size

  • Ultra compact at 9.7kg; superior weight-to-output ratio satisfies any critical considerations on size and power
  • Wide zoom ranging from 3.8° – 51.2°, ideal for both tight beams for long throws and wide coverage for short throws

Specifications

Photometrics

  • Light Source: 7x50W RGBWW LED
  • Output: Up to 7,800 lm
  • CRI: >93
  • Colour Temperature: 2800K to 10,000K

Key Features

  • Pan/Tilt: 540°/247° 16-bit
  • Colour System: RGBWW
  • Zoom:  3.8° to 51.2°
  • Strobe: 1 – 30Hz
  • Dimming: 0 – 100% 22-bit

Control

  • Protocol: DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC

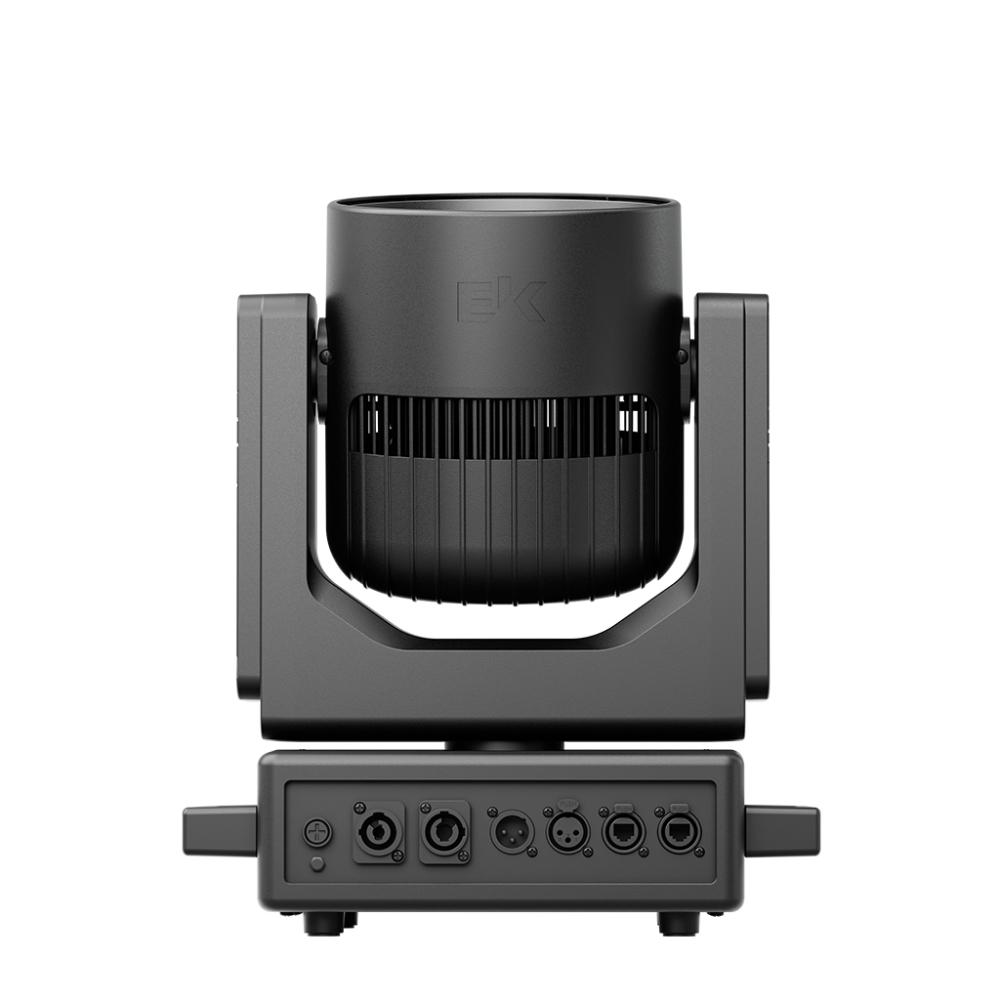

  • Data Connections: 5pin DMX In/Out, 2x RJ45 Ethercon
  • DMX Channel: 16/34/31CH + 28CH Pixels
  • Display: 2.8 inch TFT display
  • Frequency: 600Hz/1.2KHz/2KHz/4KHz/6KHz/25KHz
  • Pixel Control

Power

  • Mains: 100 – 240V, 50/60Hz
  • Power Connections: True1 In/Out
  • Consumption: 400W @ 230V
  • Ambient Temperature: 0°C to 45°C

Physical

  • Dimension: 323 x 207 x 381mm
  • Weight: 9.7kg
  • IP Rating: IP20
  • Cooling: Heat sink with noiseless fan
  • Housing: Flame-retardant nylon + fibre
