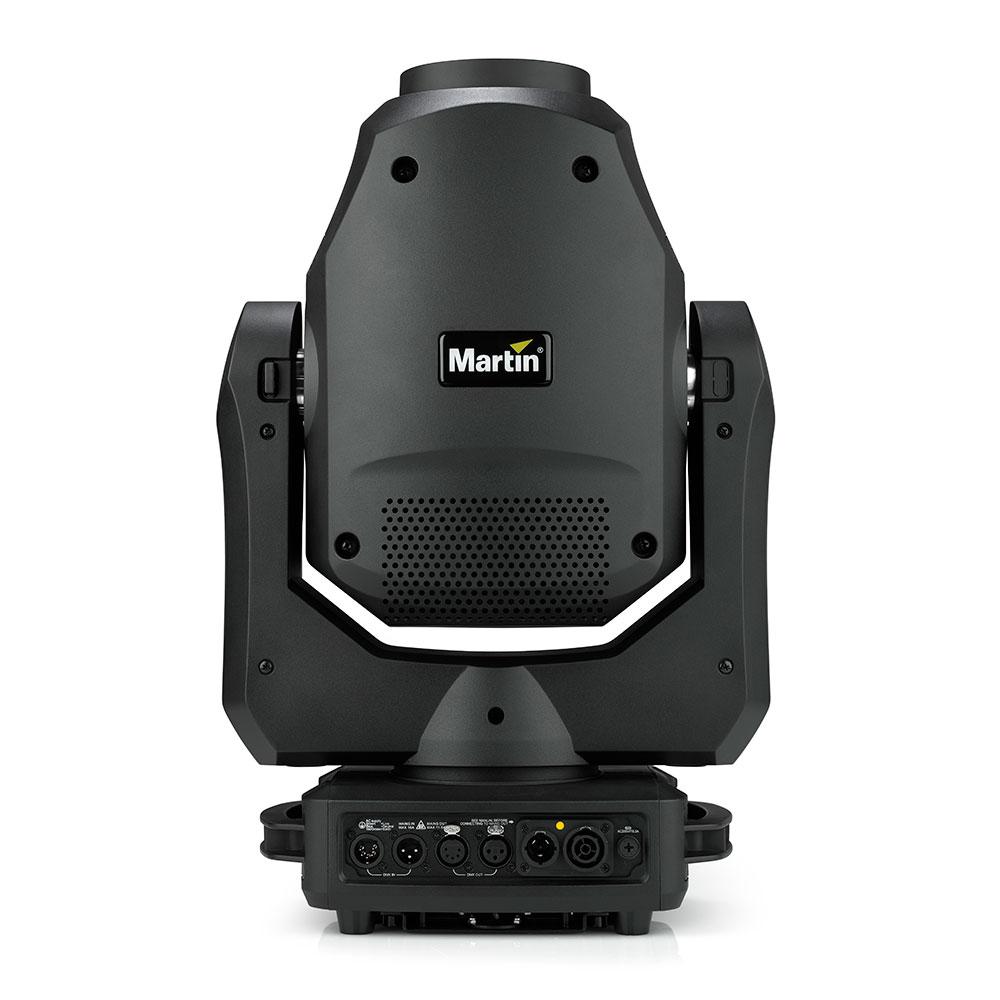

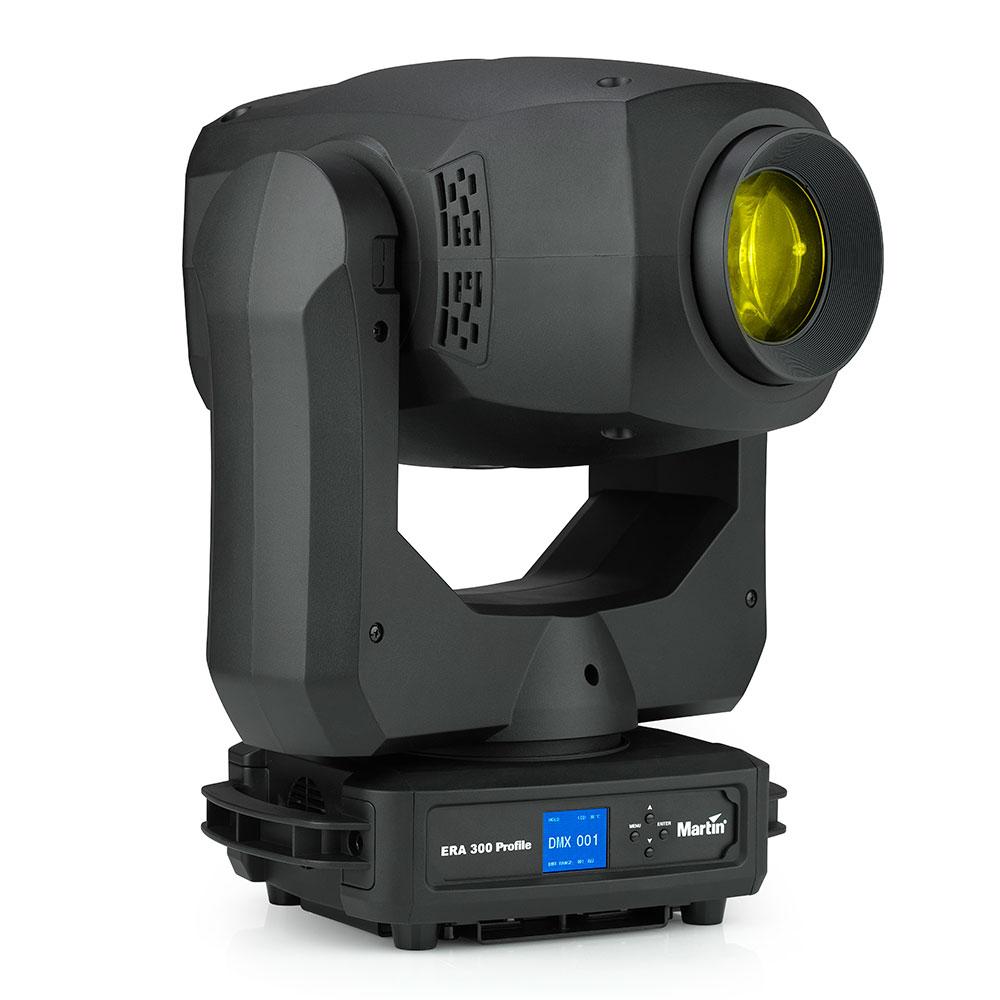

Martin MARERA300 ERA 300 Profile LED Moving Head

SKU: MARERA300
$11,095.76
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Martin Lighting
Description

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.

This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY colour mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; colour wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY colour mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colours, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in colour temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy.

Features:

  • 260 watt / 6,500K LED light source
  • 9,500 lumen output
  • Full feature set including CMY colour mixing and 1:2 zoom
  • Crisp optics with flat field
  • Very compact and low weight design

Specifications

PHYSICAL

  • Length: 375 mm
  • Width: 217 mm
  • Height: 564 mm
  • Weight: 17kg

DYNAMIC EFFECTS

  • Color mixing: CMY, independently variable 0-100%
  • Color wheel: 9 color filters plus open
  • Beam effects: Rotating three-facet prism
  • Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
  • Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
  • Iris: 0-100%
  • Zoom: Motorized
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
  • Pan: 540°, coarse & fine control and speed
  • Tilt: 260°, coarse & fine control and speed
  • Focus: Motorized

CONTROL AND PROGRAMMING

  • Control options: DMX
  • Setting and addressing: Control panel with backlit LCD display
  • 16-bit control: Dimming, pan and tilt
  • DMX channels: 21
  • DMX compliance: USITT DMX512/1990
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485

OPTICS

  • Zoom range: 13° - 28°
  • Light source: 260W LED engine
  • Minimum LED lifetime: 20,000 hours (to >70% luminous output)
  • Binning: Tight color and flux binning

PHOTOMETRIC DATA

  • Light engine luminous output: 20,000 lumens
  • Fixture luminous output: 9,500 lumens
  • CRI (Color Rendering Index) : >70
  • CCT: 6500 Kelvin
  • LED refresh rate : 1200 Hz
  • All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

CONSTRUCTION

  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black/White
  • Protection rating: IP20

GOBOS

  • Gobo diameter: 26.8 mm +/- 0.2 mm
  • Maximum image diameter: 19.0 mm
  • Gobo thickness, maximum: 1.1mm borosilicate glass

INSTALLATION

  • Mounting points: Two quarter-turn brackets for rigging clamps
  • Orientation: Any

CONNECTIONS

  • AC power in, thru: Neutrik powerCON TRUE1
  • DMX data in/out: 3-pin & 5-pin locking XLR

ELECTRICAL

  • AC power: 100-240 V AC nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Power Factor: 0.99 @ 230 V
  • Typical current draw:  1.6 A @ 230 V
  • Power Consumption, Typical: 374 W
  • Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed.

THERMAL

  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C
  • Minimum ambient temperature (Ta min.): 0° C

ENVIRONMENTAL

  • RoHS: Compliant
  • REACH: Compliant
  • WEEE: Compliant
  • Proposition 65: Compliant
  • Efficacy (max output): 30.3 lm/W
  • LWR (Lumen to Weight Ratio): 559 lm/kg

APPROVALS

  • Australia/NZ: RCM

INCLUDED ITEMS

  • Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug Omega brackets for rigging clamp attachment
