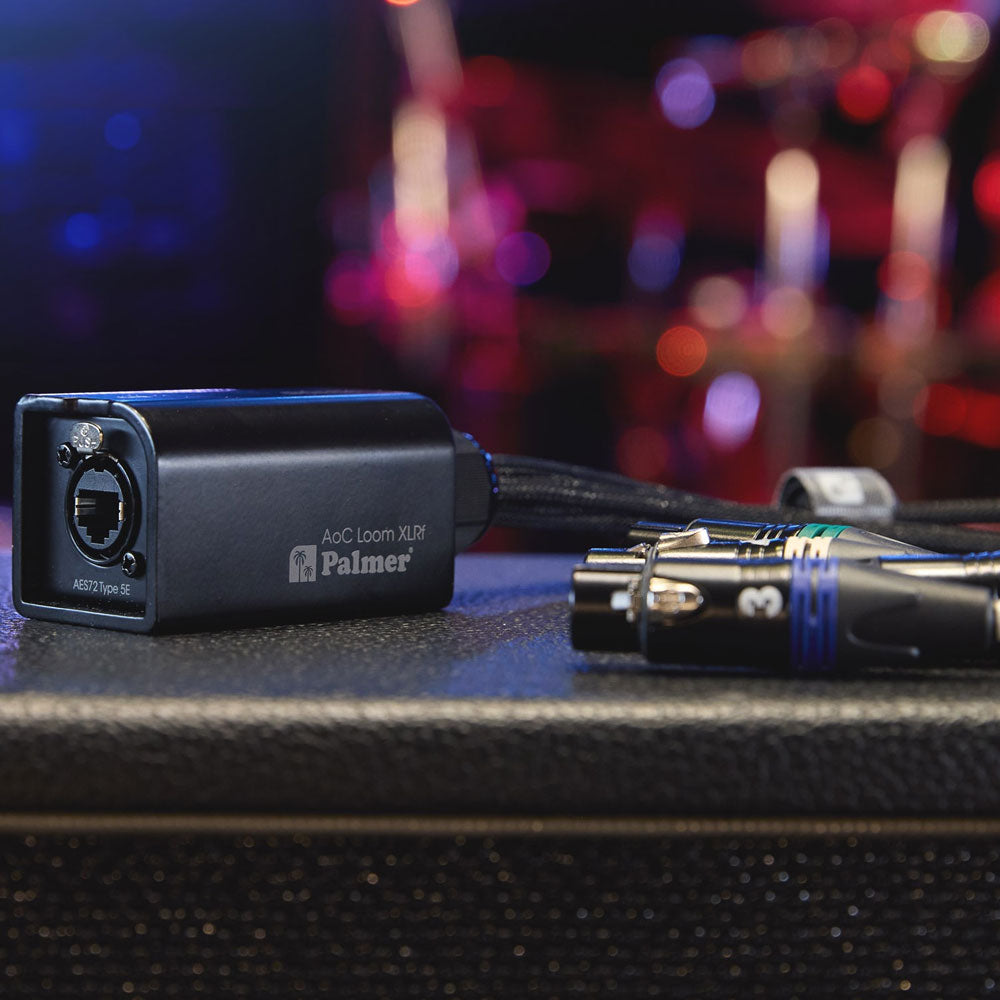

Palmer PAOCLXLRF AoC Loom XLR-F - Audio Over CAT Loom From etherCON to 4 XLR Female

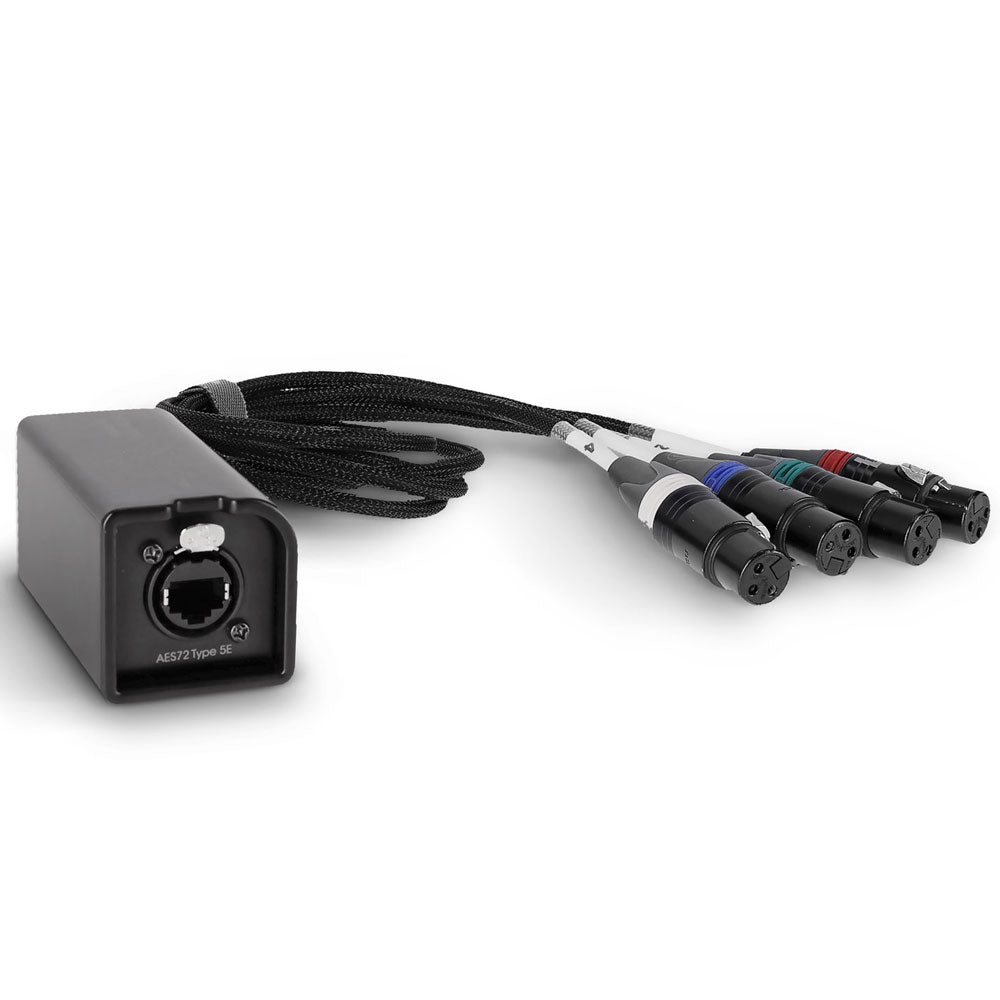

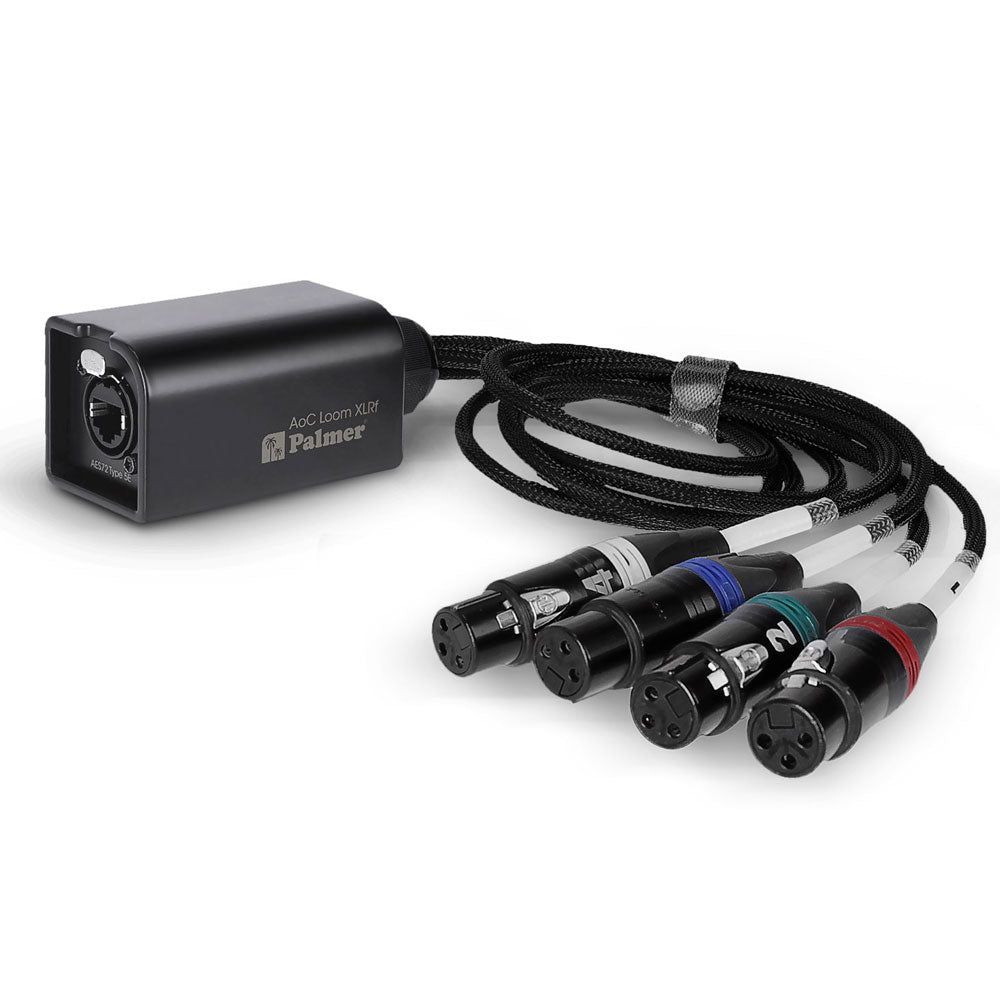

The Palmer PAOCLXLRF AoC Loom XLR-F is a versatile adapter cable designed for the reliable transfer of up to 4 analog or 8 digital audio signals over a network cable (not included). The female XLR connectors are conveniently marked and color-coded for simple recognition, while the use of etherCON technology ensures secure connections and prevents accidental disconnections.

The PAOCLXLRF Loom allows for the transmission of not only audio, but also DMX and MIDI control signals, as well as 48-volt phantom power, using just one Ethernet cable. This level of adaptability makes it a valuable tool for a wide range of uses, from live events to studio work to press events.

Constructed with premium Neutrik components, a sturdy aluminum-steel housing, and durable mesh cables with a 50 cm splice, the Palmer PAOCLXLRF AoC Loom XLR-F ensures dependable signal transmission and long-lasting performance in professional settings. Its sleek and refined design also elevates the aesthetic of any setup.

The Palmer P AOC L XLR F is a dependable and long-lasting device that offers a cost-effective and versatile option for traditional 4-channel multicores, while maintaining the high-quality audio standards that Palmer is known for.

Features

• 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)
• etherCON to 4 x XLR female
• AES72 Type 5E
• Compatible with 48-volt phantom power
• Premium Neutrik components
• Robust mesh cable, 0.5 m

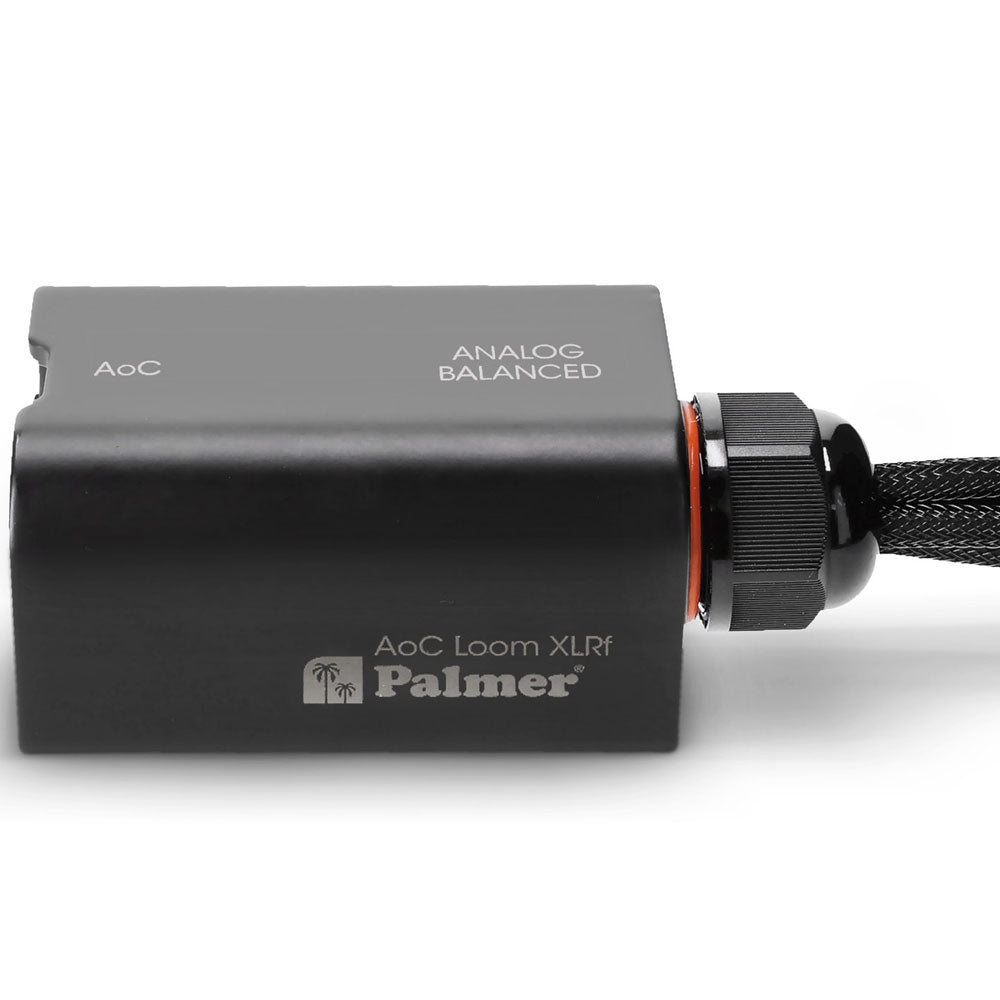

• Solid casing made of aluminium and steel
• Engineered in Germany

Specifications

• Product type - Audio over Cat adapter
• Number of inputs - 4
• Input Connector - RJ45
• Number of outputs - 4
• Output connector - XLR female
• Material - Aluminium, Steel
• Cable Length - 0.5 m
• Dimensions - 80 x 45 x 45 mm
• Weight - 0.39 kg
• Max. input level (< 1% THD, 1 kHz) - + 32 dBu
• Frequency range - 0 Hz - 20 kHz
• THD (1 kHz, +4 dBu, unity, unweighted) - < 0,0005 %
• RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
  • Pin 1 - Channel 3 -
  • Pin 2 - Channel 3 +
  • Pin 3 - Channel 4 -
  • Pin 4 - Channel 1 +
  • Pin 5 - Channel 1 -
  • Pin 6 - Channel 4 +
  • Pin 7 - Channel 2 -
  • Pin 8 - Channel 2 +

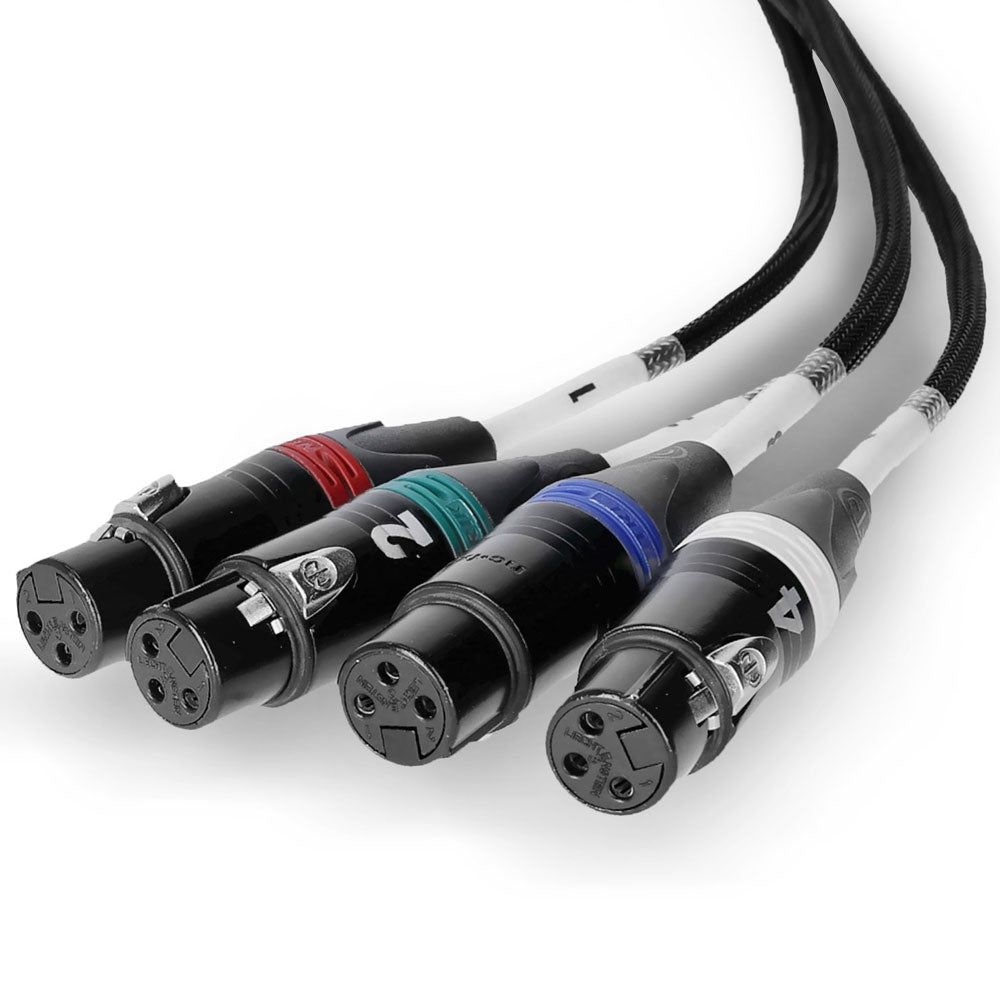

• Channel color code
  • Channel 1 - Red
  • Channel 2 - Green
  • Channel 3 - Blue
  • Channel 4 - White
