Palmer PAN 01 DI Box Passive
SKU: PAL-PAN01
In stock: 4
By Palmer
Description

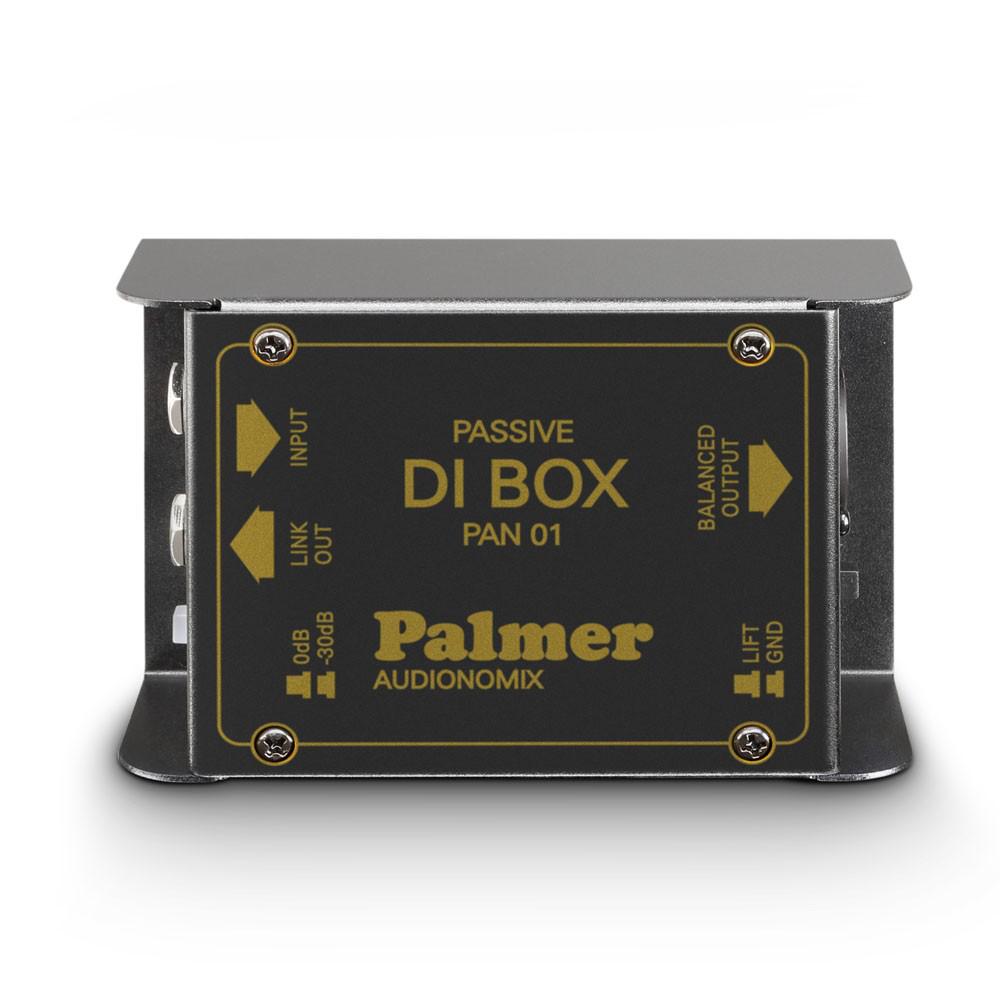

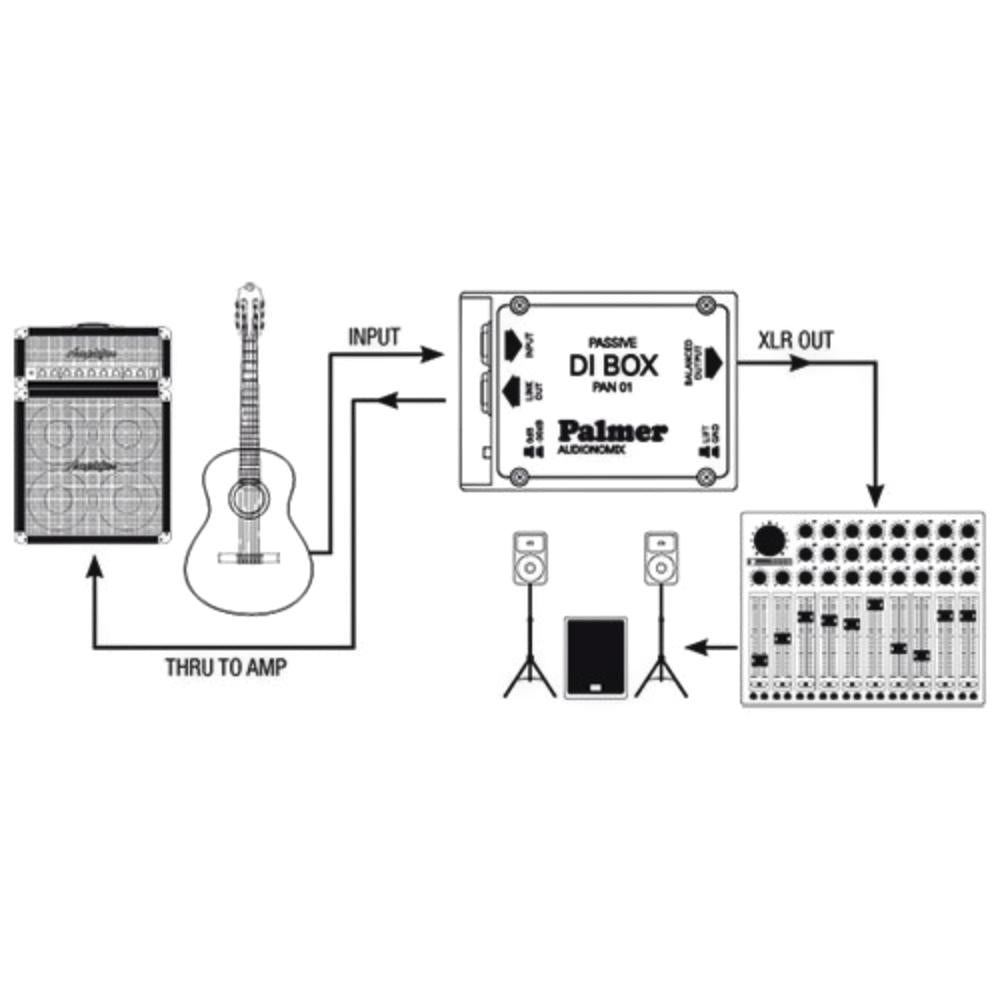

Palmer Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
Product type | DI Boxes |
Type | passive |
Channels | 1 |
Inputs | 1 |

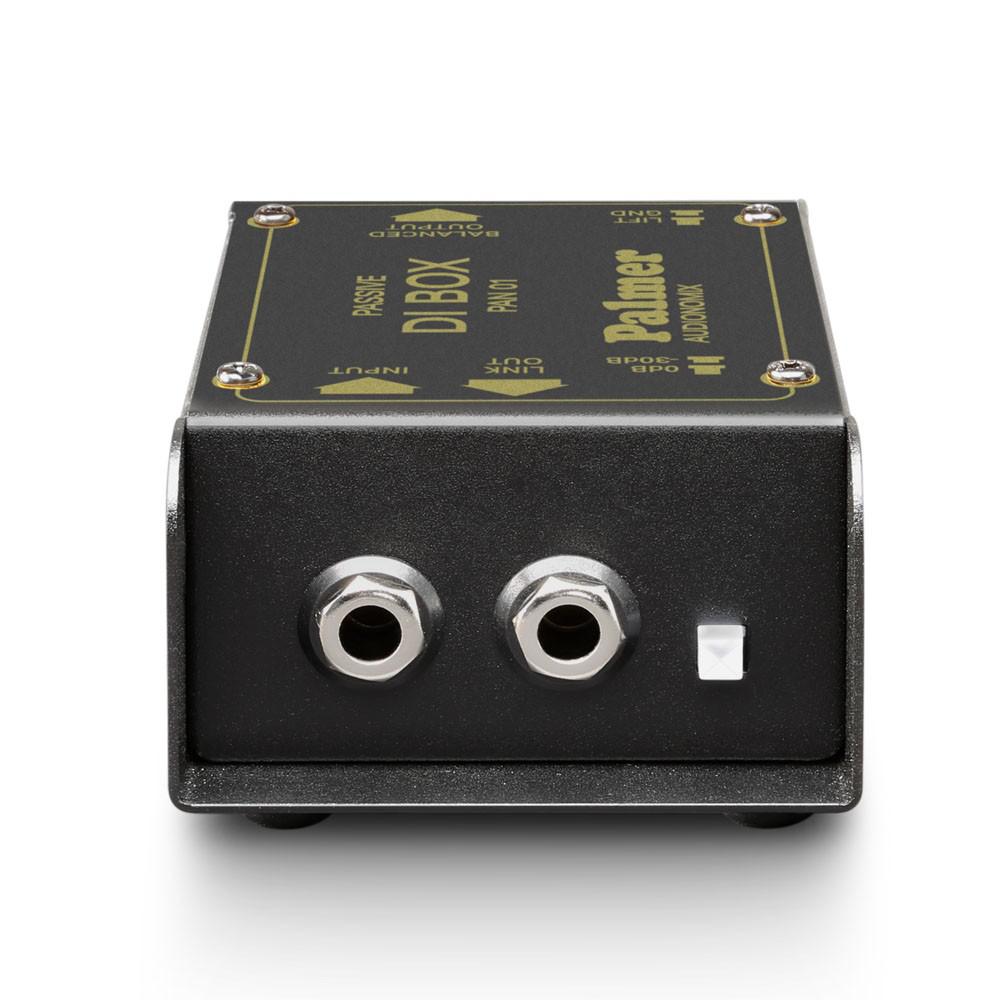

Input connectors | 6.3 mm jack |
Max. input level | + 54 dBu |
Input impedance | (@ 60 Hz) 60k Ohm(s) |
Input pad | 0 / -30 dB |
Outputs | 1 |
THRU outputs/channel | 1 |

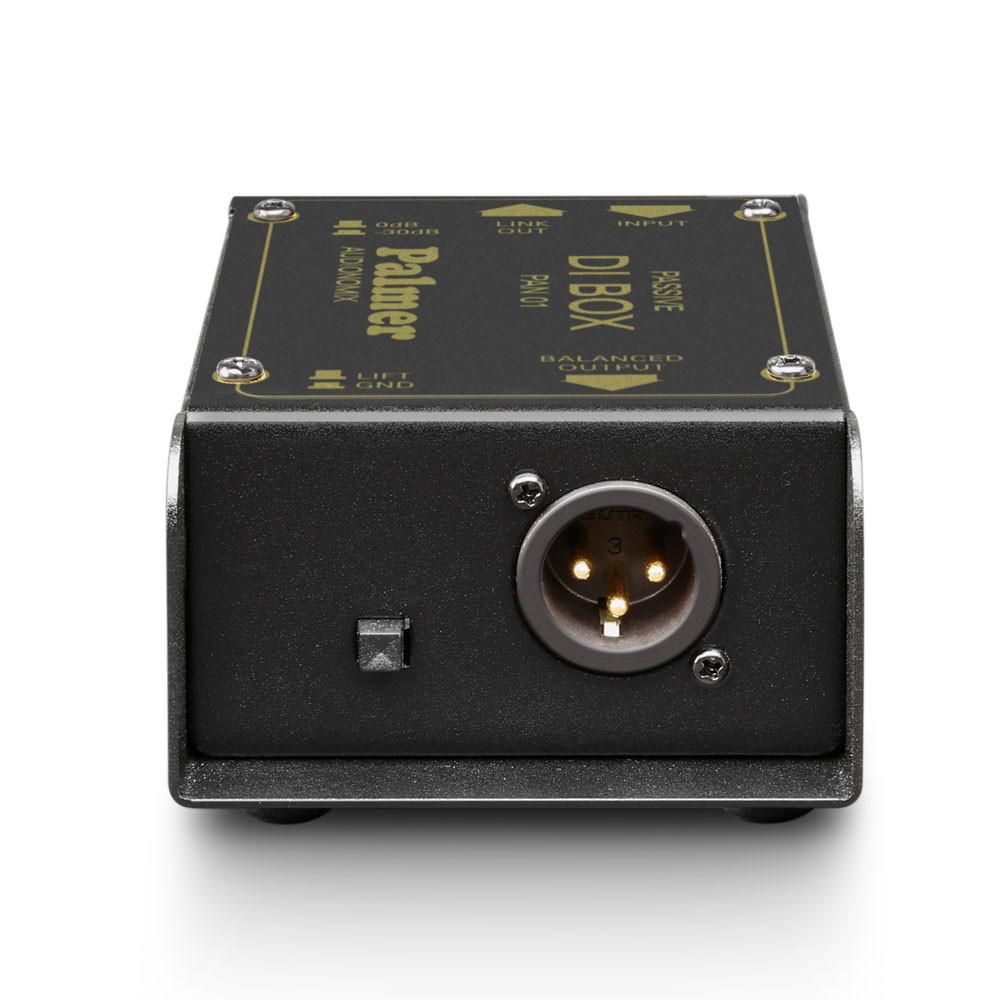

Output connectors | 6.3 mm jack, XLR |
Max. output level | + 4 dBu |
Output impedance | 600 Ohm(s) |
Frequency response | 20 - 20000 |
Transformer balanced | Yes |
Ratio | 10 : 1 |
Controls | attenuator, ground lift |
Cabinet material | sheet steel |
Cabinet surface | Powder coated |
Width | 110 mm |
Depth | 73 mm |
Height | 42 mm |
Weight | 0,34 kg |
