Palmer PAN 03 19" DI Box 4-Channel Active

$799.00 $940.00
In stock: 2
By Palmer

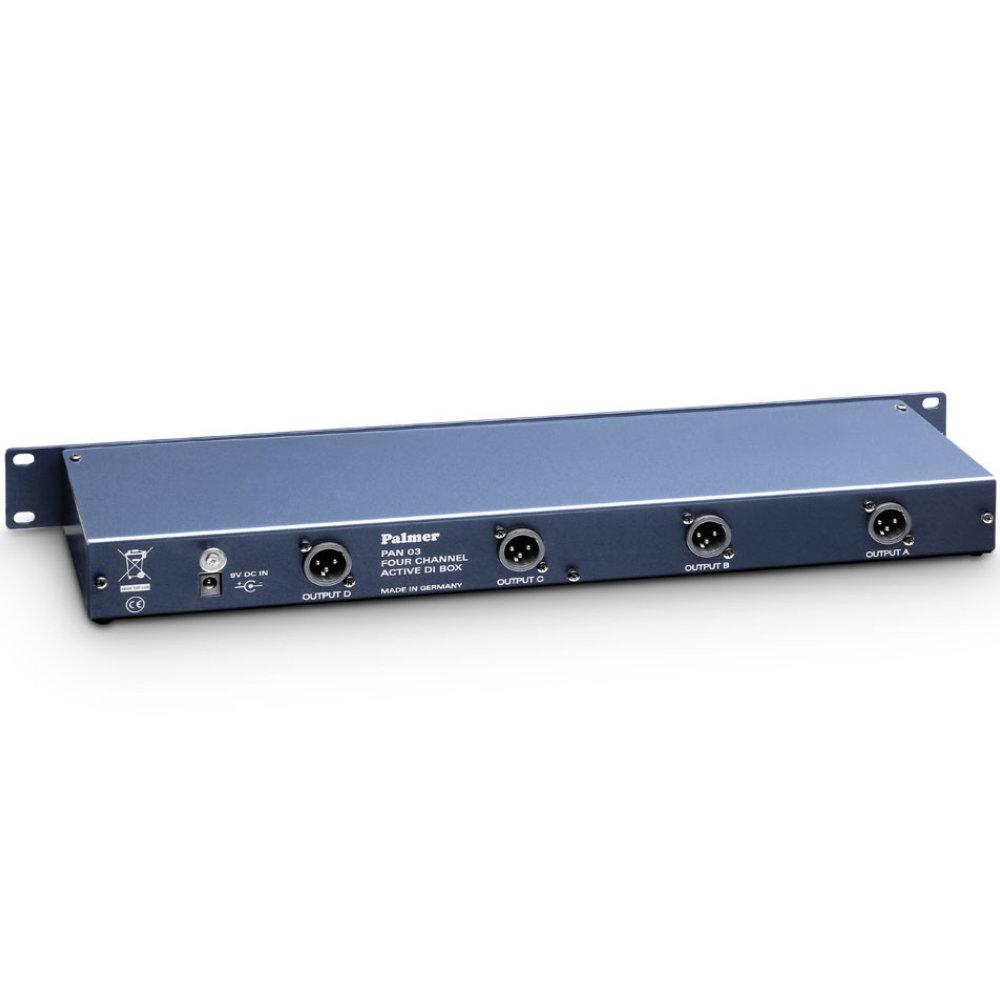

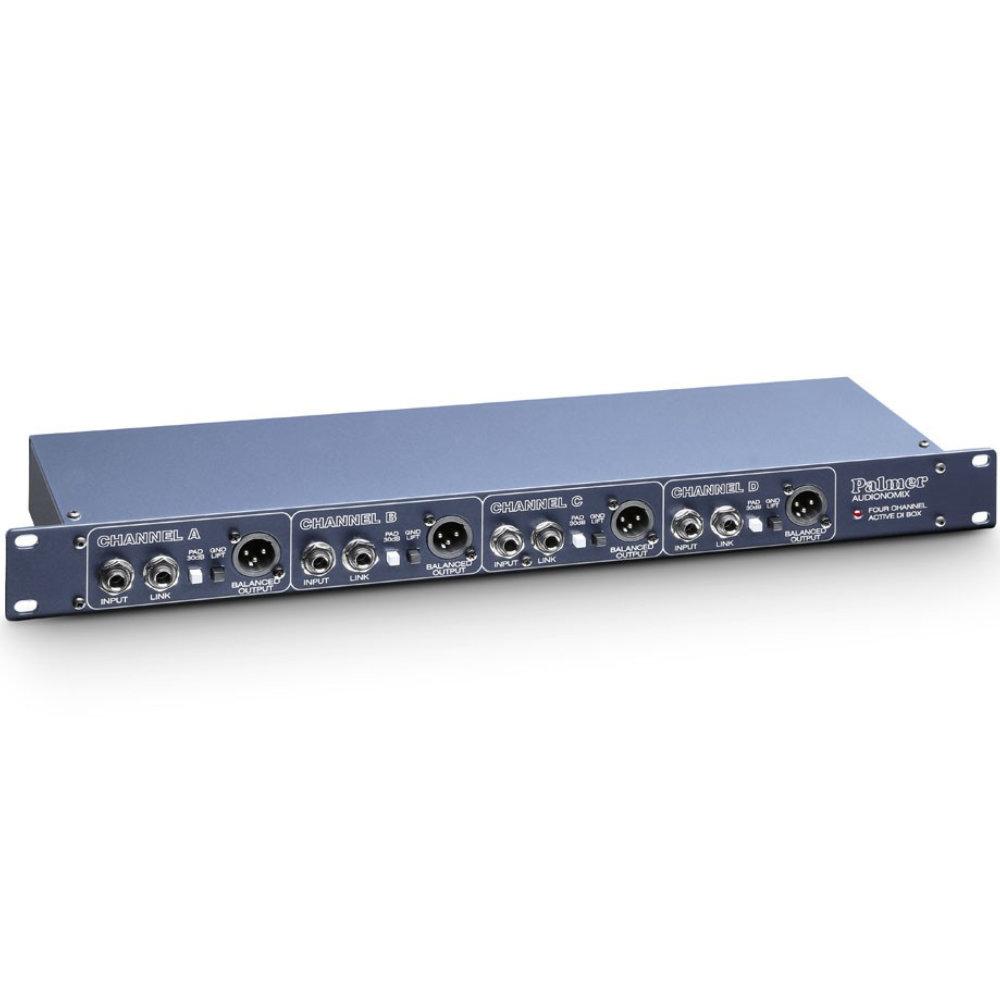

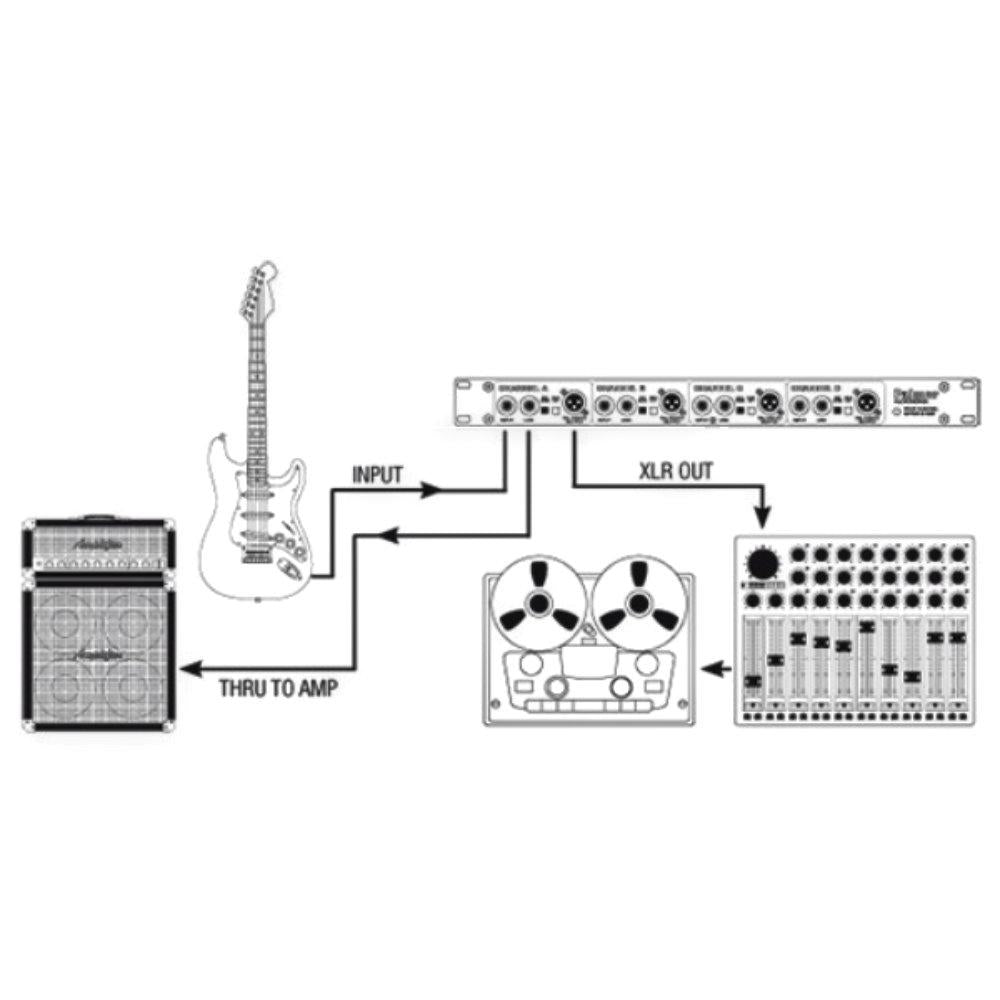

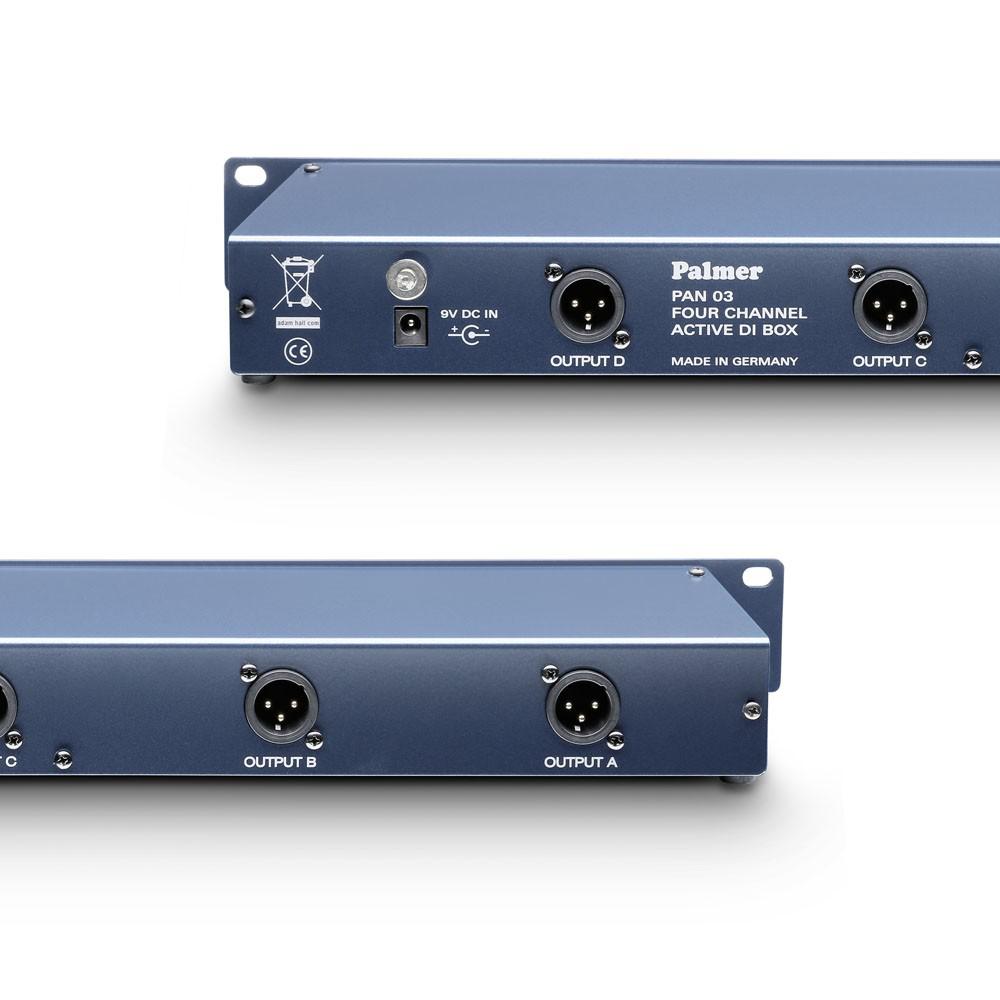

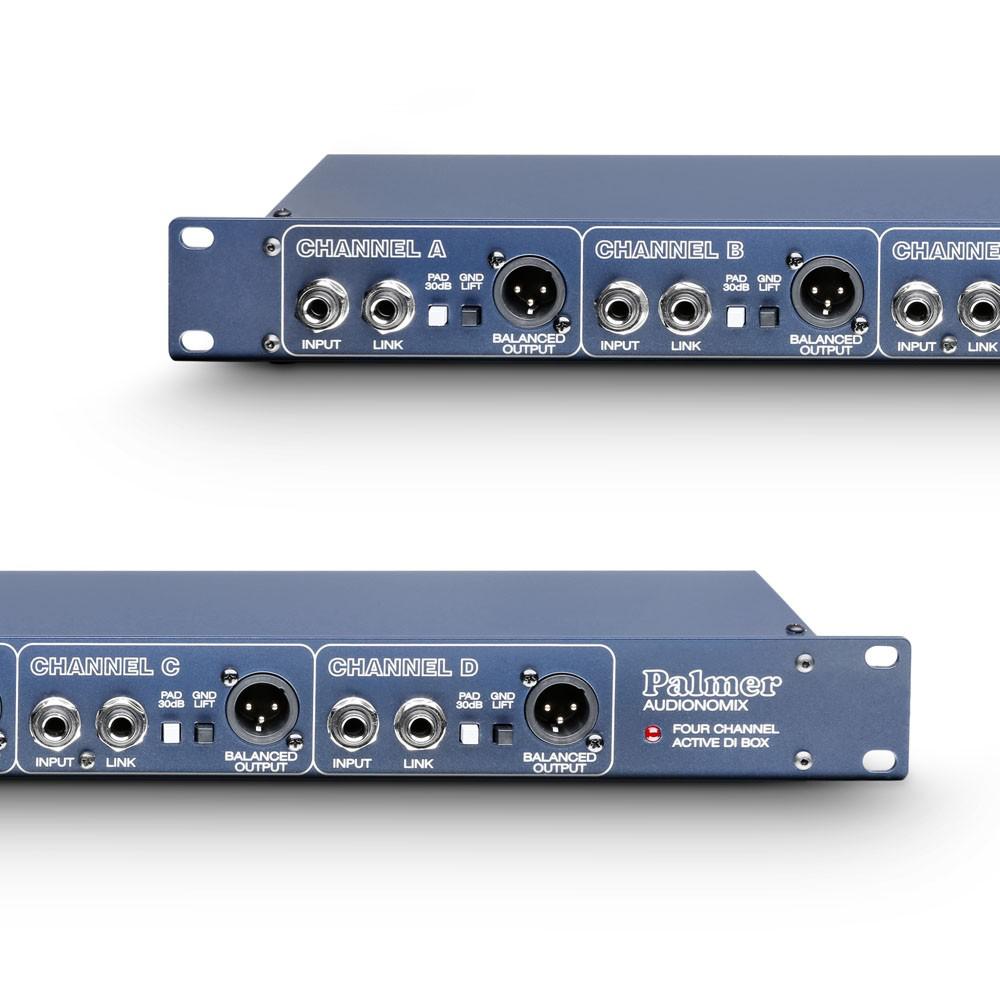

Palmer Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected. Active 4 x DI box, 19" format. Technical specification's identical to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.


Product type DI Boxes
Type active
Channels 4
Inputs 4
Input connectors 6.3 mm jack
Max. input level + 45 dBu
Input impedance (@ 60 Hz) 1 M Ohm(s)
Input pad 0 / -30 dB
Outputs 4 (+ 4 parallel XLR outs)
THRU outputs/channel 1
Output connectors 6.3 mm jack, XLR
Max. output level + 10 dBu
Output impedance 600 Ohm(s)
Frequency response 10 - 20000
Transformer balanced Yes
Ratio 10 : 1
Indicators Power
Controls attenuator, ground lift
Operating voltage external
Cabinet material sheet steel
Cabinet surface Powder coated
Width 480 mm
Width 19 "
Depth 90 mm
Height 45 mm
Height 1 U
Weight 1,6 kg
