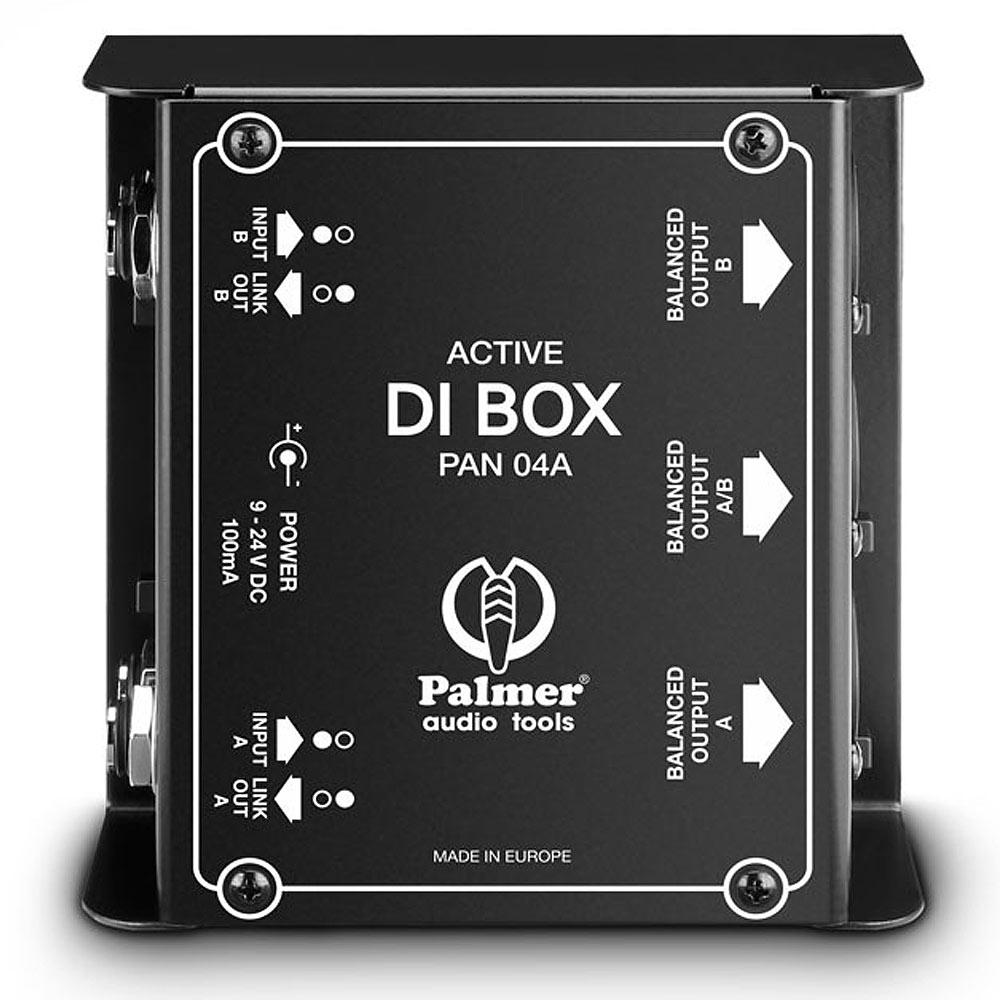

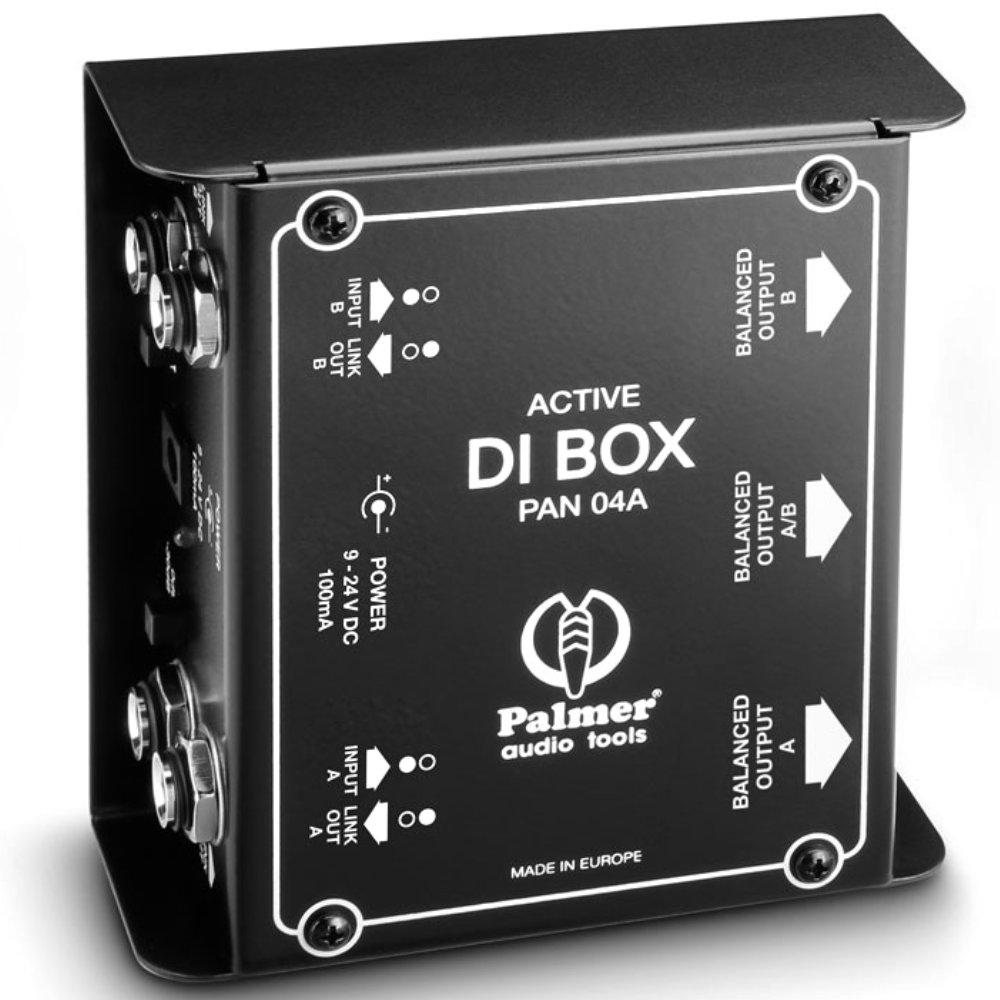

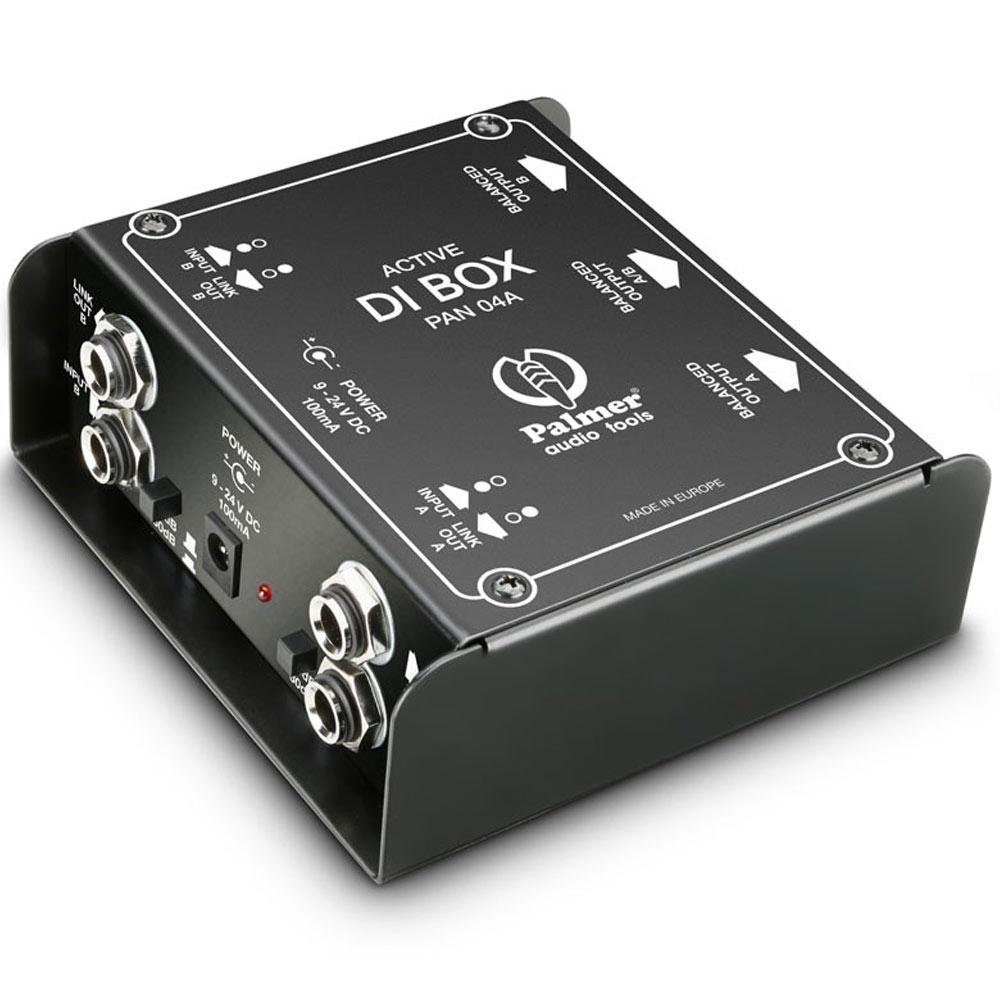

Palmer PAN 04 A Active 2-Channel DI Box
SKU: PAL-PAN04A
In stock: 3
By Palmer
Description
The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.
- Active 2-channel DI box with premium balancing transformers
- 10–40 kHz frequency response, high dynamic response

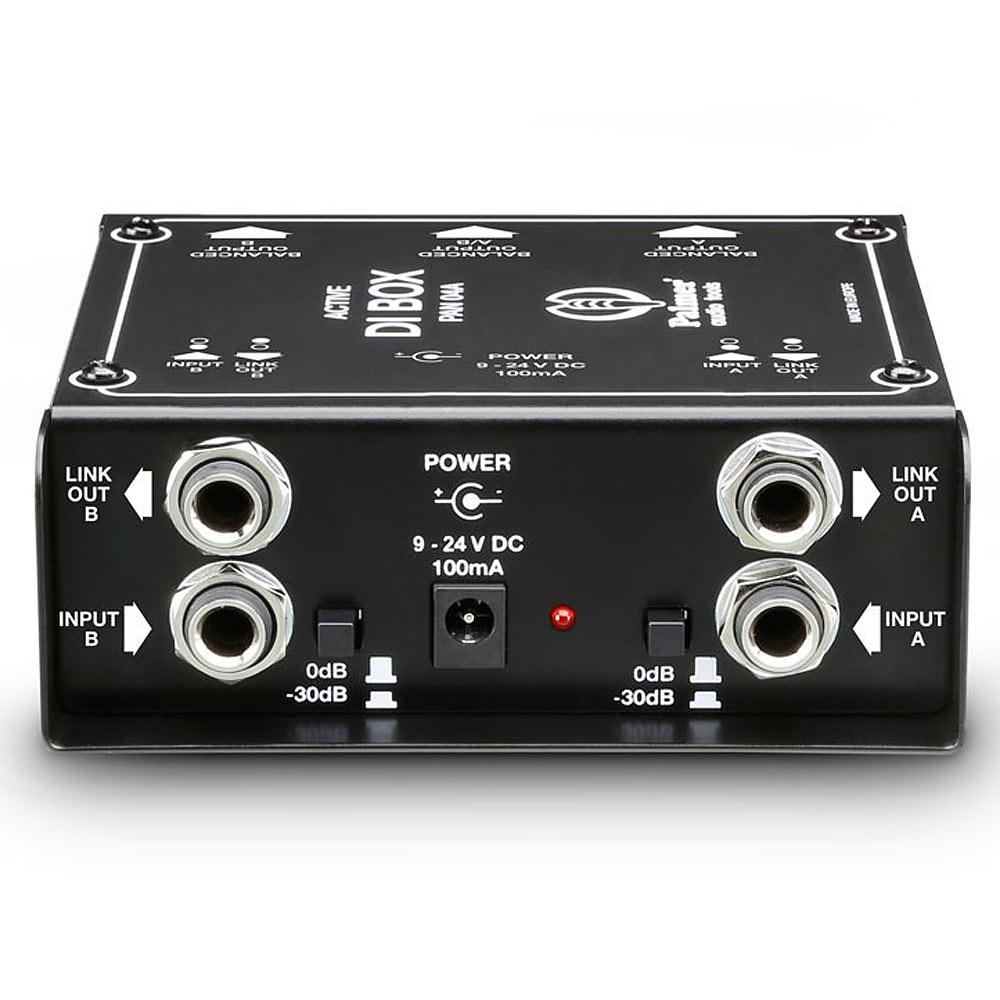

- -30 dB input attenuation, switchable

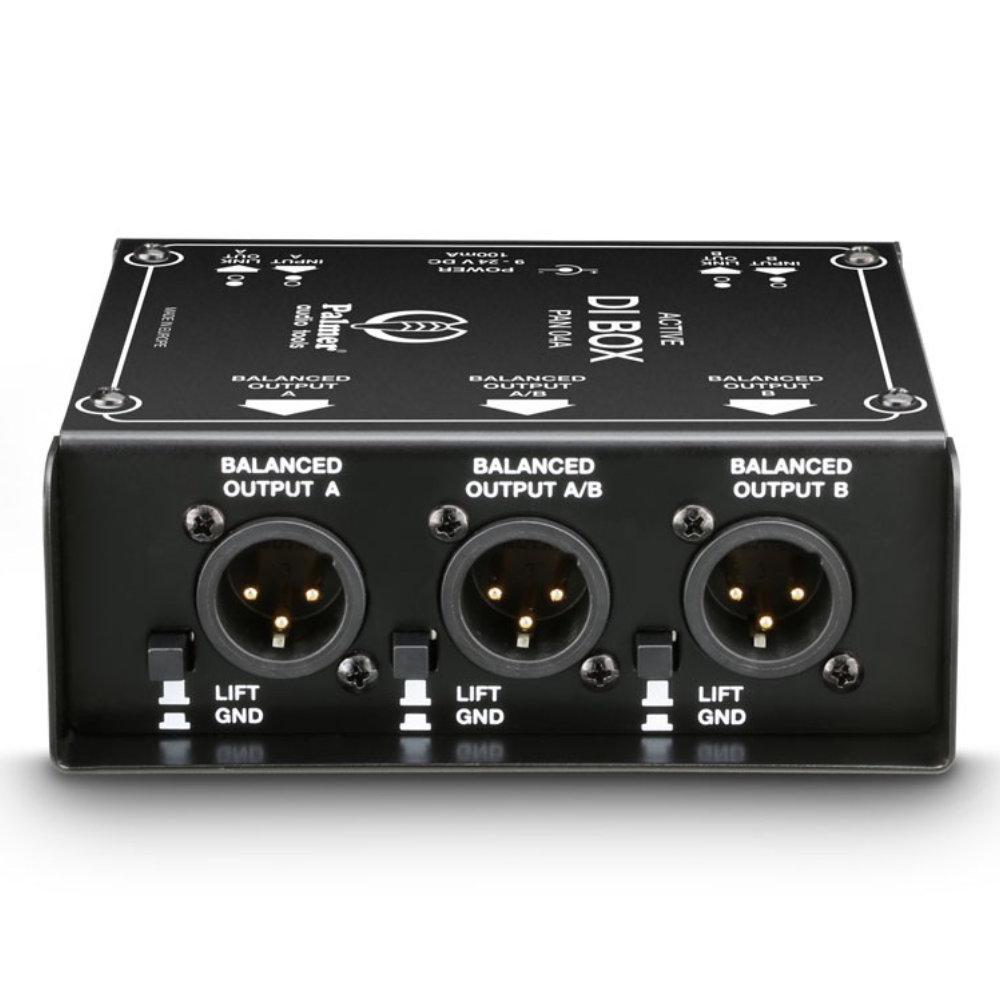

- Ground lift switch for each output
- Balanced mono summed output
- Can be powered with 9 to 24 V DC mains adapters or phantom power
| Product type | DI Boxes |
| Type | active |
| Channels | 2 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 45 dBu |
| Input impedance | 1M Ohm(s) |
| Outputs | 3 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack, XLR |
| Max. output level | + 11 dBu |
| Output impedance | 200 Ohm(s) |
| Frequency response | 10 - 40000 |
| Transformer balanced | Yes |
| Ratio | 1 : 1 |
| Controls | attenuation, ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 116 mm |
| Depth | 110 mm |
| Height | 45 mm |
| Weight | 0,47 kg |
