Palmer PAN 04 DI Box 2-Channel Passive
SKU: PAL-PAN04
Out of Stock, contact for ETA
By Palmer
Description

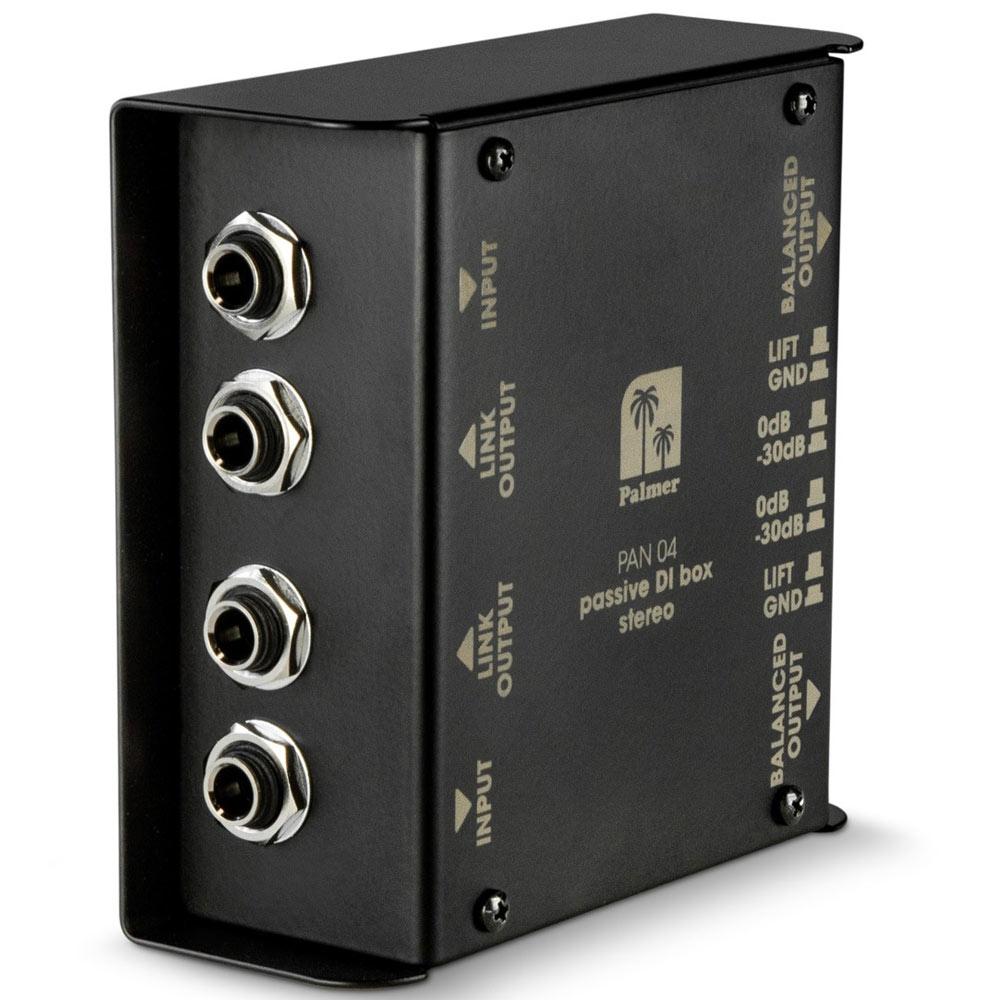

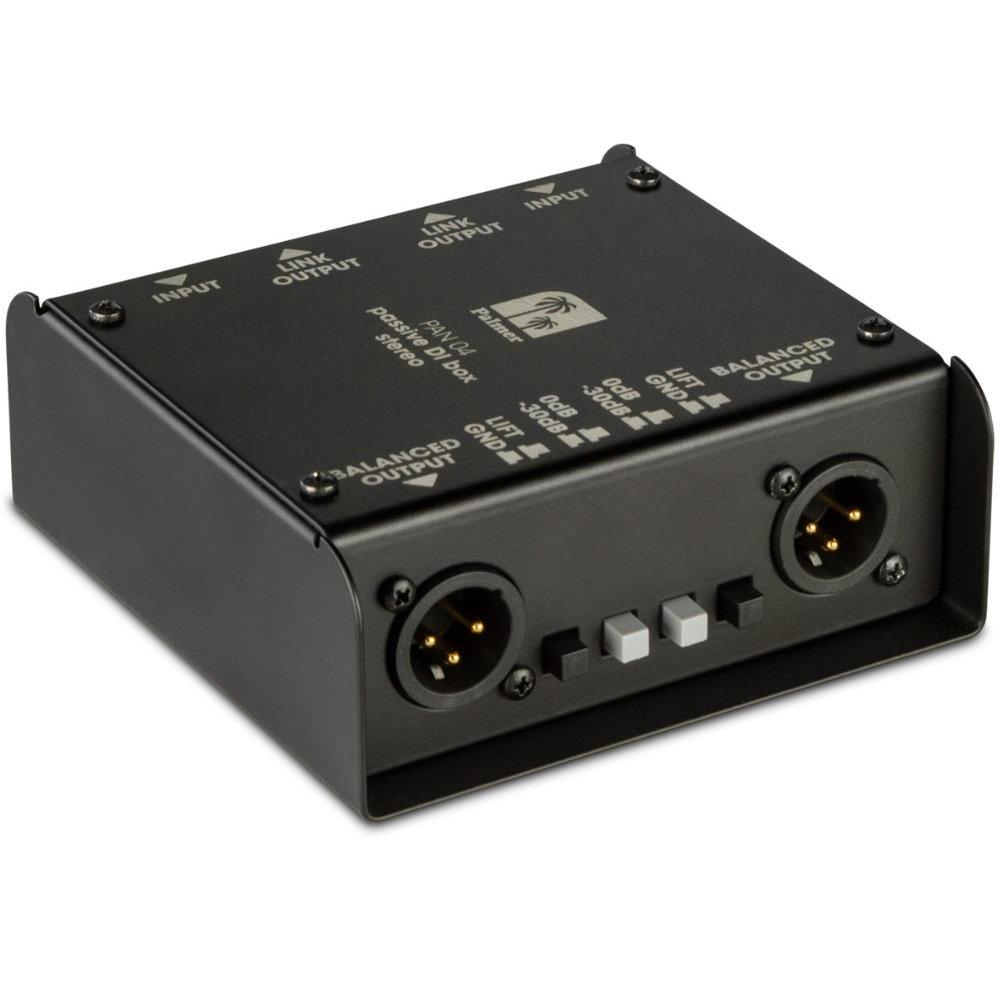

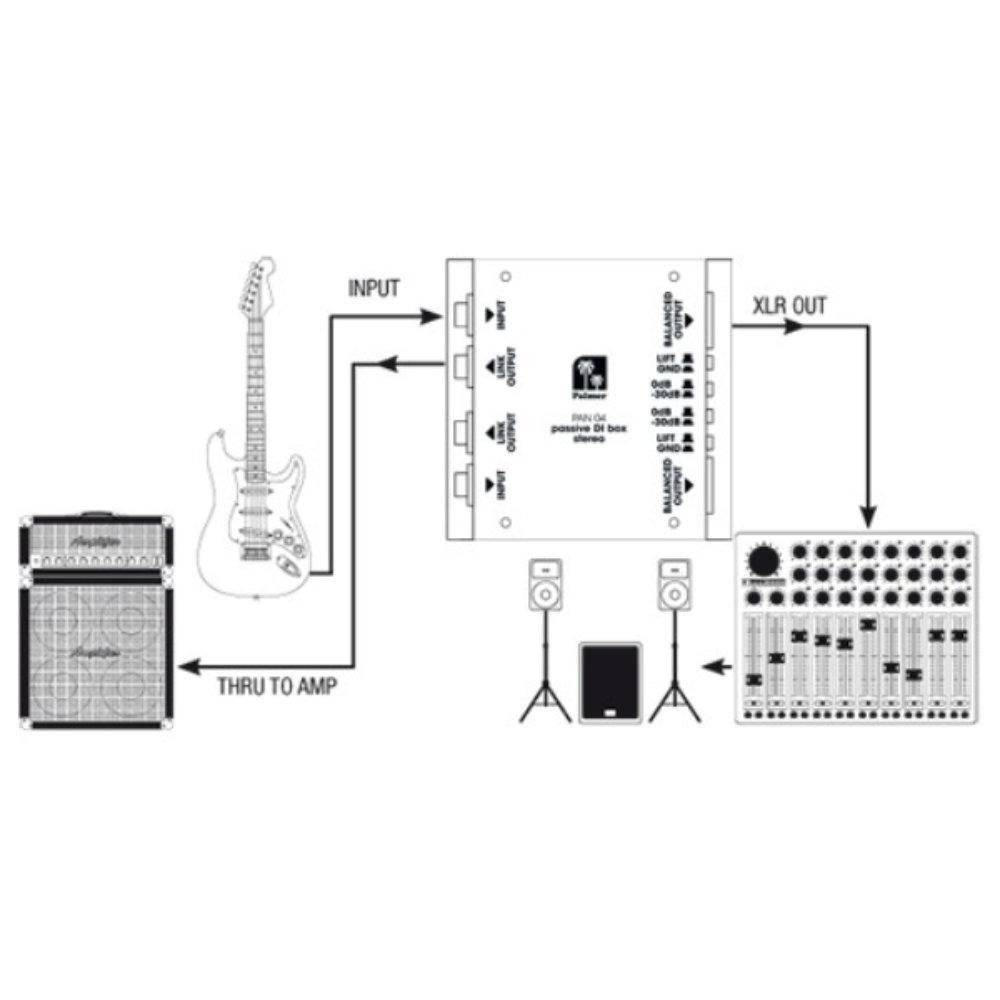

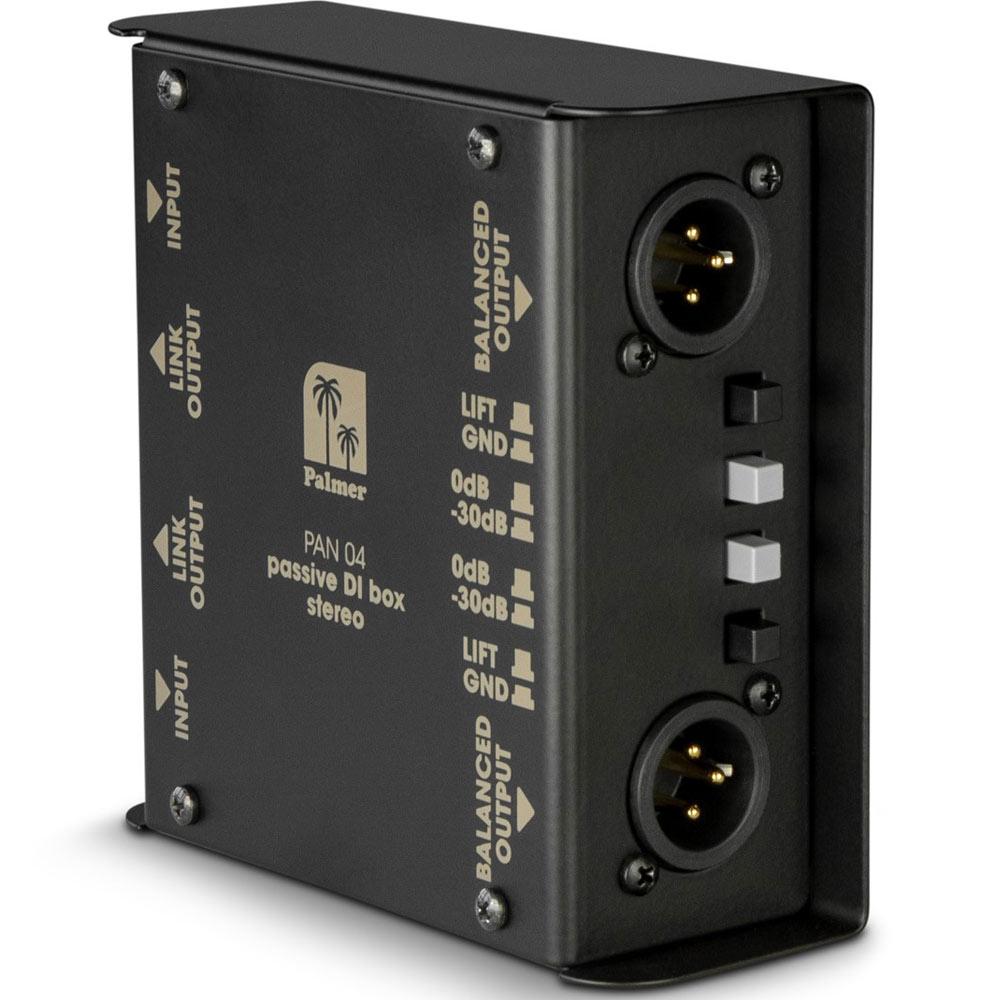

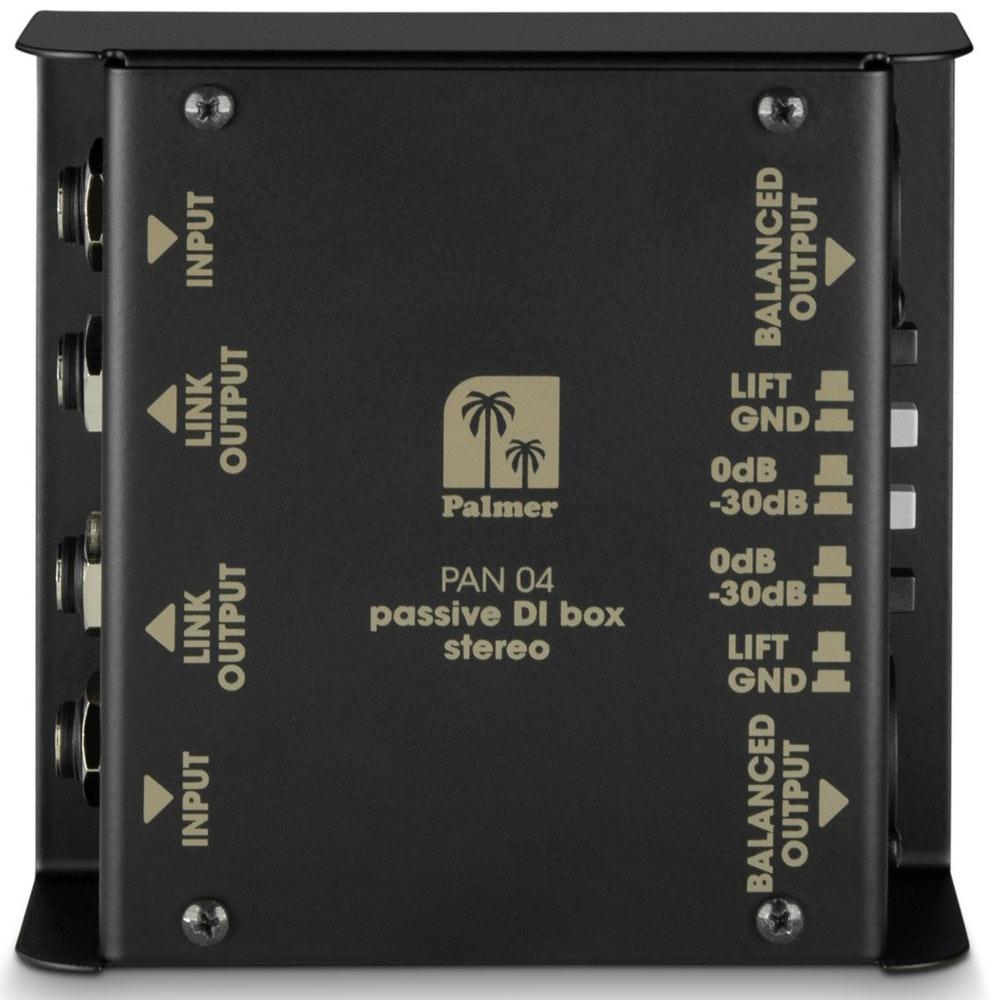

The Palmer PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This "stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs. Jack input with parallel "THRU" output, transformer balanced XLR output. Attenable input sensitivity, can handle both line level and speaker level signals.
| Product type | DI Boxes |
| Type | passive |
| Channels | 2 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | 60 k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 2 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack, XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40.000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuation, ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 45 mm |
| Weight | 0,419 kg |
