Yamaha PX8 2X 800W Power Amplifier

SKU: ZG69760
$1,299.00 $1,499.00
Low Stock: 1 - Contact us to confirm!
NOTIFY ME WHEN BACK IN STOCK
By Yamaha
Description

PX series models are driven by a newly developed Class-D amplifier engine that concentrates all the necessary functions into a single custom LSI chip, and uses PLL technology to control transfer characteristics in real time, achieving impressive sound quality and power. This new single-chip architecture offers higher output and improved performance in a more lightweight, yet reliable design. A combination of cutting-edge technology and an exhaustive component selection process make PX Series amplifiers supremely efficient amplifiers with low noise, reliable protection features, and above all, outstanding sound quality.

DSP for audio processing - Input Routing & Output Routing

Amp Mode allows user to configure the system without any difficulty by selecting the input routing and output routing. Totally 15 types of pattern can be selected.

  • Input routing (Dual/Parallel/Single/SUM)
  • Speaker System Structure
    FULL+FULL
    SUB+SUB
    FULL+SUB
    Bi-Amp
    Boost Full
    Boost Sub

Sophisticated Signal Processing

PX series models come with flexible onboard PEQ, crossover, filters, delay, and limiter functions as standard, allowing quick and easy system setup via the LCD display, without the need for any additional outboard gear. All models also feature Yamaha’s intelligent D-CONTOUR multi-band dynamic processing, allowing users to achieve consistent clarity and high-quality sound at any output level by tailoring the frequency response of each connected speaker for either front-of-house or monitor configurations.

220V-240V models PX8
Output power; 1kHz Non-clip 20msec Burst Both channels driven 800W x 2
1050W x 2
600W x 2
8Ω/Power Boost Mode -
4Ω/Power Boost Mode -
General specifications PX8
Sampling frequency rate Internal 48kHz
A/D D/A Converters AD/DA: 24-bit linear, 128 times over sampling
Total harmonic distortion 0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
Frequency response ±1.0dB (1W, 8Ω, 20Hz to 20kHz)
S/N ratio 101dB (A-weighted, 8Ω, Gain setting = +14dBu)
Crosstalk Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
Voltage Gain/Sensitivity 8Ω Volume max 32.0dB/+8.3dBu (Gain setting: 32dB), 26.0dB/+14.3dBu (Gain setting: 26dB), 36.3dB/+4dBu (Gain setting: +4dBu), 26.3dB/+14dBu (Gain setting: +14dBu)
8Ω Volume max /Power Boost mode -
Maximum input voltage +24dBu
Input impedance 20kΩ (Balance), 10kΩ (Unbalance)

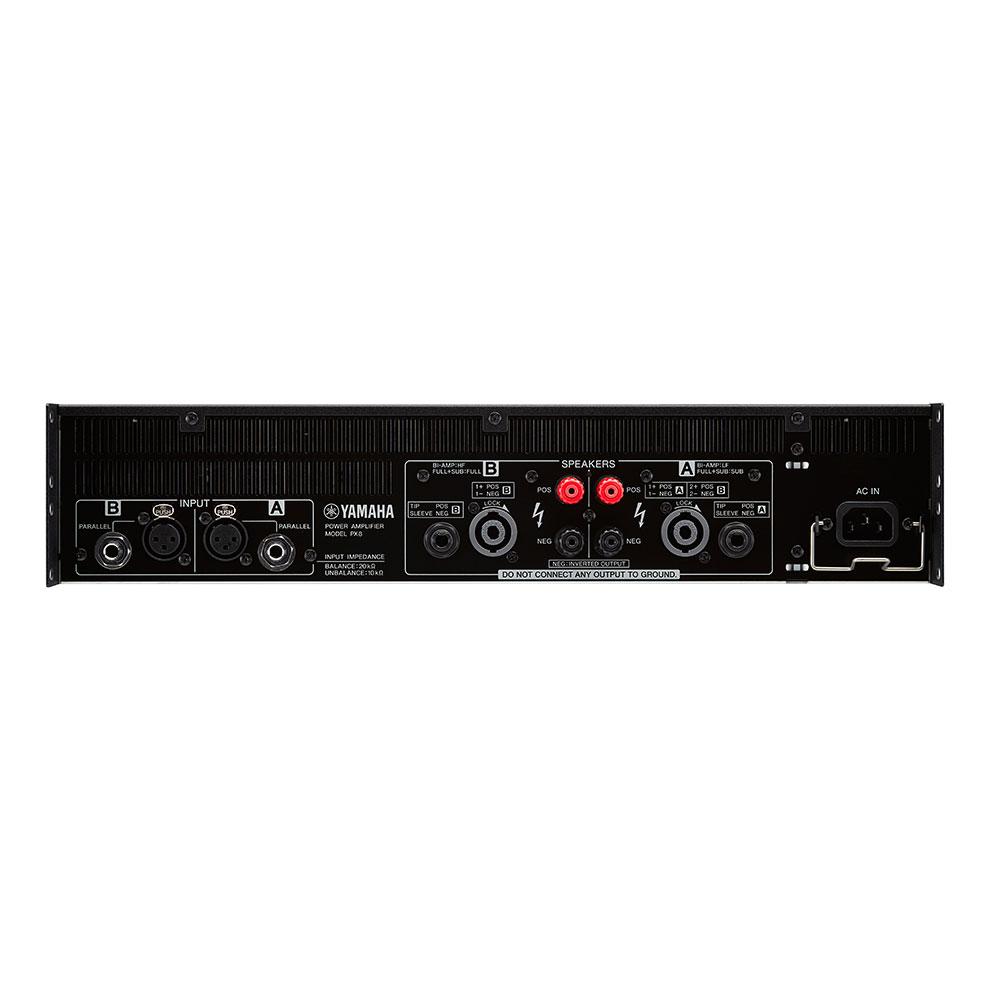

I/O Connectors Speaker output ports Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
Line Input XLR-3-31 x2, 1/4 "PHONE(TRS) x2
Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
Indicators POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
Processors Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
Latency 1.5 msec (Analog Input to Speakers)
Presets 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
Protection circuit Load protection POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
Amplifier protection Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
Amplifier class Class D, Balanced output circuit (BTL)
Cooling 16 step variable speed fan x 2, front to rear airflow
Power requirements Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
Power consumption 280W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling)
Dimensions W 480mm (18-7/8")
H 88mm (3-7/16"): 2U
D 388mm (15-2/8")
Net weight 7.2 kg (15.87 lbs)
Accessories USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1
Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
