PunQtum Q110 Digital Beltpack 2-channel Partyline Intercom-over-IP

SKU: 4900030
$939.00 $957.00
In stock: 10+
NOTIFY ME WHEN BACK IN STOCK
By PunQtum
Description

The easy-to-use and ergonomic Q110 Beltpack offers two channels of partyline intercom and is packed with many useful features: power can be supplied via standard PoE switch or from our speaker station, beltpacks are daisy-chainable to up to eight units on a single network connection and you can even replay missed comms like voice-mail. It’s the perfect solution for improved team communication during events from small to large.

BENEFITS

PLUG & PLAY

Get it out and get things done. There is no time on site. That’s why the plug & play concept of the Q110 beltpack will be your favourite. Just get it out of its box, plug it into a network and start communicating. Quick.

EASE OF USE

You don’t want to study a manual explaining features you probably would never use in the first place. You want your gear to get going. So we strapped the beltpack down to what is necessary. No gimmicks, no fancy decorations, no bullshit. Just the tool. Quintessential

DAISY-CHAINABLE

Colleagues are working side by side? Daisy-chain their beltpacks and save long cable runs. Easy.

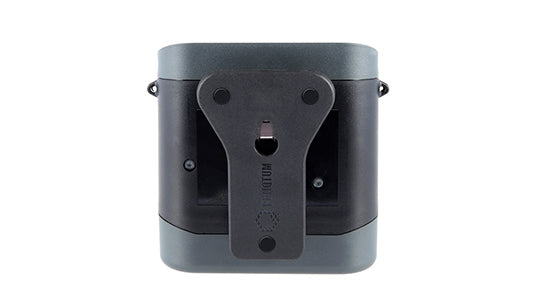

REPLACEABLE BELTCLIP

You want to remove or replace the beltclip? No problem, in just one second – without the need of a screwdriver or any other tool. Quick.

SPECIFICATIONS

Beltpack Specifications
Power Source

PoE (max. 15W)
PoE+ (max. 30W)
4-pair PoE (max. 90W)

Power consumption

2.5W typ. 3.5W max.

Sampling Rate 1

16 kHz

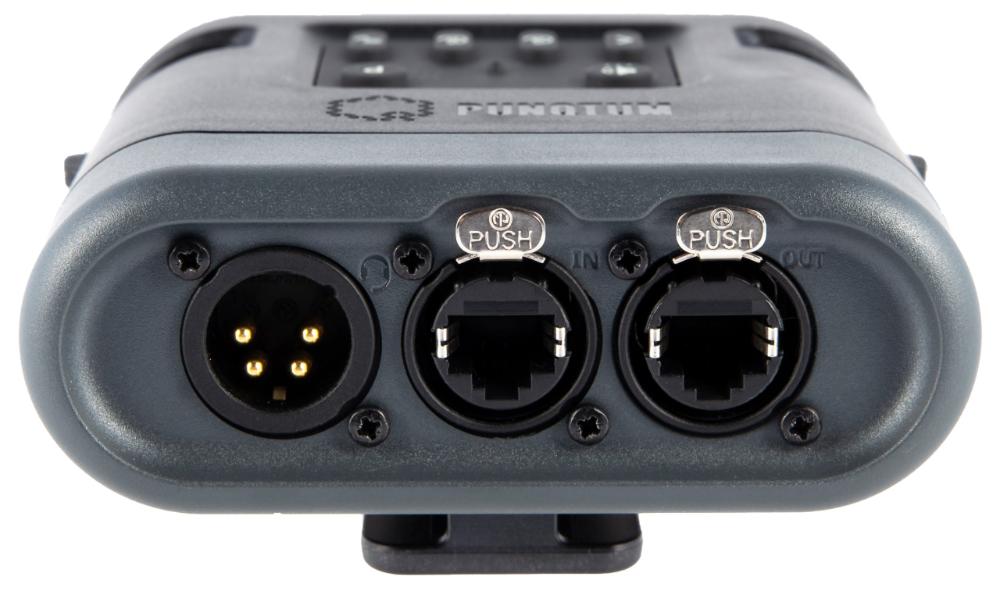

Headset Connector

XLR 4pin male

LAN/PoE Connector

RJ-45 etherCON

Environment

IP53

Operating Temp.

-10° to +50°C

Relative humidity

0 to 90%, non condensing

Intercom connection

RJ-45 etherCON

Beltclip

Easy removable, spring loaded clip

H x W x D

111mm x 110mm x 40mm

Weight

255g


Headset
Output impedance

27 Ohm

Output level

+ 18.5 dBu (max.)

Frequency response

20Hz to 10kHz (+0/-0.25dB)

Distortion @ 1kHz

<-73 dB (0.02%)

Dynamic range (20kHz)

95 dB (A-weighted)

Microphone Input
Type

Dynamic, Electret

Full-scale input range

95dB (A-weighted)

Distortion
< -75 dB (0.02%) @ + 4dBu FS (min. gain)
< -68 dB (0.04%) @ -30dBu FS
< -49 dB (0.35%) @ -53dBu FS (max. gain)

Dynamic range
92 dB (min. gain)
59 dB (max. gain)


Product Information
Product name

Q110

Package contents
Q110 Beltpack, Beltclip,
Quick Start Guide


(*) all specifications are subject to change without notice
