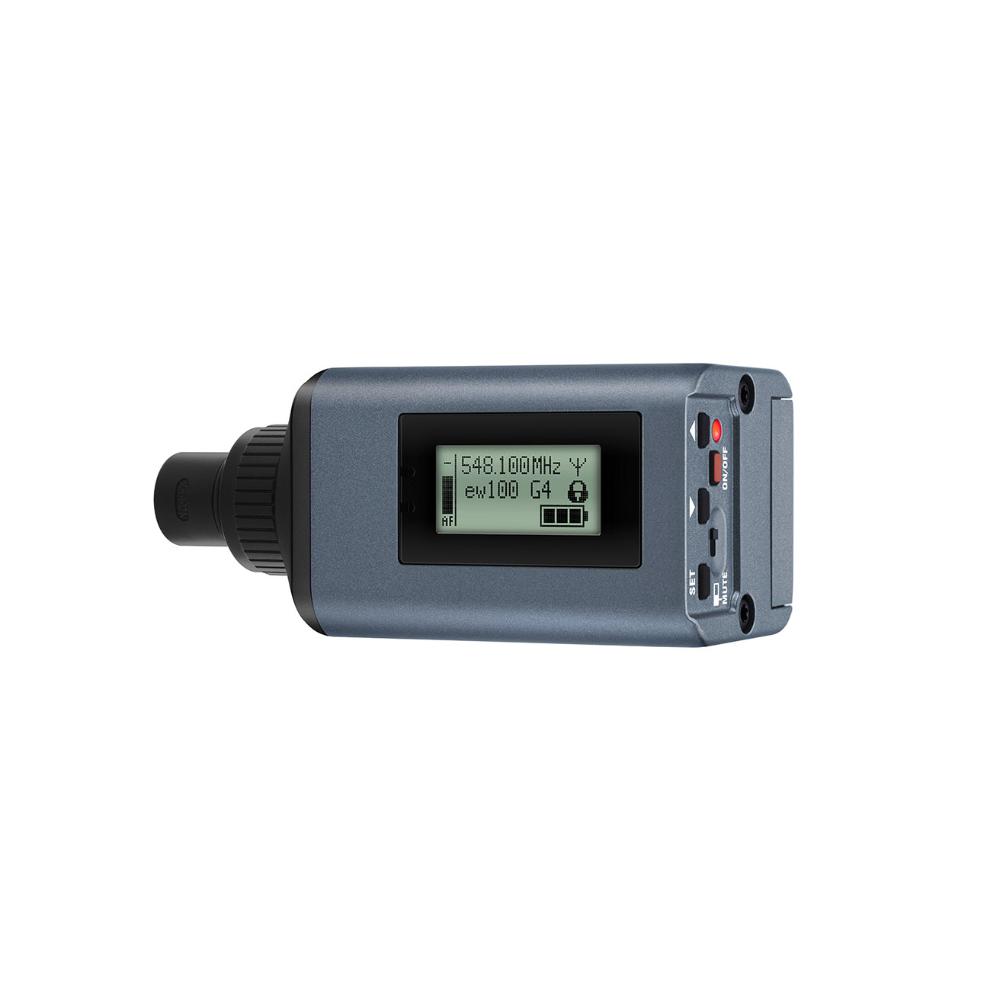

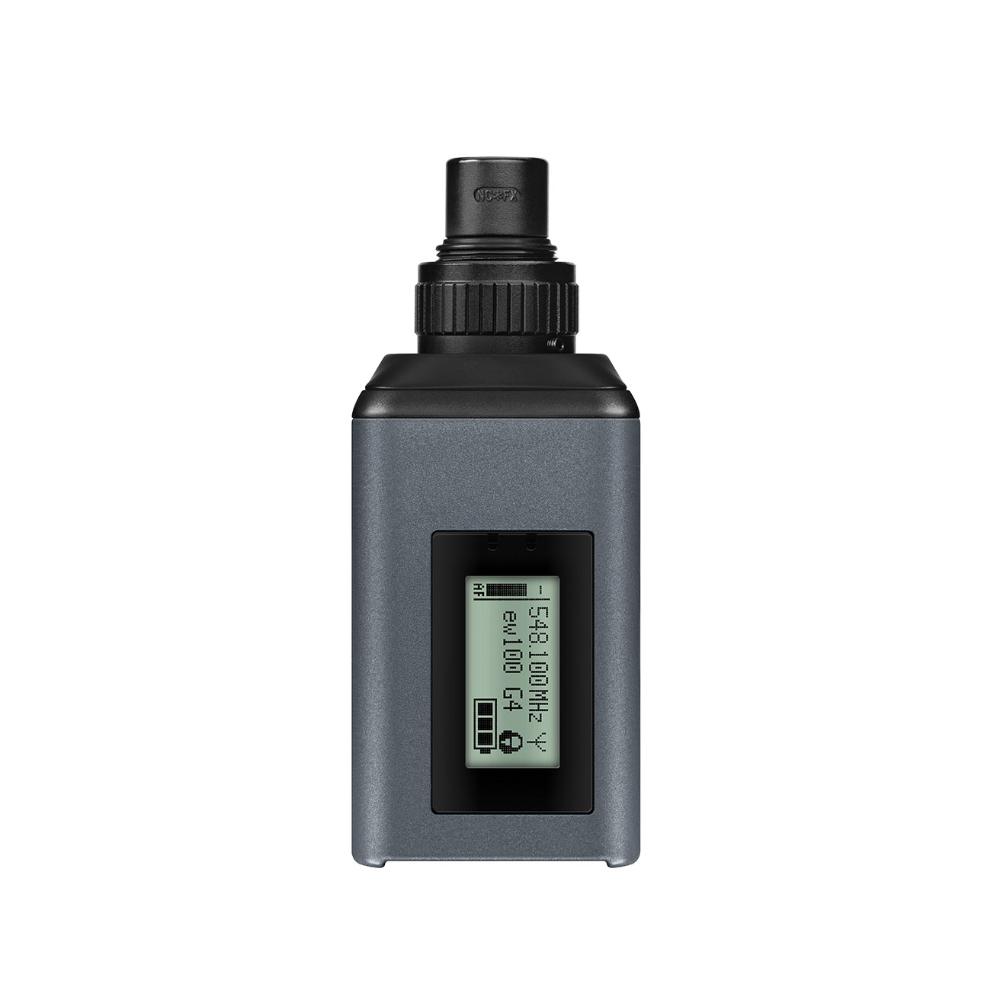

Sennheiser SKP100G4-B Plug On Transmitter B 626 - 668 MHz
SKU: 509527
Out of Stock, contact for ETA
By Sennheiser
Description
Features
- Powerful plug-on transmitter, easily mounted on any dynamic microphone
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
Specifications
- Frequency range: B: 626 - 668MHz
- Dimensions: Approx. 105 x 43 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: approx. 195 g
- Signal-to-noise ratio: ≥ 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
- Input impedance: 68 kΩ, unbalanced
- Max. Input voltage: 3.3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ≤ ±15 ppm
