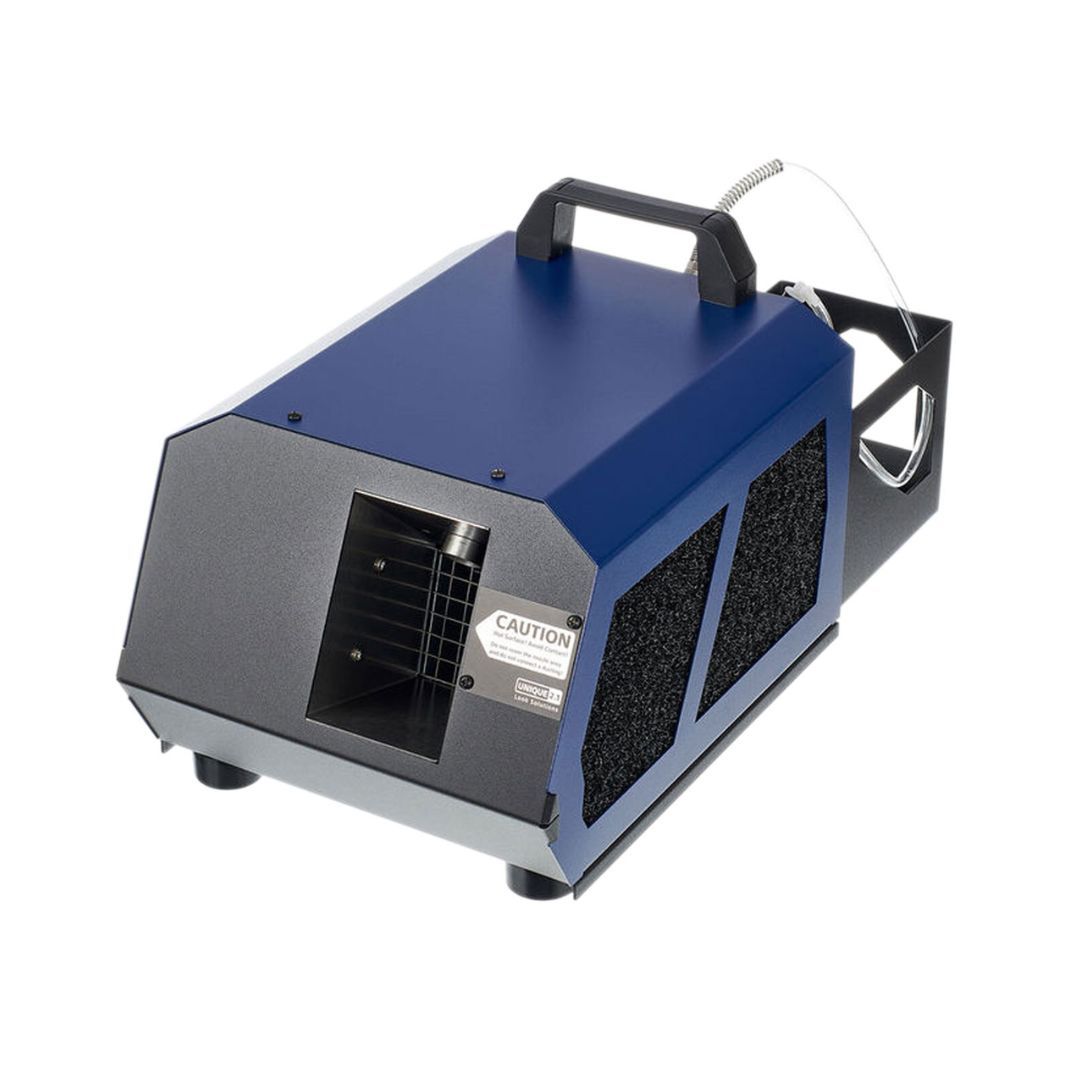

Look Solutions LOKHAZ130 Unique 2.1 Hazer

Look Solutions Unique Hazer 2.1 Haze Machine

DMX as standard, variable output and haze density, minimal warming up time, easy handling, very low fluid consumption – these are only some of the features of the UNIQUE 2.1.

The haze machine UNIQUE 2.1 offers - among the features that already characterised the Unique 2 - an even more silent working.

The sound could be absorbed tremendously. Thus, the machine can be used in fields of operation where any sound is undesirable.

Due to the efficient fan, the haze can be distributed in the room quickly. A replaceable filter protects the fan against dirt.

With its variable output - whereas the haze density and also the output can be varied - the machine can be used in many fields: Any desired effect - from the finest mist to a thick haze, similar to fog - can be achieved.
Therefore the machine is able to fill small and big rooms or halls with a constant haze, creating the right atmosphere and excellently supporting lighting effects.

Minimal warm up time

The very short warming up time of approx. 60 seconds means the UNIQUE 2.1 is ready for operation almost immediately.
A continuous output is guaranteed by the fact that the machine does not have to warm up during operation.

Variable output

The pump and the fan of the machine can be adjusted separately in 99 steps. Thus the user is able to adjust the density and output exactly. A non-linear pump regulation make sure that the pump can be adjusted much better at the lower steps.

Minimal niose

Due to the fact that the pump and the fan can be dampened, the sound of the UNIQUE 2.1 can be absorbed tremendously.
The machine can be used in fields of operation where any sound is undesirable.

DMX 512 as standard

The UNIQUE 2.1 can be controlled via DMX 512. Pump and fan can be adjusted separately. The connection is done with 5-pin-XLR plugs using two following control channels at the desk.
The DMX start address will be adjusted and saved with the buttons at the display. It will remain saved even if the machine is disconnected from the mains supply.

The machine can also be controlled analog (0 - 10V) via a lighting desk and/or via cable remote (option). The fan will be adjusted directly at the machine, the pump can be adjusted via the analog desk or remote. This connection is done with 3-pin-XLR plugs.

A stand-alone running is also possible. The adjustments are done directly at the machine.

Internal Timer

With the internal Timer the haze time can be adjusted in Seconds, the wait time in Minutes and the output of the pump and fan in %.

Haze-Density Control System (HDCS)

With the HDCS an individual Profile for a Show can be programmed. Two Levels with the required pump and fan values along with a haze time can be adjusted. Additionally a pre-runtime can be programmed.

Buttons and LED's

The control of the pump and fan, the adjusting of the DMX start address and also the adjusting of the Timer and the HDCS is achieved with buttons. The adjusted data can be read at the LED-Display.

Controlled by Microprocessor

The intelligent control of every single parameter by microprocessor guarantees trouble free operation of the machine.

Minimal fluid consumption

A special fluid guarantees minimal fluid consumption, low running costs and an optimal haze effect. It is supplied in 2l, 10l- and 25l-canisters and in barrels with 220l.

One of the 2l-canisters guarantees up to 50 hours of continuous output.

• Minimal warm up time of only 60 seconds
• Minimal noise
• Pump and fan adjustable separately in 99 steps, therefore variable output (from the finest mist to a thick haze, similar to fog)
• Internal fan ensures quick and homogen distribution
• DMX as standard, analog (0-10V) and stand-alone running
• Control of the pump, fan and the adjusting of the DMX start address is achieved with buttons
• Internal Timer
• Haze-Density Control System
• Minimal fluid consumption (2l canister guarantees up to 50 hours continuous output)
• Made in Germany
