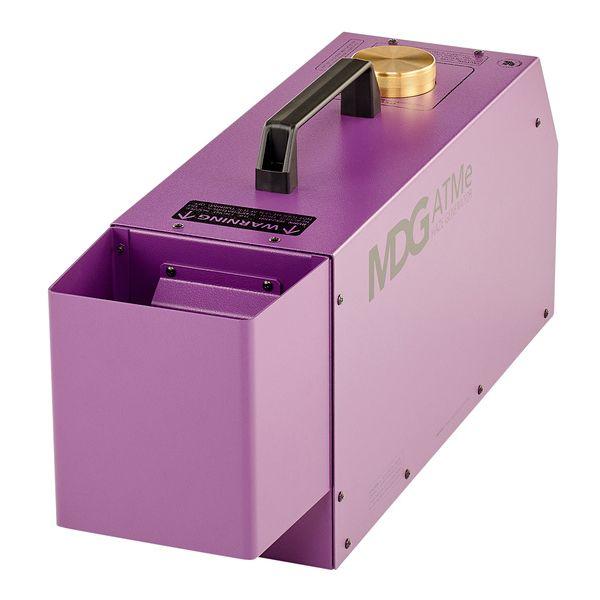

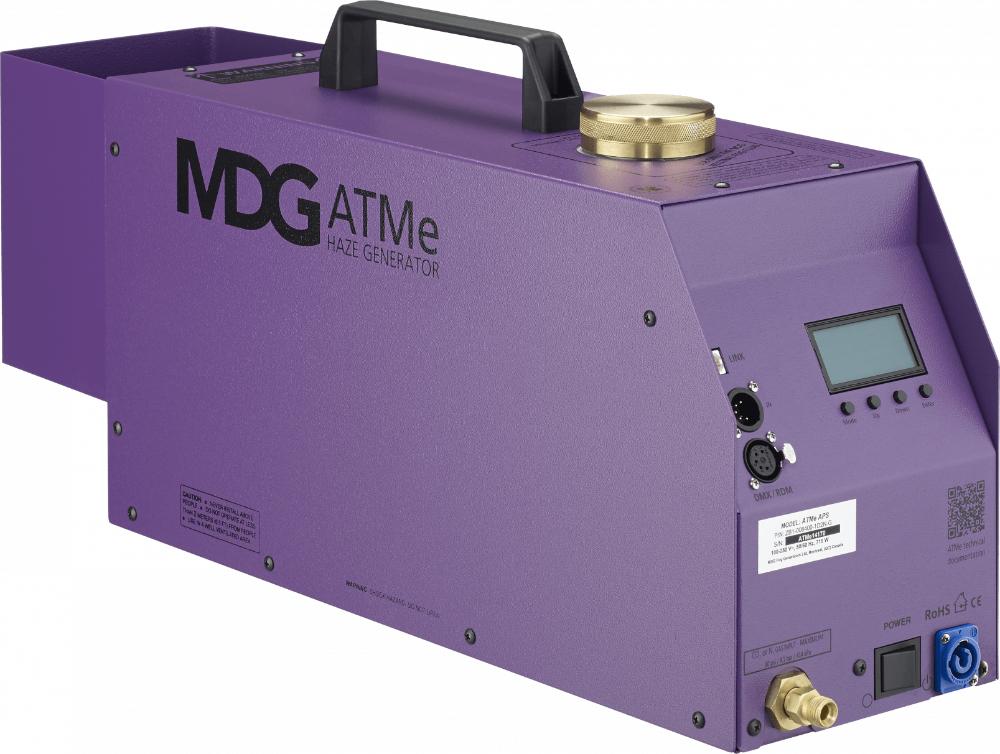

MDG ATMe ATMOSPHERE APS Haze

The ATMe Haze Generator was designed with safety and reliability in mind. It is capable of generating pure white, non-toxic haze for as long as you have fluid (100% duty cycle). This generator is also equipped, as a standard feature, with the Automatic Purging System™ (APS™). This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.

The ATMe is a non-stop haze generator capable of creating the finest and almost invisible mist. It highly emphasizes laser and light beams. It also features variable output.

At the heart of the MDG ATMe is an electronic assembly that keeps the heat exchanger at a very stable temperature, with three different types of fail-safe systems. Those three types of electronic fail-safe systems are designed to protect against over and under-heating conditions and against component failure. When an overheating condition is detected, or if the internal temperature of the Hazer reaches 60°C (140°F), a safety circuit is triggered. This circuit removes the power to the heating elements, preventing hazardous conditions. When an under-heating condition occurs, the Hazer will stop producing haze until the temperature of the heating module is back within parameters.

A fourth safety system consists of a pressure relief valve which limits the working pressure and protects
against over-pressure.

Features

• LONGEST HANGING TIME - Our MDG Neutral fluid is specially created for the longest hanging time.
• VARIABLE HAZE OUTPUT - 0-100% haze output control from your DMX / RDM device. 100% duty cycle.
• APS™ (AUTOMATIC PURGING SYSTEM) - This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
• NUMEROUS CONTROL OPTIONS - 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• EXTREMELY QUIET OPERATION - Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.
• LOWEST FLUID CONSUMPTION ON THE MARKET - At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.

Specifications

• Fluid consumption - 110 ml (3.72 oz) per hour at 2.76 bar (40 psi)
• CO2 consumption - 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
• Reservoir capacity - 2.5 L (0.66 US gallon)
• APS™ (Automatic Purging System) - Standard
• Haze colour - Pure white
• Particle size - 0.5 - 0.7 micron
• Total running time - 23 hours at 2.76 bar (40 psi) with a full tank
• Warm-up time - 8 minutes (maximum)
• Fluid type - MDG Neutral
• Operating voltage - 100 - 250 VAC, 50/60 Hz single phase
• Power consumption - 715 W
• Noise emission - 45.4 dB (A) at 1 m (3.3 ft)

Dimensions

• Length - 68.5 cm (27”)
• Width - 18 cm (7”)
• Height - 30 cm (12”)
• Weight - 16.8 kg (37 lb)
• Shipping weight - 30.5 kg (67 lb) with flight case
• Approval - CB, CSA and UL Certified. CE Declaration
