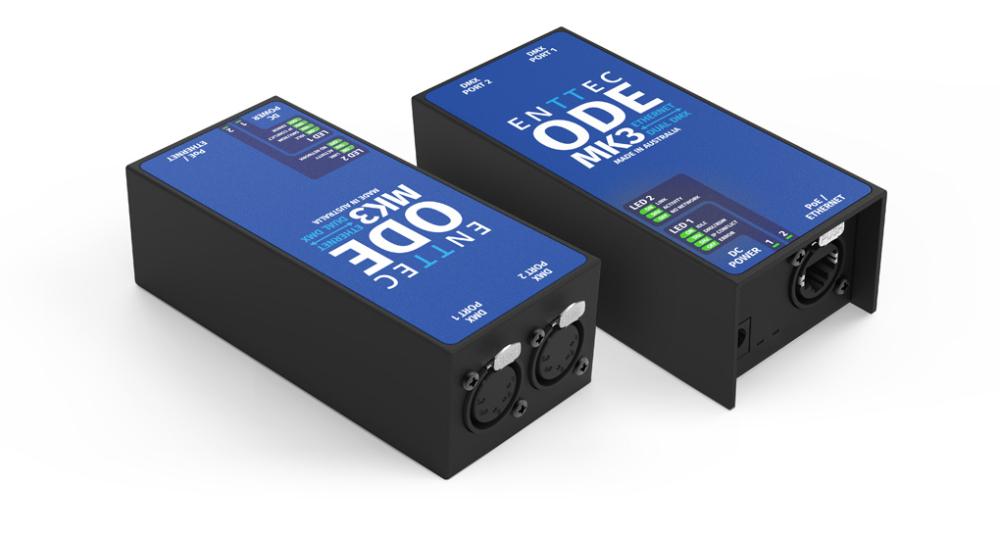

ENTTEC 70407 ODE MK3 DMX Ethernet interface
SKU: 70407
In stock: 10+
By Enttec
Description
The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.
With two Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!
Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.
Features
- Two bi-directional female 5-pin DMX ports with optional RDM (E1.20) support.
- IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input.
- Support for Art-Net 4, sACN and ESP to DMX conversion.
- Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
- Intuitive device configuration and updates through the inbuilt localhost web interface.
- 10/100 Mbps network speed.
- ‘Current Port Buffer’ allows live DMX values to be viewed in the web UI.
- Configurable DMX output refresh rate.
