RØDE RODECaster Video Core Streamlined Console For Video And Audio Production

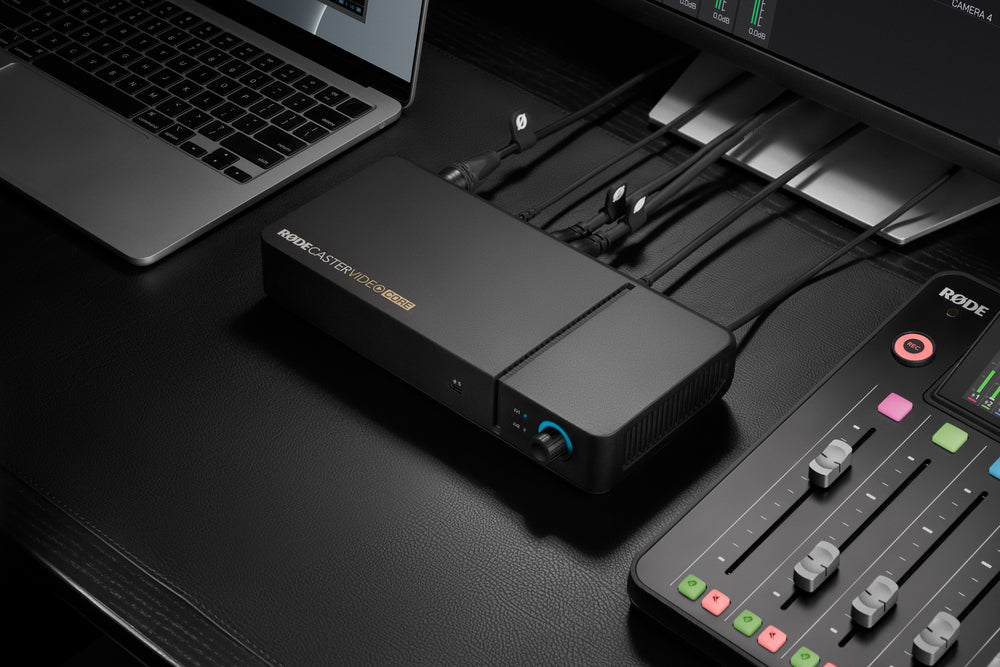

The RØDECaster Video Core is an innovative all-in-one console for video and audio production, delivering a complete solution for producing professional content. Designed for software-based control or as part of a modular production system with RØDECaster Sync, it offers the same advanced capabilities of the RØDECaster Video in a streamlined form factor, combining powerful video switching, recording and production tools with a fully integrated professional audio mixer. Providing seamless integration across RØDE audio devices including the RØDECaster Pro II and RØDECaster Duo, the RØDECaster Video Core offers maximum flexibility and ensures broadcast-quality results for video podcasts, live streams and studio productions.

Firmware v.1.4 brings 4K capture and Rodecaster Sync for the Rodecaster Video Range!

What's new with firmware update 1.4:

• 4K Capture Mode – alongside its normal switching operation, a new mode (4K Capture) has been introduced that turns the console into a UHD (3840×2160) capture and distribution system, replacing many of the switching capabilities with the ability to receive multiple HDMI camera feeds and send each out as its own NDI® stream at UHD30. In 4K Capture mode, users can capture every UHD source as an isolated track directly to an external SSD in H.264 or H.265, ready for the edit.
• Full HD Capture Mode – a third mode that prioritises a smooth 1080p60 feed.
• Full audio mixer in every capture mode – the complete RØDE audio engine runs alongside, with each NDI output available as its own custom mix.
• RØDECaster Sync for the whole family – our flagship audio-and-video integration now works with the RØDECaster Video and Video S, joining the RØDECaster Video Core.
• Timeline export compability for Adobe Premiere - following on from our previous update introducing EDL export for DaVinci resolve users, this update adds compatibility for OTIO export to be used with Adobe Premiere quickly and simply reconstruct their complex multi-camera shows in order to make fine adjustments in post-production.
• The RØDECaster Video range can now accept audio from any compatible USB webcam

Features:

• Switch between up to four video sources and five fully customisable scenes
• High-performance octa-core CPU video and audio processor
• Three full HD (1080p) HDMI inputs with auto frame rate conversion and oneconfigurable HDMI output for viewing program, preview and multi-view
• Two flexible USB-C ports for connecting select video and audio devices
• Two studio-grade Neutrik® combo jacks with ultra-low noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
• Powerful APHEX® audio processing, including an EQ, compressor, noise gate, highpass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
• Connect to a RØDECaster Pro II or Duo using RØDECaster Sync, creating a fully integrated video and audio system, with hands-on control over your entire production alongside expanded inputs and outputs
• Connect an external SSD via USB to record video or output directly to a computer via UVC
• Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
• Media playback, keying, transitions, multi-source scenes, graphic overlays, audio mixing and advanced configuration via the RØDECaster App
• Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App
• Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
• Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
• Stream directly to all major platforms via Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post-editing flexibility.
• Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia

VIDEO SPECIFICATIONS

·       Video Input Feeds: 4 simultaneous

·       HDMI Inputs: 3 type-A (HDMI 1.4b)

·       USB (UVC) Inputs: 1 multi-function USB-C for UVC video

HDMI Outputs:

·       1 configurable – Preview, Program, Multiview, Inputs 1 - 4

Video Input Frame Rates:

·       1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30

Video Output Frame Rates: 1920x1080p:

·       24, 25, 30, 50, 60

Video Streaming Standards:

·       1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94,60

Video Engine Format:

·       4:4:4 RGB / 8-bit

HDMI Input Format:

·       4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit

USB (UVC) Input Format:

·       4:2:2 YUV, 4:2:0 YUV (NV12)

HDMI Output Format:

·       4:4:4 RGB, 4:4:4 YUV / 8-bit

USB (UVC) Output Format:

·       4:2:2 YUV / 8-bit

Format and Frame RateConverters:

·       On all HDMI and USB inputs

NDI Protocols:

·       Single TCP, Multicast

NDI Formats:

·       Hx2, Hx3

NDI Video Codecs:

·       H.264, HEVC/H.265, 4:2:0, 8-bit

NDI Audio Codecs:

·       AAC-LC, L-PCM Stereo 2.0 at 48kHz

NDI Interfaces:

·        Wired Ethernet

SWITCHING SPECIFICATIONS

Total Number of Layers:

·       9 simultaneous in Preview and

Program

Downstream Keyers:

·        2 (overlays and logo)

Chroma/Luma Keyers:

·       2 (Green, Blue, Luma)

Media Players:

·       2 simultaneous

Transitions:

·       SMPTE wipes, dip and fade

True Preview:

·       Display complete scenes and overlays simultaneously in preview and program

Generated Borders:

·       All scenes

Multiview:

·       Program and preview

·       Live inputs, scene and media thumbnails

·       Audio mixer and channel status

·       Recording, network and storage status

·       Run time, date and time information

Media Player:

·       24GB on-board storage

Videos:

·       MP4

Images:

·       PNG, JPG

Audio:

·       WAV

"
