PunQtum Q210 PW 4-channel Party-line Speaker Station w/ wireless connections
Description

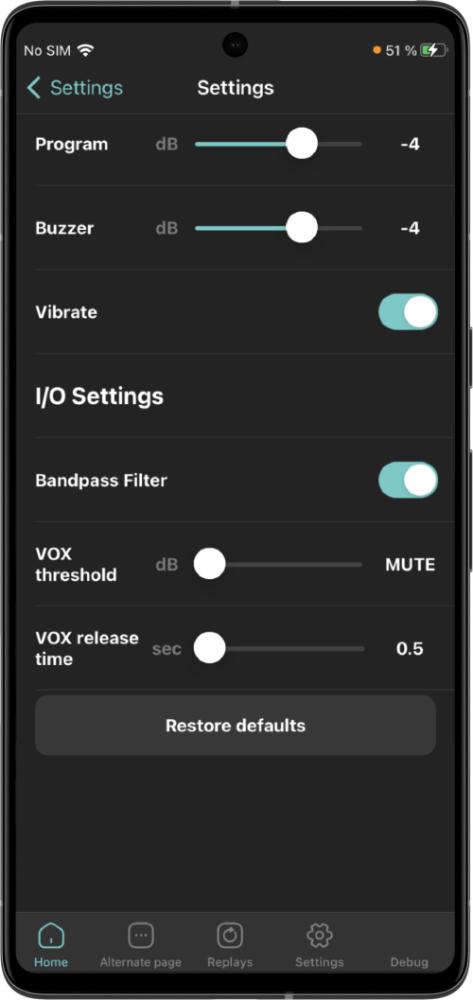

punQtum Wireless Apps now available on both Android and iOS!

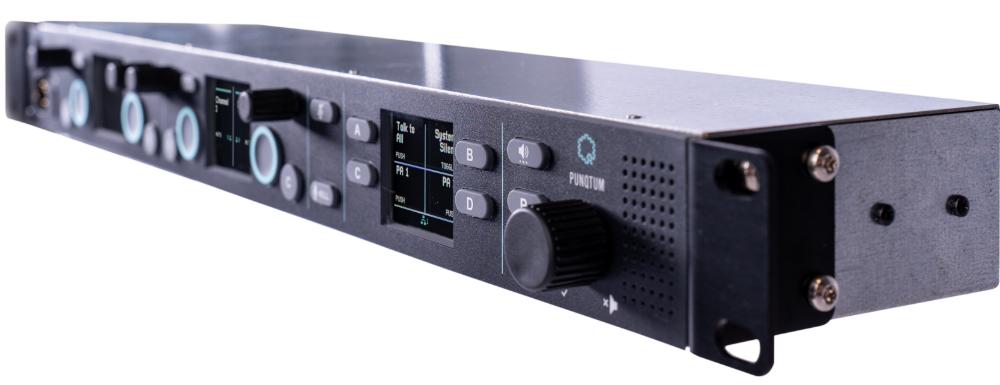

The Q210 PW Speaker Station from punQtum gives you full control in an affordable, easy-to-use package. Designed to support the free punQtum Wireless app, it’s a self-contained hub for wired and wireless communication.
punQtum Wireless can be connected to a punQtum network by using a Wi-Fi access point and the Q210 PW speaker station. The station serves up to 4 connections to punQtum Wireless Apps and is equipped with 4 Channel communication and programmable buttons, allow muting all mics, make paging announcements or trigger logic outputs. Equipped with a network switch with 4 ports. Two of them are PoE powered to drive up to 4 wired beltpacks each.
KEY FEATURES
- 4-channel partyline speaker station
- Compatibility with punQtum Wireless - up to 4 mobile devices
- Built in loudspeaker
- Microphone and headset connector
- Rugged, Ethercon™ connectors
- Easy-to-read colour display
- 4 configurable buttons for PA announcements, talk to all, and GPO
- Audio replay of missed comms
- GPI inputs and outputs

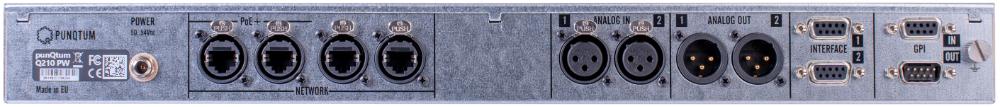

- Analogue inputs/outputs (2x 4-wire ports + 2x inputs + 2x outputs)
- Built-in PoE switch to power up to 8 beltpacks or a wireless access point
- 2 Public address output
- 2 Program signal inputs
- On- and Offline configuration software (Win/ Mac)
Specifications
| General Specifications | |
|---|---|
|
Power Source
|
50 … 54 VDC |
|
PoE Power
|
30W per PoE port |
|
Sampling Rate
|
16 kHz |
|
Headset Connector
|
XLR 4pin male |
|
Connector Ethernet/LAN
|
4x RJ-45 EtherCon |
|
Microphone Connector
|
1/4“ jack with 7/16“ -20 UNF thread |
|
Built-in Speaker
|
5 Watts |
|
Operating Temp.
|
-10° to +50°C |
|
Operation Environment Humidity
|
0 to 90% non-condensing |
|
H x W x D
|
19“ 1HU: 100 x 433 x 44 mm |
|
Weight
|
1.7 kg |
| Headphone Output | |
|---|---|
|
Output impedance
|
27 Ohm |
|
Output level
|
+ 18.5 dBu (max.) |
|
Frequency response
|
20Hz to 7kHz (+0/-1dB) |
|
Distortion @ 1kHz
|
<-73 dB (0.02%) |
|
Dynamic range (20kHz)
|
95 dB (A-weighted) |
| Microphone Input | |
|---|---|
|
Bias Voltage
|
5.4V (typ.) |
|
Full-scale input range
|
-53 … +4 dBu |
|
Distortion @ 1kHz
|
< -75 dB (0.02%) @ + 4dBu FS (min. gain) |
|
Dynamic range
|
92 dB (min. gain)
59 dB (max. gain) |
| Analog Interface Outputs | |
|---|---|
|
Input Impedance
|
< 2 Ohm |
|
Input Level
|
+ 18 dBu (max.) |
|
Frequency Response
|
20Hz to 7kHz (+0/-0.25dB) |
|
Distortion @ 1kHz
|
<-80 dB (0.01%) |
|
Dynamic Range (20kHz)
|
98 dB (A-weighted) |
| Analog Interface Inputs | |
|---|---|
|
Input Impedance
|
> 20 kOhm |
|
Input Level
|
+ 18 dBu (max.) |
|
Frequency Response
|
20Hz to 7kHz (+0/-0.25dB) |
|
Distortion @ 1kHz
|
<-80 dB (0.01%) |
|
Dynamic Range (20kHz)
|
90 dB (A-weighted) |
| GPI Inputs | |
|---|---|
|
Input Connector
|
D-Sub 9 female |
|
Number of GPI Inputs
|
4 |
|
Input Type
|
Optocoupler input with current limiter |
|
Input Voltage
|
5 … 50 VDC |
|
Input Current
|
5 mA (typ.) |
| GPI Outputs | |
|---|---|
|
Output Connector
|
D-Sub 9 male |
|
Number of GPI Outputs
|
4 |
|
Output Type
|
PhotoMOS Relay |
|
On Resistance
|
< 3 Ohm |
|
On Current
|
200 mA (max.) – resettable PTC fuse |
|
Maximum Voltage
|
50 VDC / 35 VAC |
(*) all specifications are subject to change without notice
