Palmer RIVER Peene Passive 2-Channel Line Splitter
Description

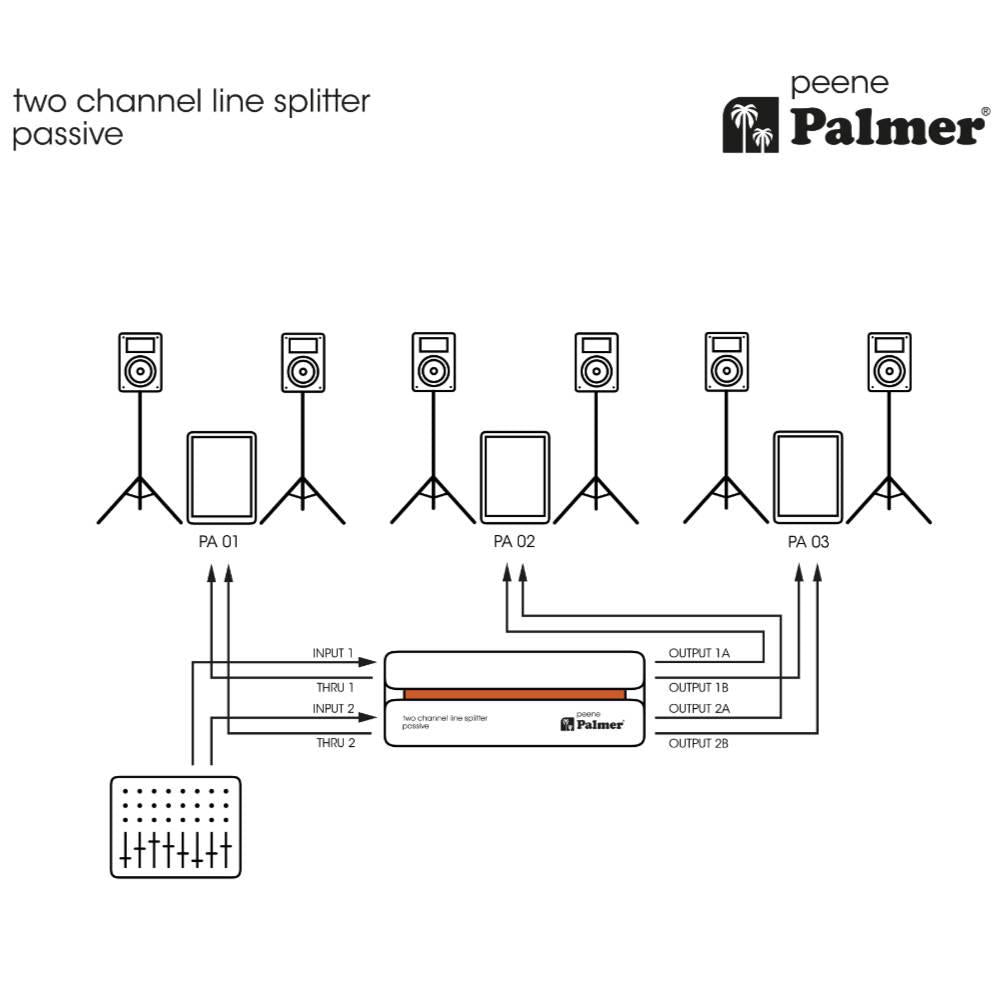

Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the peene also directs the input signal on directly via a link out.
The Palmer peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.
- Distributes two input signals to two outputs each + link outs
- For line signals
- Galvanic isolation of outputs by transformers
- Switchable ground lift to isolate ground loop hum
- Neutral sound
- High headroom (+20 dBu max. input level)
- Passive construction, no power supply required
- Extremely fail-safe
- Solid casing made of aluminium and steel

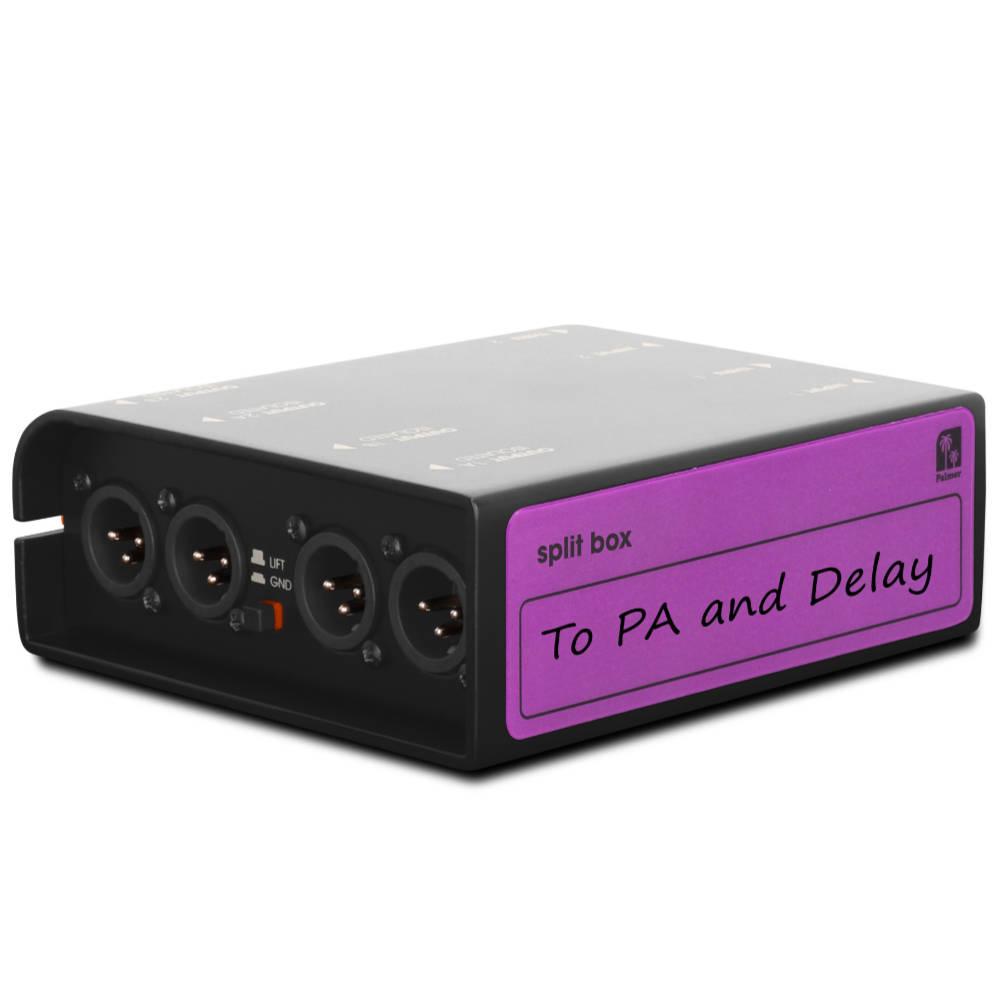

- Incl. rewritable tour label for attachment onto the back of the peene
- Engineered in Germany
| Product type | Line Splitter |
| Channels | 2 |
| Type | passive |
| Transformer isolated | Yes |
| Inputs | 2 |
| input type | balanced |
| Input connectors | XLR |
| Outputs | 4 |
| Output type | balanced |
| Output connectors | XLR |
| THRU outputs per channel | 1 |
| Ground lift switch | Yes |
| Housing | Aluminium continuous casting |
| Dimension (H/W/D) | 140 x 50 x 128 mm |
| Weight | 0,805 kg |
| Ambient temperature during operation | -20 - 70 °C |
| Relative Humidity | < 80 %, not condensing |
| Accessories (included) | Inscription label (tour label), rubber feet |
