Martin - MARELP100 - ELP PAR Static LED Wash

The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify RGB channels.

Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Product Features:

• Light engine: 7 x 40W RGBW

• Full-gamut color-calibration system

• CTC control: 2,800–10,000 K

• Lumen output: 3,500

• Intensity: 390,000 cd

• Zoom: 4.2 – 58°

• Quick Focus mode allows installation and focusing without the need for a console operator

• Clear of projection indicators allow quick installation

• Angled power and data connections support a clean cable run that does not impede the fixture or installation

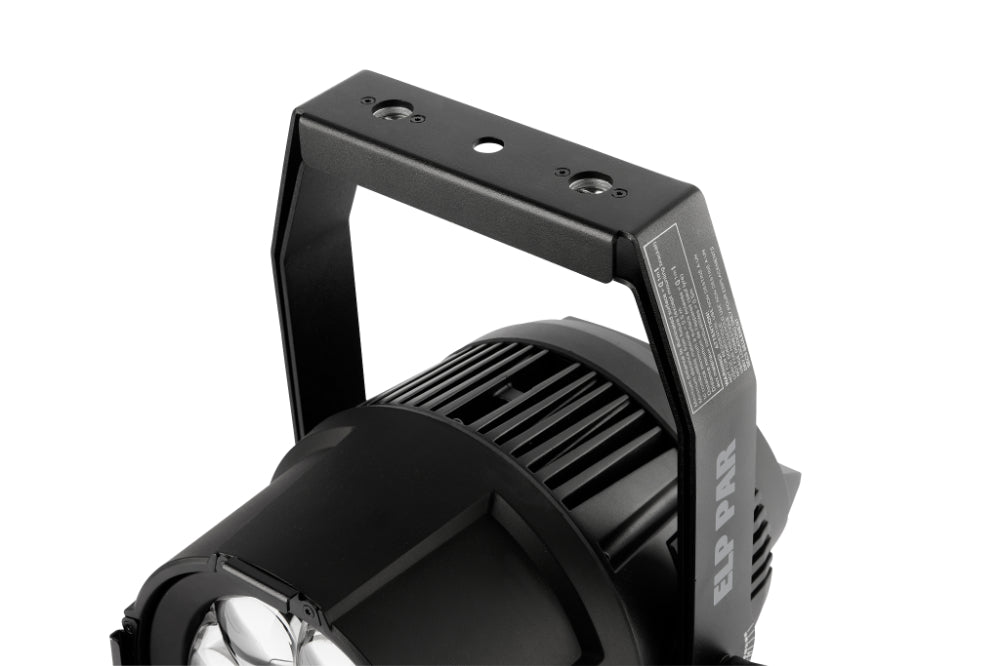

• Included truss and floor-mounting yoke with omega bracket connectivity

• Low-noise 33 dB Theatre mode operation

• IP20 rating

• Dimensions: 312 x 287 x 401 mm (inc. bracket)

• Weight: 7.8 kg


Specifications

PHYSICAL

• Dimensions (L x W x H): 312 x 287 x 401 mm (with bracket)
• Weight: 7.8 kg


DYNAMIC EFFECTS

• Colour mixing: RGBW

• Colour presets: 48 color presets, virtual color wheel effects

• Colour temperature control: Variable 1,800 – 10,000K

• Electronic dimming: 0 – 100%, four dimming curve options

• Strobe and pulse effects: Variable speed and action, random strobe

• Electronic shutter effect: Instant open and blackout

• Zoom: Motorized


CONTROL AND PROGRAMMING

• Control options: DMX, RDM

• DMX channels: 14

• 16-bit fine control: Dimming, RGB, zoom

• LED colour management modes: Raw, extended and calibrated

• DMX address setting: Control panel with OLED display

• DMX compliance: USITT DMX512-A

• RDM compliance: ANSI/ESTA E1.20

• Firmware update: via DMX using Martin Companion


OPTICS

• Light source: 7 x 40 W RGBW Osram LEDs

• Minimum LED lifetime: 50,000 hours (to >70% luminous output)

• Beam angle (half-peak): 4.2° – 38.7°

• Field angle (one-tenth peak): 5.1° – 58.6°

• Cutoff angle (3%): 5.7° – 69.6°

• Binning: Tight color and flux binning

• Calibration: Full Gamut Color Calibration

PHOTOMETRIC DATA

• Wide beam: 3525 lumens

• Narrow beam: 1445 lumens

• Fixture Center Intensity Narrow Beam: 390083 cd

• Fixture Center Intensity Wide beam: 9957 cd

• CRI (Colour Rendering Index) : >70

• CQS (Colour Quality Scale): 83

• TM-30 Rf (IES TM-30-15 Fidelity Index): 77

• TM-30 Rg (IES TM-30-15 Gamut Index): 117

• TLCI (Television Lighting Consistency Index): 61

• CCT: 6500 Kelvin

• LED refresh rate – Standard Mode: 3600 Hz

• LED refresh rate – Theatre Mode: 19200 Hz

CONSTRUCTION

• Housing: Aluminum and composite

• Filter mount: 191 x 191 mm

• Colour: Black

• Protection rating: IP 20


INSTALLATION

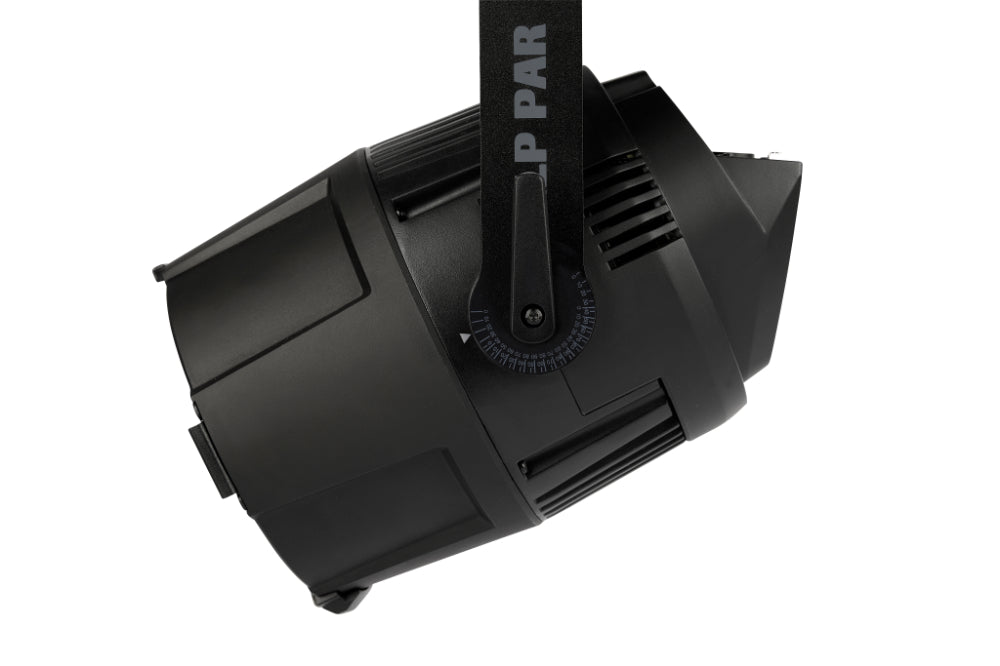

• Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)

• Location: Not for household use, indoor use in dry location only

• Orientation: Any

• Minimum distance to combustible materials: 0.5 m

• Minimum distance to illuminated surfaces: 1 m)

• Minimum clearance around fan and air vents: 0.5 m


CONNECTIONS

• AC power input/output: Neutrik PowerCON TRUE1 TOP

• DMX and RDM data in/out: Neutrik 5-pin locking XLR


ELECTRICAL

• AC power: 100-240 V nominal, 50/60 Hz

• Typical power consumption: 300 W

• Typical half-cycle RMS inrush current at 240 VAC: 8.7 A

• Power supply unit: Auto-ranging electronic switch mode

• Maximum power and current: 220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
• Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL

• Maximum surface temperature: 65° C

• Cooling: Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C

• Minimum ambient temperature (Ta min.): -10° C

• Total heat dissipation (calculated): 1170 BTU/hr.


ACOUSTIC DATA

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)

• Sound Pressure Level (LpA) @ 1 m (constant fan mode low): 33.0 dB(A)


APPROVALS

• Australia/NZ: RCM
