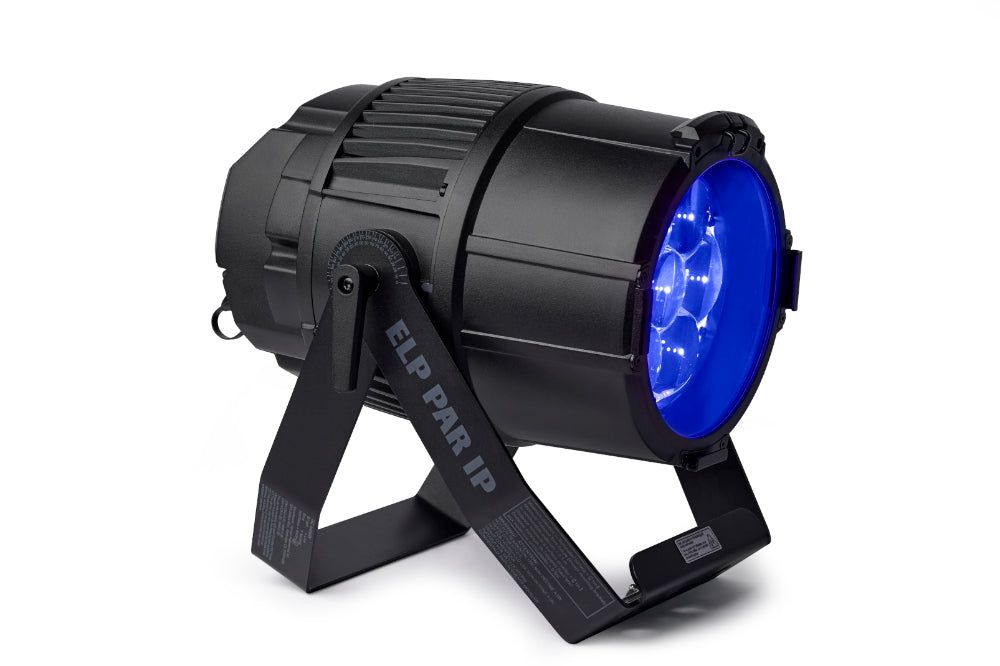

Martin - MARELP101 - ELP PAR Static LED Wash IP

SKU: MARELP101
$4,739.54
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Martin Lighting
Description

The Martin ELP PAR IP static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features. This fixture is ideal for indoor or outdoor applications with an IP65 rating for protection against dust and water ingress.

The ELP PAR IP makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that supports both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify the color space.

Whether lighting an outdoor or indoor theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

FEATURES

  • Light engine: 7 x 40W RGBW
  • Full-gamut color-calibration system
  • CTC control: 1,800–12,850 K
  • Quick Focus mode allows installation and focusing without the need for a console operator
  • Clear of projection indicators allow quick installation
  • Angled power and data connections support a clean cable run that does not impede the fixture or installation
  • Included truss and floor-mounting yoke with omega bracket connectivity
  • Lumen output: 3,350
  • Zoom: 5.5–50˚
  • Intensity: 329,058 cd
  • IP65 rating
  • Dimensions: 315 x 285 x 498 mm (inc. bracket)
  • Weight: 9.1 kg

SPECIFICATIONS

PHYSICAL

  • Dimensions: 315 x 285 x 498 mm (inc. bracket)
  • Weight: 9.1 kg

DYNAMIC EFFECTS

  • Color mixing: RGBW
  • Color presets: 48 color presets, virtual color wheel effects
  • Zoom: Motorized
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Electronic shutter effect: Instant open and blackout
  • Color temperature: Variable 1800 – 12 850 K

CONTROL AND PROGRAMMING

  • Control options: DMX, RDM
  • 16-bit fine control: Dimming, RGB, Zoom
  • LED color management modes: Raw, extended and calibrated
  • DMX address setting: Control panel with OLED display
  • DMX channels: 14
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20

OPTICS

  • Light source: 7 x 40 W RGBW Osram LEDs
  • Minimum LED lifetime: 50 000 hours (to >70% luminous output)
  • Beam angle (half-peak): 4.4 – 33.3°
  • Field angle (one-tenth peak): 5.5 – 50.0°
  • Binning: Tight color and flux binning
  • Calibration: Full Gamut and Color Calibration
  • Maximum output: 3350 lumens

PHOTOMETRIC DATA

  • Wide beam: 3,350 lumens
  • Narrow beam: 1,626 lumens
  • Fixture Center Intensity Narrow Beam: 329058 cd
  • Fixture Center Intensity Wide beam: 10141 cd
  • CRI (Color Rendering Index) : >70
  • CQS (Color Quality Scale): 84
  • TM-30 Rf (IES TM-30-15 Fidelity Index): 79
  • TM-30 Rg (IES TM-30-15 Gamut Index): 116
  • TLCI (Television Lighting Consistency Index): 61
  • CCT: 6,500 Kelvin
  • LED refresh rate - Standard Mode: 3,600 Hz
  • LED refresh rate - Theatre Mode: 19200 Hz

CONSTRUCTION

  • Housing: Aluminum and composite
  • Filter mount: 191 x 191 mm
  • Color: Black
  • Ingress protection rating: IP65

INSTALLATION

  • Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
  • Location: Wet locations, temporary outdoor use, not for household use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.5 m (1.7 ft.)
  • Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
  • Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

CONNECTIONS

  • AC power in, thru: Neutrik PowerCON TRUE1 TOP
  • DMX data in, thru: Neutrik IP-rated 5-pin locking XLR

ELECTRICAL

  • AC power: 100-240 V AC nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 11.2 A
  • Power Factor: 0.94 @ 220 V / 230 V / 240 V
  • Typical current draw: 1.7 A @ 220 V / 230 V / 240 V
  • Power Consumption, Typical: 300 W
  • Power Consumption, Hibernation: 2 W
  •  Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Typical: full output white, no effects moving, regulated fan speed.
  • Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

THERMAL

  • Cooling: Forced air (temperature regulated, low noise)
  • Total heat dissipation: 1126 BTU/hr (Calculated, +/- 10%, at full intensity, full white)
  • Maximum surface temperature: 71° C
  • Maximum ambient temperature (Ta max.): 40° C
  • Minimum ambient temperature (Ta min.): -10°C

ACOUSTIC DATA

  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 40.9 dB(A)
  • Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.9 dB(A)

ENVIRONMENTAL

  • RoHS: Compliant
  • REACH: Compliant
  • WEEE: Compliant
  • Proposition 65: Compliant
  • Efficacy (max output): 14.3 lm/W
  • LWR (Lumen to Weight Ratio): 385 lm/kg (174 lm/lb)

APPROVALS

  • Australia/NZ: RCM

INCLUDED ITEMS

  • Adjustable mounting bracket
