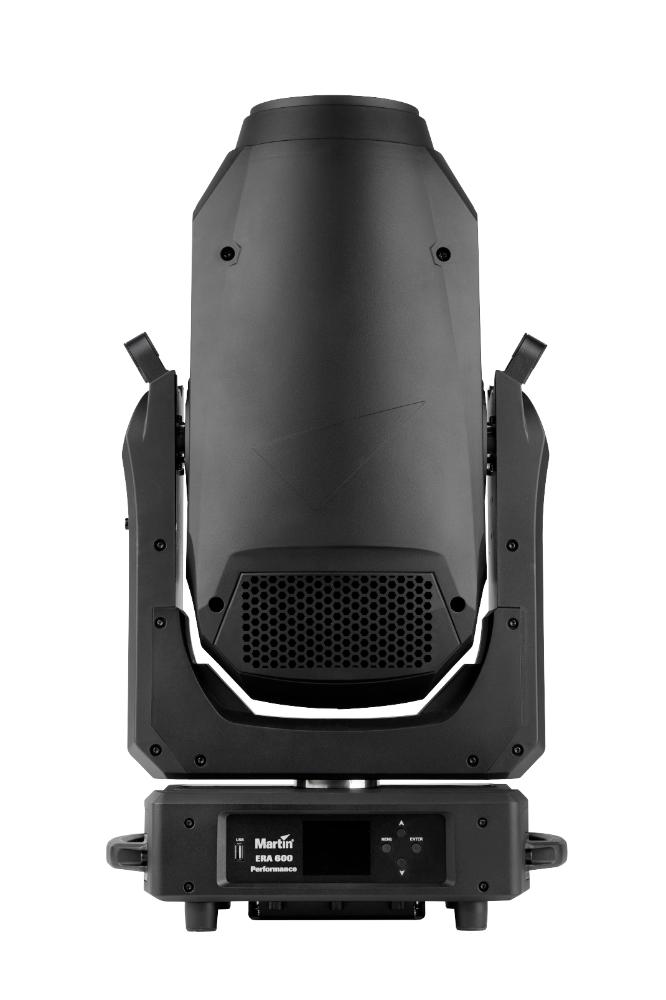

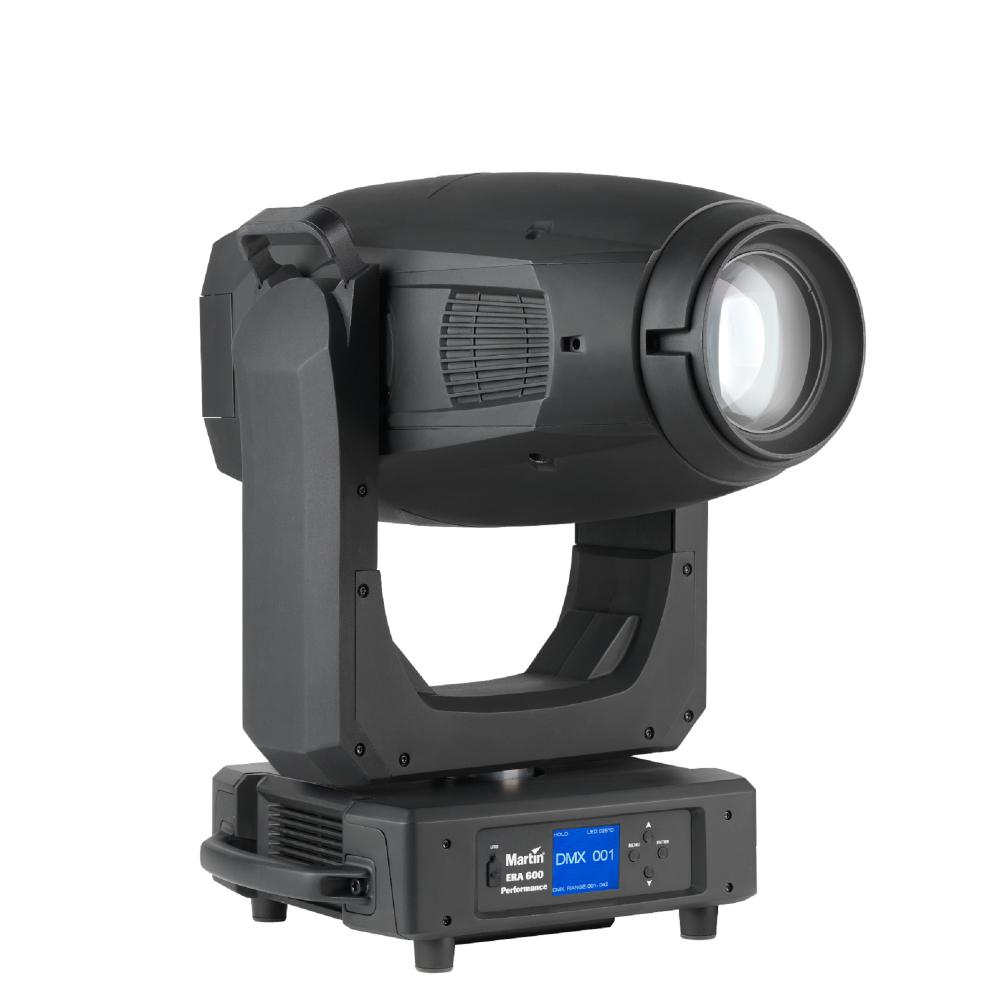

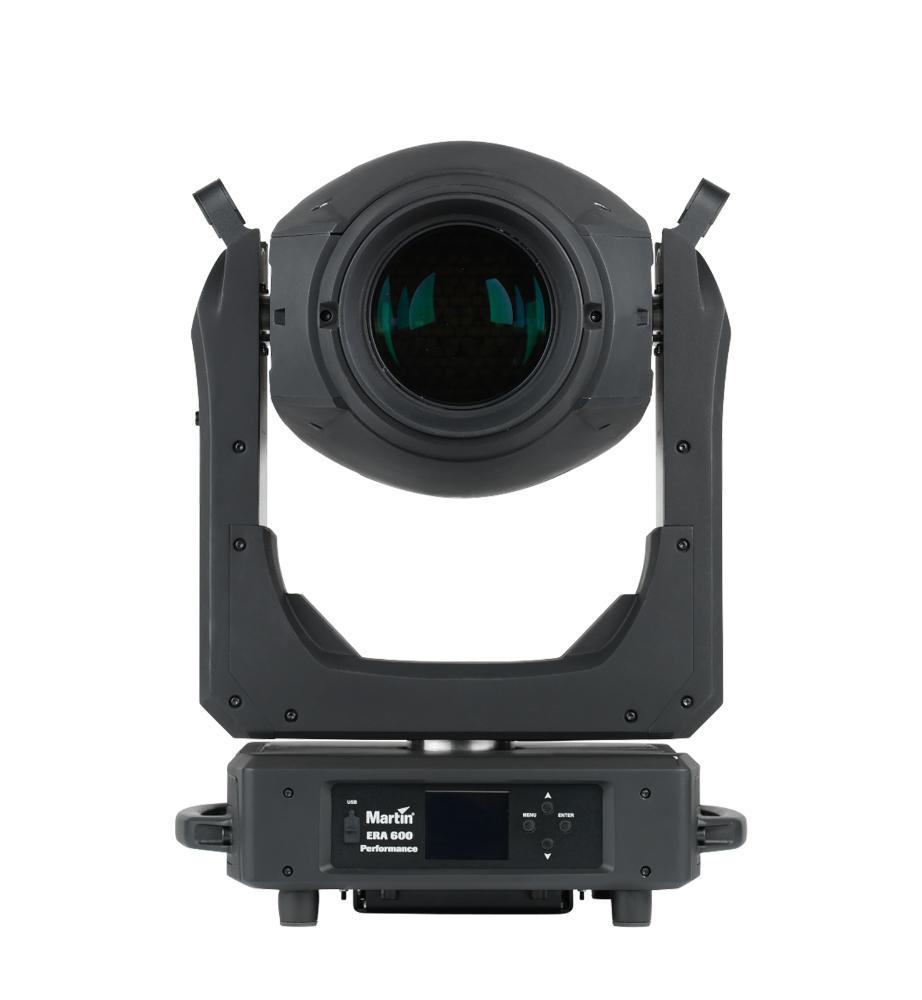

Martin MARERA610 ERA 600 Performance LED Moving Head

SKU: MARERA610
$0.01
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Martin Lighting
Description

Designed to fulfil the demand for a bright, compact, tour-worthy moving head, the Martin ERA 600 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient 550W white LED engine that produces a bright, sharp 6,500K image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY colour mixing and separate colour wheel, variable colour temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favourite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft frost filter.

The ERA 600 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for a larger stage and live productions, the Martin ERA 600 Performance is ideal for a long list of scenarios, requiring a bright, yet truly versatile LED profile that offers near limitless design and usage potential.

Features:

  • Bright 550 watt / 6,500K LED light source
  • 19,000 lumen output
  • Crisp optics with a flat field
  • 1:8 Fast zoom
  • CMY colour mixing – Vibrant colour mixing with a superior palette of colours matching the MAC range
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot colour wheel –for added colour choice and split colour effects
  • Full Curtain Framing blades with +/- 60° rotation of the entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 8 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Two prisms – 4-facet and linear – rotation and index control for dynamic effects
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Compact and low weight design

SPECIFICATIONS

PHYSICAL

  • Weight: 32.3 kg
  • Minimum center-to-center distance in side-by-side installation: 660 mm
  • Length (head): 544 mm
  • Length (base): 416 mm
  • Width (base): 290 mm
  • Width (across yoke): 390 mm
  • Height (head straight up): 734 mm
  • Height (maximum): 745 mm

DYNAMIC EFFECTS

  • Color mixing: CMY, independently variable 0-100%
  • Color wheel: 7 color filters plus open
  • Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
  • Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
  • Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake
  • Iris: 0-100%
  • Zoom: Motorized
  • Color temperature control: Variable 6500 - 2700 K
  • Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
  • Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
  • Frost: Heavy Frost - for wash effects
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
  • Pan: 540°, coarse & fine control and speed
  • Tilt: 260°, coarse & fine control and speed
  • Focus: Motorized

CONTROL AND PROGRAMMING

  • Control options: DMX
  • Setting and addressing: Control panel with backlit LCD display
  • 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt
  • DMX channels: 41
  • DMX compliance: USITT DMX512/1990
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485

OPTICS

  • Front lens diameter: 120 mm
  • Zoom range: 6° - 45° (1:7.5)
  • Light source: 550 W LED engine
  • Minimum LED lifetime: 20000 hours (to >70% luminous output)
  • Binning: Tight color and flux binning
  • Manufacturer´s figure obtained under manufacturer´s test conditions

PHOTOMETRIC DATA

  • Light engine luminous output: 37,000 lumens
  • LED refresh rate : 3600 Hz
  • Standard
  • Fixture luminous output: 19,000 lumens
  • CRI (Color Rendering Index): >70
  • CQS (Color Quality Scale): >67
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >65
  • TM-30 Rg (IES TM-30-15 Gamut Index): >96
  • TLCI (Television Lighting Consistency Index): >45
  • CCT: 6800 K (+/- 250 K)
  • Peak Luminous Intensity: 1,102,000 cd
  • With Optional CRI Boost Filter
  • Fixture luminous output: 13,000 lumens
  • CRI (Color Rendering Index): >79
  • CQS (Color Quality Scale): >74
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >75
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >56
  • CCT: 6500 K (+/- 250 K)
  • Peak Luminous Intensity: 783,000 cd
  • All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

CONSTRUCTION

  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP 20

GOBOS

  • Maximum image diameter: 19.0 mm
  • Gobo material: Borofloat 33
  • External diameter: 23.0 mm +0 / -0.2 mm
  • Maximum gobo thickness: 1.1 mm
  • Coating: Heavy matted aluminum

INSTALLATION

  • Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

CONNECTIONS

  • DMX and RDM data in/out: 5-pin locking XLR
  • AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
  • AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector

ELECTRICAL

  • AC power: 100-240 V AC nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A
  • Power Factor: 0.97 @ 230 V
  • Typical current draw: 3.2 A @ 230 V1
  • Power Consumption, Maximum: 856 W
  • Power Consumption, Typical: 778 W
  • Power Consumption, Idle: 64 W
  • Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed.

THERMAL

  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C
  • Minimum ambient temperature (Ta min.): 0° C
  • Maximum surface temperature, steady state, at 40° C ambient: 75° C
  • Total heat dissipation (calculated, +/- 10%): 2660 BTU/hr.

ACOUSTIC DATA

  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 46.1 dB(A)
  • Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 39.1 dB(A)

ENVIRONMENTAL

  • RoHS: Compliant
  • REACH: Compliant
  • WEEE: Compliant
  • Proposition 65: Compliant
  • Efficacy (max output): 25.4 lm/W
  • LWR (Lumen to Weight Ratio): 588 lm/kg (266 lm/lb)

APPROVALS

  • Australia/NZ: RCM

INCLUDED ITEMS

  • Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
