ProLights Astra Hybrid 330 Moving Light

The Astra Hybrid330 is an ultra compact LED hybrid moving head with phenomenal power for its size and delivering a stunning set of visual effects.

The Astra Hybrid330 optical system ranges linearly from 3,5° to 52°, and it’s equipped with a large 140mm front lens featuring both an high intensity beam and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The extensive feature set of the Astra Hybrid330 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Product Features:

• Ultra compact hybrid moving light equipped with a 330W LED source

• Linear zoom ranging from 3,5° to 52°

• Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms, frost


Specifications:

LIGHT SOURCE

• Source: 330W high-power white LED

• CCT: 7.000

• Luminous flux: (3,5°) 8’158 lm – (52°) 11’684lm

• Lux: (3,5°) 97’996 lx – (52°) 1’566lx @5 m full

• Source life expectancy: > 30.000 h

OPTICS

• Zoom: 3,5° – 52° motorised linear zoom

• Lens diameter: 140mm / 5.51”

• Lens type: HD anti-reflection lenses with achromatic coating

• Focus: motorised


COLOUR SYSTEM

• Colour mixing: CMY colour system on 3 gradually fading colour wheels

• CCT: on wheel 2.400 K and 3.200 K

• Colour wheel: 9 dichroic filters on 3 independent colour wheels

• Colour wheel: High CRI colour filters


DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer

• Animation wheel: animation wheel with CW and CCW rotation

• Rotating gobos: 8 rotating gobos + open, interchangeable, indexing

• Gobo size: outer: 20 mm – image: 16 mm – thickness: up to 3 mm

• Fixed gobos: 11 fixed gobos + open

• FX generator: 2 prisms overlap for spectacular aerial effects

• Circular prism: 8f with bi-directional rotation, indexing

• Linear prism: 6f with bi-directional rotation, indexing

• Frost: linear 0 – 100% frost filter


BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)

• Pan angle: 540°

• Tilt angle: 270°

• Pan/Tilt resolution: bit 8 / 16-bit

• Feedback: automatic repositioning after accidental movement

• Body: aluminium structure with high-resistance polycarbonate cover

• Body colour: RAL 9004


CONTROL

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

• DMX channels: 29channel

• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

• RDM: RDM for remote monitoring and settings

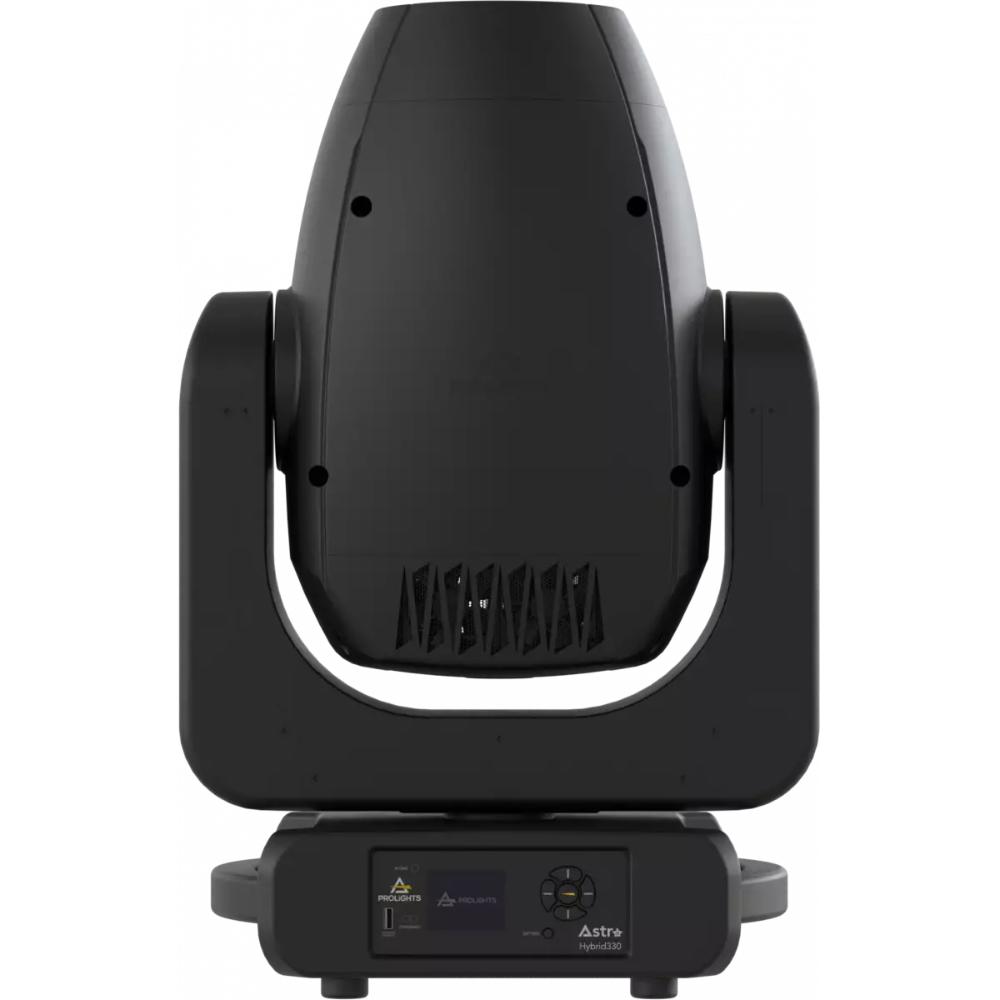

• Display: LCD high resolution colour display with autoflip

• Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included or via USB pen drive

• Other: Ethernet pass through in case of PSU or Master PCB failure


ELECTRONICS

• Dimmer: linear 0 ~ 100% mechanical dimmer

• Dimmer curves: 4 selectable dimming modes available

• Strobe / shutter: 1 – 30 Hz, electronic

• Display battery: self-charging battery backup

• Operating temperature: -10° ~ +45°

• LED Control: flicker free frequency with adjustable PWM

• Selectable PWM: 600 ~ 50.000 Hz


ELECTRICAL

• Mains power supply: 100-240V – 50/60Hz

• Max power consumption: 517W

• Output (at 230V): 4 units on a single power line

• Power factor: > 0,98


PHYSICAL

• IP rating: 20

• Cooling: combination of heat pipe cooling system and low noise fan

• Suspension and fixing: any position with quick-lock omega brackets

• Pan / tilt lock: for transportation and maintenance

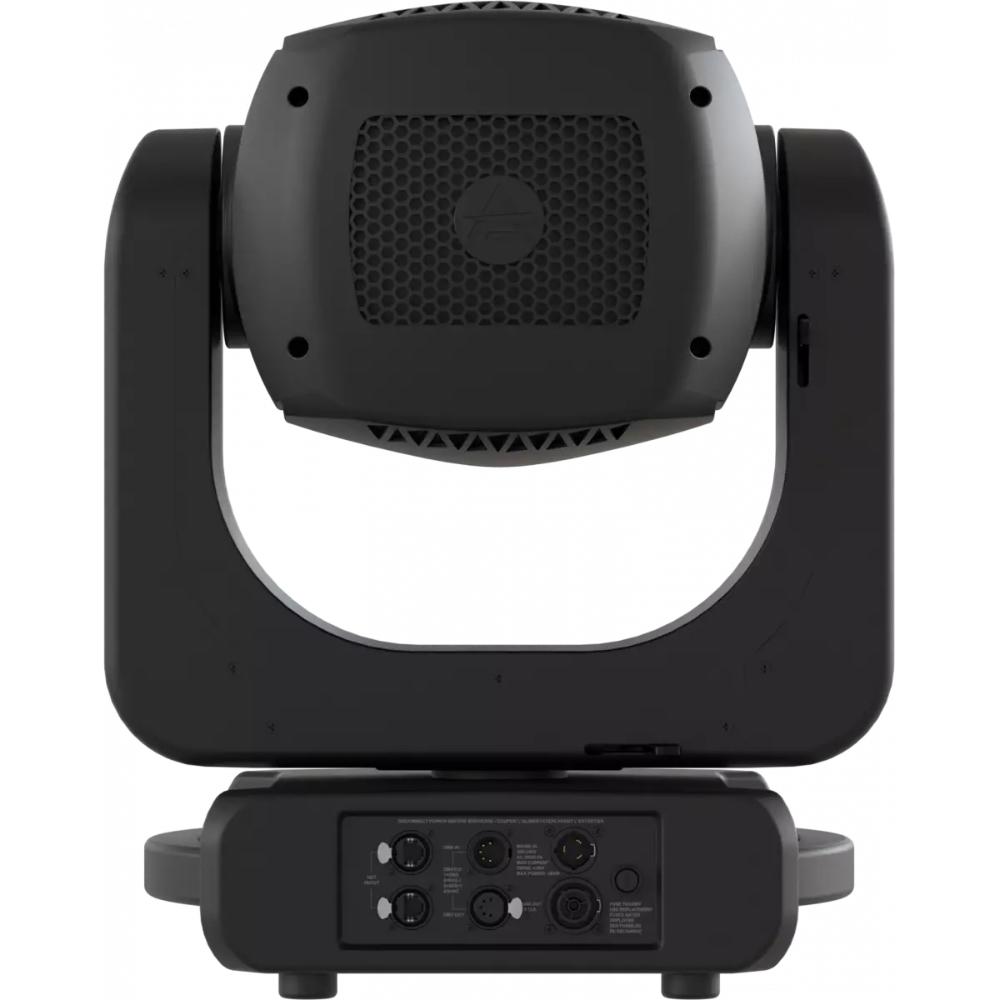

• Signal connection: Amphenol XLR 5p IN/OUT connectors

• Data connection: Neutrik Art-Net RJ45 IN/OUT

• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

• Dimensions (WxHxD): 411x638x244mm

• Weight: 21,6kg

BOX CONTENT

• 1 x ASTRAHYB330

• 2 x OS24

• User manual

• 1 x 1.5 meters power cable
