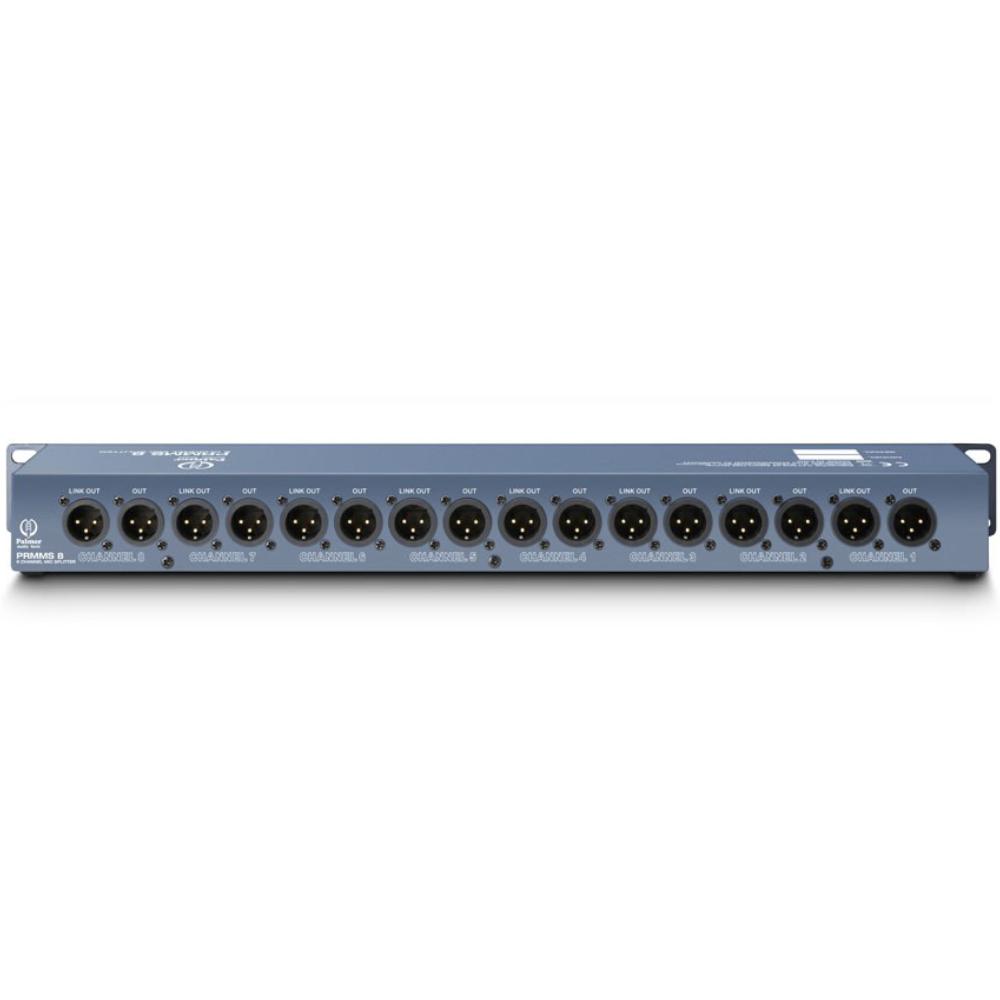

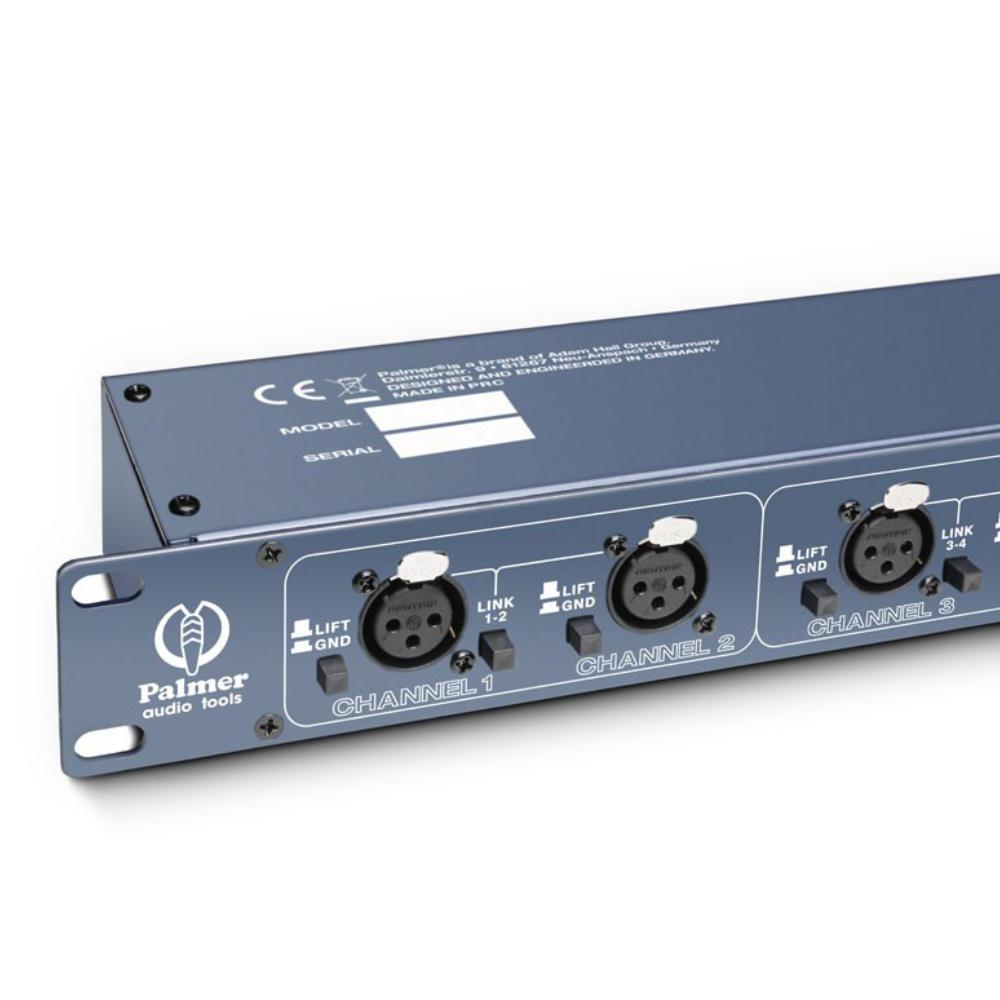

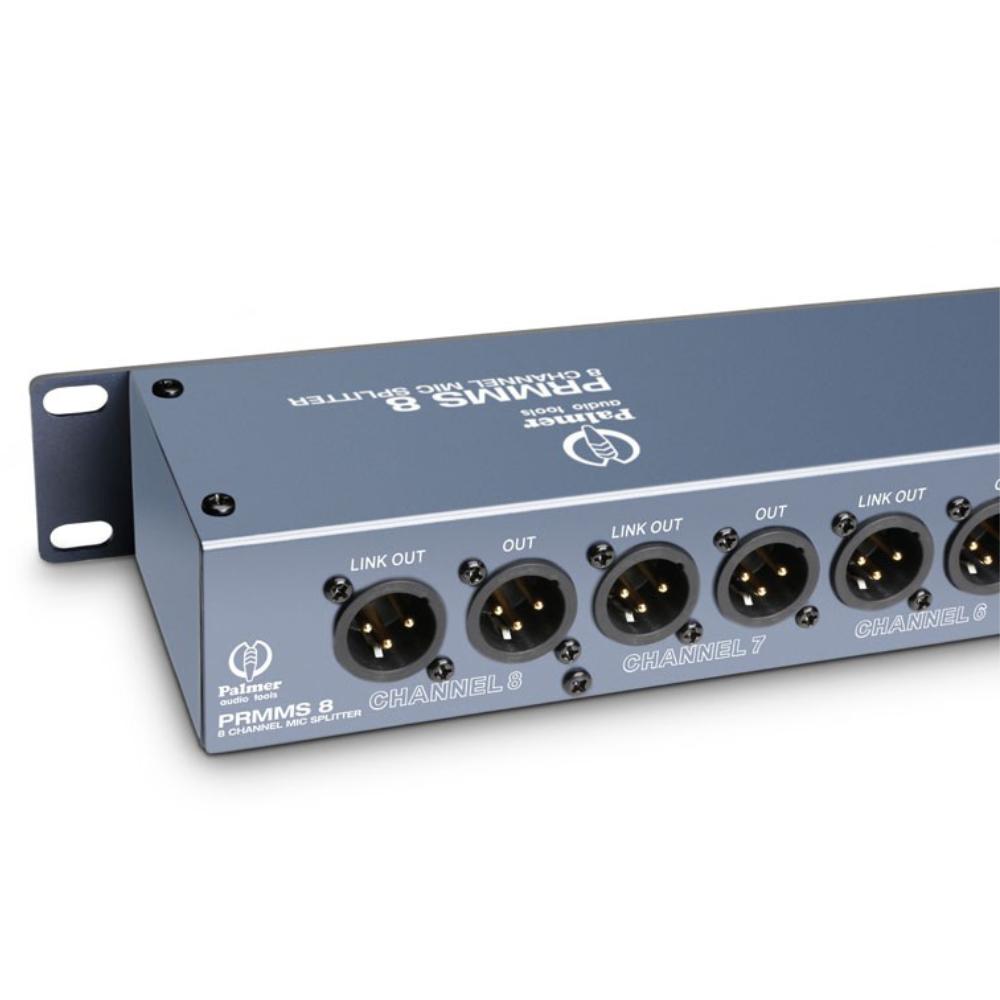

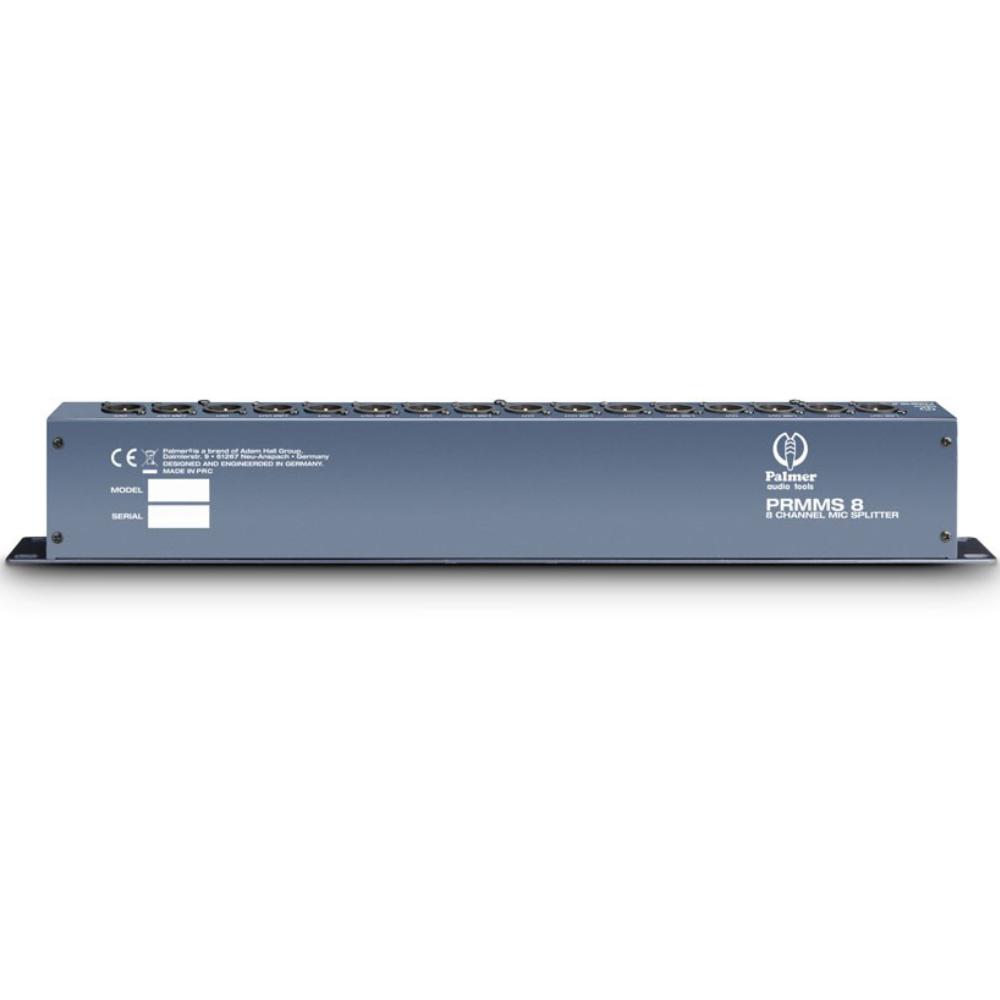

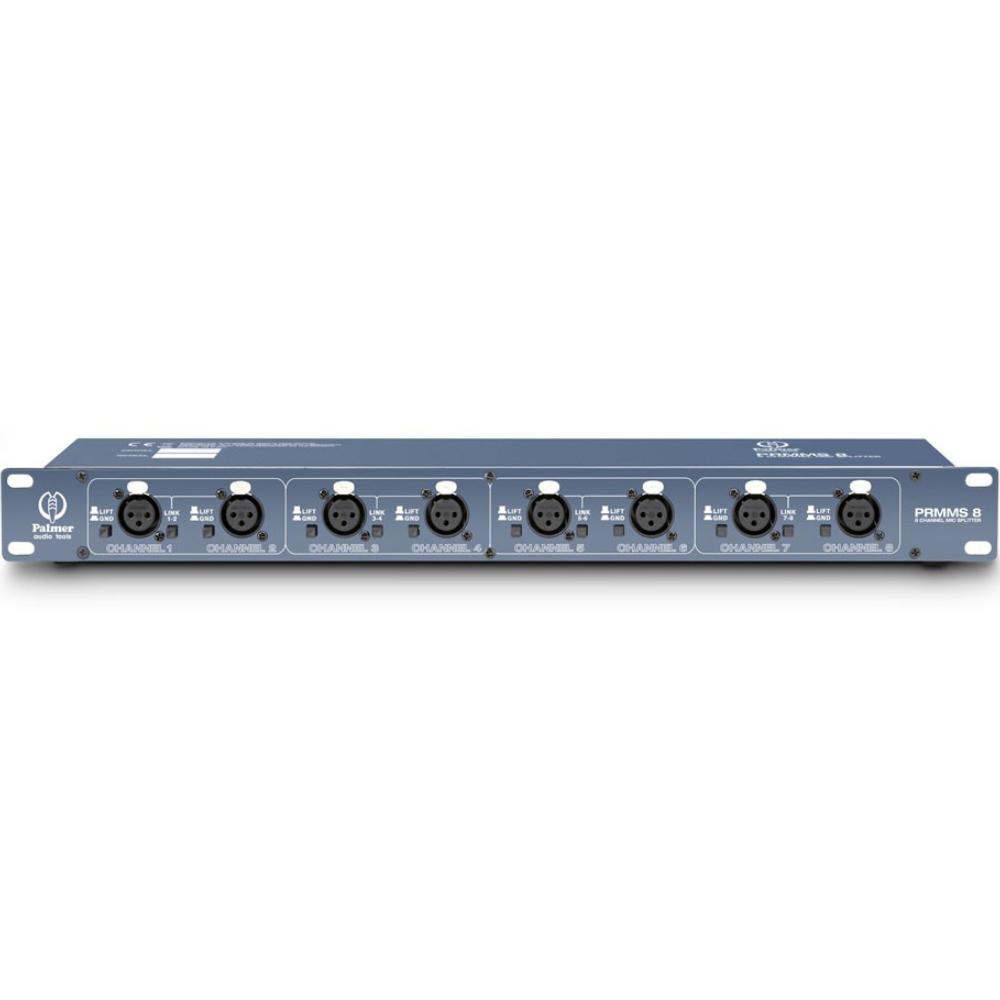

Palmer RMMS 8 8-Channel Microphone Splitter

SKU: PAL-PRMMS8
$699.00 $822.35
In stock: 2
By Palmer
NOTIFY ME WHEN BACK IN STOCK
 More payment options

Pickup available at 73 Toombul Road

Usually ready in 24 hours

View store information

Description

The PRMMS8 is an ultra low noise 8-channel microphone splitter providing a direct output and a transformer isolated output for each balanced XLR input. For extra flexibility, four front panel switches enable channel linking which permits routing a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or merging two input signals into a single output. For use with condenser microphones, the direct outputs serve as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to the PRMMS8.

  • Single space 8-channel rackmount microphone splitter
  • Transformer isolated and direct outputs
  • Channel pair link switches for doubling outputs or merging inputs
  • Individual ground lift on each channel
  • Suitable for phantom powered condenser microphones and DI boxes
Product type Splitters
Type mic split
Split type 1 in 1 +1
Channels 8
Inputs 1
Input connectors XLR
Max. input level +5 dBu
Number of split-outputs per canal 1
THRU outputs/channel 1
Max Output Level +5 dBu
Output connectors XLR
Transformer isolated outputs Yes
Cabinet material sheet steel
Cabinet surface Powder coated
Width 483 mm
Width 19 "
Depth 73 mm
Height 44.5 mm
Height 1 U
Weight 1,3 kg
