PunQtum Q210 PW 4-channel Party-line Speaker Station w/ wireless connections

SKU: 9301347
$4,692.60
In stock: 4
NOTIFY ME WHEN BACK IN STOCK
By PunQtum
Description

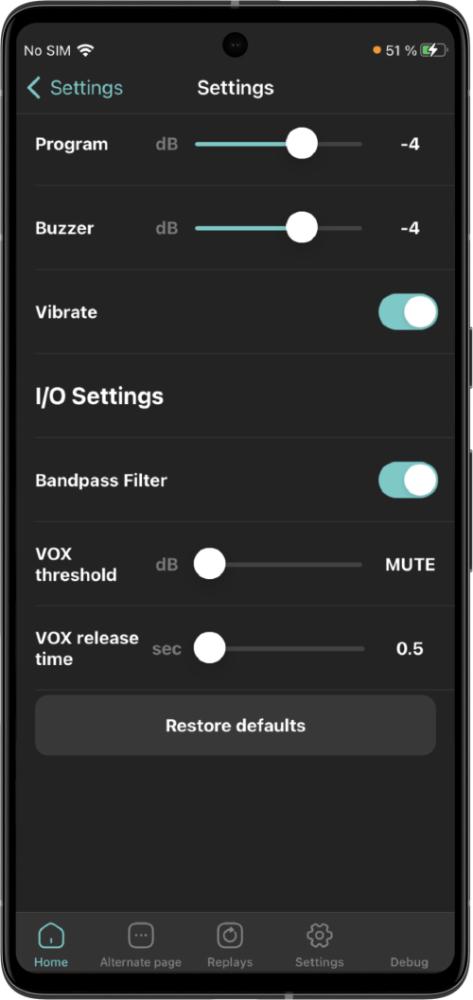

punQtum Wireless Apps now available on both Android and iOS!

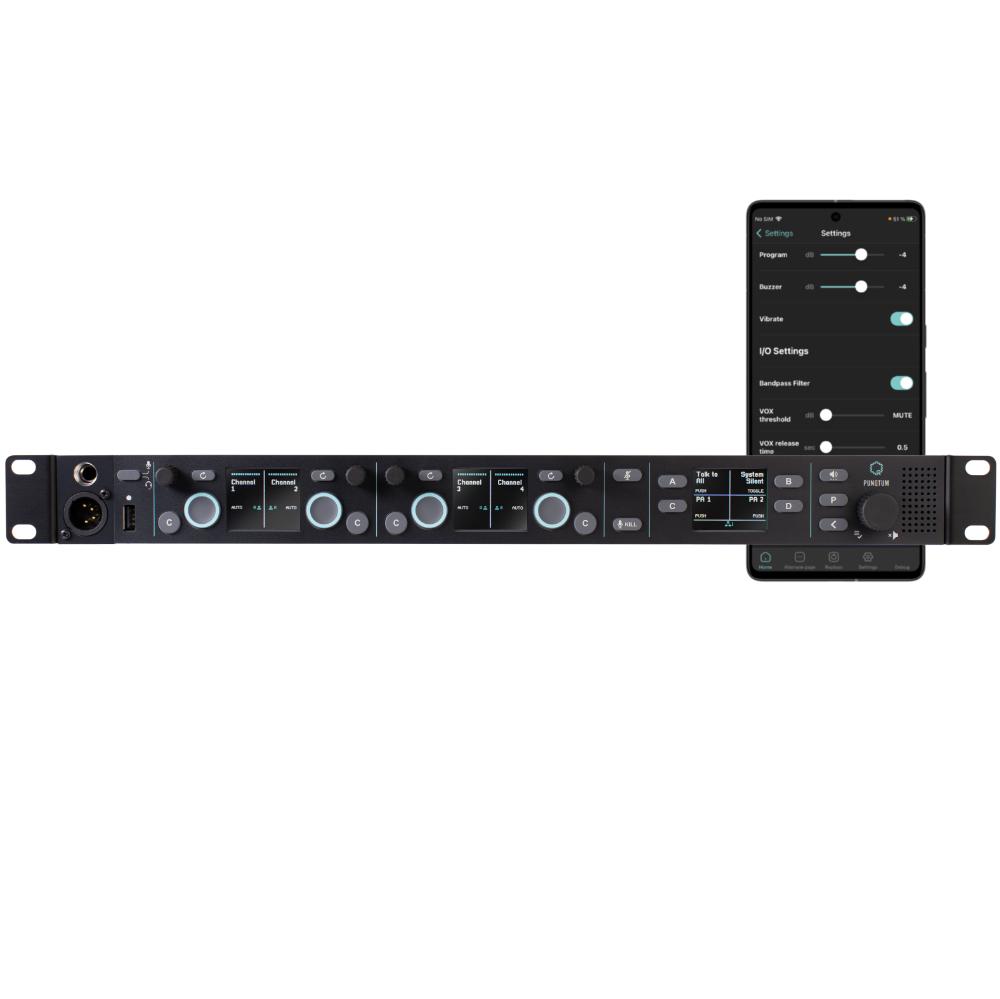

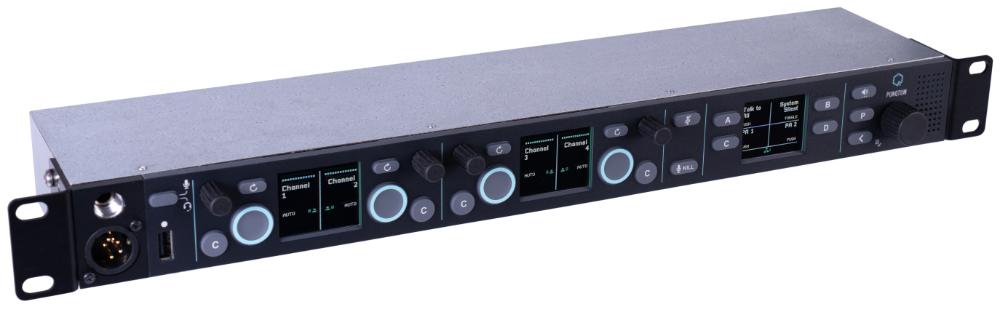

The Q210 PW Speaker Station from punQtum gives you full control in an affordable, easy-to-use package. Designed to support the free punQtum Wireless app, it’s a self-contained hub for wired and wireless communication.

punQtum Wireless can be connected to a punQtum network by using a Wi-Fi access point and the Q210 PW speaker station. The station serves up to 4 connections to punQtum Wireless Apps and is equipped with 4 Channel communication and programmable buttons, allow muting all mics, make paging announcements or trigger logic outputs. Equipped with a network switch with 4 ports. Two of them are PoE powered to drive up to 4 wired beltpacks each.

KEY FEATURES

  • 4-channel partyline speaker station
  • Compatibility with punQtum Wireless - up to 4 mobile devices
  • Built in loudspeaker
  • Microphone and headset connector
  • Rugged, Ethercon™ connectors
  • Easy-to-read colour display
  • 4 configurable buttons for PA announcements, talk to all, and GPO
  • Audio replay of missed comms
  • GPI inputs and outputs
  • Analogue inputs/outputs (2x 4-wire ports + 2x inputs + 2x outputs)
  • Built-in PoE switch to power up to 8 beltpacks or a wireless access point
  • 2 Public address output
  • 2 Program signal inputs
  • On- and Offline configuration software (Win/ Mac)

Specifications

General Specifications
Power Source

50 … 54 VDC

PoE Power

30W per PoE port

Sampling Rate

16 kHz

Headset Connector

XLR 4pin male

Connector Ethernet/LAN

4x RJ-45 EtherCon

Microphone Connector

1/4“ jack with 7/16“ -20 UNF thread

Built-in Speaker

5 Watts

Operating Temp.

-10° to +50°C

Operation Environment Humidity

0 to 90% non-condensing

H x W x D

19“ 1HU: 100 x 433 x 44 mm

Weight

1.7 kg


Headphone Output
Output impedance

27 Ohm

Output level

+ 18.5 dBu (max.)

Frequency response

20Hz to 7kHz (+0/-1dB)

Distortion @ 1kHz

<-73 dB (0.02%)

Dynamic range (20kHz)

95 dB (A-weighted)


Microphone Input
Bias Voltage

5.4V (typ.)

Full-scale input range

-53 … +4 dBu

Distortion @ 1kHz

< -75 dB (0.02%) @ + 4dBu FS (min. gain)
< -68 dB (0.04%) @ -30dBu FS
< -49 dB (0.35%) @ -53dBu FS (max. gain)

Dynamic range
92 dB (min. gain)
59 dB (max. gain)

Analog Interface Outputs
Input Impedance

< 2 Ohm

Input Level

+ 18 dBu (max.)


Frequency Response

20Hz to 7kHz (+0/-0.25dB)

Distortion @ 1kHz

<-80 dB (0.01%)

Dynamic Range (20kHz)

98 dB (A-weighted)


Analog Interface Inputs
Input Impedance

> 20 kOhm

Input Level

+ 18 dBu (max.)


Frequency Response

20Hz to 7kHz (+0/-0.25dB)

Distortion @ 1kHz

<-80 dB (0.01%)

Dynamic Range (20kHz)

90 dB (A-weighted)


GPI Inputs
Input Connector

D-Sub 9 female

Number of GPI Inputs

4

Input Type

Optocoupler input with current limiter

Input Voltage

5 … 50 VDC

Input Current

5 mA (typ.)


GPI Outputs
Output Connector

D-Sub 9 male

Number of GPI Outputs

4

Output Type

PhotoMOS Relay

On Resistance

< 3 Ohm

On Current

200 mA (max.) – resettable PTC fuse
400 mA

Maximum Voltage

50 VDC / 35 VAC

(*) all specifications are subject to change without notice
