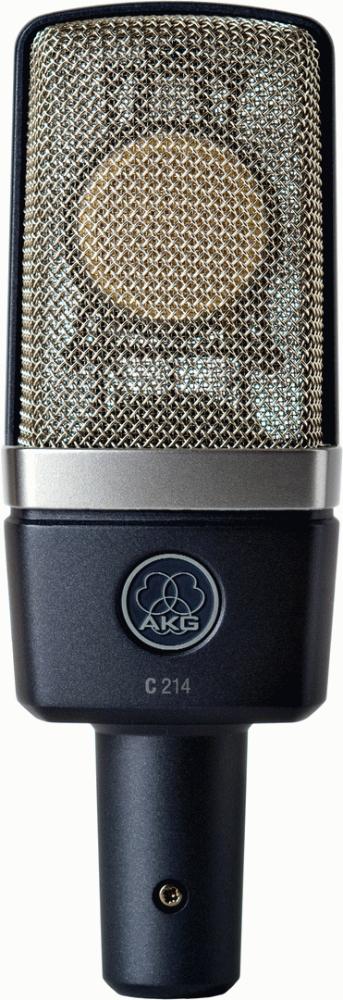

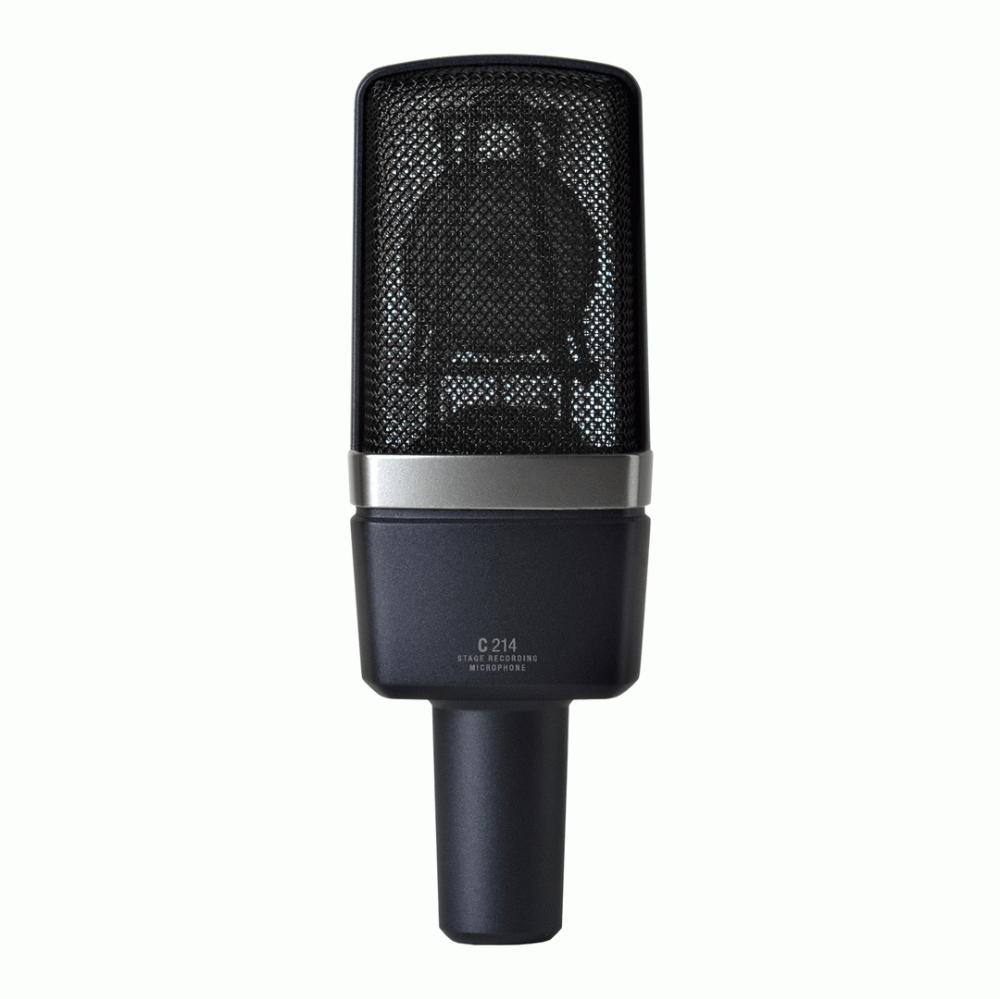

AKG C214 Large-Diaphragm Condenser Microphone

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family.  The C214 has fast become a favourite for vocals, guitar cabinets, drum overheads and orchestral work both in the studio and live on stage. for instruments.

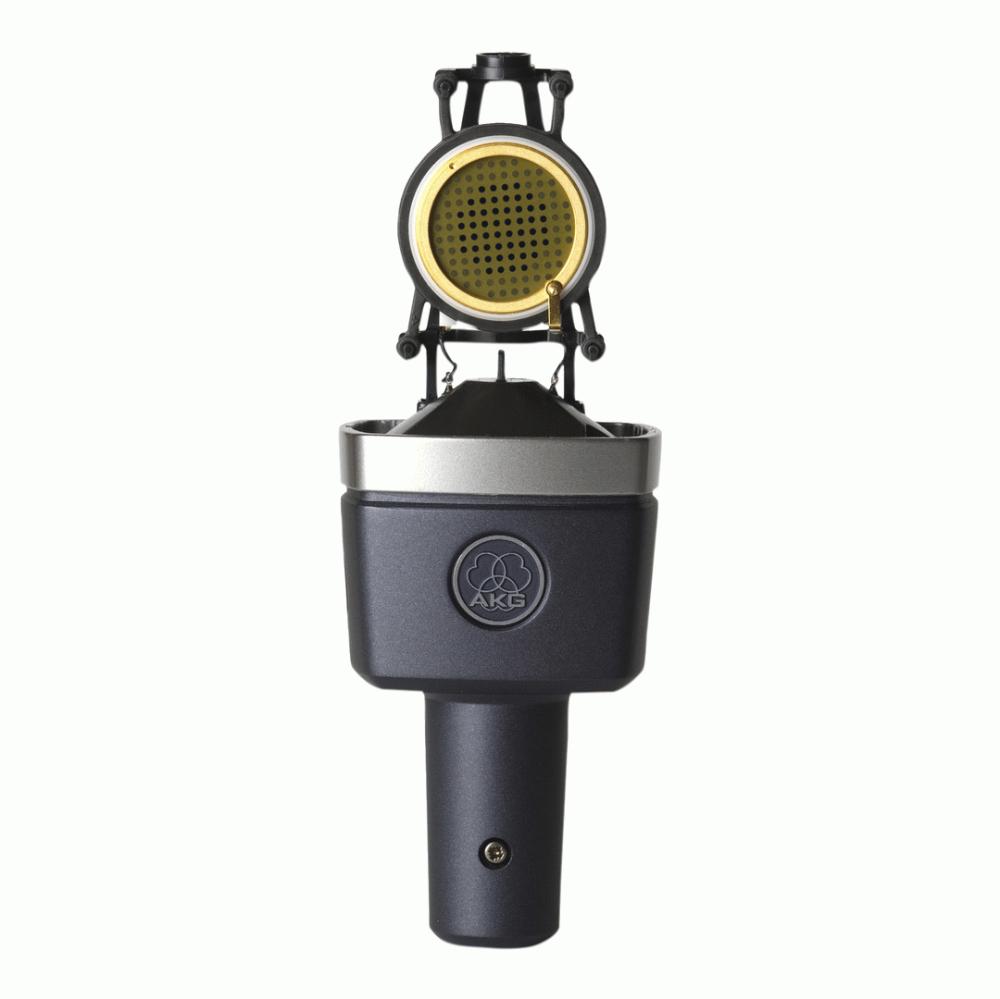

Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect.  The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.



Sonic character of the C414 XLII - for beautifully detailed recording of lead vocals and solo instruments
Outstanding dynamic range and ultralow noise - for close-up recording of high-output sources of up to 156dB SPL
Switchable 20dB attenuator and bass-cut filter - for close-up recording and reduction of proximity effect
Integrated suspension- to reduce mechanical noise and vibration from stage.
Roadworthy design -all-metal die-cast body with shock- and scratch-resistant finish

TECHNICAL SPECIFICATION

General	Audio frequency bandwidth 20 to 20000 Hz Equivalent Noise Level 13 dB-A Sensitivity 20 mV/Pa Signal to Noise 81 dB-A Preattenuation Pad -20 dB Bass Cut Filter 160 Hz Electrical Impedance 200 Ohms Recommended Load Impedance 1000 Ohms
Polar Patterns	Cardioid
Powering Interface	Voltage 9 to 52 V Current 2 mA
Audio Output	Type Balanced XLR Gender Male Contacts 3-pin
Design	Finish matte grayish blue
Dimensions / Weight	Width 56 mm Height 160 mm Net Weight 280 g
