Allen & Heath SQ Madi Audio Interface Module For SQ Series Mixers - 64X64 Bi-Directional Audio

Out of Stock, contact for ETA
Minus Plus

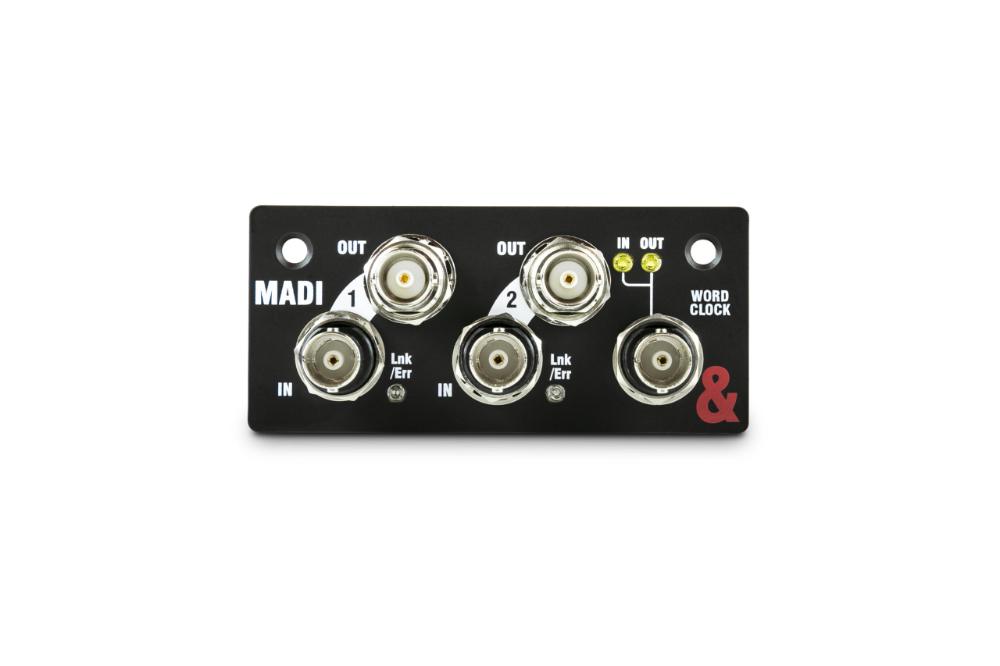

SQ MADI provides any SQ mixer with a 64×64 MADI interface running at either 48kHz or 96kHz. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to be either master or slave in the system.

SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third-party consoles for high-channel count feeds over coaxial cables.


  • 64×64 channel digital audio
  • 96kHz or 48kHz operation
  • Smux or HighSpeed 96kHz modes
  • Sync from inputs or separate wordclock
  • Console controlled error handling
  • 4x BNC connectors (2 links)
  • 1x BNC Wordclock I/O
