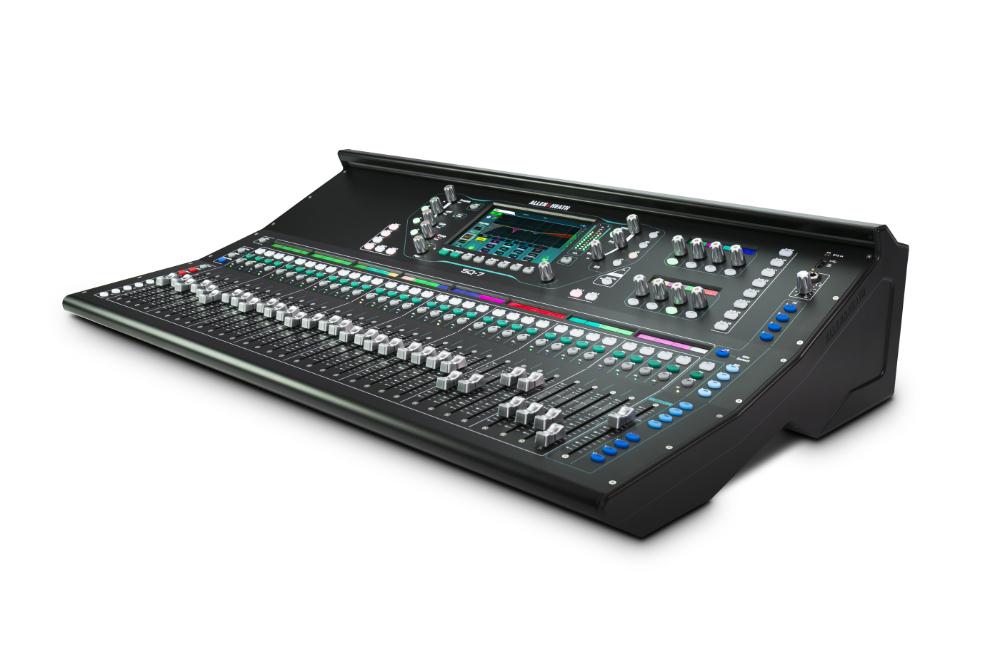

Allen & Heath SQ7 48 Channel 96Khz 33 Fader Digital Mixer
Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ-7 is built for professionals in the most demanding live sound applications. Delivering class-leading high resolution audio with an ultra-low <0.7ms latency, the SQ-7 gives you unrivalled power and audio fidelity. The mixer has 16 onboard preamps and 8 stereo FX engines with dedicated return channels and access to the acclaimed RackExtra FX library. 12 stereo mixes (configurable as groups or auxes) make SQ the perfect companion for in-ear monitoring setups, whilst Automatic Mic Mixing* takes the strain in multi-mic environments. SQ-5 gives you all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.
96kHz XCVI Core
SQ is a future-proofed, next-generation console, powered by Allen & Heath’s 96kHz XCVI FPGA engine. XCVI delivers class-leading high resolution audio quality, ultra-low latency of <0.7ms, variable bit depth for ultimate precision and noise performance, mix coherency down to the sample, and the sheer power to handle high channel / mix counts and ample FX / processing.
DEEP processing ready
SQ’s DEEP processing architecture allows owners to hand-pick boutique compressor and preamp emulations to suit their style and needs. DEEP plugins can be embedded directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.
The Ultimate IEM Mixer
With no less than 12 stereo mixes, super-low latency, and both parametric and graphic EQ on every mix, SQ is the perfect companion for in-ear monitoring setups. SQ’s airline-friendly compactness and rugged build quality mean there’s no reason to gamble on house monitor consoles again.
Expandable up to 48 mics
SQ-5 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.
Dante, Waves and more
SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too – add an audio networking card such as Dante or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.
Flexible multitrack recording
The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.
Also provided is a built-in 32×32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIO compliant and comes complete with MIDI and DAW control capabilities.
SQ’s advanced automatic mic mixer (AMM) features make it a natural choice for mixing conferences, panel talks and TV shows. It’s fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system.
Designed for the pro
We know that the live environment can be tough on gear – that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.
The Mixing Experience
We think that you should decide how the mixer operates, not the other way around. That’s why we’ve packed SQ with options that let you design your own workflows. Channels and mixes can be individually dragged and dropped to any strip, with custom naming and colour coding on the displays, so you’re in full control of the layout. SQ-7 features assignable 16 SoftKeys and 8 Soft Rotaries with LCD displays, so you get to choose which functions you always want at your fingertips. Each strip features our patented Chromatic Channel Metering system, giving at-a-glance level indication using variable brightness and colour. A ‘channel to all’ mix button instantly accesses all send levels and assignments for the selected channel.
Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best plug-ins, but with none of the associated hassle. SQ is armed with 8 stereo FX engines and features the acclaimed RackExtra library of emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. All FX have dedicated stereo returns so you don’t need to waste input channels.
ME Personal Mixing System
SQ is fully compatible with the ME Personal Mixing System, allowing the performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander
- 96kHz FPGA processing
- 48 Input Channels
- DEEP Processing ready
- 33 Faders / 6 Layers
- 12 Stereo mixes + LR
- 3 Stereo Matrix
- 8 Stereo FX Engines + dedicated returns
- 7” capacitive touchscreen
- SLink port for remote audio / expansion
- 64ch I/O Port for audio networking
- 32×32 USB audio interface
- SQ-Drive direct recording to USB
- AES output
- Chromatic channel metering
- Integrated LED illumination
- Dedicated physical controls
- 16 Assignable SoftKeys
- 8 Assignable Soft Rotaries
- Channel LCD displays
