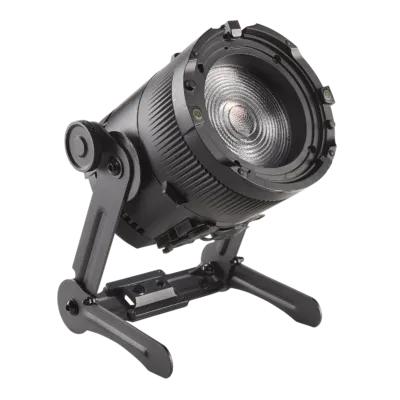

Astera QuikSpot Zoomable LED Spotligh with Removable Yoke

SKU: AS-QUKSP
$1,749.00 $1,927.51
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Astera
Description

QuikSpot is a battery-driven uplight, a precise zoomable Fresnel and a versatile, compact spotlight. With seamless integration into the Astera ecosystem, it’s the technician’s best friend, always ready to run and tackle any job.

Optimized Battery Runtime

Delivering 4.5 hours of maximum runtime with OutputGain activated, QuikSpot offers the best size-to-output wireless performance in its class. Charging and prepping is also extremely easy with the battery-driven PrepBox and its ChargingPlate.

Efficient optical design

QuikSpot’s lens system is specifically designed for maximum brightness, while working as a high-quality Fresnel. Use it as a hard spotlight, flood it for wide angle coverage, use filters to shape the beam or attach the SafetyLink-ready Barndoors for precise cuts.

Rigging made easy

Whether hung or on the floor, QuikSpot is ready to rock: focus it with the removeable Yoke or angle it with the integrated Kickstand, mount a pin in the back or add a TrackPin Compact to the airline track, attach a third-party clamp or use a FlexCover to blend the fixture into the surroundings.

QuikTurn

As simple as it seems. Adjust QuikSpot’s beam angle from 13º to 60º by simply turning the barrel. QuikTurn will stop at 30º to indicate that you are in the middle of the zoom range.

Specifications

LED Engine - Titan LED Engine
Colors - RGBMintAmber
Output Gain - Yes
Total LED Power - 60 W
LED Power Draw - 35 W
CRI (Ra) / TLCI 3200 – 6500 K* - ≥96
Strobe - 0 – 25 Hertz
Battery Runtime - up to 20 hours
Battery Runtime (max. Brightness) - 4.5 hours
Battery Lifetime - 70 % after 500 cycles
Charging Time (nominal) - 5 hours
AC Input - 100 – 240 VAC, 50/60 Hertz 115 VAC – 0.6 A / 230 VAC – 0.3 A
AC Connector - PowerCON TRUE1 IN/OUT
Power Consumption (max.) - 50 W
Wired DMX - Yes
CRMX Receiver - Built-in
BluetoothBridge BTB - Built-in
Wireless Protocols - CRMX, UHF, Bluetooth, WiFi
Wireless Range - CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
RDM Support - Wireless and wired
Infrared Control - Yes
PrepBox Compatible - Yes
IP Rating unwired - IP65
IP Rating wired - IP65
Ambient Operating Temperature - 0 – 40 °C / 32 – 104 °F
Weight - 3450 g / 7.6 lbs
Dimensions (L x W x D) - 164 mm x 164 mm x 182 mm / 6.45" x 6.45" x 7.16"
Mounting Options - AirlineTrack, 3/8"" – 16 UNC thread, Yoke (with 3/8"" – 16 UNC thread, 1/2"" hole)
