AstraWash 19 Pix

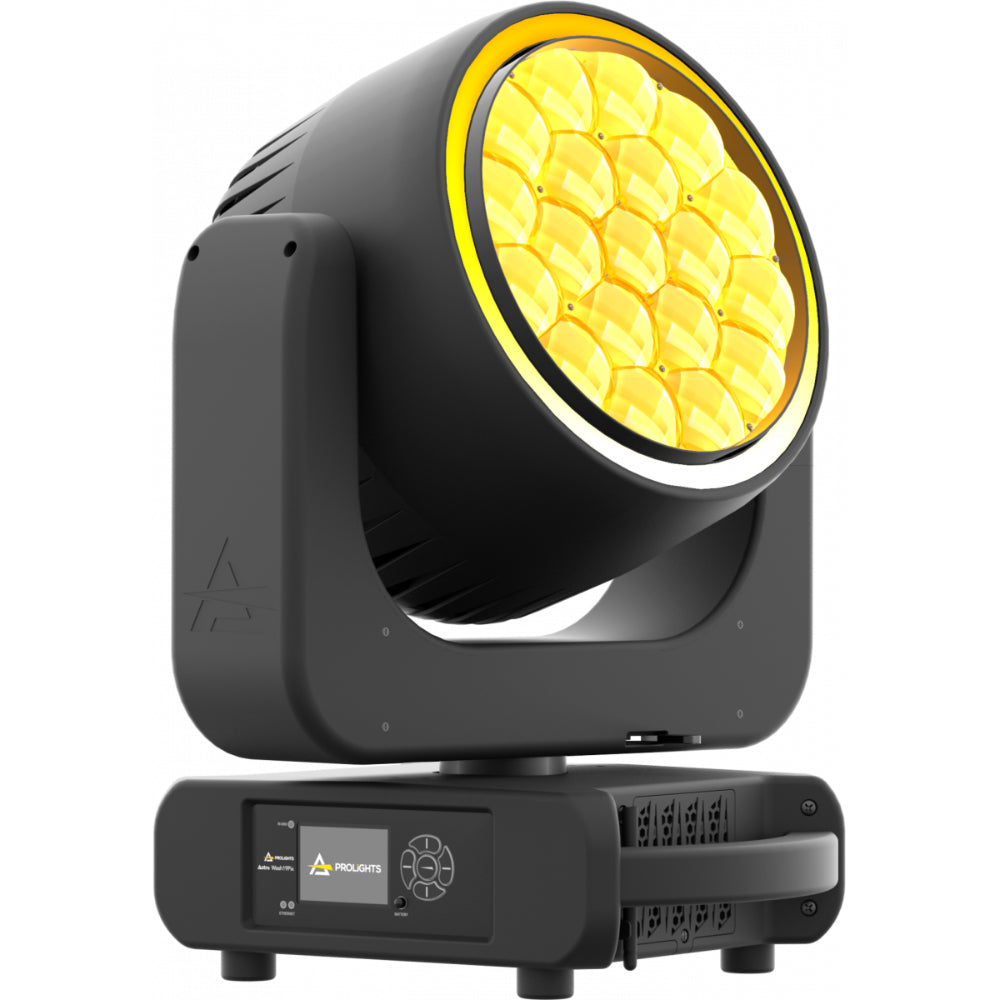

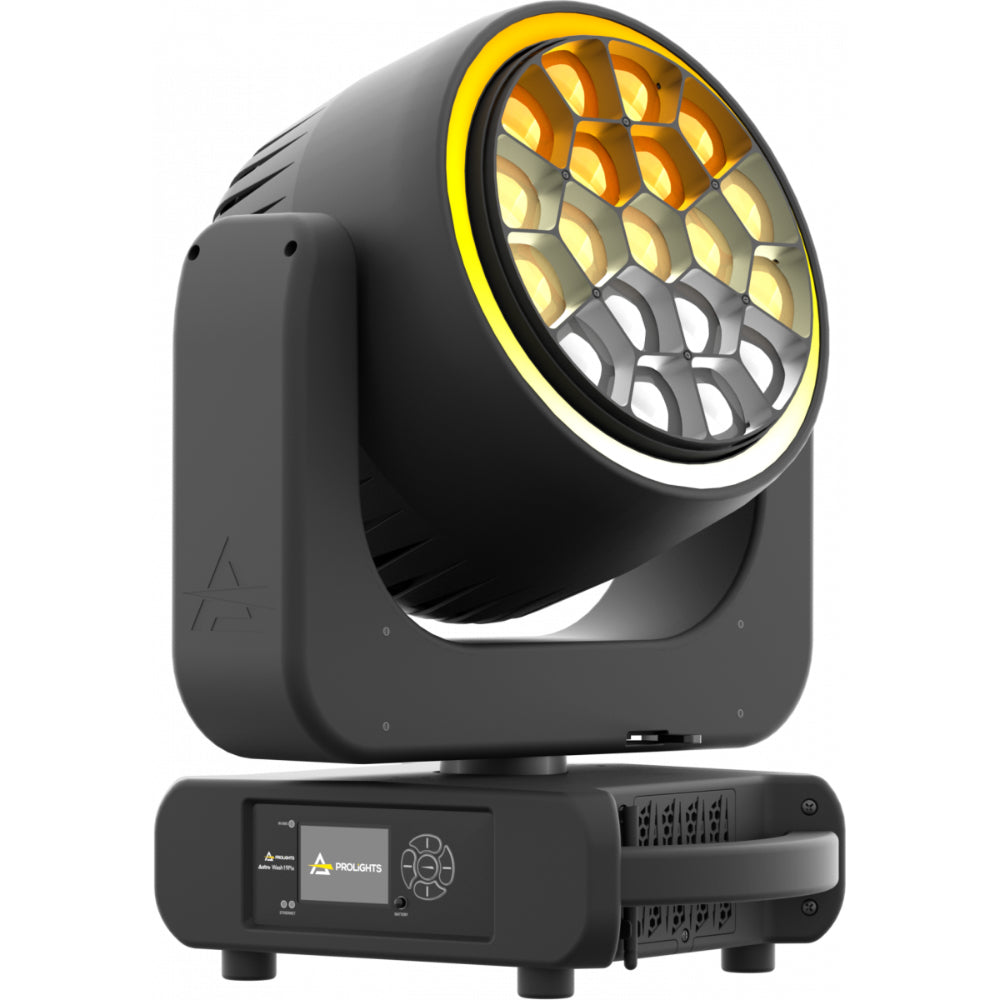

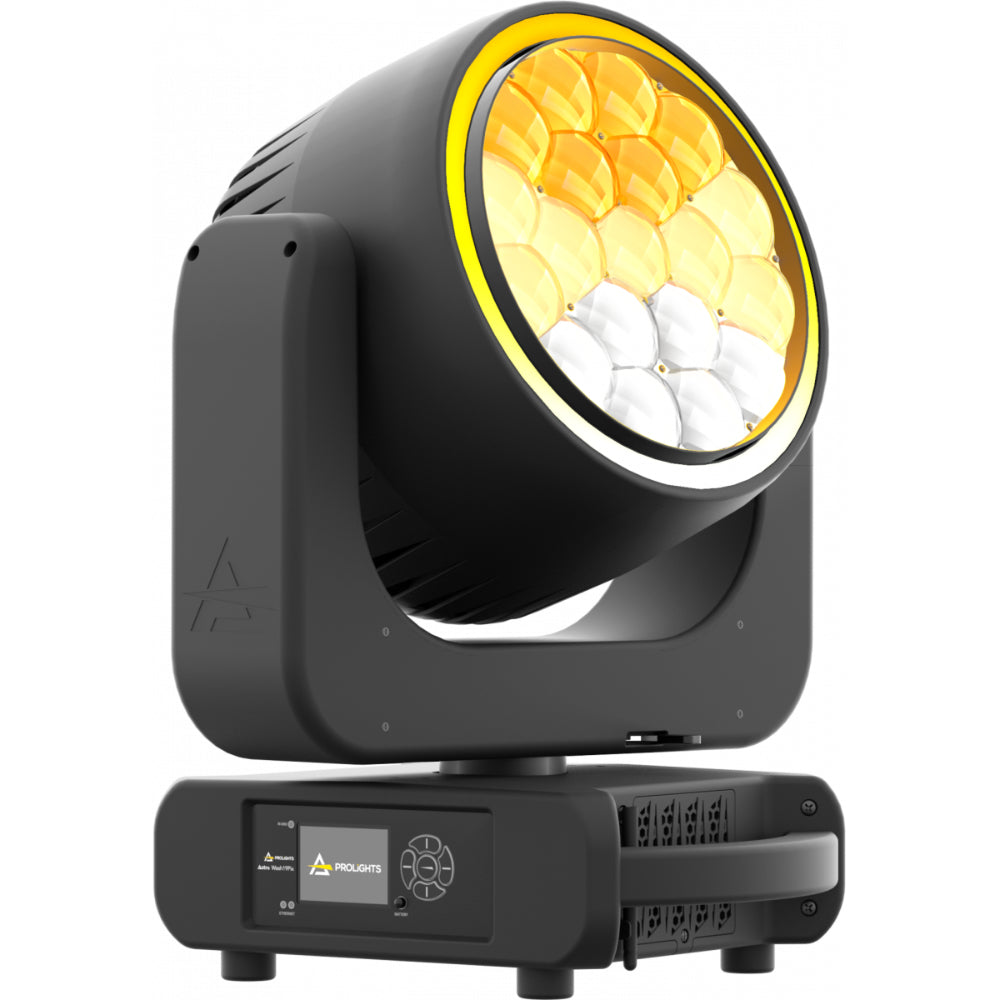

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Product Features:

• Silent operation, smooth and fast movements
• Zoom from 4° to 54° with high optical efficiency
• Pixel and ring control, precise white CCT, multiple FX and colour features

Specifications:

LIGHT SOURCE

▪ Source:19x40 W RGBW Osram Ostar LEDs
▪ Luminous flux:(4°) 5’505 lm - (54°) 10’143 lm @full
▪ Lux:(4°) 45’146 lx - (54°) 1174 lx @5 m full
▪ Other:outer RGB pixel ring with frost film
▪ Source life expectancy: > 50.000 h

OPTICS

▪ Zoom:4° - 54 ° motorised linear zoom
▪ Lens type: honeycomb gapless plano-convex optics
▪ Additional optics:diffuser on outer pixel ring

COLOUR SYSTEM

▪ Colour mixing: RGBW / FC
▪ CCT: CCT control, + / - green correction, tungsten emulation
▪ White presets:2.800 K ~ 10.000 K
▪ Colour wheel: virtual colour wheel with macros
▪ Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

▪ Control Resolution: 16-bit dimmer, colours
▪ Pixel patterns: pre-programmed dynamic and static patterns
▪ FX generator: adjustable foreground/background colour, index, speed, direction
▪ Special features:outer RGB, pixel ring with several built in FX macros and linear
crossfade channel from any white to any colour; virtual CTO on colours

BODY

▪ Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
▪ Pan angle:540 °
▪ Tilt angle:233 °
▪ Feedback: automatic repositioning after accidental movement
▪ Body: aluminium structure with high-resistance polycarbonate cover
▪ Body colour: RAL 9004

CONTROL

▪ Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
▪ DMX channels:main personality 29 / 32 / 53 channel
▪ Pixel control: OFF, ring and pixel2pixel
▪ Wireless Control: included, Wireless Solution transceiver
▪ RDM: RDM for remote monitoring and settings

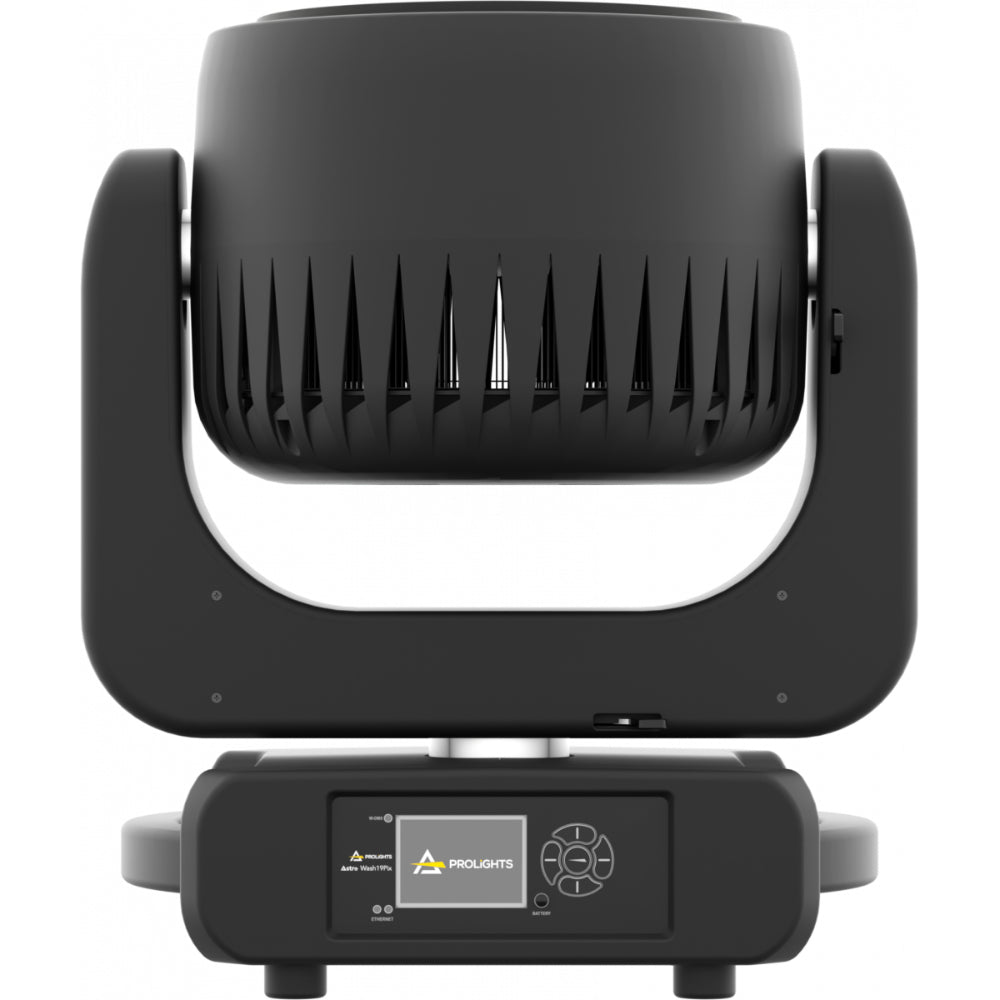

▪ Display: LCD high resolution colour display with autoflip
▪ Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

▪ Dimmer: linear 0 ~ 100% electronic dimmer
▪ Dimmer curves:4 selectable dimming modes available
▪ Strobe / shutter:1 - 30 Hz, electronic
▪ Display battery: self-charging battery backup
▪ Operating temperature: -10° ~ +45°
▪ LED Control: flicker free operation
▪ Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

▪ Mains power supply: 100-240V - 50/60Hz
▪ Max power consumption:620 W
▪ Output (at 230V):4 units on a single power line
▪ Power factor:> 0,95

PHYSICAL

▪ IP rating:20
▪ Cooling: forced air with fan
▪ Suspension and fixing: any position with quick-lock omega brackets
▪ Pan / tilt lock: for transportation and maintenance

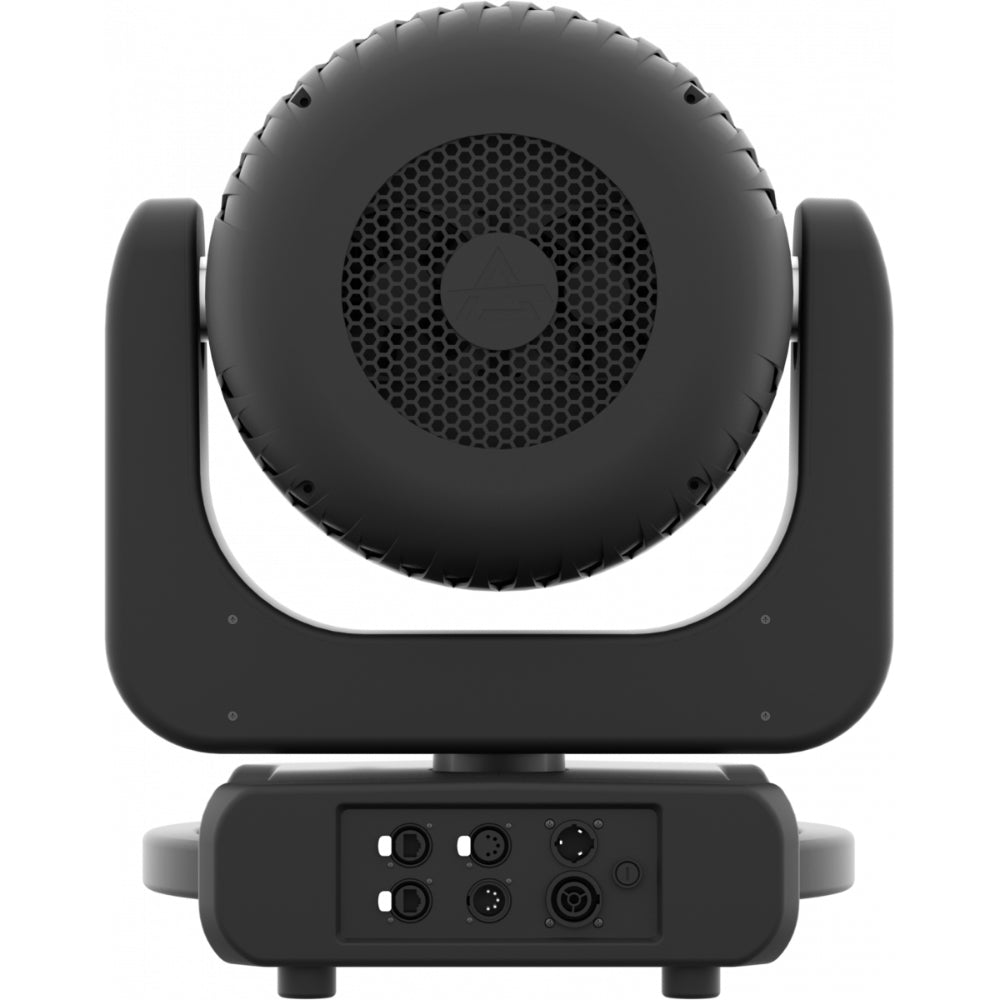

▪ Signal connection: Amphenol XLR 5p IN/OUT connectors
▪ Data connection:Neutrik Art-Net RJ45 IN/OUT
▪ Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
▪ Dimensions (WxHxD):410x514x250 mm
▪ Weight:17,4 kg

CERTIFICATIONS / APPROVALS

▪ Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
