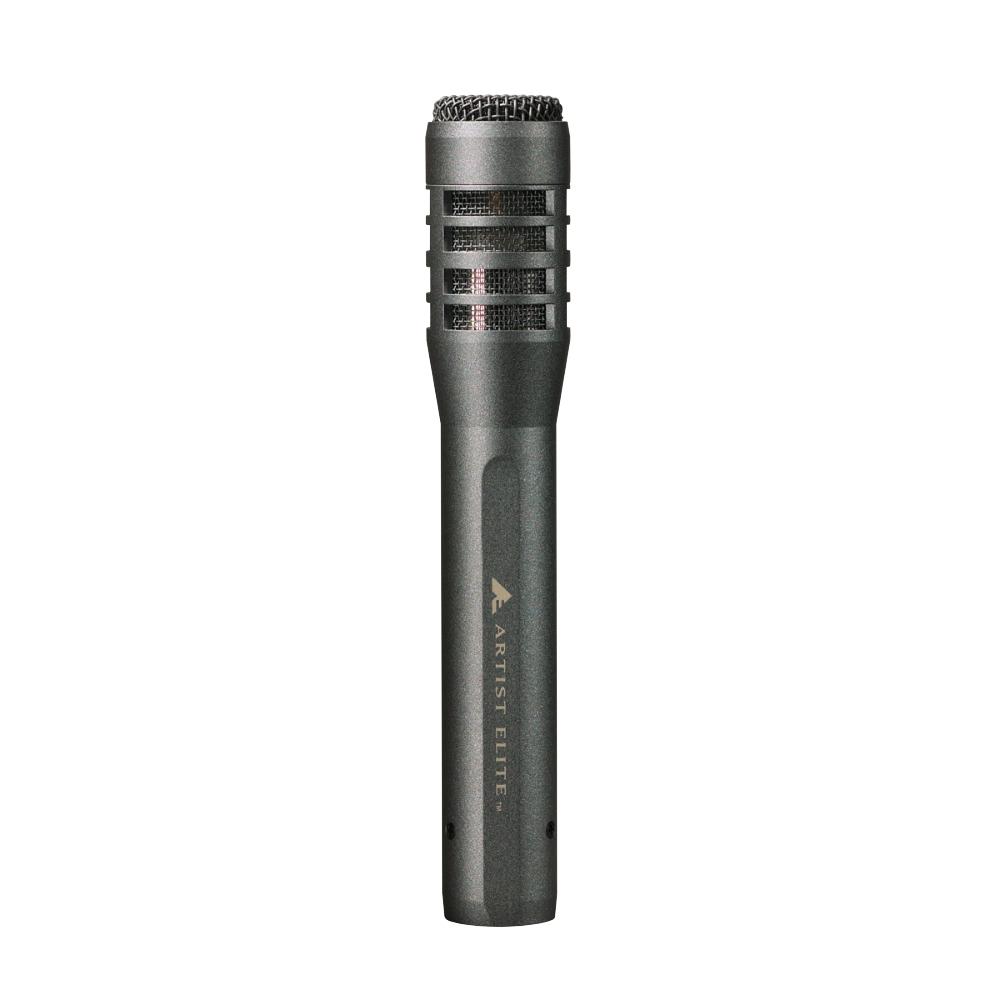

Audio Technica AE5100 Cardioid Condenser Large Diaphragm Acoustic Instrument Microphone

SKU: AE5100
$499.00 $549.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK

Audio Technica AE5100 Cardioid Condenser Large Diaphragm Acoustic Instrument Microphone is backordered and will ship as soon as it is back in stock.

Description

The Artist Elite® AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments. With rich, warm, accurate sound, the AE5100 also incorporates the most essential ingredients for quality live sound in a choir microphone. Its large-diaphragm capsule delivers accurate, natural response, while its low-profile design permits innovative placement options. With a lower profile than the large studio microphones to which it compares sonically, the AE5100 offers an outstanding performance-to-size ratio. With its low noise and smooth response, the AE5100 is ideal for recording, too.

    • Large-diaphragm capsule delivers accurate and natural response
    • Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
    • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
    • Robust design for enduring dependability on the road

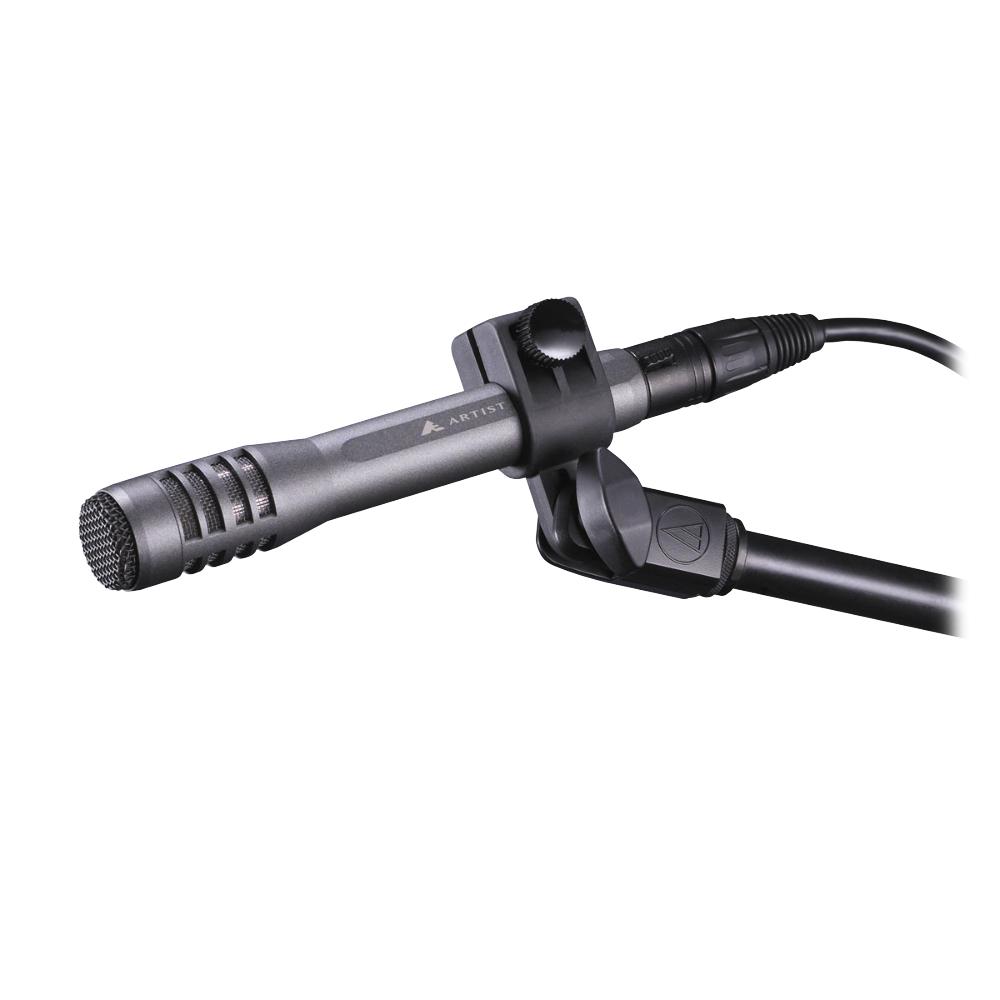

    • Includes isolation clamp for shock protection, secure mounting and easy positioning
  • Integral 80 Hz HPF switch and 10 dB pad

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY -36 dB (15.8 mV) re 1V at 1 Pa
IMPEDANCE 150 ohms
MAXIMUM INPUT SOUND LEVEL 148 dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL with 10 dB pad (nominal)
NOISE 11 dB SPL
DYNAMIC RANGE (typical) 137 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 83 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 3.2 mA typical
SWITCHES High-pass filter;
10 dB pad (nominal)
WEIGHT 5.0 oz (143 g)
DIMENSIONS 5.85" (148.5 mm) long,
1.02" (26.0 mm) maximum diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; soft protective pouch
AUDIO-TECHNICA CASE STYLE S4
